FP5109 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP5109

FP5109: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size75KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP5109 Overview

RF AMPLIFIER MODEL

FP5109 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	9.5 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	500 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

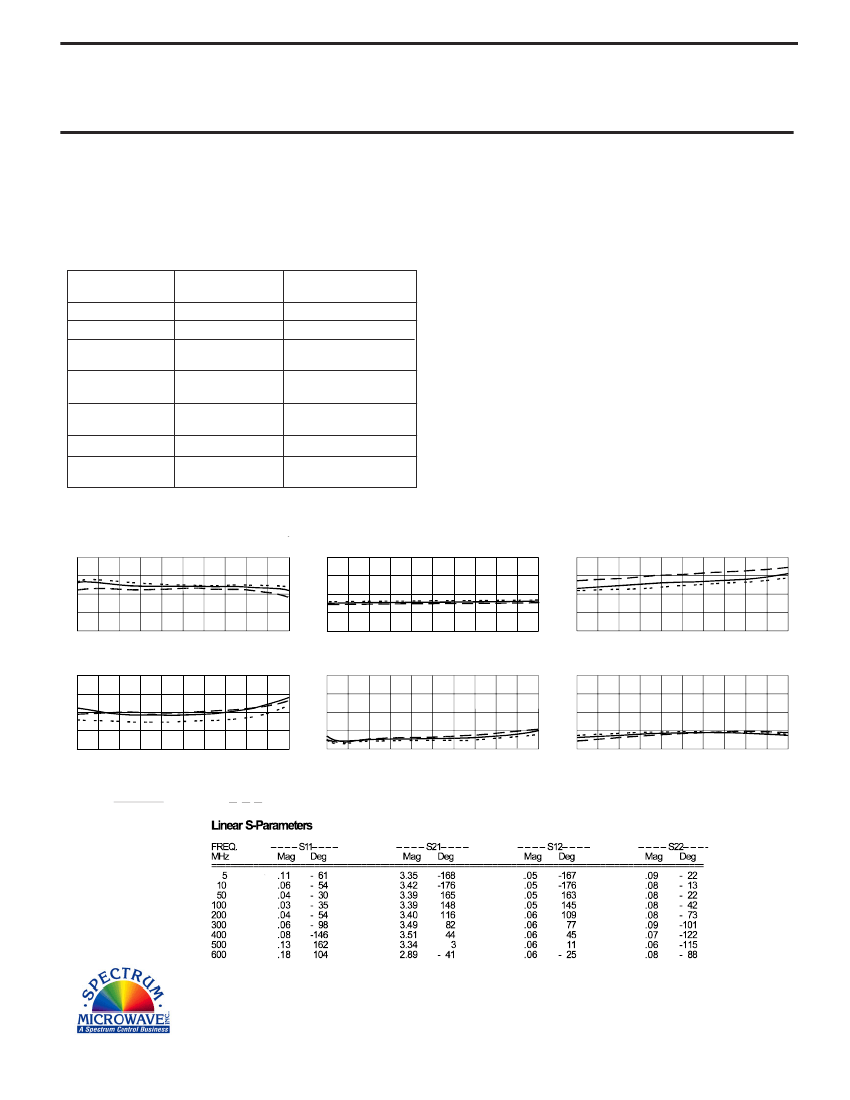

RF AMPLIFIER

MODEL

TM5109

Features

Medium Gain: 10.5 dB Typical

Medium Output Power: +13.0 dBm Typical

Operating Temp. - 55 ºC

to +85

ºC

Environmental Screening Available

Available as:

TM5109, 4 Pin TO-8 (T4)

TN5109, 4 Pin Surface Mount (SM3)

FP5109, 4 Pin Flatpack (FP4)

BX5109, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point....... +45 dBm (Typ.)

Second Order Two Tone Intercept Point........ +40 dBm (Typ.)

Third Order Two Tone Intercept Point............ +28 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

10-500 MHz

10.5

+13

-24

<1.5:1

<4.0

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

10-500 MHz

9.5 Min.

+12.0 Min

-23 Max

2.0:1 Max.

5.0 Max.

+15

38 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage .......................................................... + 18Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power.... 100 Milliwatts (1 Minute Max.)

Maximum Peak Power.................... 0.2 Watt (3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Gain (dB)

Start 10 MHz

Stop 500 MHz

- 10

- 20

- 30

- 40

Reverse Isolation (dB)

Start 10 MHz

Stop 500 MHz

Start 10 MHz

Noise Figure (dB)

Stop 500 MHz

1 dB Comp. (dBm)

+15

+14

+13

+12

+11

Start 10 MHz

Stop 500 MHz

Input VSWR (dB)

2.0

1.5

1.0

Start 10 MHz

Stop 500 MHz

Output VSWR (dB)

2.0

1.5

1.0

Start 10 MHz

Stop 500 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

6/8/04

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP5109 Related Products

	FP5109	BX5109	TM5109	TN5109
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compli	compli	-
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	-
structure	COMPONENT	COAXIAL	COMPONENT	-
Gain	9.5 dB	9.5 dB	9.5 dB	-
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	-
Maximum operating frequency	500 MHz	500 MHz	500 MHz	-
Minimum operating frequency	10 MHz	10 MHz	10 MHz	-
Maximum operating temperature	85 °C	85 °C	85 °C	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	-
Maximum voltage standing wave ratio	2	2	2	-
