FPL9010: DescriptionRF LIMITER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size76KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FPL9010 Overview

RF LIMITER MODEL

FPL9010 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	unknow
Other features	I/P POWER-MAX (PEAK)=23DBM
structure	COMPONENT
Maximum input power (CW)	13 dBm
Maximum operating frequency	1000 MHz
Minimum operating frequency	50 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

RF LIMITER

MODEL

TL9010

Features

Voltage Variable Limiting Level





Good Even Order Harmonic Suppresion

Low

Insertion Loss



Low

VSWR



4



Pin TO-8 Metal Hermetic Package

Operating

Temp. -55

º

C to + 85

º

C



Available as:

TL9010, 4 Pin TO-8 (T4)

TNL9010, 4 Pin Surface Mount (SM3)

FPL9010, 4 Pin Flatpack (FP4)

BXL9010, Connectorized Housing (H1)

Specifications

CHARACTERISTIC

Frequency (MHz)

Insertion Loss @

Pin < -20 dBm (Max)

5-1000 MHz

1000-3000 MHz

Input VSWR (Max)

Pin <-10 dBm,

+10 Vdc< V bias< +20 Vdc

Output VSWR (Max)

Pin <-10 dBm,

+10 Vdc< V bias< +20 Vdc

5-1000 MHz

1000-3000 MHz

Output Limiting Level

Pin=+20 dBm

5-2000 MHz

2000-3000 MHz

Bias Current (Max)

@ 15Vdc

@ 20Vdc

Revision 2/22/2012

Ta= 25

ºC

5 - 3200 MHz

TYPICAL

Ta = -55

ºC

to +85ºC

5 - 3000 MHz

MIN/MAX

Absolute Maximum (No Damage) Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 25 Volts

Continuous RF Input Power ................................. + 20 dBm

Short Term RF Input Power.... 200 Milliwatts (1 Minute Max.)

Maximum Peak Power.................... 0.5 Watt (3

μsec

Max.)

2.0

3.0

1.7:1

3.5

5.5

2.1:1

1.7:1

2.0:1

2.5

6.5

7

10

2.2:1

2.5:1

4.5

7.0

10

15

Note: Care should always be taken to effectively ground the case of each unit.

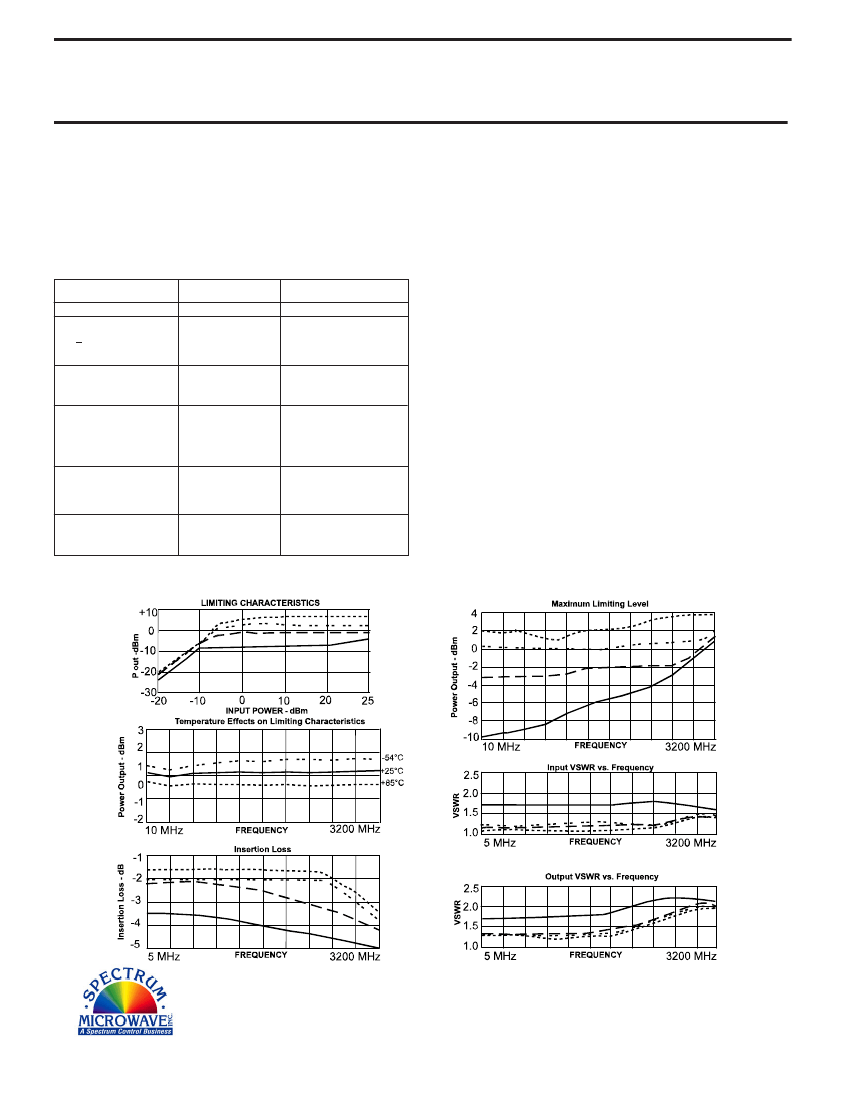

Typical Performance Data

Legend:______+5Vdc __ __ __+10Vdc _ _ _ _+15Vdc - - - - - -+20Vdc

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FPL9010 Related Products

	FPL9010	BXL9010	TL9010	TNL9010
Description	RF LIMITER MODEL	RF LIMITER MODEL	RF LIMITER MODEL	RF LIMITER MODEL
Maker	API Technologies	API Technologies	-	API Technologies
Reach Compliance Code	unknow	compli	-	compli
Other features	I/P POWER-MAX (PEAK)=23DBM	I/P POWER-MAX (PEAK)=27DBM	-	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT	COAXIAL	-	COMPONENT
Maximum input power (CW)	13 dBm	20 dBm	-	20 dBm
Maximum operating frequency	1000 MHz	3000 MHz	-	3000 MHz
Minimum operating frequency	50 MHz	5 MHz	-	5 MHz
Maximum operating temperature	100 °C	100 °C	-	100 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	-	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2.5	-	2.5
