Datasheet> All Categories > Discrete semiconductor> diode> SX5802US

SX5802US: DescriptionRectifier Diode, 1 Phase, 1 Element, 2.5A, 50V V(RRM), Silicon, HERMETIC SEALED, GLASS, MELF-A, 2 PIN; CategoryDiscrete semiconductor diode; File Size248KB，4 Pages; ManufacturerSENSITRON; Websitehttp://www.sensitron.com/

Download Datasheet Parametric View All

SX5802US Overview

Rectifier Diode, 1 Phase, 1 Element, 2.5A, 50V V(RRM), Silicon, HERMETIC SEALED, GLASS, MELF-A, 2 PIN

SX5802US Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SENSITRON
Parts packaging code	MELF
package instruction	E-LELF-R2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	METALLURGICAL BONDED
application	ULTRA FAST RECOVERY
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.875 V
JESD-30 code	E-LELF-R2
Maximum non-repetitive peak forward current	35 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	175 °C
Maximum output current	2.5 A
Package body material	GLASS
Package shape	ELLIPTICAL
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	50 V
Maximum reverse recovery time	0.025 µs
surface mount	YES
Terminal form	WRAP AROUND
Terminal location	END
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

SENSITRON

___

SEMICONDUCTOR

TECHNICAL DATA

DATA SHEET 158, REV. F.3

1N5802/US thru 1N5806/US

Standard

ULTRAFAST RECOVERY

RECTIFIERS

V AI L AB L E AS

1 N , J AN , J AN T X , J ANT XV

JANS

JAN EQUIVALENT *

SJ*, SX*, SV*, SS*

Ultrafast Recovery Rectifiers

Qualified per MIL-PRF-19500/477

DESCRIPTION:

This voidless hermetically sealed ultrafast recovery rectifier diode series is military qualified per

MIL-PRF-19500/477 and is targeted for space, commercial and military aircraft, military vehicles,

shipboard markets and all high reliability applications.

FEATURES / BENEFITS:



Hermetic, non-cavity glass package

Category I Metallurgically bonded

All devices are 100% hot solder dipped

JAN/ JANTX/JANTXV available per

MIL-PRF-19500/477

“JANS Plus” removes atypical/out of family V



MAXIMUM RATINGS



Operating and Storage Temperature: -65 C to

+175 C

Thermal Resistance: 36 C (junction to lead)

Thermal Resistance: 13 C (junction to endcap)

Forward surge current: 35A @ 8.3 ms half-sine

ELECTRICAL CHARACTERISTICS

TYPE

NUMBER

WORKING

PEAK

REVERSE

VOLTAGE

Volts

100

150

AVG

RECTIFIED

CURRENT

Amps

55C

2.5

MAXIMUM

REVERSE

CURRENT

@ PIV

Amps

25C

125C

175

MAX. PEAK

FORWARD

VOLTAGE

(PULSED)

@ 1A

.875

MAXIMUM

SURGE

CURRENT

FSM

Amps

MAXIMUM

REVERSE

RECOVERY

TIME

nsec

1N5802/US

1N5804/US

1N5806/US

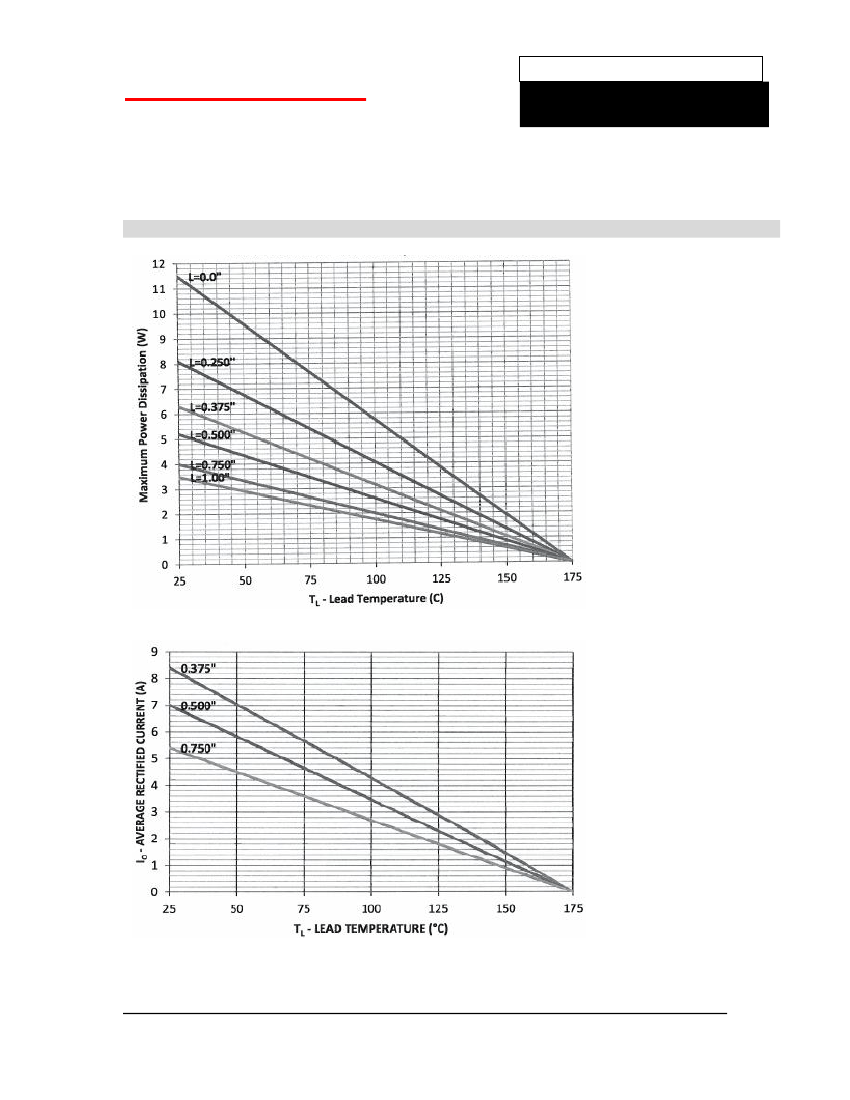

Note 1: T

= T

at L=0 or T

end tab

f or US suffix devices. Derate at 25mA/C for T

above 75C.

Note 2: I

= 1A, 8ms surge

Note 3: I

=0.5A, Irm=1A, I

r(REC)

=.25A

*Sensitron

space equivalent diodes

are manufactured and screened to MIL-PRF-19500 flow and guidelines starting

from wafer fabrication through assembly and testing using our internal specification.



221 West Industry Court



Deer Park, NY 11729-4681

Phone (631) 586 7600 Fax (631) 242 9798



www.sensitron.com



sales@sensitron.com

SENSITRON

___

SEMICONDUCTOR

1N5802/US thru 1N5806/US

Standard

ULTRAFAST RECOVERY

RECTIFIERS

______________________________________________________________________________________

TECHNICAL DATA

DATA SHEET 158, REV. F.3

PART ORDERING INFORMATION

The following part numbers can be purchased in either axial or surface mount devices and screened and tested to the

military screening flow. The parts are marked in accordance with the testing performed, example:

Sensitron Screening Level

*Part Number--

Leaded Package

(example for 1N5802)

*Part Number--

Surface Mount Package

(example for 1N5802US)

1N5802US

JAN1N5802US

SJ5802US

JANTX1N5802US

SX5802US

JANTXV1N5802US

SV5802US

JANS1N5802US

SS5802US

1N5802

JAN

JAN1N5802

SJ5802

JANTX

JANTX1N5802

SX5802

JANTXV

JANTXV1N5802

SV5802

JANS

JANS1N5802

SS5802

*Parts can also be ordered Tape & Reel

DISCLAIMER:

1- The information given herein, including the specifications and dimensions, is subject to change without prior notice to improve product

characteristics. Before ordering, purchasers are advised to contact the Sensitron Semiconductor sales department for the latest version of the

datasheet(s).

2- In cases where extremely high reliability is required (such as use in nuclear power control, aerospace and aviation, traffic equipment,

medical equipment , and safety equipment) , safety should be ensured by using semiconductor devices that feature assured safety or by

means of users’ fail-safe precautions or other arrangement .

3- In no event shall Sensitron Semiconductor be liable for any damages that may result from an accident or any other cause during operation of

the user’s units according to the datasheet(s). Sensitron Semiconductor assumes no responsibility for any intellectual property claims or any

other problems that may result from applications of information, products or circuits described in the datasheets.

4- In no event shall Sensitron Semiconductor be liable for any failure in a semiconductor device or any secondary damage resulting from use at

a value exceeding the absolute maximum rating.

5- No license is granted by the datasheet(s) under any patents or other rights of any third party or Sensitron Semiconductor.

6- The datasheet(s) may not be reproduced or duplicated, in any form, in whole or part, without the expressed written permission of Sensitron

Semiconductor.

7- The products (technologies) described in the datasheet(s) are not to be provided to any party whose purpose in their application will hinder

maintenance of international peace and safety nor are they to be applied to that purpose by their direct purchasers or any third party. When

exporting these products (technologies), the necessary procedures are to be taken in accordance with related laws and regulations.



221 West Industry Court



Deer Park, NY 11729-4681

Phone (631) 586 7600 Fax (631) 242 9798



www.sensitron.com



sales@sensitron.com
