RF AMPLIFIER
MODEL
TM3107
Features
!
High IP3: +38 dBm Typical
!
High Second Order Harmonics: +60 dBm Typical
!
Unconditionally Stable
!
RoHs Compliant
Available as:
TM3107, 4 Pin TO-8 (T4)
TN3107, 4 Pin Surface Mount (SM3)
BX3107, Connectorized Housing (H1)
Typical Intermodulation Performance at 25 ºC
Second Order Harmonic Intercept Point........+60 dBm (Typ.)
Second Order Two Tone Intercept Point.........+55 dBm (Typ.)
Third Order Two Tone Intercept Point.............+38 dBm (Typ.)
Specifications
CHARACTERISTIC
Frequency
Gain (dB)
Power @ 1 dB
Comp. (dBm)
Reverse
Isolation (dB)
In
Out
Noise Figure (dB)
Power
Vdc
mA
VSWR
TYPICAL
Ta= 25
ºC
500 - 2500 MHz
20.0
24
-30
1.5:1
1.5:1
3.5
+15
160
MIN/MAX
Ta = -40
ºC
to +85
ºC
500 - 2500 MHz
18.0 / 22.0
22 Min.
-29 Max.
1.8:1 Max.
1.8:1 Max.
5.0 Max.
+15
180 Max.
Absolute Maximum (No Damage) Ratings
Ambient Operating Temperature ................ -55ºC to +100 ºC
Storage Temperature ................................. -62ºC to +125 ºC
Maximum Operating Case Temperature .................. +125 ºC
DC Voltage..........................................................+17 Volts
Continuous RF Input Power...................................+15 dBm
Maximum Peak Power....................+20 dBm (1
µsec
Max.)
TJC (.450” sq. Kovar Package)..................................+34ºC
Note: Care should always be taken to effectively ground the case of each unit.

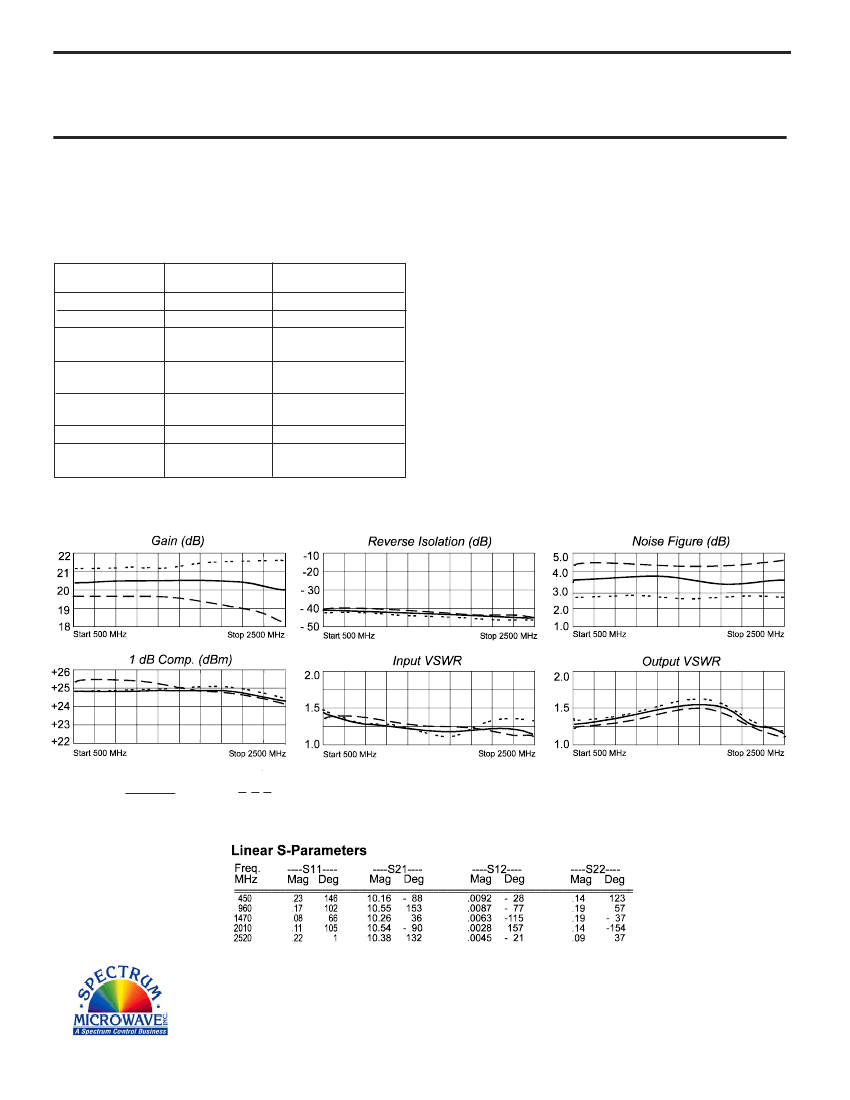

Typical Performance Data
Legend
+25 ºC
+85 ºC - - - - - - -40 ºC
