NM24W04LMT8X datasheet, PDF - EEWORLD Datasheet

NM24W04LMT8X: DescriptionEEPROM, 512X8, Serial, CMOS, PDSO8, PLASTIC, TSSOP-8; Categorystorage storage; File Size344KB，12 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

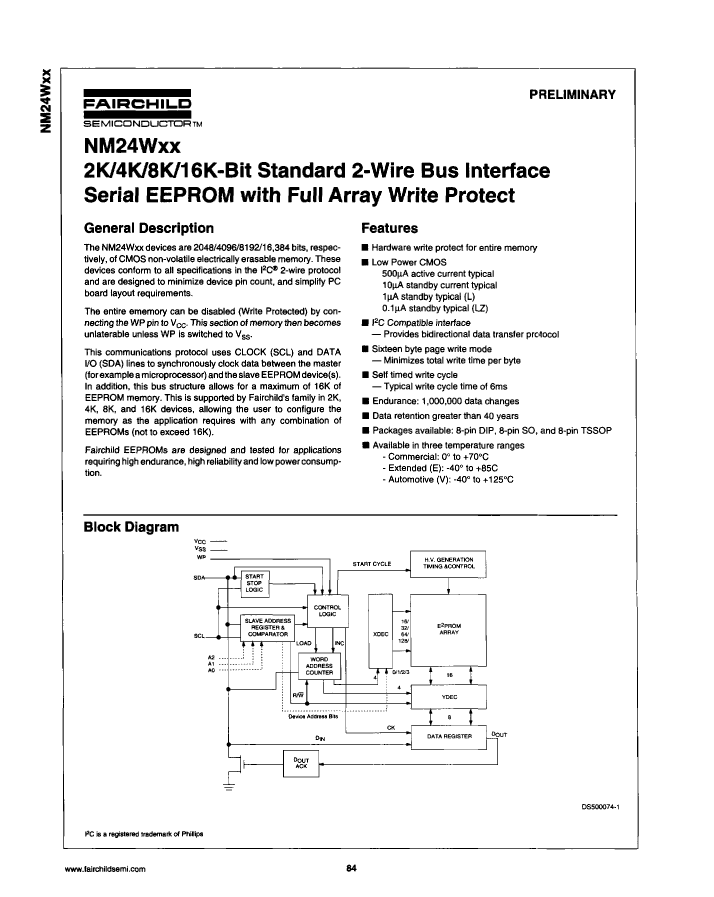

NM24W04LMT8X Overview

EEPROM, 512X8, Serial, CMOS, PDSO8, PLASTIC, TSSOP-8

Parameter Name	Attribute value
Maker	Fairchild
Parts packaging code	SOIC
package instruction	TSSOP,

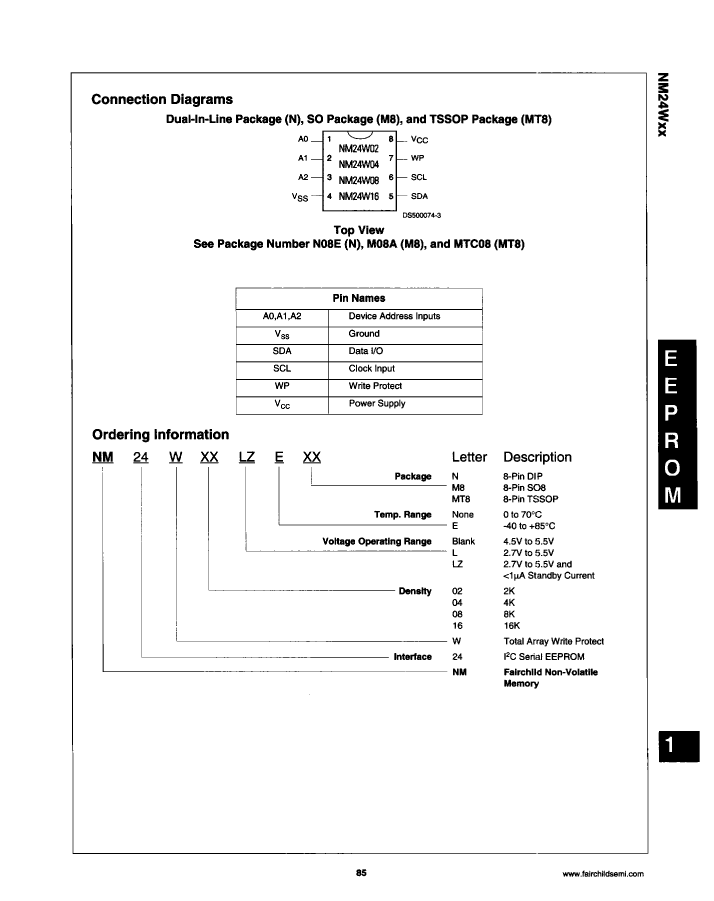

Contacts	8
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	16 BYTE PAGE WRITE; DATA RETENTION > 40 YEARS
Maximum clock frequency (fCLK)	0.1 MHz
Data retention time - minimum	40
JESD-30 code	R-PDSO-G8
length	4.4 mm
memory density	4096 bit
Memory IC Type	EEPROM
memory width	8
Number of functions	1
Number of terminals	8
word count	512 words
character code	512
Operating mode	SYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	512X8
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Parallel/Serial	SERIAL
Certification status	Not Qualified
Maximum seat height	1.2 mm
Serial bus type	I2C

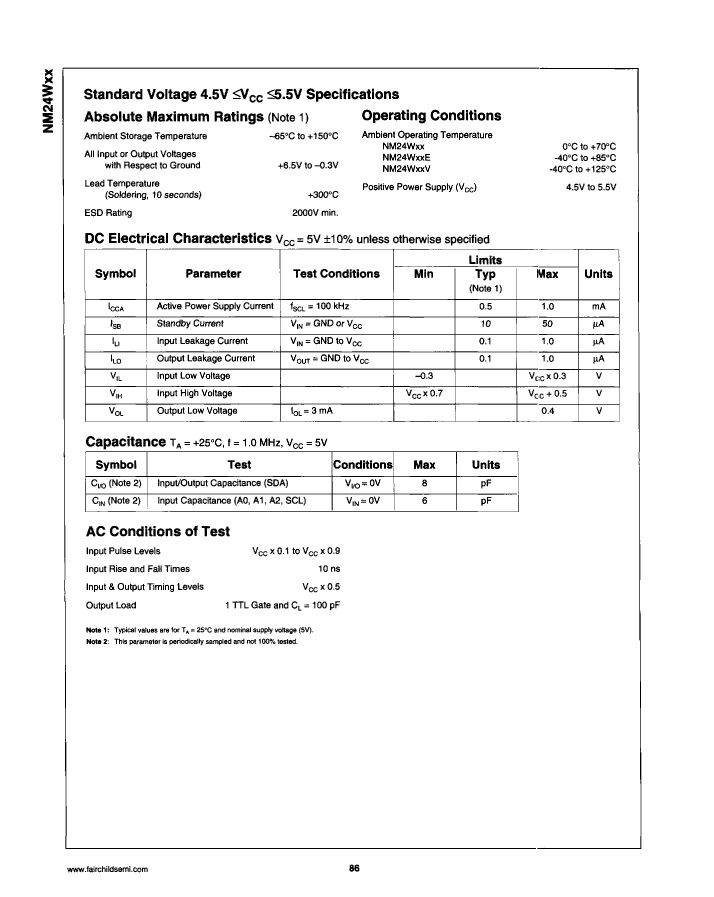

Maximum supply voltage (Vsup)	5.5 V

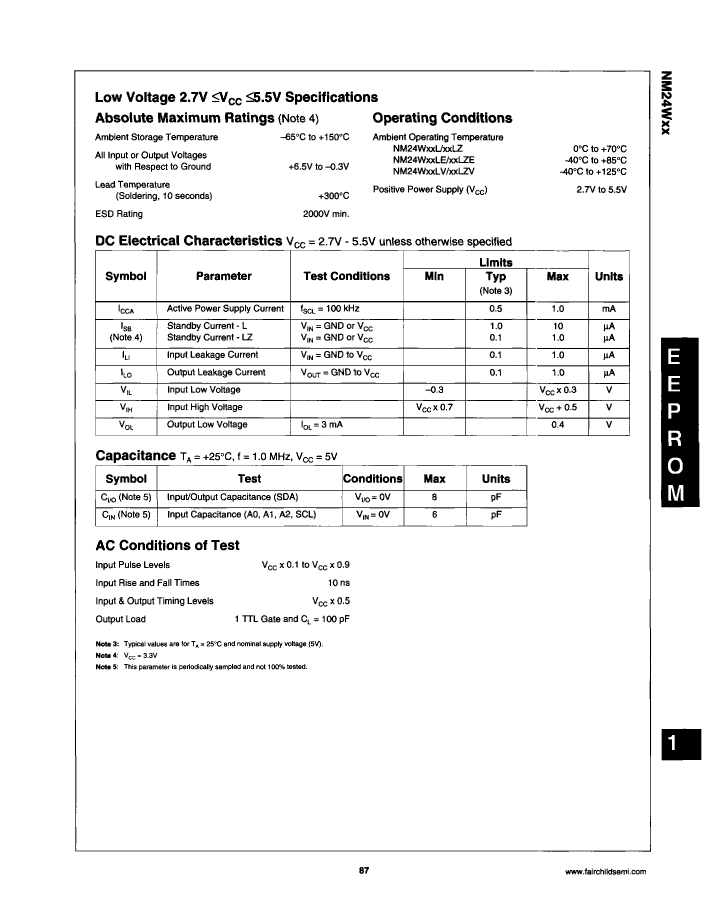

Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	3 mm

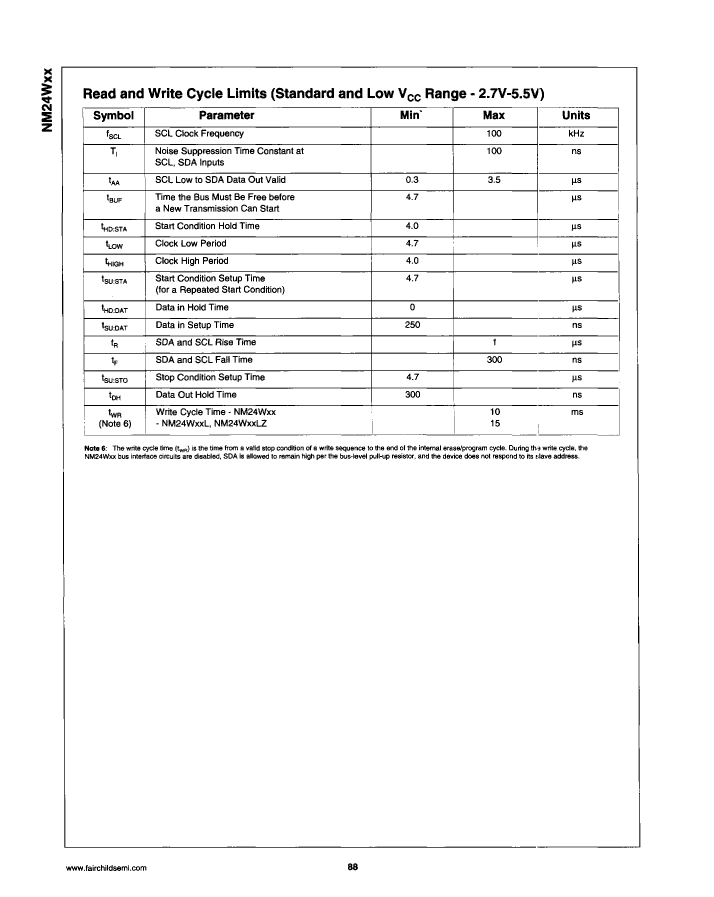

Maximum write cycle time (tWC)	15 ms
