FRS2K datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> FRS2K

FRS2K: DescriptionRectifier Diode, 1 Phase, 1 Element, 1.5A, 800V V(RRM), Silicon, DO-214AA, PLASTIC, SMB, 2 PIN; CategoryDiscrete semiconductor diode; File Size47KB，2 Pages; ManufacturerFagor Electrónica; Environmental Compliance

Download Datasheet Parametric Compare View All

FRS2K Overview

Rectifier Diode, 1 Phase, 1 Element, 1.5A, 800V V(RRM), Silicon, DO-214AA, PLASTIC, SMB, 2 PIN

FRS2K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Fagor Electrónica
Parts packaging code	DO-214AA
package instruction	PLASTIC, SMB, 2 PIN
Contacts	2
Reach Compliance Code	not_compliant
ECCN code	EAR99
application	FAST RECOVERY
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JEDEC-95 code	DO-214AA
JESD-30 code	R-PDSO-C2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	50 A
Number of components	1
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Maximum output current	1.5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	800 V
Maximum reverse current	5 µA
Maximum reverse recovery time	0.3 µs
surface mount	YES
Terminal surface	Matte Tin (Sn)
Terminal form	C BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

FRS2A ........ FRS2M

1.5 Amp. Surface Mounted Glass Passivated Fast Recovery Rectifier

Dimensions in mm.

5.1

± 0.3

CASE:

SMB/DO-214AA

Voltage

50 to 1000 V

Current

1.5 A

1.25

± 0.25

1.25

± 0.25

Week code

•

Glass passivated junction

•

High current capability

•

The plastic material carries U/L 94 V-0

•

Low profile package

•

Easy pick and place

•

High temperature soldering 260 ºC 10 sec

2.0

Year code

Type No. Closs

4.2

Standard soldering pad

MECHANICAL DATA

Terminals: Solder plated, solderable per IEC 68-2-20.

Standard Packaging: 8 mm. tape (EIA-RS-481).

Weight: 0.093 g.

Maximum Ratings and Electrical Characteristics at 25 ºC

FRS2A

FRS2B

FRS2D FRS2G FRS2J

FRS2K FRS2M

Marking Code

RRM

RMS

F(AV)

FSM

th (j-l)

th (j-a)

j -

stg

Maximum Recurrent Peak Reverse Voltage

Maximum RMS Voltage

Maximum DC Blocking Voltage

Forward current at T

= 100 ºC

100

200

140

200

400

280

400

1.5 A

50 A

1.3 V

5 µA

200 µA

600

420

600

800

560

800

1000

700

1000

8.3 ms. peak forward surge current

(Jedec Method)

Maximum Instantaneous Forward

Voltage at 1.5 A

Maximum DC Reverse Current

at Rated DC Blocking Voltage

Ta = 25 ºC

Ta = 125 ºC

150 ns

Maximum Reverse Recovery Time (0.5/1/0.25A)

Typical Junction Capacitance (1MHz; -4V)

Typical Thermal Resistance

(5x5 mm

x 130 µ Copper Area)

Operating Junction and Storage

Temperature Range

250 ns

35 pF

20 ºC/W

60 ºC/W

300 ns

-55 to + 150 ºC

Jun - 03

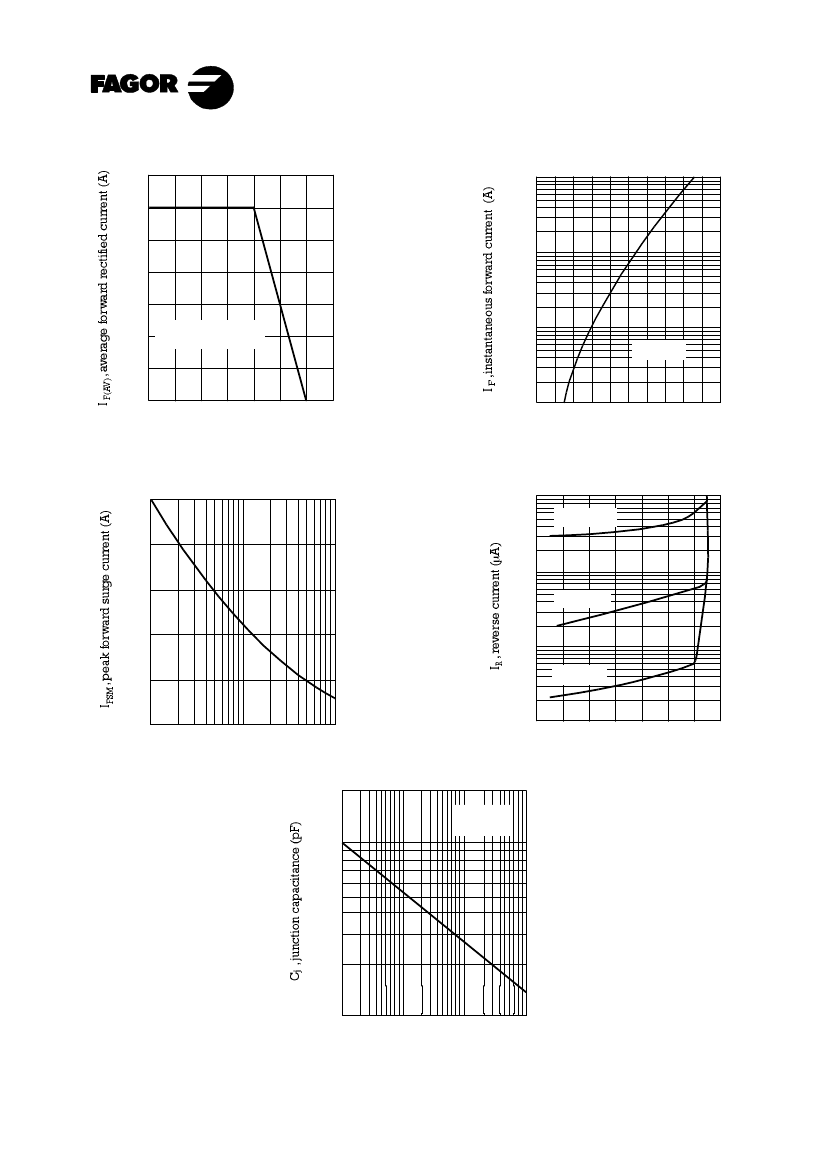

FRS2K Related Products

	FRS2K	FRS2B	FRS2D	FRS2A
Description	Rectifier Diode, 1 Phase, 1 Element, 1.5A, 800V V(RRM), Silicon, DO-214AA, PLASTIC, SMB, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 1.5A, 100V V(RRM), Silicon, DO-214AA, PLASTIC, SMB, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 1.5A, 200V V(RRM), Silicon, DO-214AA, PLASTIC, SMB, 2 PIN	Rectifier Diode, 1 Phase, 1 Element, 1.5A, 50V V(RRM), Silicon, DO-214AA, PLASTIC, SMB, 2 PIN
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Parts packaging code	DO-214AA	DO-214AA	DO-214AA	DO-214AA
package instruction	PLASTIC, SMB, 2 PIN	PLASTIC, SMB, 2 PIN	R-PDSO-C2	PLASTIC, SMB, 2 PIN
Contacts	2	2	2	2
Reach Compliance Code	not_compliant	not_compliant	compliant	_compli
ECCN code	EAR99	EAR99	EAR99	EAR99
application	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY	FAST RECOVERY
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Diode component materials	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V	1.3 V	1.3 V	1.3 V
JEDEC-95 code	DO-214AA	DO-214AA	DO-214AA	DO-214AA
JESD-30 code	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2	R-PDSO-C2
JESD-609 code	e3	e3	e3	e3
Humidity sensitivity level	1	1	1	1
Maximum non-repetitive peak forward current	50 A	50 A	50 A	50 A
Number of components	1	1	1	1
Phase	1	1	1	1
Number of terminals	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	1.5 A	1.5 A	1.5 A	1.5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	800 V	100 V	200 V	50 V
Maximum reverse current	5 µA	5 µA	5 µA	5 µA
Maximum reverse recovery time	0.3 µs	0.15 µs	0.15 µs	0.15 µs
surface mount	YES	YES	YES	YES
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal form	C BEND	C BEND	C BEND	C BEND
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maker	Fagor Electrónica	Fagor Electrónica	-	Fagor Electrónica
