ACHB-0402K-121-T datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> ACHB-0402K-121-T

Preview

ACHB-0402K-121-T: DescriptionFerrite Bead, 1 Function(s), 0.3A, ROHS COMPLIANT, EIA STD PACKAGE SIZE 0402, 2 PIN; CategoryAnalog mixed-signal IC filter; File Size160KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric Compare View All

ACHB-0402K-121-T Overview

Ferrite Bead, 1 Function(s), 0.3A, ROHS COMPLIANT, EIA STD PACKAGE SIZE 0402, 2 PIN

ACHB-0402K-121-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum DC resistance	1 Ω
filter type	FERRITE BEAD
high	0.5 mm
length	1 mm
Installation type	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance	120 OHM Ω
method of packing	TAPE AND REEL
physical size	L1.0XB0.5XH0.5 (mm)/L0.039XB0.02XH0.02 (inch)
Rated current	0.3 A
width	0.5 mm

Preview

Download Datasheet

View All

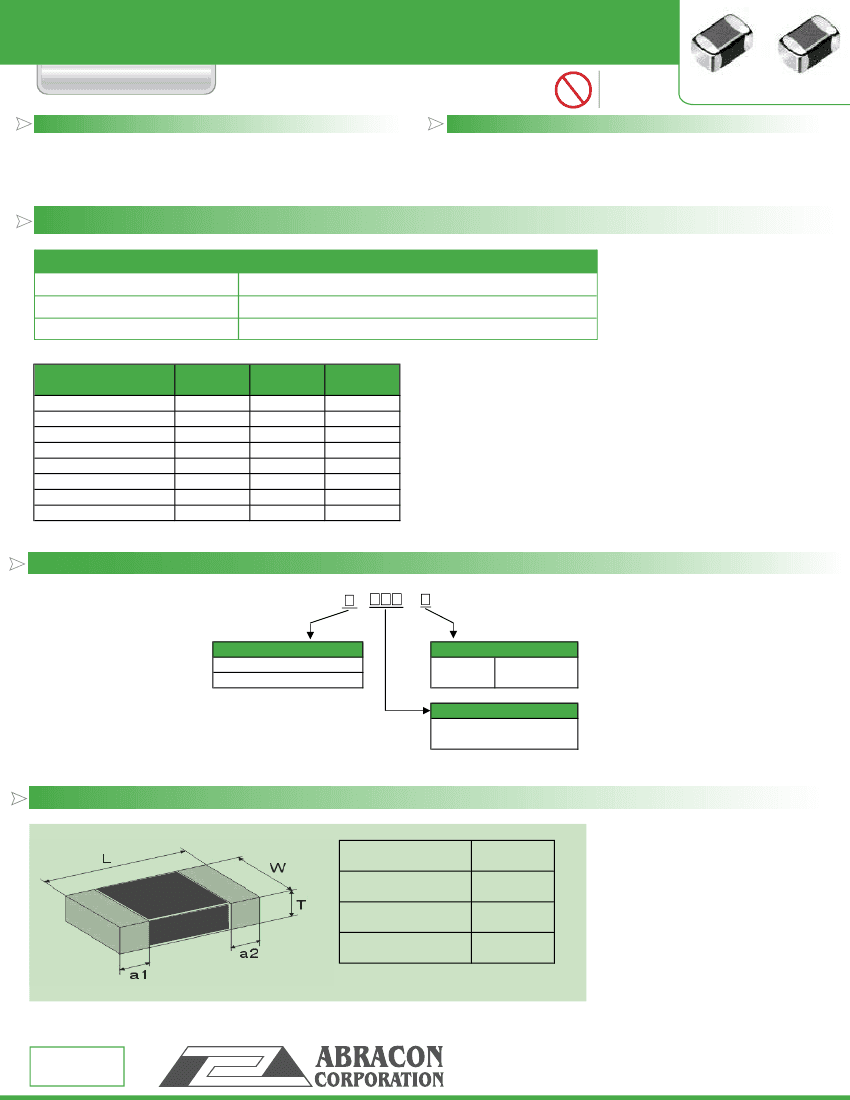

HIGH FREQUENCY MULTILAYER CHIP BEAD

ACHB-0402

FEATURES:

• High frequency noise countermeasure

• Multilayer monolithic construction yields high reliability

• Suitable for ultra high speed circuit

Pb

RoHS

Compliant

1.0 x 0.5 x 0.5mm

| | | | | | | | | | | | | | |

APPLICATIONS:

• Computer mobile communication system product

• Noise supression in ultra high spec circuit

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N:

Operating temperature:

Storage temperature:

Part

Number

ACHB-0402S-121

ACHB-0402S-221

ACHB-0402S-301

ACHB-0402S-601

ACHB-0402K-121

ACHB-0402K-221

ACHB-0402K-301

ACHB-0402K-601

Z (Ω ), ±25%

Ω

@100MHz

120

220

300

600

120

220

300

600

ACHB-0402x-xxx Series

-55°C to + 125°C

RDC

Ω

Max

0.7

0.9

1.2

1.5

1

1.3

1.5

1.9

Ir

mA Max

300

200

100

300

200

100

Ir is the rated currrent applied when the

chip surface temperature rise 20ºC

OPTIONS AND PART IDENTIFICATION:

(Left blank if standard)

ACHB - 0402

Material Code

S

K

-

Packaging

Tape and

T

Reel

Impedance

Please refer to the tables

above.

OUTLINE DRAWING:

Length (L)

Width (W)

Thickness (T)

a1,a2 (BW)

0.04±0.006

(1.00±0.15)

0.02±0.006

(0.50±0.15)

0.02±0.006

(0.50±0.15)

0.01±0.004

(0.25±0.10)

Dimension: Inches (mm)

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised: 10.05.07

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

|

fax 949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale

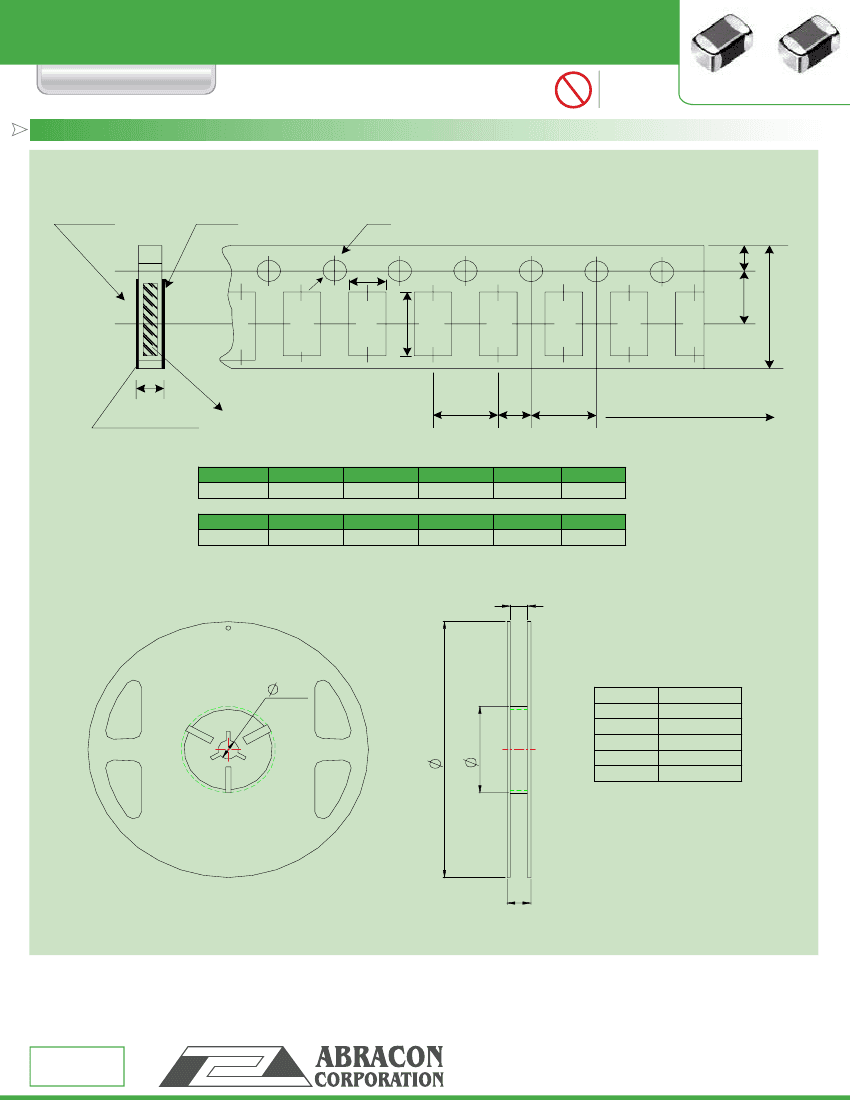

ACHB-0402K-121-T Related Products

	ACHB-0402K-121-T	ACHB-0402K-601-T	ACHB-0402S-301-T	ACHB-0402S-221-T	ACHB-0402K-221-T	ACHB-0402K-301-T	ACHB-0402S-121-T	ACHB-0402S-601-T
Description	Ferrite Bead, 1 Function(s), 0.3A, ROHS COMPLIANT, EIA STD PACKAGE SIZE 0402, 2 PIN	Ferrite Bead, 1 Function(s), 0.1A, ROHS COMPLIANT, EIA STD PACKAGE SIZE 0402, 2 PIN	Ferrite Bead, 1 Function(s), 0.2A, ROHS COMPLIANT, EIA STD PACKAGE SIZE 0402, 2 PIN	Ferrite Bead, 1 Function(s), 0.3A, ROHS COMPLIANT, EIA STD PACKAGE SIZE 0402, 2 PIN	Ferrite Bead, 1 Function(s), 0.3A, ROHS COMPLIANT, EIA STD PACKAGE SIZE 0402, 2 PIN	Ferrite Bead, 1 Function(s), 0.2A, ROHS COMPLIANT, EIA STD PACKAGE SIZE 0402, 2 PIN	Ferrite Bead, 1 Function(s), 0.3A, ROHS COMPLIANT, EIA STD PACKAGE SIZE 0402, 2 PIN	Ferrite Bead, 1 Function(s), 0.1A, ROHS COMPLIANT, EIA STD PACKAGE SIZE 0402, 2 PIN
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Abracon	Abracon	Abracon	Abracon	Abracon	Abracon	Abracon	Abracon
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Maximum DC resistance	1 Ω	1.9 Ω	1.2 Ω	0.9 Ω	1.3 Ω	1.5 Ω	0.7 Ω	1.5 Ω
filter type	FERRITE BEAD	FERRITE BEAD	FERRITE BEAD	FERRITE BEAD	FERRITE BEAD	FERRITE BEAD	FERRITE BEAD	FERRITE BEAD
high	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
length	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm	1 mm
Installation type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	1	1
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Output impedance	120 OHM Ω	600 OHM Ω	300 OHM Ω	220 OHM Ω	220 OHM Ω	300 OHM Ω	120 OHM Ω	600 OHM Ω
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
physical size	L1.0XB0.5XH0.5 (mm)/L0.039XB0.02XH0.02 (inch)	L1.0XB0.5XH0.5 (mm)/L0.039XB0.02XH0.02 (inch)	L1.0XB0.5XH0.5 (mm)/L0.039XB0.02XH0.02 (inch)	L1.0XB0.5XH0.5 (mm)/L0.039XB0.02XH0.02 (inch)	L1.0XB0.5XH0.5 (mm)/L0.039XB0.02XH0.02 (inch)	L1.0XB0.5XH0.5 (mm)/L0.039XB0.02XH0.02 (inch)	L1.0XB0.5XH0.5 (mm)/L0.039XB0.02XH0.02 (inch)	L1.0XB0.5XH0.5 (mm)/L0.039XB0.02XH0.02 (inch)
Rated current	0.3 A	0.1 A	0.2 A	0.3 A	0.3 A	0.2 A	0.3 A	0.1 A
width	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm	0.5 mm
