GVXO-53F/SA34.3680MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> GVXO-53F/SA34.3680MHZ

GVXO-53F/SA34.3680MHZ: DescriptionCMOS Output Clock Oscillator, 34.368MHz Nom, ROHS COMPLIANT, MINIATURE PACKAGE-6; CategoryPassive components oscillator; File Size109KB，1 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/; Environmental Compliance

Download Datasheet Parametric View All

GVXO-53F/SA34.3680MHZ Overview

CMOS Output Clock Oscillator, 34.368MHz Nom, ROHS COMPLIANT, MINIATURE PACKAGE-6

GVXO-53F/SA34.3680MHZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Golledge Electronics
Reach Compliance Code	compliant
Other features	TRISTATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL
Maximum control voltage	3.15 V
Minimum control voltage	0.15 V
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	100 ppm
frequency stability	100%
linearity	10%
Manufacturer's serial number	GVXO-53F
Installation features	SURFACE MOUNT
Nominal operating frequency	34.368 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	CMOS
Output load	15 pF
physical size	7.5mm x 5.0mm x 2.1mm
longest rise time	5 ns
Maximum supply voltage	3.6 V
Minimum supply voltage	3 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

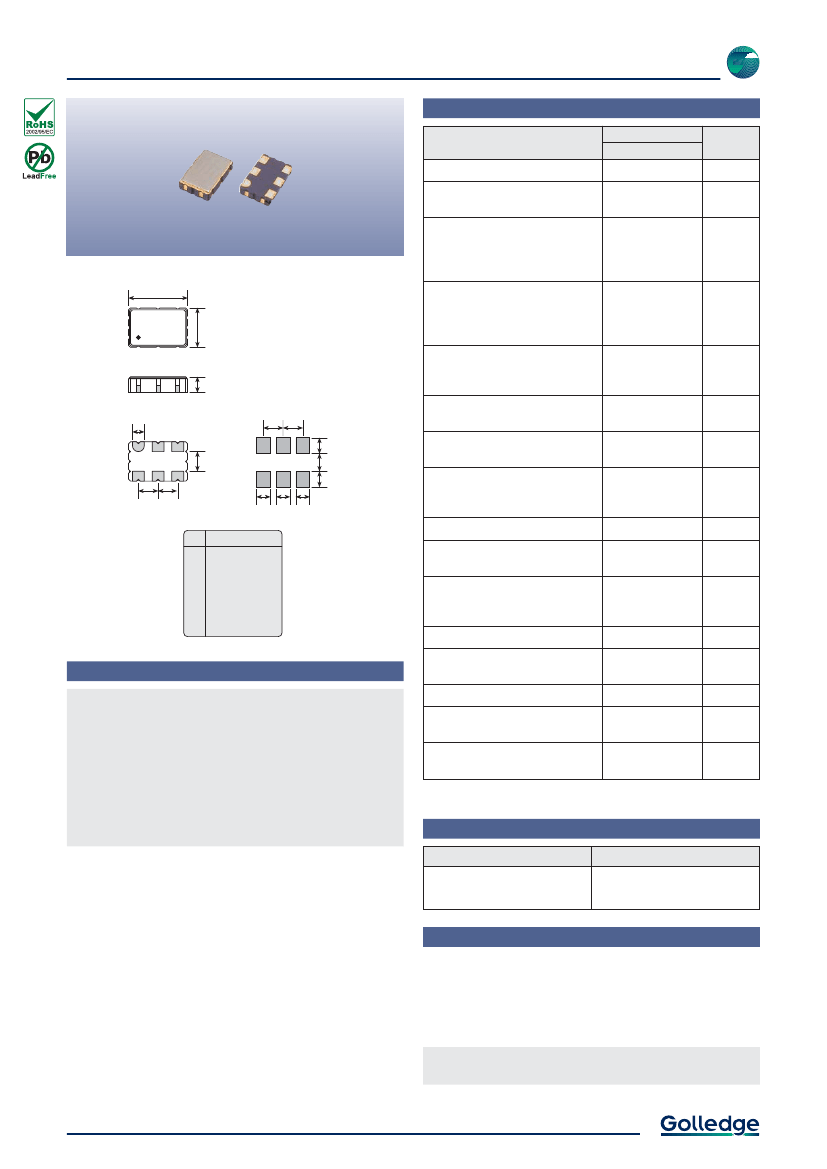

3.3V VCXO

Specifications

GVXO-53F

Parameters

Frequency range:

1.0 ~ 78.0MHz

Voltage control:

+1.65V ±1.5V, 10% linearity

Frequency pullability (min):

±50ppm

±100ppm

Other

Frequency stability:

5.00

(max)

Product

GVXO-53F



















Option

Codes

7.50

(max)

specify

±100ppm

±50ppm

±25ppm

Other

2.10

(max)

Operating temperature range:

-10 to +70°C

-40 to +85°C

SOLDER PAD LAYOUT

2.54 2.54

1.40

2.60

2.54 2.54

Storage temperature range:

-40 to +85°C

Supply voltage (V

+3.3V (±0.3V)

2.00

2.20

2.00

1.80 1.80 1.80

TOP VIEW

PAD

CONNECTION

Control voltage

Enable / disable

Ground

Output

Not connected

Supply

Supply current:

15mA max (1.0 ~ 30.0MHz)

25mA max (>30.0 ~ 45.0MHz)

Driving ability:

15pF CMOS

Logic levels:

‘0’ level = 10%V

max

‘1’ level = 90%V

min

Output current:

‘0’ level = 4.0mA min

‘1’ level = -1.0mA min

Waveform symmetry:

40:60 max

Features

Rise / fall time:

5ns max (20%~80%V

)

Start up time:

10ms max



3.3V supply

Fundamental mode crystal up to 78.0MHz

Choice of pullability & stability

Enable / disable tristate function

Miniature SM package

Enable / disable function:

Tristate (control via pad 2)

Enable / disable time:

150ns / 150ns max



Standard.



Optional - Please specify required code(s) when ordering

Enable / Disable Function

Input (pad 2)

Open

‘1’ level

‘0’ level

Output (pad 4)

Enabled

High Impedance

Ordering Information

Product + option codes + frequency

eg:

GVXO-53F/SB 19.440MHz

±100ppm pullability, ±50ppm stability

GVXO-53F/NC 34.3680MHz

±50ppm pullability, ±25ppm stability

Option codes must be included to specify a model

completely.

Option code X (eg GVXO-53F/X) denotes a custom spec.



Available on T&R - 2k pcs per reel.



Refer to our website for T&R and soldering details.
