TSW-107-08-G-D-LC-LL

Description
Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,
CategoryThe connector    The connector
File Size192KB,1 Pages
ManufacturerSAMTEC
Websitehttp://www.samtec.com/

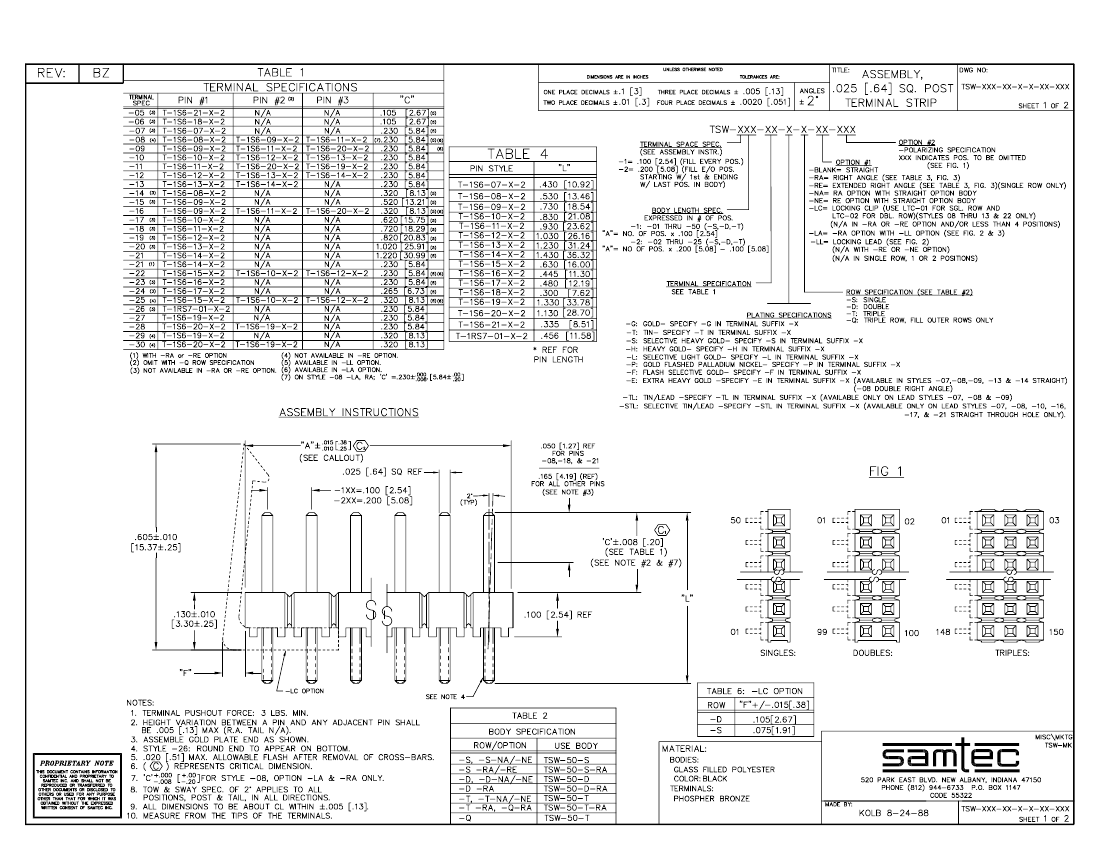

Download Datasheet Parametric Compare View All

TSW-107-08-G-D-LC-LL Overview

Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, Solder Terminal,

TSW-107-08-G-D-LC-LL Parametric

Parameter NameAttribute value
MakerSAMTEC
Reach Compliance Codecompliant
ECCN codeEAR99
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact completed and terminatedGOLD
Contact point genderMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee4
MIL complianceNO
Manufacturer's serial numberTSW
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded2
OptionsGENERAL PURPOSE
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts14

TSW-107-08-G-D-LC-LL Related Products

TSW-107-08-G-D-LC-LL TSW-112-08-G-D-LC-LL TSW-113-08-G-D-LC-LL TSW-107-08-S-D-LC-LL TSW-105-08-G-D-LC-LL TSW-108-08-G-D-LC-LL TSW-132-08-T-S-LC-LL
Description Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Board Connector, 24 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Board Connector, 14 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Board Connector, 16 Contact(s), 2 Row(s), Male, Straight, Solder Terminal, Board Connector, 32 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,
Maker SAMTEC SAMTEC SAMTEC SAMTEC SAMTEC SAMTEC SAMTEC
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation NOT SPECIFIED GOLD OVER NICKEL GOLD OVER NICKEL GOLD OVER NICKEL GOLD OVER NICKEL GOLD OVER NICKEL TIN OVER NICKEL
Contact completed and terminated GOLD Gold (Au) - with Nickel (Ni) barrier Gold (Au) - with Nickel (Ni) barrier Tin (Sn) - with Nickel (Ni) barrier Gold (Au) - with Nickel (Ni) barrier Gold (Au) - with Nickel (Ni) barrier Tin (Sn) - with Nickel (Ni) barrier
Contact point gender MALE MALE MALE MALE MALE MALE MALE
DIN compliance NO NO NO NO NO NO NO
Filter function NO NO NO NO NO NO NO
IEC compliance NO NO NO NO NO NO NO
JESD-609 code e4 e4 e4 e3 e4 e4 e3
MIL compliance NO NO NO NO NO NO NO
Mixed contacts NO NO NO NO NO NO NO
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD BOARD BOARD BOARD BOARD
Number of rows loaded 2 2 2 2 2 2 1
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Terminal pitch 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm 2.54 mm
Termination type SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER SOLDER
Total number of contacts 14 24 26 14 10 16 32
Manufacturer's serial number TSW TSW TSW TSW - TSW TSW
Is it lead-free? - Lead free Lead free Lead free Lead free Lead free Lead free
Is it Rohs certified? - conform to conform to conform to conform to conform to conform to
Contact material - PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE
