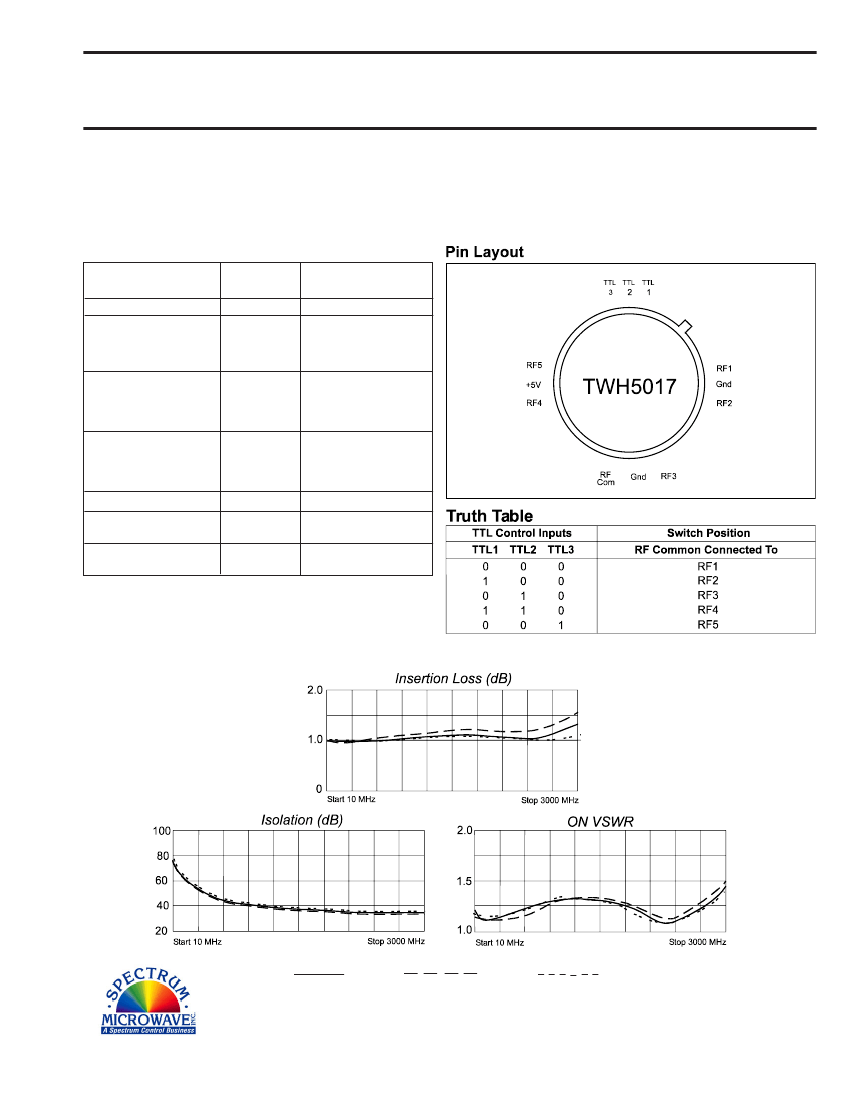

SP5T RF SWITCH
MODEL
TWH5017
Features
10 - 3000 MHz
RF1-RF5 Reflective in ‘OFF’ State
Integral TTL Driver
Environmental Screening available
Package: 12 Pin TO-8B (T9)
Also available in Connectorized Housings
Absolute Maximum (No Damage) Ratings
Ambient Operating Temperature ........................ -55ºC to + 100 ºC
Storage Temperature ......................................... -65ºC to + 125 ºC
Case Temperature .......................................................... + 125 ºC
DC Voltage ................................................................. + 6.0 Volts
Continuous RF Input Power ........................................... +32 dBm
MIN/MAX
Ta = -55 ºC to +100 ºC
5 - 3000 MHz
1.5 Max.
1.6 Max.
2.4 Max.
60 Min.
35 Min.
30 Min.
8 Min.
20 Min.
29 Min.
1.6:1 Max.
3.0 Max.
4.0 Max.
Specifications
CHARACTERISTIC
Frequency
Insertion Loss (dB)
10 - 100 MHz
100 - 1500 MHz
1500 - 3000 MHz
Isolation (dB)
10 - 100 MHz
100 - 1500 MHz
1500 - 3000 MHz
1dB Compression (dBm)
10 - 100 MHz
100 - 1500 MHz
1500 - 3000 MHz
VSWR ‘ON’
Switching Speed (µsec)
(50% TTL to 90% RF)
TYPICAL
Ta = 25 ºC
5 - 3000 MHz
1.0
1.2
1.4
70
45
35
18
27
30
1.3:1
2.0
2.4
DC Bias (mA)
(4.5 to 5.5 VDC)
Note:
Care should always be taken to effectively ground the case of each unit.
Typical Performance Data
Legend
+25 ºC
+85 ºC
-55 ºC
Rev.
10/25/10
Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532
www.SpectrumMicrowave.com
Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001
