EL5234IY-T13: Description1 CHANNEL, VIDEO AMPLIFIER, PDSO10, 3 MM, MSOP-10; CategoryAnalog mixed-signal IC Consumption circuit; File Size2MB，15 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

EL5234IY-T13 Overview

1 CHANNEL, VIDEO AMPLIFIER, PDSO10, 3 MM, MSOP-10

EL5234IY-T13 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Parts packaging code	MSOP
package instruction	3 MM, MSOP-10
Contacts	10
Reach Compliance Code	not_compliant
ECCN code	EAR99
Other features	ALSO OPERATES WITH 5V TO 12V SINGLE SUPPLY
Nominal bandwidth	650000 kHz
Commercial integrated circuit types	VIDEO AMPLIFIER
JESD-30 code	S-PDSO-G10
JESD-609 code	e0
length	3 mm
Humidity sensitivity level	1
Number of channels	1
Number of functions	2
Number of terminals	10
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Package shape	SQUARE
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	240
Certification status	Not Qualified
Maximum seat height	1.1 mm
Maximum supply voltage (Vsup)	5 V
Minimum supply voltage (Vsup)	2.5 V
surface mount	YES
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.5 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3 mm

EL5234IY-T13 Preview

DATASHEET

EL5134, EL5135, EL5234, EL5235

650MHz, Gain of 5, Low Noise Amplifiers

The EL5134, EL5135, EL5234, and EL5235 are ultra-low

voltage noise, high speed voltage feedback amplifiers that

are ideal for applications requiring low voltage noise,

including communications and imaging. These devices offer

extremely low power consumption for exceptional noise

performance. Stable at gains as low as 5, these devices offer

100mA of drive performance. Not only do these devices find

perfect application in high gain applications, they maintain

their performance down to lower gain settings.

These amplifiers are available in small package options

(SOT-23) as well as the MSOP and the industry-standard

SO packages. All parts are specified for operation over the

-40°C to +85°C temperature range.

FN7383

Rev 4.00

May 4, 2007

Features

• 650MHz -3dB bandwidth

• Av = +5 stable

• Ultra low noise 1.5nV/Hz and 0.9pA/Hz

• 450V/µs slew rate

• Low supply current = 6.7mA per amplifier

• Single supplies from 5V to 12V

• Dual supplies from ±2.5V to ±5V

• Fast disable on the EL5134 and EL5234

• Duals EL5234 and EL5235

• Low cost

• Pb-free plus anneal available (RoHS compliant)

Applications

• Imaging

• Instrumentation

• Communications devices

Ordering Information

PART NUMBER

EL5134IS

EL5134IS-T7

EL5134IS-T13

EL5134ISZ (Note)

EL5134ISZ-T7 (Note)

EL5134ISZ-T13 (Note)

EL5135IW-T7

EL5135IW-T7A

EL5135IWZ-T7 (Note)

EL5135IWZ-T7A (Note)

EL5234IY

EL5234IY-T7

EL5234IY-T13

EL5235IS

EL5235IS-T7

EL5235IS-T13

PART MARKING

5134IS

5134ISZ

BDAA

BTAA

BWAAA

5235IS

TAPE & REEL

-

7”

13”

-

7”

13”

7” (3k pcs)

7” (250 pcs)

7” (3k pcs)

7” (250 pcs)

-

7”

13”

-

7”

13”

PACKAGE

8 Ld SOIC (150 mil)

8 Ld SOIC (150 mil) (Pb-Free)

5 Ld SOT-23

5 Ld SOT-23 (Pb-Free)

10 Ld MSOP (3.0mm)

8 Ld SOIC (150 mil)

PKG. DWG. #

MDP0027

MDP0038

MDP0043

MDP0027

NOTE: Intersil Pb-free plus anneal products employ special Pb-free material sets; molding compounds/die attach materials and 100% matte tin plate

termination finish, which are RoHS compliant and compatible with both SnPb and Pb-free soldering operations. Intersil Pb-free products are MSL classified

at Pb-free peak reflow temperatures that meet or exceed the Pb-free requirements of IPC/JEDEC J STD-020.

FN7383 Rev 4.00

May 4, 2007

Page 1 of 15

EL5134, EL5135, EL5234, EL5235

Pinouts

EL5134

(8 LD SOIC)

TOP VIEW

NC 1

IN- 2

IN+ 3

VS- 4

-

+

8 CE

7 VS+

6 OUT

5 NC

OUT 1

VS- 2

IN+ 3

+ -

4 IN-

EL5135

(5 LD SOT-23)

TOP VIEW

5 VS+

EL5234

(10 LD MSOP)

TOP VIEW

INA+ 1

CEA 2

VS- 3

CEB 4

INB+ 5

+

-

+

10 INA-

9 OUTA

8 VS+

7 OUTB

6 INB-

OUTA 1

INA- 2

INA+ 3

VS- 4

EL5235

(8 LD SOIC)

TOP VIEW

8 VS+

-

+

-

+

7 OUTB

6 INB-

5 INB+

FN7383 Rev 4.00

May 4, 2007

Page 2 of 15

EL5134, EL5135, EL5234, EL5235

Absolute Maximum Ratings

(T

A

= +25°C)

Supply Voltage from V

S

+ to V

S

- . . . . . . . . . . . . . . . . . . . . . . . 13.2V

SR, Supply Rate of Supply Voltage Slew Rate . . . . . . . . . . . . 1V/µs

I

IN

-, I

IN

+, CE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±5mA

Continuous Output Current . . . . . . . . . . . . . . . . . . . . . . . . . . 100mA

Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See Curves

Thermal Information

Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . .-65°C to +125°C

Operating Temperature . . . . . . . . . . . . . . . . . . . . . . .-40°C to +85°C

Operating Junction Temperature . . . . . . . . . . . . . . . . . . . . . . +125°C

Pb-free reflow profile . . . . . . . . . . . . . . . . . . . . . . . . . .see link below

http://www.intersil.com/pbfree/Pb-FreeReflow.asp

CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress only rating and operation of the

device at these or any other conditions above those indicated in the operational sections of this specification is not implied.

IMPORTANT NOTE: All parameters having Min/Max specifications are guaranteed. Typical values are for information purposes only. Unless otherwise noted, all tests

are at the specified temperature and are pulsed tests, therefore: T

J

= T

C

= T

A

Electrical Specifications

PARAMETER

V

OS

Offset Voltage

V

S

+ = +5V, V

S

- = -5V, Av=+5,

R

F

= 100, R

G

= 25,

R

L

= 500,T

A

= +25°C, unless otherwise specified.

CONDITIONS

MIN

-1

EL5234

TYP

0.2

0.3

-0.8

2.5

-0.7

3.7

0.3

-3

75

80

±3

5

85

108

±3.3

16

1

5.6

R

L

= 1k to GND

R

L

= 1k, R

F

= 900, R

G

= 100

R

L

= 150, R

F

= 900, R

G

= 100

4.0

±3.5

±3.3

70

6.7

8.0

3.9

3.65

140

650

40

1500

R

L

= 1k, C

L

= 6pF

V

S

= +5V, R

L

= 150, V

OUT

= 0V to 3V

±0.1V

STEP

±0.1V

STEP

±0.1V

STEP

350

55

475

1.75

25

14

A

V

= 5, R

F

= 1k

A

V

= 5, R

F

= 1k

f = 10kHz

0.12

0.08

1.5

0.9

7.8

5.5

0.7

MAX

1

±1.5

UNIT

mV

µV/°C

µA

nA

nA/°C

dB

V

M

pF

mA

kV/V

V

mA

MHz

°

V/µs

ns

%

ns

%

°

nV/Hz

pA/Hz

DESCRIPTION

T

C

V

OS

IB

I

OS

TC

IOS

PSRR

CMRR

CMIR

R

IN

C

IN

I

S

AVOL

V

O

Offset Voltage Temperature Coefficient

Input Bias Current

Input Offset Current

Input Bias Current Temperature

Coefficient

Power Supply Rejection Ratio

Common Mode Rejection Ratio

Common Mode Input Range

Input Resistance

Input Capacitance

Supply Current, per amplifier

Open Loop Gain

Voltage Swing

Measured from T

MIN

to T

MAX

V

IN

= 0V

V

IN

= 0V

Measured from T

MIN

to T

MAX

V

S

+ = 4.75V to 5.25V

V

CM

= ±3V

Guaranteed by CMRR test

Common mode

I

SC

BW-3dB

BW-0.1dB

GBWP

PM

SR

t

R

t

F

OS

t

S

dG

dP

e

N

i

N

Short Circuit Current

-3dB Bandwidth

±0.1dB Bandwidth

Gain Bandwidth Product

Phase Margin

Slew Rate

Rise Time

Fall Time

Overshoot

0.01% Settling Time

Differential Gain

Differential Phase

Input Noise Voltage

Input Noise Current

R

L

= 10

A

V

= 5, R

L

= 1k

A

V

= 5, R

L

= 1k

FN7383 Rev 4.00

May 4, 2007

Page 3 of 15

EL5134, EL5135, EL5234, EL5235

Electrical Specifications

PARAMETER

SUPPLY (EL5134, EL5234)

I

SOFF+

I

SOFF-

Supply Current - Disabled, per Amplifier

No load, V

IN

= 0V

0

-25

+12

-12

+25

0

µA

V

S

+ = +5V, V

S

- = -5V, Av=+5,

R

F

= 100, R

G

= 25,

R

L

= 500,T

A

= +25°C, unless otherwise specified.

CONDITIONS

MIN

TYP

MAX

UNIT

DESCRIPTION

ENABLE (EL5134, EL5234)

I

IHCE

I

ILCE

V

IHCE

V

ILCE

CE Pin Input High Current

CE Pin Input Low Current

CE Input High Voltage for Power-down

CE Input Low Voltage for Power-up

CE = +5V

CE = 0V

1

-1

V

S

+ - 1

V

S

+ - 3

10

0

+25

+1

µA

V

Applications Information

Typical Performance Curves

5

4

NORMALIZED GAIN (dB)

3

2

1

0

-1

-2

-3

-4

-5

0.1

1

-3dB BW @ 667MHz

10

FREQUENCY (MHz)

100

1K

V

S

= ±5V

A

V

= +5

R

G

= 25

R

L

= 500

C

L

= 5pF

240

180

120

PHASE (°)

60

0

-60

-120

-180

-240

0.1

1

10

FREQUENCY (MHz)

100

1K

V

S

= ±5V

A

V

= +5

R

G

= 25

R

L

= 500

C

L

= 5pF

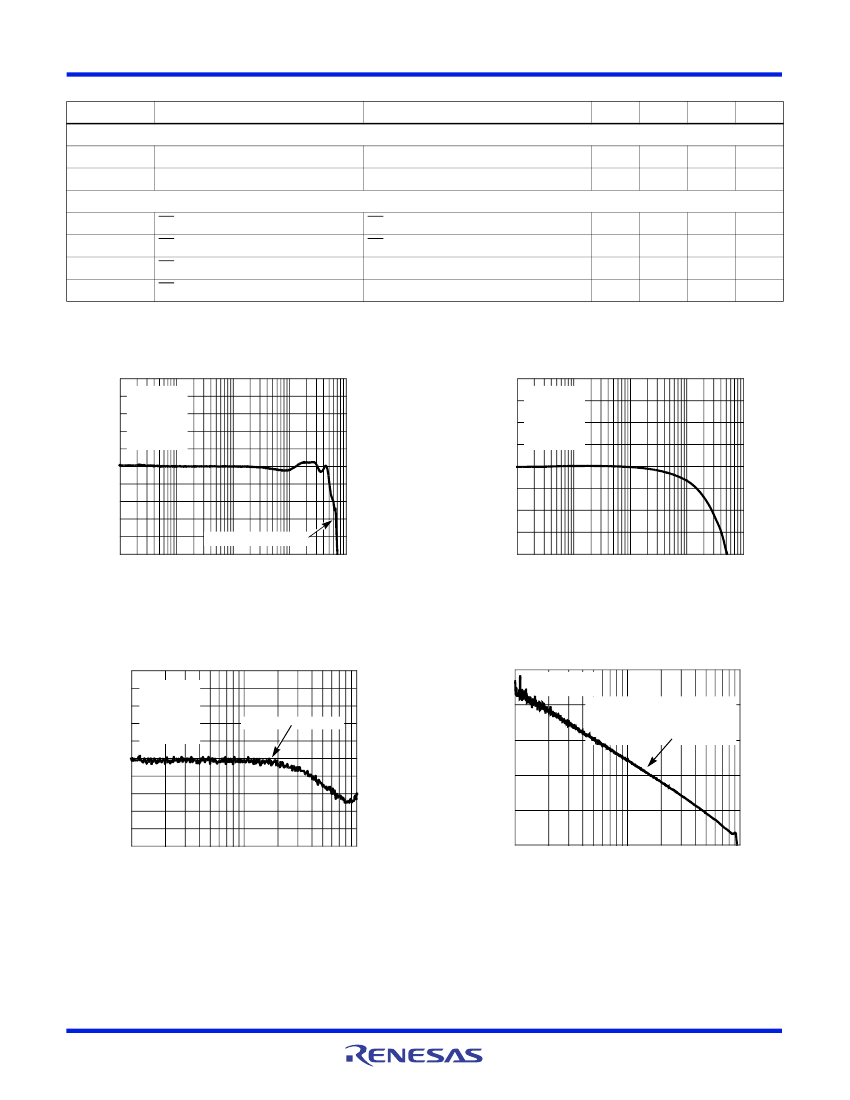

FIGURE 1. GAIN vs FREQUENCY

FIGURE 2. PHASE vs FREQUENCY

0.5

0.4

NORMALIZED GAIN (dB)

0.3

0.2

0.1

0

-0.1

-0.2

-0.3

-0.4

-0.5

1

10

FREQUENCY (MHz)

100

V

S

= ±5V

A

V

= +5

R

G

= 25

R

L

= 500

C

L

= 5pF

70

V

S

= ±5V

R

L

= 500

GAIN = 40dB or 100

FREQUENCY = 15.9MHz

GAIN BW PRODUCT = 15.9 x 100

= 1590MHz

60

GAIN (dB)

0.1dB BW @ 40MHz

50

40

30

20

1

10

FREQUENCY (MHz)

100

FIGURE 3. 0.1dB BANDWIDTH

FIGURE 4. GAIN BANDWIDTH PRODUCT

FN7383 Rev 4.00

May 4, 2007

Page 4 of 15

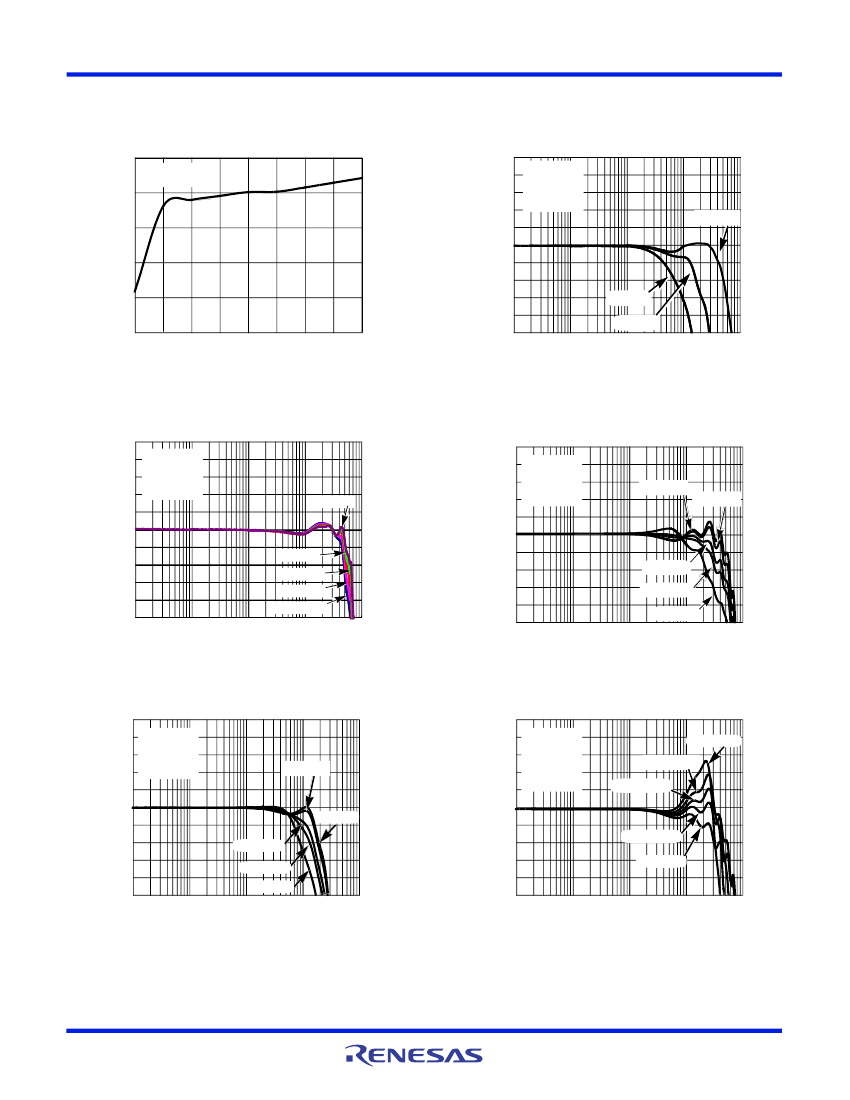

EL5134, EL5135, EL5234, EL5235

Typical Performance Curves

(Continued)

GAIN BANDWIDTH PRODUCT (MHz)

1800

V

S

= ±5V

R

L

= 500

NORMALIZED GAIN (dB)

1600

1400

5

4

3

2

1

0

-1

-2

-3

-4

V

S

= ±5V

R

G

= 25

R

L

= 500

C

L

= 5pF

A

V

= +5

1200

1000

A

V

= +20

A

V

= +10

1

10

100

FREQUENCY (MHz)

1K

800

2.0

2.5

3.0

3.5

4.0

4.5

5.0

SUPPLY VOLTAGES (±V)

5.5

6.0

-5

0.1

FIGURE 5. GAIN BANDWIDTH PRODUCT vs SUPPLY

VOLTAGES

FIGURE 6. GAIN vs FREQUENCY FOR VARIOUS +A

V

5

4

NORMALIZED GAIN (dB)

3

2

1

0

-1

-2

-3

-4

-5

0.1

1

V

S

= ±5V

V

S

= ±4V

V

S

= ±3V

V

S

= ±2.5V

10

100

FREQUENCY (MHz)

1K

NORMALIZED GAIN (dB)

A

V

= +5V

R

G

= 25

R

L

= 500

C

L

= 5pF

5

4

3

2

1

0

-1

-2

-3

-4

-5

0.1

1

R

L

= 150

R

L

= 100

R

L

= 50

10

100

FREQUENCY (MHz)

1K

V

S

= ±5V

A

V

= +5

R

L

= 500

C

L

= 5pF

R

L

= 1k

V

S

= ±6V

R

L

= 500

FIGURE 7. GAIN vs FREQUENCY FOR VARIOUS ±V

S

FIGURE 8. GAIN vs FREQUENCY FOR VARIOUS R

LOAD

5

4

NORMALIZED GAIN (dB)

3

2

1

0

-1

-2

-3

-4

-5

0.1

1

R

L

= 150

R

L

= 100

R

L

= 50

10

100

FREQUENCY (MHz)

1K

R

L

= 1k

NORMALIZED GAIN (dB)

V

S

= ±5V

A

V

= +10

R

G

= 25

C

L

= 10pF

5

4

3

2

1

0

-1

-2

-3

-4

-5

0.1

1

10

100

FREQUENCY (MHz)

1K

C

L

= 4.7pF

C

L

= 0pF

R

L

= 500

V

S

= ±5V

A

V

= +5

R

G

= 25

R

F

= 100

R

L

= 500

C

L

= 18pF

C

L

= 12pF

C

L

= 8.2pF

FIGURE 9. GAIN vs FREQUENCY FOR VARIOUS R

LOAD

(A

V

= +10)

FIGURE 10. GAIN vs FREQUENCY FOR VARIOUS C

LOAD

(A

V

= +5)

FN7383 Rev 4.00

May 4, 2007

Page 5 of 15

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

EL5234IY-T13 Related Products

	EL5234IY-T13	EL5135IW-T7
Description	1 CHANNEL, VIDEO AMPLIFIER, PDSO10, 3 MM, MSOP-10	1 CHANNEL, VIDEO AMPLIFIER, PDSO5, SOT-23, 5 PIN
Is it Rohs certified?	incompatible	incompatible
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	MSOP	SOT-23
package instruction	3 MM, MSOP-10	LSSOP,
Contacts	10	5
Reach Compliance Code	not_compliant	not_compliant
ECCN code	EAR99	EAR99
Other features	ALSO OPERATES WITH 5V TO 12V SINGLE SUPPLY	ALSO OPERATES WITH 5V TO 12V SINGLE SUPPLY
Nominal bandwidth	650000 kHz	650000 kHz
Commercial integrated circuit types	VIDEO AMPLIFIER	VIDEO AMPLIFIER
JESD-30 code	S-PDSO-G10	R-PDSO-G5
JESD-609 code	e0	e0
length	3 mm	2.9 mm
Humidity sensitivity level	1	1
Number of channels	1	1
Number of functions	2	1
Number of terminals	10	5
Maximum operating temperature	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSSOP	LSSOP
Package shape	SQUARE	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	240	240
Certification status	Not Qualified	Not Qualified
Maximum seat height	1.1 mm	1.45 mm
Maximum supply voltage (Vsup)	5 V	5 V
Minimum supply voltage (Vsup)	2.5 V	2.5 V
surface mount	YES	YES
technology	BIPOLAR	BIPOLAR
Temperature level	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING
Terminal pitch	0.5 mm	0.95 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	3 mm	1.6 mm

Recommended Resources

Given voltage and speed negative feedback circuit

Wiring diagram for dual power supply

Noiseless lighting/logic interface circuit

simple flash lantern

Mains photoelectric control circuit

NTSC signal generator circuit

Shortcut: L0 L1 L2 L3 L4 L5 L6 L7 L8 L9 LA LB LC LD LE LF LG LH LI LJ LK LL LM LN LO LP LQ LR LS LT LU LV LW LX LY LZ M0 M1 M2 M3 M4 M5 M6 M7 M8 M9 MA MB MC MD ME MF MG MH MI MJ MK ML MM MN MO MP MQ MR MS MT MU MV MW MX MY MZ N0 N1 N2 N3 N4 N5 N6 N7 N8 NA NB NC ND NE NF NG NH NI NJ NK NL NM NN NO NP NQ NR NS NT NU NV NX NZ O0 O1 O2 O3 OA OB OC OD OE OF OG OH OI OJ OK OL OM ON OP OQ OR OS OT OV OX OY OZ P0 P1 P2 P3 P4 P5 P6 P7 P8 P9 PA PB PC PD PE PF PG PH PI PJ PK PL PM PN PO PP PQ PR PS PT PU PV PW PX PY PZ Q1 Q2 Q3 Q4 Q5 Q6 Q8 Q9 QA QB QC QE QF QG QH QK QL QM QP QR QS QT QV QW QX QY R0 R1 R2 R3 R4 R5 R6 R7 R8 R9 RA RB RC RD RE RF RG RH RI RJ RK RL RM RN RO RP RQ RR RS RT RU RV RW RX RY RZ

Popular Components
