CRYSTAL CLOCK OSCILLATORS
ACPEL
FEATURES:
• Low jitter PECL logic
• Tight overall frequency stability
• Fast rise and fall times
• Complementary output
• Wide frequency range.
Pb
RoHS
Compliant
20 X 12.6 X 7.2mm
| | | | | | | | | | | | | | |
APPLICATIONS:
• Gigabit ethernet
• Data telecommunications and networking
• xDSL, Stratum IV
• SONET/SDH
STANDARD SPECIFICATIONS:
PARAMETERS
ABRACON P/N
Frequency
Operating Temperature
Storage Temperature
Frequency Stability
Supply Voltage (Vdd)
Supply Current
Symmetry
Rise and Fall Times (Tr/ Tf)
Output Type
Output Load
Aging
ACPEL Series
0.75 MHz - 800 MHz
0°C to +70°C (see options)
-55°C to +125°C
± 100 ppm max. (see options)
3.3Vdc ±5%
60 mA max. @100MHz
40/60% max.
1 ns max. @ 20~80%Vpp
PECL square wave
50
Ω
@Vcc -2Vdc
± 3.0ppm max./ year
OPTIONS AND PART IDENTIFICATION:
ACPEL - Frequency -
-
- -
Temperature Options
I
0 °C to +5 0 °C
D
-10°C to +60°C
E
-20°C to +70°C
F
-30°C to +70°C
N
-30°C to +85°C
L
-40°C to +85°C
J*
R
K
H
C
F r e q . S t a b ilit y
±2 0 p p m m a x.
±25 ppm max.
±30 ppm max.
±35 ppm max.
±50 ppm max.
* Temp option I, D and E only
G*
Q30
Q25
Q20
Q15
Q10
L e a d O p t io n
G u ll Win g
0.30(7.62)
0.25(6.35)
0.20(5.08)
0.15(3.81)
0.10(2.54)
PIN1 Option
Blank
* Solder composition Sn/Ag/Cu can only be used for G option.
Must be capable for IR or Wave Reflow methods.
N/C
Complementary
output
QBAR
ABRACON IS
ISO9001:2008
CERTIFIED
Revised: 10.23.10
30332 Esperanza, Rancho Santa Margarita, California
92688
tel 949-546-8000| fax 949-546-8001
www.abracon.com
|
Visit
www.abracon.com
for Terms & Conditions of Sale
CRYSTAL CLOCK OSCILLATORS
ACPEL

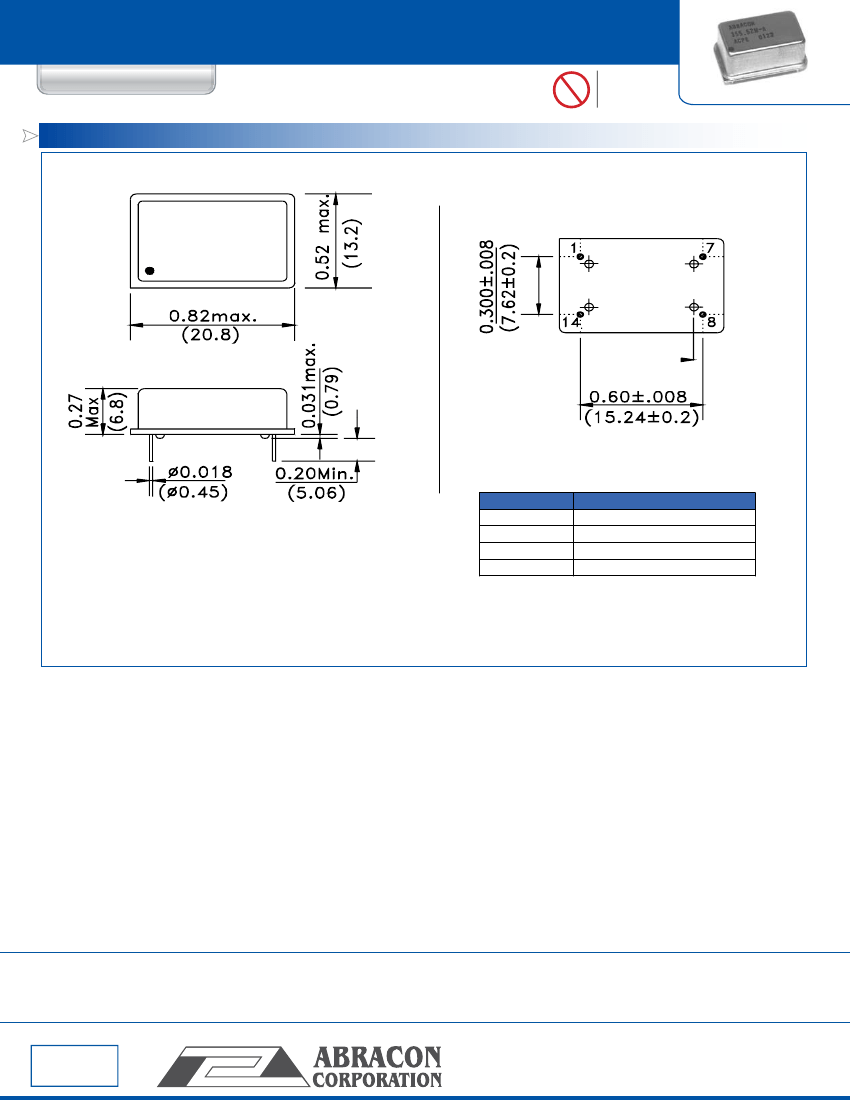

OUTLINE DRAWING:
Pb
RoHS
Compliant
20 X 12.6 X 7.2mm
| | | | | | | | | | | | | | |
PIN
1
7
8
14
FUNCTION
NC or Comp output
GND
Output
Vcc
Note: Recommend using an approximately
0.01uF bypass capacitor between Pin 7 and 14.
Dimensions: inch (mm)
