KM68V257CTG-17 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> KM68V257CTG-17

KM68V257CTG-17: DescriptionStandard SRAM, 32KX8, 17ns, CMOS, PDSO28, 8 X 13.40 MM, PLASTIC, TSOP1-28; Categorystorage storage; File Size320KB，7 Pages; ManufacturerSAMSUNG; Websitehttp://www.samsung.com/Products/Semiconductor/

Download Datasheet Parametric Compare View All

KM68V257CTG-17 Overview

Standard SRAM, 32KX8, 17ns, CMOS, PDSO28, 8 X 13.40 MM, PLASTIC, TSOP1-28

KM68V257CTG-17 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	SAMSUNG
Parts packaging code	TSOP
package instruction	TSOP1, TSSOP28,.53,22
Contacts	28
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum access time	17 ns
Other features	TTL COMPATIBLE INPUTS/OUTPUTS
I/O type	COMMON
JESD-30 code	R-PDSO-G28
JESD-609 code	e0
length	11.8 mm
memory density	262144 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	28
word count	32768 words
character code	32000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	32KX8
Output characteristics	3-STATE
Exportable	YES
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP1
Encapsulate equivalent code	TSSOP28,.53,22
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Parallel/Serial	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum standby current	0.0001 A
Minimum standby current	2 V
Maximum slew rate	0.08 mA
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	3 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	0.55 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	8 mm

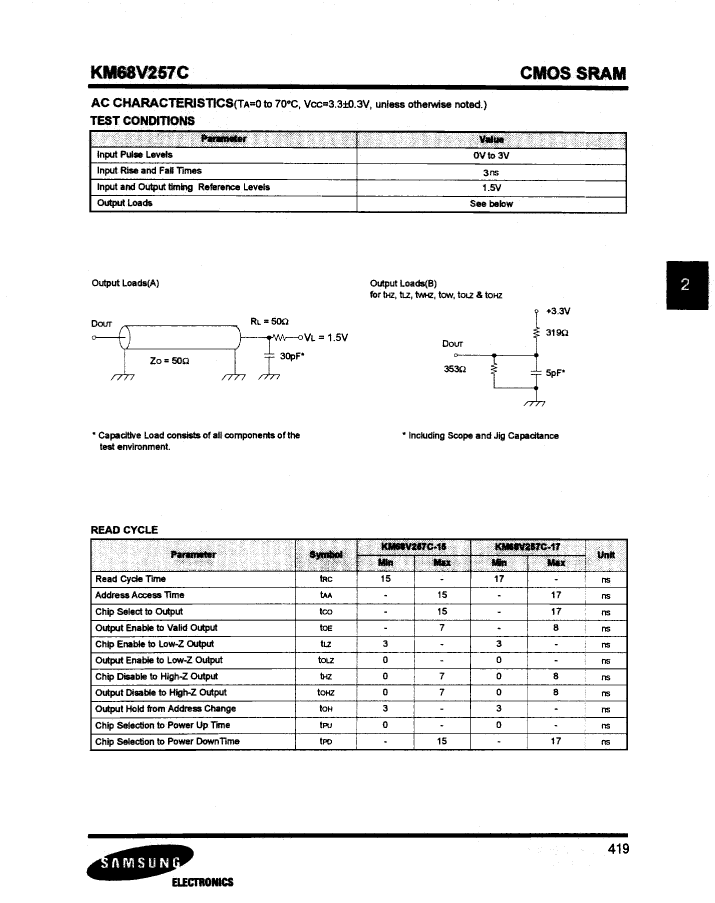

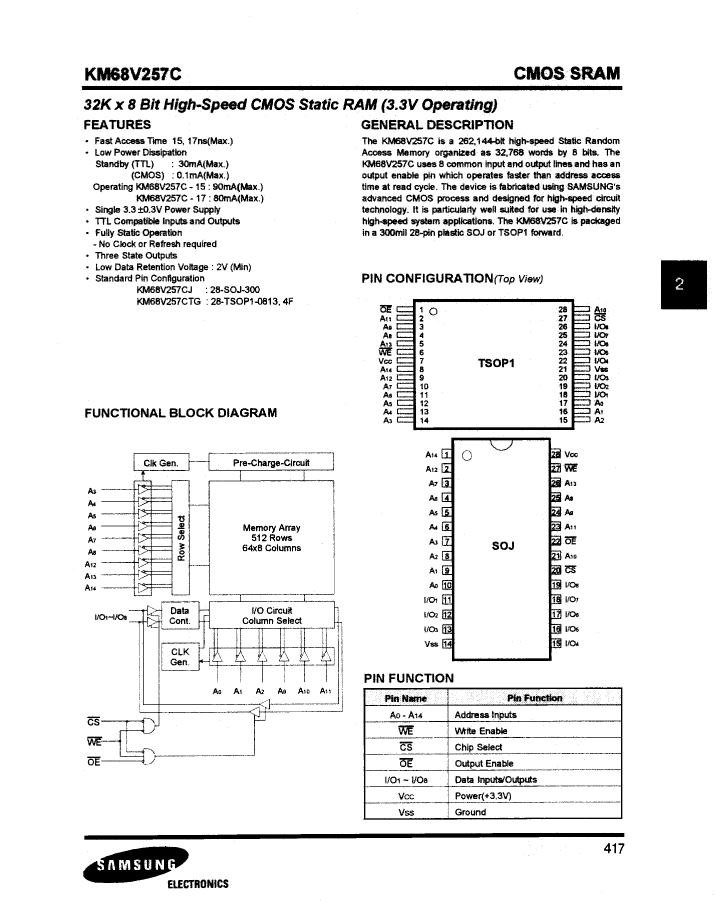

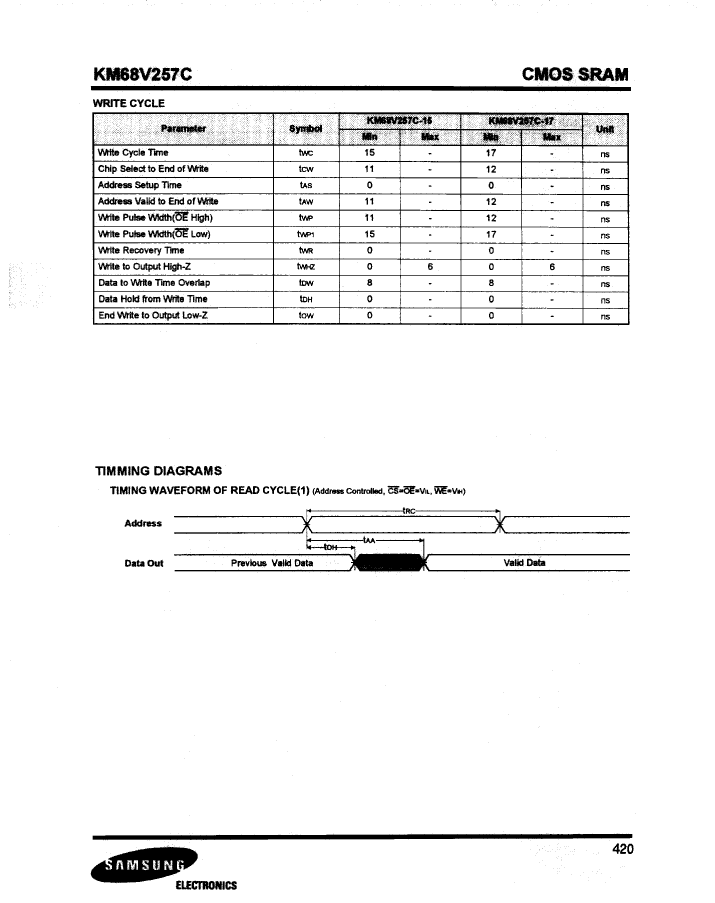

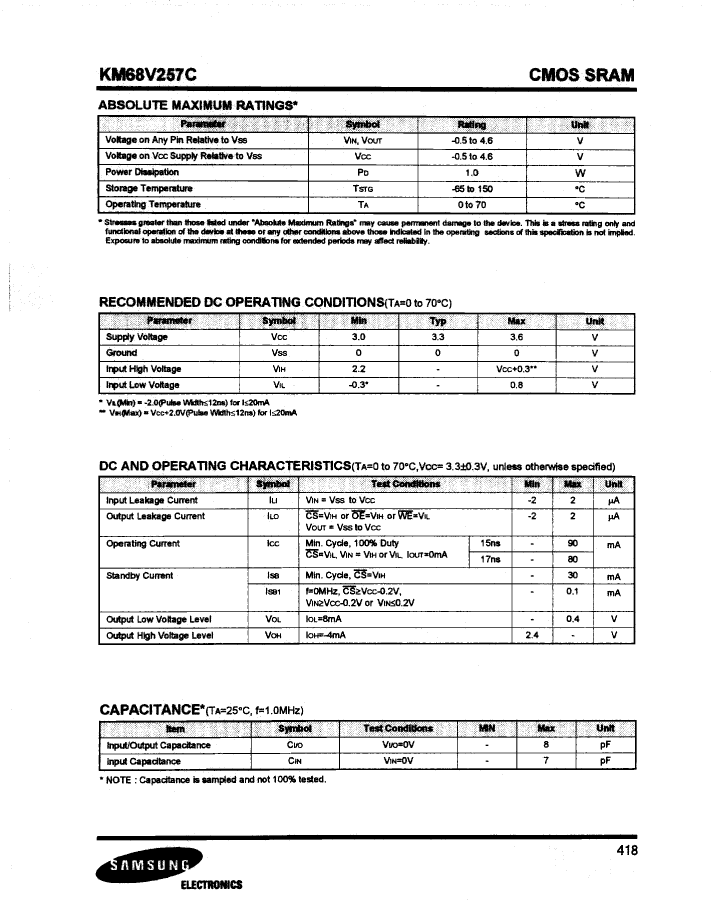

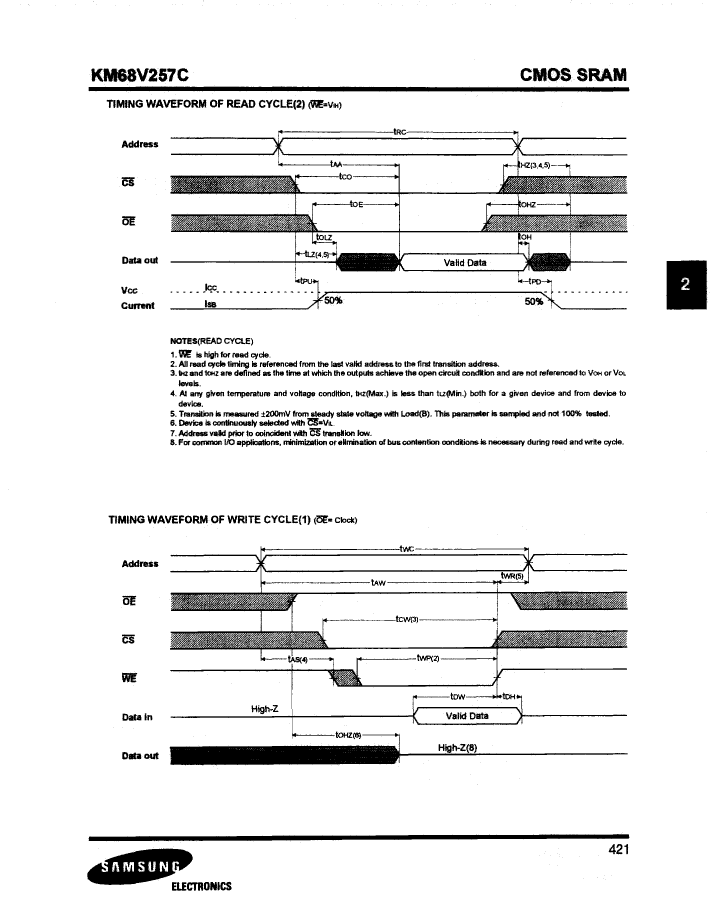

Preview

Download Datasheet

View All

KM68V257CTG-17 Related Products

	KM68V257CTG-17	KM68V257CJ-15	KM68V257CTG-15	KM68V257CJ-17
Description	Standard SRAM, 32KX8, 17ns, CMOS, PDSO28, 8 X 13.40 MM, PLASTIC, TSOP1-28	Standard SRAM, 32KX8, 15ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28	Standard SRAM, 32KX8, 15ns, CMOS, PDSO28, 8 X 13.40 MM, PLASTIC, TSOP1-28	Standard SRAM, 32KX8, 17ns, CMOS, PDSO28, 0.300 INCH, PLASTIC, SOJ-28
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Parts packaging code	TSOP	SOJ	TSOP	SOJ
package instruction	TSOP1, TSSOP28,.53,22	SOJ, SOJ28,.34	TSOP1, TSSOP28,.53,22	SOJ, SOJ28,.34
Contacts	28	28	28	28
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Maximum access time	17 ns	15 ns	15 ns	17 ns
I/O type	COMMON	COMMON	COMMON	COMMON
JESD-30 code	R-PDSO-G28	R-PDSO-J28	R-PDSO-G28	R-PDSO-J28
JESD-609 code	e0	e0	e0	e0
length	11.8 mm	18.42 mm	11.8 mm	18.42 mm
memory density	262144 bit	262144 bit	262144 bit	262144 bit
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8	8
Number of functions	1	1	1	1
Number of ports	1	1	1	1
Number of terminals	28	28	28	28
word count	32768 words	32768 words	32768 words	32768 words
character code	32000	32000	32000	32000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
organize	32KX8	32KX8	32KX8	32KX8
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE
Exportable	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP1	SOJ	TSOP1	SOJ
Encapsulate equivalent code	TSSOP28,.53,22	SOJ28,.34	TSSOP28,.53,22	SOJ28,.34
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	3.3 V	3.3 V	3.3 V	3.3 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	3.76 mm	1.2 mm	3.76 mm
Maximum standby current	0.0001 A	0.0001 A	0.0001 A	0.0001 A
Minimum standby current	2 V	2 V	2 V	2 V
Maximum slew rate	0.08 mA	0.09 mA	0.09 mA	0.08 mA
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	3 V	3 V	3 V	3 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	J BEND	GULL WING	J BEND
Terminal pitch	0.55 mm	1.27 mm	0.55 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	8 mm	7.62 mm	8 mm	7.62 mm
Maker	SAMSUNG	-	SAMSUNG	SAMSUNG
Other features	TTL COMPATIBLE INPUTS/OUTPUTS	TTL COMPATIBLE INPUTS/OUTPUTS	TTL COMPATIBLE INPUTS/OUTPUTS	-
