FT6167/FT6167L
Features
Full CMOS, 6T Cell
High Speed (Equal Access and Cycle Times)
– 10/12/15/20/25 ns (Commercial)
– 12/15/20/25/35 ns (Industrial)
– 15/20/25/35/45 ns (Military)
Low Power Operation
Single 5V±10% Power Supply
Data Retention with 2.0V Supply (FT6167L
Military)
ULTRA HIGH SPEED 16K X 1
STATIC CMOS RAMS
Separate Data I/O
Three-State Output
TTL Compatible Output
Fully TTL Compatible Inputs
Standard Pinout (JEDEC Approved)
– 20-Pin 300 mil DIP
– 20-Pin 300 mil SOJ
– 20-Pin LCC
Description
The
FT6167/L
are 16,384-bit high speed static RAMs or-
ganised as 16K x 1. The CMOS memories require no clocks
or refreshing and have equal access and cycle times. The
RAMs operate from a single 5V ± 10% tolerance power
supply. Data integrity is maintained for supply voltages
down to 2.0V, typically drawing 10µA.
Access times as fast as 10 nanoseconds are available,
greatly enhancing system speeds. CMOS reduces power
consumption to low levels.
The
FT6167/L
are available in 20-pin 300 mil DIP, 20-pin
300 mil SOJ, and 20-pin LCC packages providing excel-
lent board level densities.

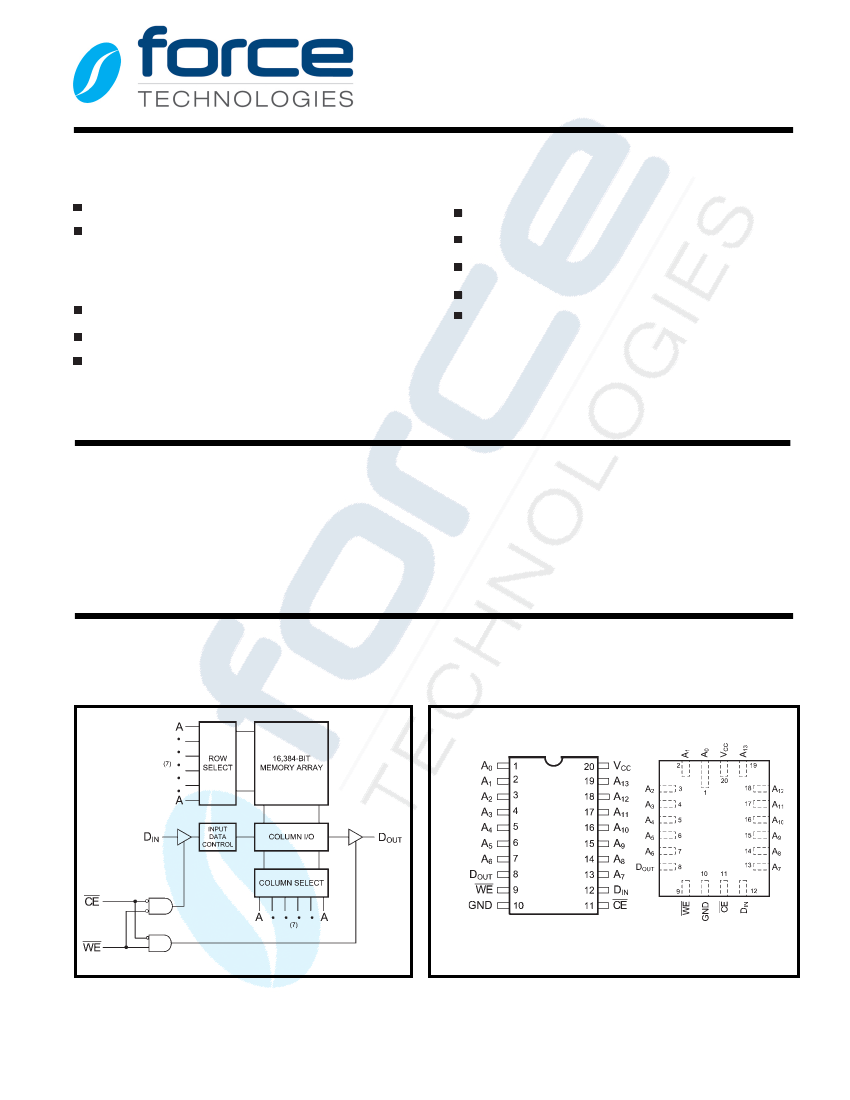

Functional Block Diagram
Pin Configurations
DIP (P2, C6)
SOJ (J2) SIMILAR
LCC (L9)
Maximum Ratings
Symbol
V
CC
Parameter
Power Supply Pin with
Respect to GND
Terminal Voltage with
Respect to GND
(up to 7.0V)
Operating Temperature
Value
–0.5 to +7
–0.5 to
V
CC
+0.5
–55 to +125
Unit
V
Symbol
T
BIAS
T
STG
P
T
I
OUT
Parameter
Temperature Under
Bias
Storage Temperature
Power Dissipation
DC Output Current
Value
–55 to +125
–65 to +150
1.0
50
Unit
°C
°C
W
mA
V
TERM
T
A
V
°C
Recommended Operating Conditions
Grade(2)
Military
Ambient
Temperature
GND
0V
0V
0V
V
CC
5.0V ± 10%
5.0V ± 10%
5.0V ± 10%
Capacitance
(4)
Symbol
C
IN
C
OUT
V
CC
= 5.0V, T
A
= 25°C, f = 1.0MHz
Parameter
Input Capacitance
Output Capacitance
Conditions Typ. Unit
V
IN
= 0V
V
OUT
= 0V
5
7
pF
pF
–55°C to +125°C
–40°C to +85°C
Industrial
0°C to +70°C
Commercial
DC Electrical Characteristics
Symbol
V
IH
V
IL
V
HC
V
LC
V
CD
V
OL
V
OH
I
LI
I
LO
I
SB
Parameter
Input High Voltage
Input Low Voltage
CMOS Input High Voltage
CMOS Input Low Voltage
Over recommended operating temperature and supply voltage
(2)
Test Conditions
FT6167
Min
Max
2.2
V
CC
+0.5
–0.5
(3)
–0.5
(3)
0.8
0.2
–1.2
0.4
2.4
Mil.
Com’l.
Mil.
Com’l.
–10
–5
–10
–5
___
___
___
___
+10
+5
+10
+5
30
20
15
10
2.4
–5
n/a
–5
n/a
___
___
___
___
+5
n/a
+5
n/a
20
n/a
1.0
n/a
FT6167L
Unit
Min
Max
2.2
V
CC
+0.5 V
–0.5
(3)
–0.5(3)
0.8
0.2
–1.2
0.4
V
V
V
V
V
V
µA
µA
mA
V
CC
–0.2 V
CC
+0.5 V
CC
–0.2 V
CC
+0.5
Input Clamp Diode Voltage V
CC
= Min., I
IN
= –18 mA
Output Low Voltage
(TTL Load)
Output High Voltage
(TTL Load)
Input Leakage Current
Output Leakage Current
I
OL
= +8 mA, V
CC
= Min.
I
OH
= –4 mA, V
CC
= Min.
V
CC
= Max.
V
IN
= GND to V
CC
V
CC
= Max.,
CE
= V
IH
,
V
OUT
= GND to V
CC
CE
≥
V
IH
Mil.
Standby Power Supply
V
CC
= Max .,
Ind./Com’l.
Current (TTL Input Levels)
f = Max., Outputs Open
Standby Power Supply
Current
(CMOS Input Levels)
Mil.
CE
≥
V
HC
V
CC
= Max.,
Ind./Com’l.
f = 0, Outputs Open
V
IN
≤
V
LC
or V
IN
≥
V
HC
mA
I
SB1
n/a = Not Applicable
Notes:
1. Stresses greater than those listed under MAXIMUM RATINGS may
cause permanent damage to the device. This is a stress rating only
and functional operation of the device at these or any other conditions
above those indicated in the operational sections of this specification
is not implied. Exposure to MAXIMUM rating conditions for extended
periods may affect reliability.
2. Extended temperature operation guaranteed with 400 linear feet per
minute of air flow.
3. Transient inputs with V
IL
and I
IL
not more negative than –3.0V and
–100mA, respectively, are permissible for pulse widths up to 20 ns.
4. This parameter is sampled and not 100% tested.
Power Dissipation Characteristics Vs. Speed
Symbol
I
CC
Parameter
Dynamic Operating Current*
Temperature
Range
Commercial
Industrial
Military
–10
180
N/A
N/A
–12
170
180
N/A
–15
160
170
170
–20
155
160
160
–25
150
155
155
–35
N/A
150
150
–45
N/A
N/A
145
Unit
mA
mA
mA
*V
CC
= 5.5V. Tested with outputs open. f = Max. Switching inputs are 0V and 3V.
CE
= V
IL
.
Data Retention Characteristics (FT6167L Military Temperature Only)
Symbol
V
DR
I
CCDR
t
CDR
t
R†
*T
A
= +25¹C
§t
RC
= Read Cycle Time
†
Parameter
V
CC
for Data Retention
Data Retention Current
Chip Deselect to
Data Retention Time
Operation Recovery Time
Test Conditons
Min
2.0
Typ.*
V
CC
=
2.0V
3.0V
10
Max
V
CC
=
2.0V
3.0V
Unit
V
CE
≥
V
CC
–0.2V,
V
IN
≥
V
CC
–0.2V
or V
IN
≤
0.2V
0
t
RC§
15
600
900
µA
ns
ns
This parameter is guaranteed but not tested.

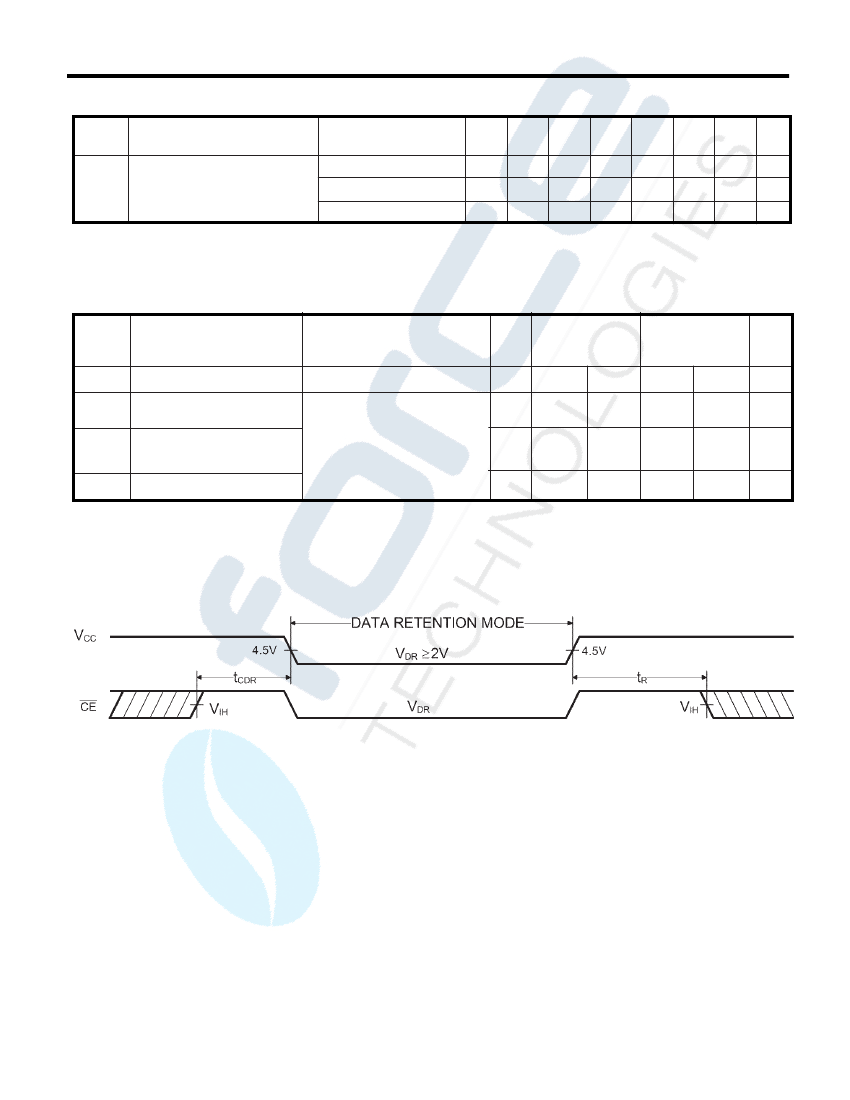

Data Retention Waveform
AC Characteristics - Read Cycle
(V
CC
= 5V ± 10%, All Temperature Ranges)
(2)
Symbol
t
RC
t
AA
t
AC
t
OH
t
LZ
t
HZ
t
PU
t
PD
Parameter
Read Cycle Time
Address Access
Time
Chip Enable
Access Time
Output Hold from
Address Change
Chip Enable to
Output in Low Z
Chip Disable to
Output in High Z
Chip Enable to
Power Up Time
Chip Disable to
Power Down Time
–10
10
10
10
2
2
5
0
10
0
2
2
–12
12
12
12
2
2
6
0
12
–15
15
15
15
2
2
8
0
15
–20
20
20
20
2
2
10
0
20
–25
25
25
25
2
2
12
0
25
–35
35
35
35
2
2
17
0
35
–45
45
45
45
Min Max Min Max Min Max Min Max Min Max Min Max Min Max
Unit
ns
ns
ns
ns
ns
20
ns
ns
45
ns

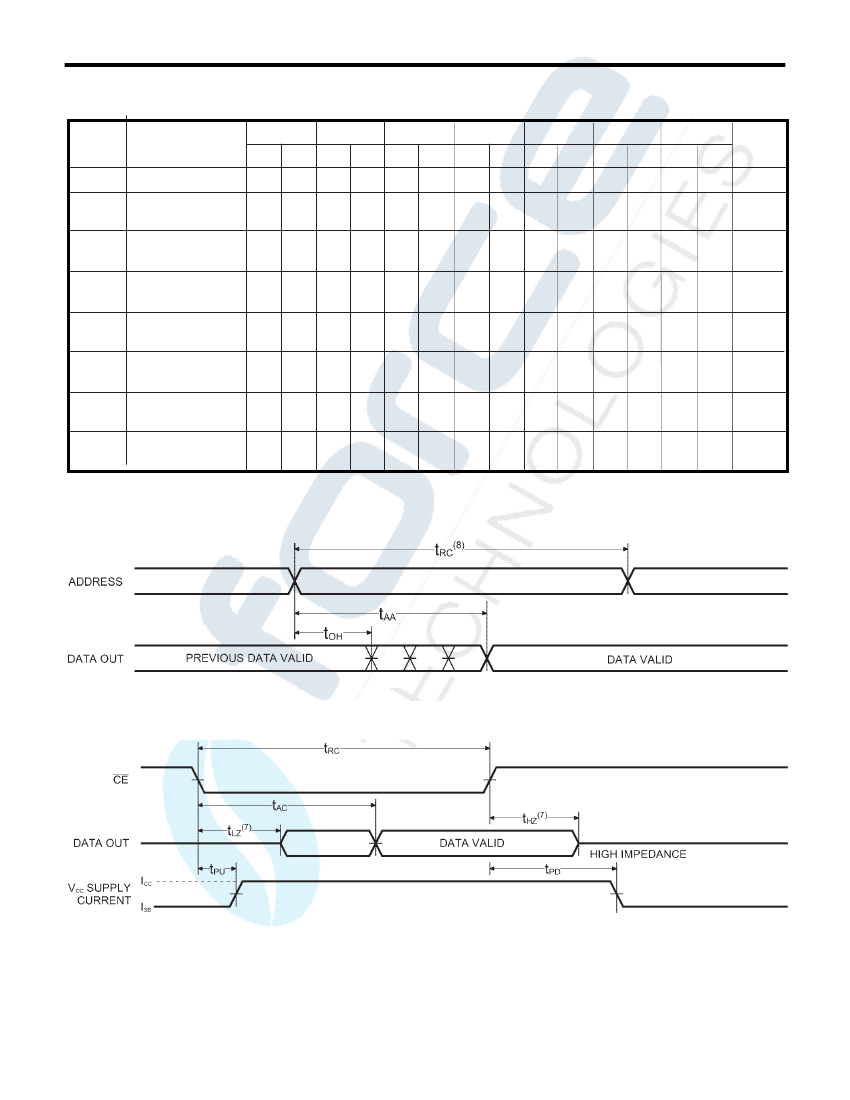

Timing Waveform Of read Cycle No. 1
(5)
Timing Waveform Of Read Cycle No.2
(6)
Notes:
5.
CE
is LOW and
WE
is HIGH for READ cycle.
6.
WE
is HIGH, and address must be valid prior to or coincident with
CE
transition LOW.
7. Transition is measured ±200mV from steady state voltage prior to
change with specified loading in Figure 1. This parameter is sampled
and not 100% tested.
8. Read Cycle Time is measured from the last valid address to the first
transitioning address.
AC CHARACTERISTICS - WRITE CYCLE
(V
CC
= 5V ± 10%, All Temperature Ranges)
(2)
Symbol
t
WC
t
CW
t
AW
t
AS
t
WP
t
AH
t
DW
t
DH
t
WZ
t
OW
Parameter
Write Cycle Time
Chip Enable Time
to End of Write
Address Valid to
End of Write
Address Set-up
Time
Write Pulse Width
Address Hold Time
from End of Write
Data Valid to End
of Write
Data Hold Time
Write Enable to
Output in High Z
Output Active from
End of Write
0
–10
10
8
8
0
8
0
6
0
6
0
–12
12
10
10
0
10
0
7
0
7
0
–15
15
2
12
0
12
0
10
0
8
0
–20
20
15
15
0
15
0
13
0
12
0
–25
25
20
20
0
20
0
15
0
15
0
–35
35
25
25
0
25
0
20
0
17
0
–45
45
30
30
0
30
0
25
0
20
Unit
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
Min Max Min Max Min Max Min Max Min Max Min Max Min Max

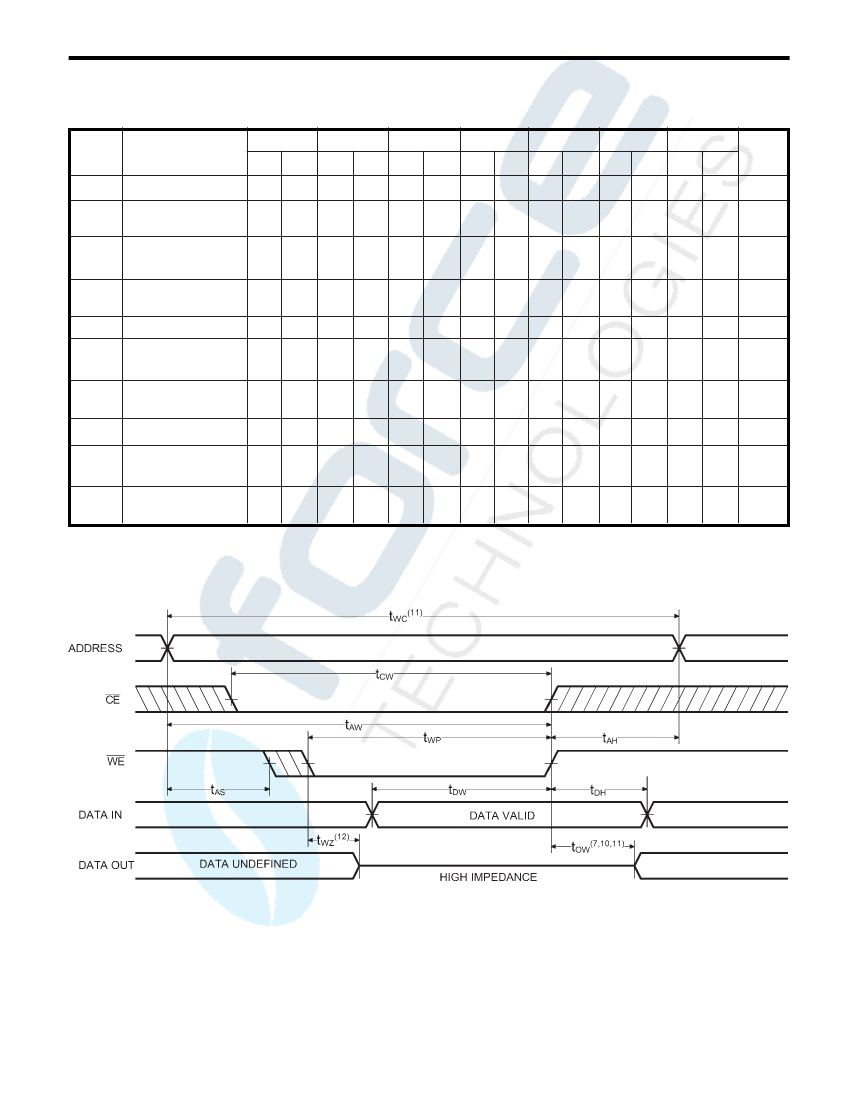

TIMING WAVEFORM OF WRITE CYCLE NO. 1 (WE CONTROLLED)
(9)
WE
Notes:
9.
CE
and
WE
must be LOW for WRITE cycle.
10. If
CE
goes HIGH simultaneously with
WE
HIGH, the output remains
in a high impedance state.
11. Write Cycle Time is measured from the last valid address to the first
transition address.
