S7580ZOV751RA1200 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> S7580ZOV751RA1200

S7580ZOV751RA1200: DescriptionRESISTOR, VOLTAGE DEPENDENT, 970V, 1200J, CHASSIS MOUNT, RADIAL LEADED; CategoryPassive components The resistor; File Size129KB，1 Pages; ManufacturerMaida Development Company

Download Datasheet Parametric View All

S7580ZOV751RA1200 Overview

RESISTOR, VOLTAGE DEPENDENT, 970V, 1200J, CHASSIS MOUNT, RADIAL LEADED

S7580ZOV751RA1200 Parametric

Parameter Name	Attribute value
Maker	Maida Development Company
package instruction	RADIAL LEADED
Reach Compliance Code	compliant
ECCN code	EAR99
Circuit maximum DC voltage	970 V
Circuit RMS maximum voltage	750 V
Maximum energy absorption capacity	1200 J
JESD-609 code	e3
Manufacturer's serial number	S7580ZOV751RA1200
Installation features	CHASSIS MOUNT
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package shape	RECTANGULAR PACKAGE
Resistor type	VARISTOR
surface mount	NO
Terminal surface	TIN
Terminal location	RADIAL
Terminal shape	LUG

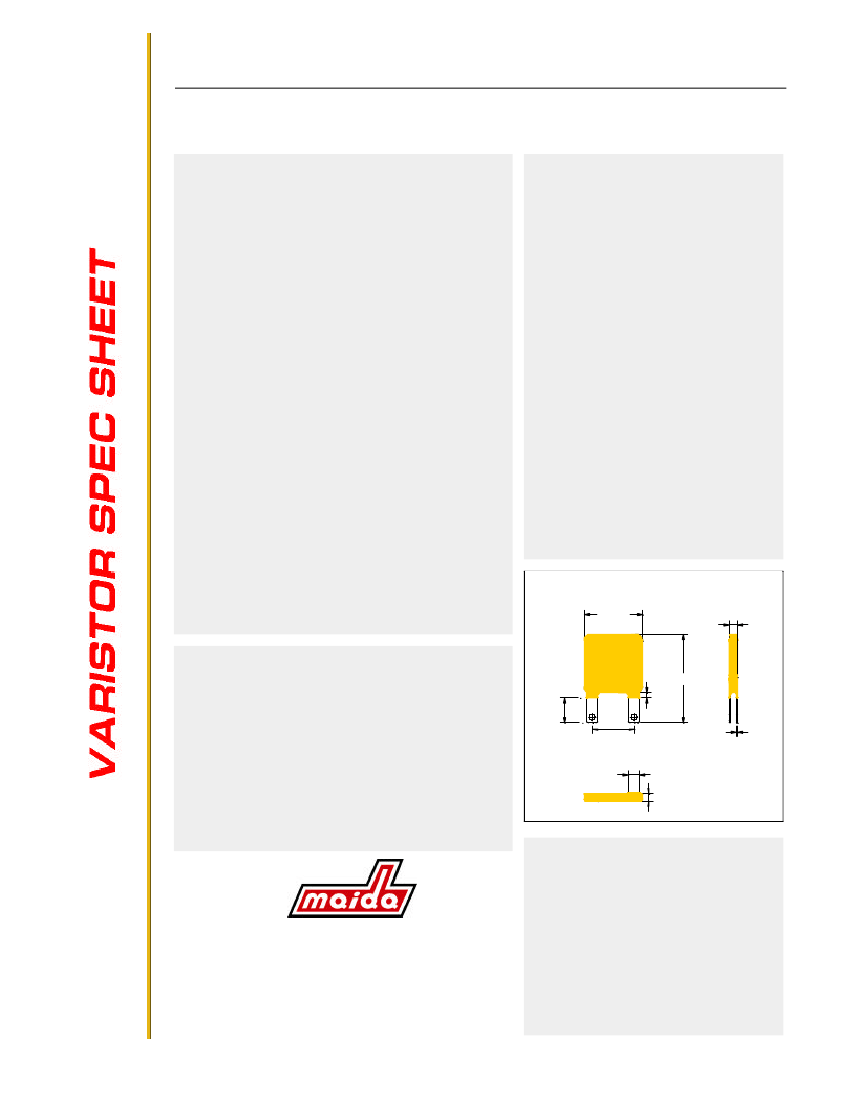

S7580ZOV751RA1200 Preview

Date:

2/15/2008

VARISTOR

SPECIFICATION SHEET

S7580ZOV751RA1200

MAIDA STYLE NUMBER

HIGH ENERGY SERIES

Electrical Specifications

Continuous AC Voltage

Continuous DC Voltage

Maximum DC Leakage @ Rated VDC

Low Varistor Voltage Limit

High Varistor Voltage Limit

Nominal Varistor Voltage

Current for Varistor Voltage

Maximum Clamp Voltage

Maximum Clamp Voltage Test Current

Peak Current Rating (1 Pulse)

Peak Current Rating (2 Pulse)

Energy Rating (8X20us)

Energy Rating (10X1000us)

Typical Capacitance

Impulse Response Time

Minimum Hipot of Coating

Minimum I.R. of Coating

750

VAC

Physical Specifications

Lead Style

Z Nominal

Z Tolerance

Lead Length Nominal

Lead Length Tolerance

Y Nominal

Y Tolerance

d Nominal

Wire Gauge

Minimum Marking

Nominal Disk Size

D Maximum

T Maximum

H Maximum

165

in.

0.02

in.

970

VDC

200

1062

VDC

1300

VDC

1180

VDC

in.

0.286

in.

0.04

in.

2000

300

0.02

in.

AWG

40000

D4S-751UL

1.476

in.

1200

1300

0.46

in.

2.125

in.

2500

VDC

1000

ΜΩ

D MAX.

T MAX.

Thermal Specifications

Minimum Operating Temperature

Maximum Operating Temperature

Varistor Voltage Temperature Coeff

Minimum Storage Temperature

Maximum Storage Temperature

Current/Energy Derating Above 85°C

-40

°C

L TYP.

H MAX.

C TYP.

°C

Z NOM.

d NOM.

-0.05

%/°C

W NOM.

-50

°C

125

°C

-2.5

%/°C

Y NOM.

* Contact Maida for a more detailed configuration drawing.

Safety Agency Recognitions

UL 1449 File Number

UL 1414 File Number

DEVELOPMENT COMPANY

20 Libby Street

P.O. Box 3529

Hampton, Virginia 23663

(757) 723-0785

Fax (757) 722-1194

E86730

UL 497B File Number

CSA File Number

VDE File Number

SEV File Number

LR33468
