CMDSH2-4L
SURFACE MOUNT
HIGH CURRENT, LOW VF
SILICON SCHOTTKY DIODE
w w w. c e n t r a l s e m i . c o m
DESCRIPTION:
The CENTRAL SEMICONDUCTOR
CMDSH2-4L is a HIGH CURRENT, LOW VF
40 volt Schottky diode packaged in a space saving
SOD-323 surface mount case. This
SUPERmini™
device has been designed for small signal general
purpose applications when small size and operational
efficiency are prime requirements.
MARKING CODE: S2L

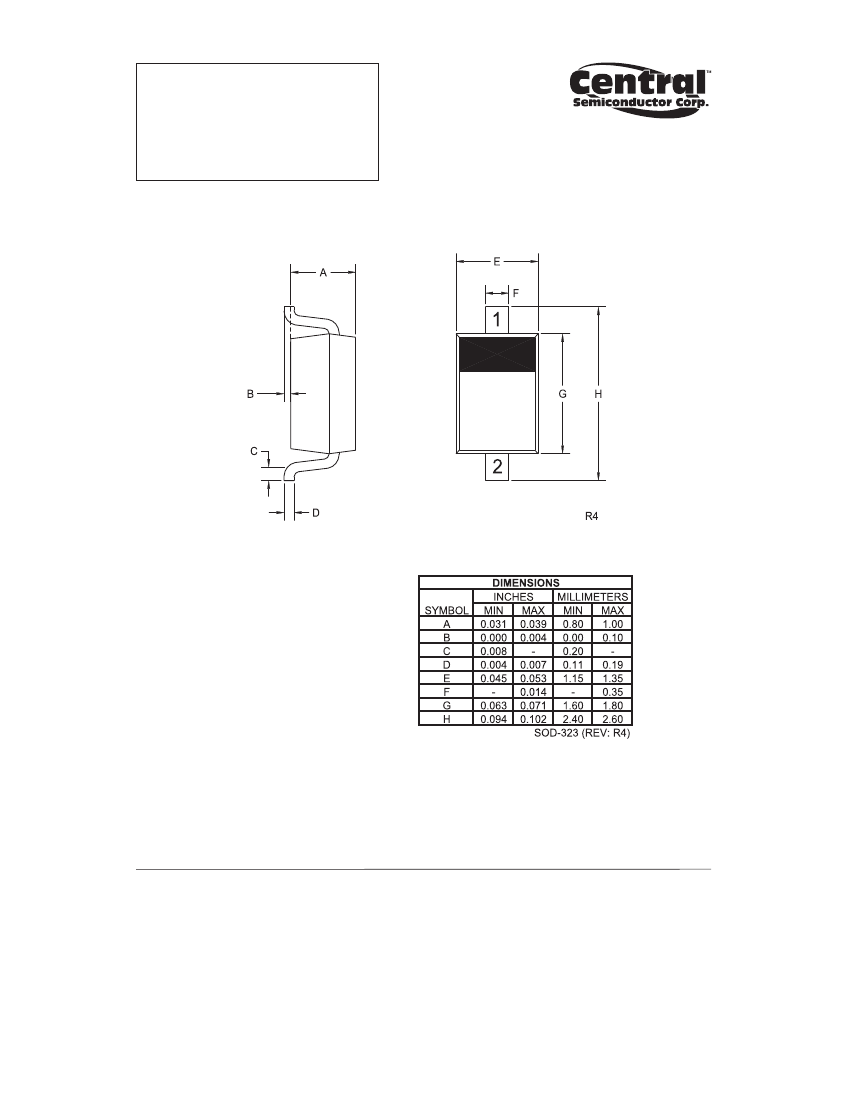

SOD-323 CASE
MAXIMUM RATINGS:
(TA=25°C)
Peak Repetitive Reverse Voltage
Continuous Forward Current
Peak Forward Surge Current, tp=1.0ms
Power Dissipation
Operating and Storage Junction Temperature
Thermal Resistance
SYMBOL
VRRM
IF
IFSM
PD
TJ, Tstg
Θ
JA
40
200
1.0
250
-65 to +150
500
UNITS
V
mA
A
mW
°C
°C/W
ELECTRICAL CHARACTERISTICS:
(TA=25°C unless otherwise noted)
SYMBOL
TEST CONDITIONS
MIN
IR
VR=20V
BVR
IR=100μA
40
VF
VF
VF
CT
trr
IF=10mA
IF=100mA
IF=200mA
VR=4.0V, f=1.0MHz
IF=IR=10mA, Irr=1.0mA, RL=100Ω
TYP
11
53
0.24
0.35
0.42
8.5
4.0
MAX
50
UNITS
μA
V
0.325
0.4
0.5
10
5.0
V
V
V
pF
ns
