DAC-02320-302 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> DAC-02320-302

Preview

DAC-02320-302: DescriptionD/A Converter, 1 Func, Parallel, Word Input Loading, CDIP24, HERMETIC SEALED, DDIP-24; CategoryAnalog mixed-signal IC converter; File Size196KB，5 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric Compare View All

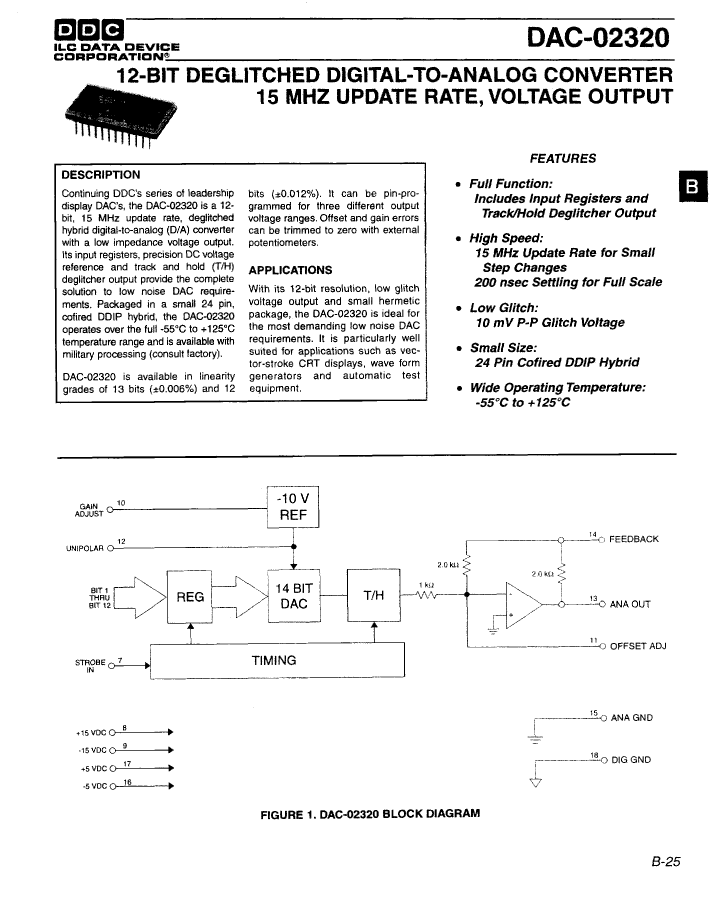

DAC-02320-302 Overview

D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP24, HERMETIC SEALED, DDIP-24

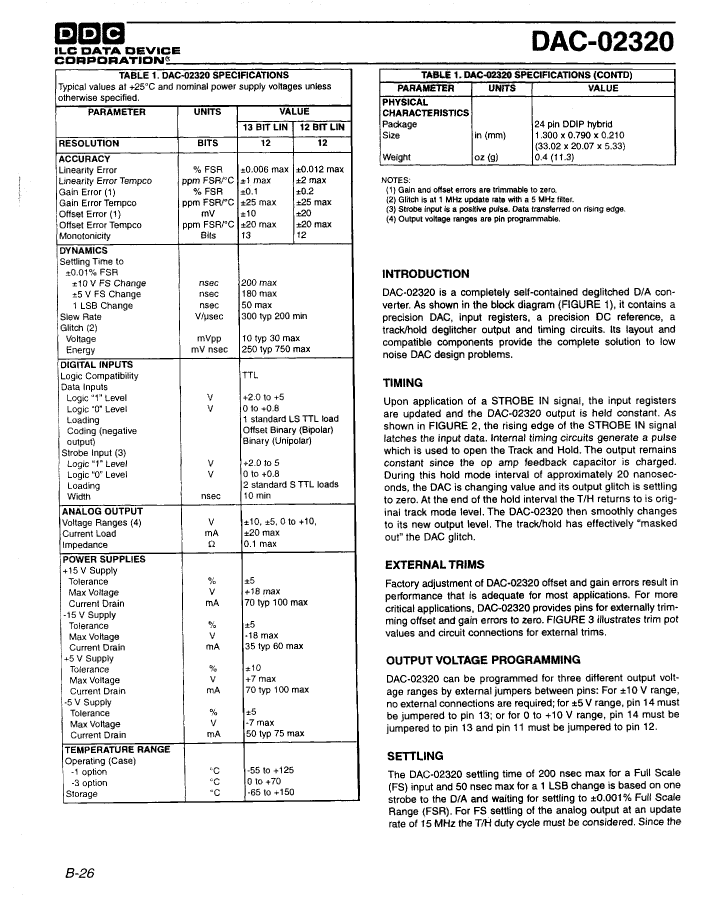

DAC-02320-302 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Data Device Corporation
Parts packaging code	DIP
package instruction	HERMETIC SEALED, DDIP-24
Contacts	24
Reach Compliance Code	unknown
Maximum analog output voltage	10 V
Minimum analog output voltage	-10 V
Converter type	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY
Input format	PARALLEL, WORD
JESD-30 code	R-CDIP-P24
JESD-609 code	e0
Maximum linear error (EL)	0.012%
Nominal negative supply voltage	-15 V
Number of digits	12
Number of functions	1
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-5,+-15 V
Certification status	Not Qualified
Maximum seat height	4.01 mm
Maximum stabilization time
Maximum slew rate	100 mA
Nominal supply voltage	15 V
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm

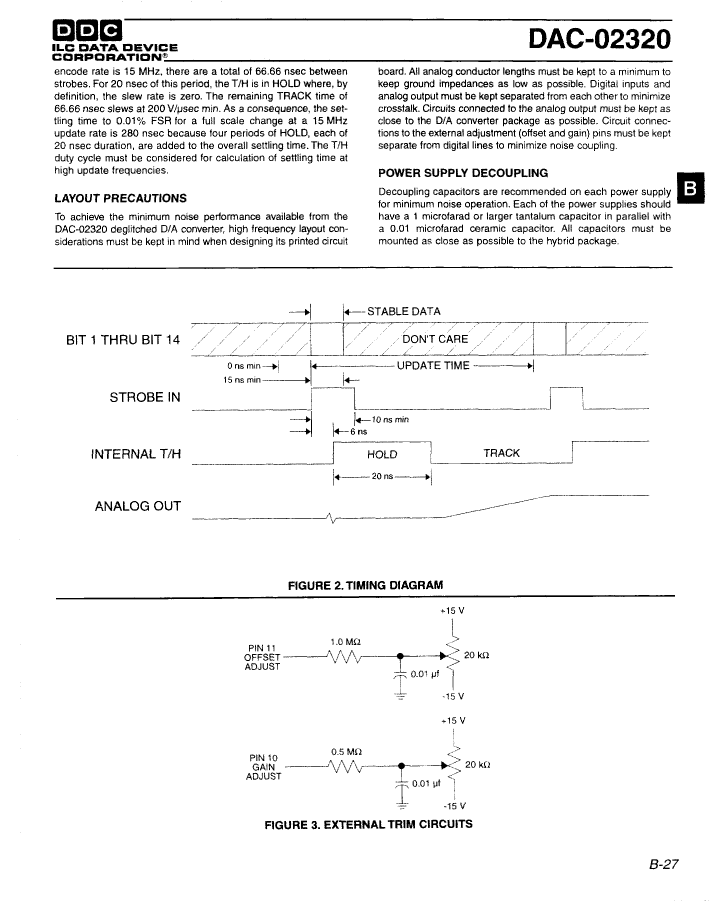

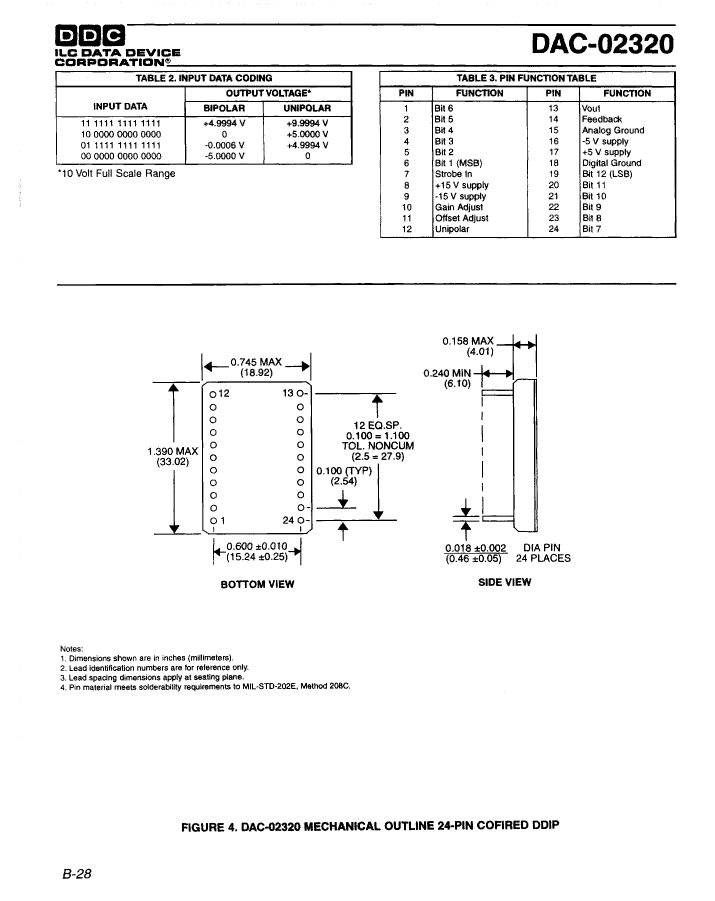

Preview

Download Datasheet

View All

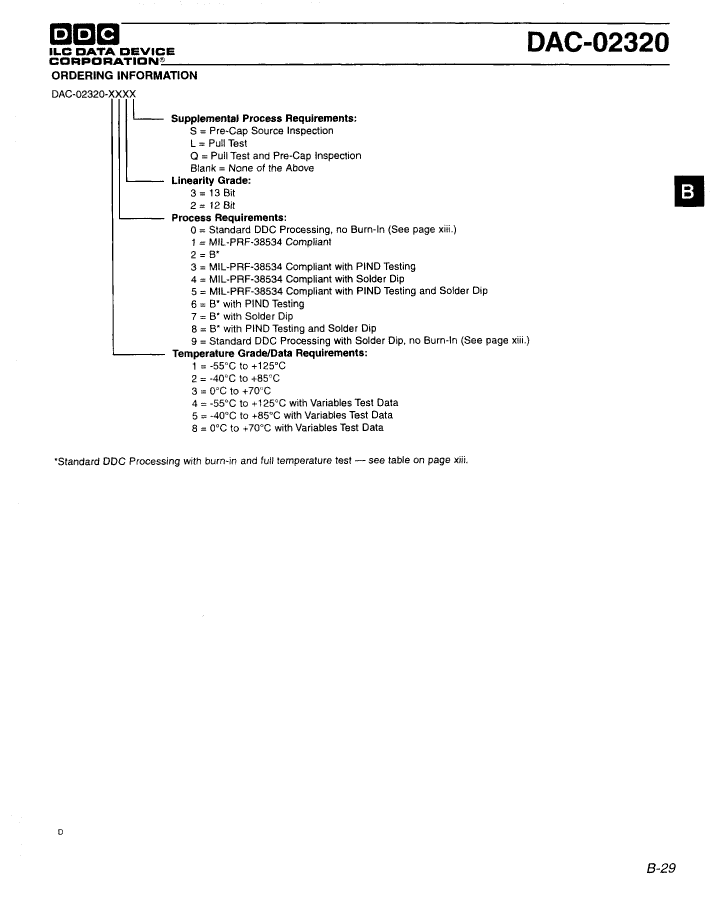

DAC-02320-302 Related Products

	DAC-02320-302	DAC-02320-102	DAC-02320-103	DAC-02320-303	DAC-02320-123	DAC-02320-122
Description	D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP24, HERMETIC SEALED, DDIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP24, HERMETIC SEALED, DDIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP24, HERMETIC SEALED, DDIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP24, HERMETIC SEALED, DDIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP24, HERMETIC SEALED, DDIP-24	D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP24, HERMETIC SEALED, DDIP-24
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	HERMETIC SEALED, DDIP-24	HERMETIC SEALED, DDIP-24	DIP, DIP24,.6	DIP, DIP24,.6	HERMETIC SEALED, DDIP-24	HERMETIC SEALED, DDIP-24
Contacts	24	24	24	24	24	24
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Maximum analog output voltage	10 V	10 V	10 V	10 V	10 V	10 V
Minimum analog output voltage	-10 V	-10 V	-10 V	-10 V	-10 V	-10 V
Converter type	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER	D/A CONVERTER
Enter bit code	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY	BINARY, OFFSET BINARY
Input format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
JESD-30 code	R-CDIP-P24	R-CDIP-P24	R-CDIP-P24	R-CDIP-P24	R-CDIP-P24	R-CDIP-P24
JESD-609 code	e0	e0	e0	e0	e0	e0
Maximum linear error (EL)	0.012%	0.012%	0.006%	0.006%	0.006%	0.012%
Nominal negative supply voltage	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of digits	12	12	12	12	12	12
Number of functions	1	1	1	1	1	1
Number of terminals	24	24	24	24	24	24
Maximum operating temperature	70 °C	125 °C	125 °C	70 °C	125 °C	125 °C
Minimum operating temperature	-	-55 °C	-55 °C	-	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP
Encapsulate equivalent code	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6	DIP24,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	+-5,+-15 V	+-5,+-15 V	+-5,+-15 V	+-5,+-15 V	+-5,+-15 V	+-5,+-15 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.01 mm	4.01 mm	4.01 mm	4.01 mm	4.01 mm	4.01 mm
Maximum slew rate	100 mA	100 mA	100 mA	100 mA	100 mA	100 mA
Nominal supply voltage	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	COMMERCIAL	MILITARY	MILITARY	COMMERCIAL	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm	15.24 mm
Maker	Data Device Corporation	Data Device Corporation	Data Device Corporation	-	Data Device Corporation	Data Device Corporation
ECCN code	-	3A001.A.2.C	3A001.A.2.C	-	3A001.A.2.C	3A001.A.2.C
