MBG3368S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> MBG3368S

MBG3368S: DescriptionSingle Color LED, Green, Clear Pale Green, T-1, 3.1mm, ROHS COMPLIANT, PLASTIC PACKAGE-2; CategoryLED optoelectronic/LED photoelectric; File Size276KB，1 Pages; ManufacturerStanley Electric Co; Environmental Compliance

Download Datasheet Parametric Compare View All

MBG3368S Overview

Single Color LED, Green, Clear Pale Green, T-1, 3.1mm, ROHS COMPLIANT, PLASTIC PACKAGE-2

MBG3368S Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Stanley Electric Co
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	unknown
color	GREEN
color@wavelength	Green
Configuration	SINGLE
Maximum forward current	0.025 A
Maximum forward voltage	2.8 V
Lens type	CLEAR PALE GREEN
Nominal luminous intensity	20.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Optoelectronic device types	SINGLE COLOR LED
total height	5 mm
method of packing	BULK
peak wavelength	555 nm
Maximum reverse voltage	4 V
shape	ROUND
size	3.1 mm
surface mount	NO
T code	T-1
Terminal pitch	2.5 mm
perspective	17 deg

Preview

Download Datasheet

View All

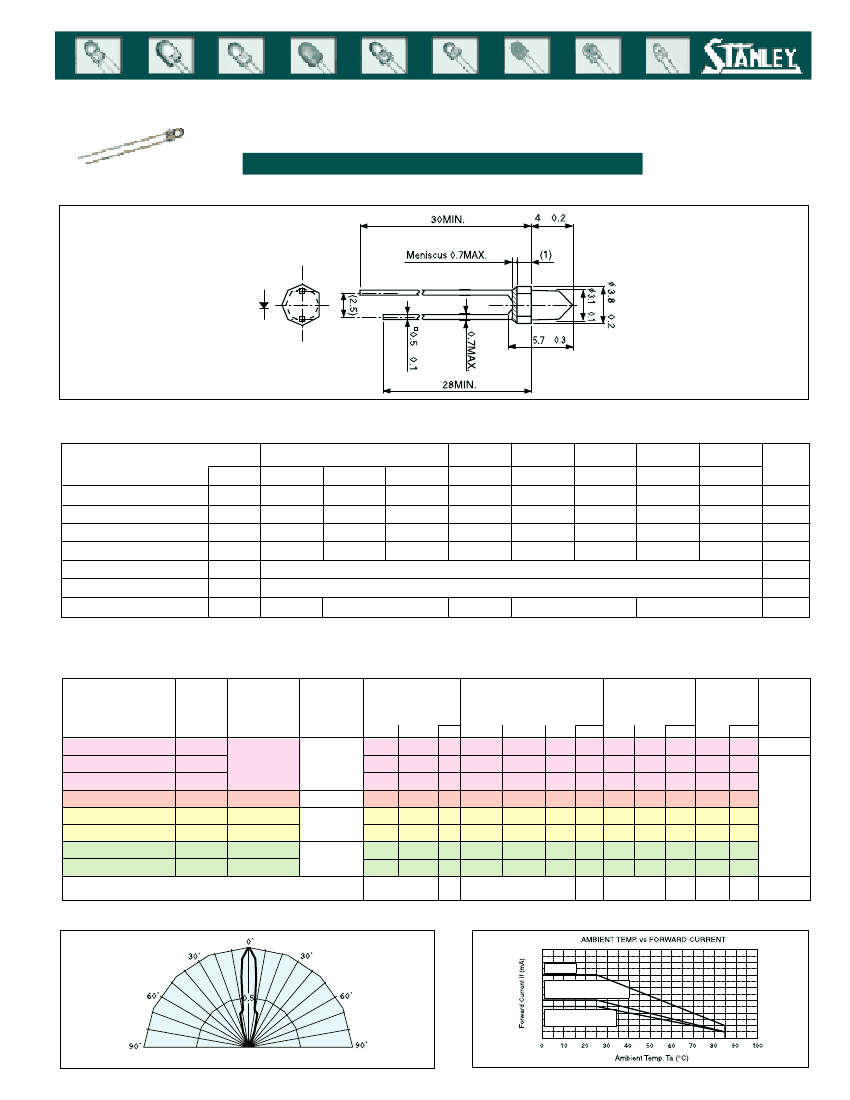

SINGLE COLOR LED

3mm Round Shape

3368S Series

Outline Dimensions

Unit: mm

Absolute Maximum Ratings

Item

Power Dissipation

Forward Current

Peak Forward Current

Reverse Voltage

Operating Temperature

Storage Temperature

Derating (DC)*

Red

Orange

Yellow

Yellow Green

(Ta=25°C)

Green

Pure Green

EBR/BR

MPR

EMVR/MVR EMAA/MAA EMAY/MAY EMPY/MPY EMPG/MPG EMBG/MBG

Symbol

Units

°C

mA/°C

Topr

Tstg

100

300

-30 to +85

-30 to +100

0.33

0.40

0.67

0.40

0.33

* Ta=25°C, I

applies for the pulse width

1msec. and duty cycle

£1/20

The current derating for operation applies when the temperature is above 25°C

Electro-Optical Characteristics

Part No.

Material

Emitted

Color

Lens

Color

Luminous

Intensity

MIN.

TYP

*The viewing angle is an average and will vary by color

(Ta=25°C)

Wavelength

Peak

TYP

Spectral Line

Dominant Half Width

TYP

Forward

Voltage

TYP

MAX.

Reverse Viewing

Current

Angle

MAX.

1/2)

EBR/BR3368S

GaAIAs

Red

MPR3368S

GaP

EMVR/MVR3368S GaAsP

Orange

EMAA/MAA3368S GaAsP

Yellow

EMAY/MAY3368S GaAsP

EMPY/MPY3368S

GaP

Yellow Green

Green

EMPG/MPG3368S

GaP

EMBG/MBG3368S

GaP

Pure Green

Units

Clear

Pastel

Red

Clear Pastel

Orange

Clear

Pastel

Yellow

Clear

Pastel

Green

80/40

40/20

60/30

40/20

20/10

140/80

60/40

90/60

60/40

30/20

660

700

630

605

580

570

560

555

647

635

624

606

590

572

567

558

100

1.7

2.1

2.0

2.2

2.1

2.0

2.8

100

µA

15°

20°

mcd

Deg.

Spatial Distribution (x)

Operation Current Derating Chart

EBR, BR

MPR, EMVR, MVR,

EMAY, MAY, EMPY, MPY

EMAA, MAA, EMPG,

MPG, EMBG, MBG

*Spatial distribution is viewed as a typical illustration and will vary by color

MBG3368S Related Products

	MBG3368S	MVR3368S	EMPY3368S	MPY3368S	MAY3368S	MPG3368S
Description	Single Color LED, Green, Clear Pale Green, T-1, 3.1mm, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Red, Clear Pale Red, T-1, 3.1mm, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Yellow/green, Clear Pale Yellow, T-1, 3.1mm, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Yellow/green, Clear Pale Yellow, T-1, 3.1mm, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Yellow, Clear Pale Yellow, T-1, 3.1mm, ROHS COMPLIANT, PLASTIC PACKAGE-2	Single Color LED, Green, Clear Pale Green, T-1, 3.1mm, ROHS COMPLIANT, PLASTIC PACKAGE-2
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Stanley Electric Co	Stanley Electric Co	Stanley Electric Co	Stanley Electric Co	Stanley Electric Co	Stanley Electric Co
package instruction	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2	ROHS COMPLIANT, PLASTIC PACKAGE-2
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
color	GREEN	RED	YELLOW/GREEN	YELLOW/GREEN	YELLOW	GREEN
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.025 A	0.03 A	0.03 A	0.03 A	0.03 A	0.025 A
Lens type	CLEAR PALE GREEN	CLEAR PALE RED	CLEAR PALE YELLOW	CLEAR PALE YELLOW	CLEAR PALE YELLOW	CLEAR PALE GREEN
Nominal luminous intensity	20.0 mcd	40.0 mcd	90.0 mcd	60.0 mcd	40.0 mcd	40.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C	-30 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
method of packing	BULK	BULK	BULK	BULK	BULK	BULK
peak wavelength	555 nm	630 nm	570 nm	570 nm	580 nm	560 nm
shape	ROUND	ROUND	ROUND	ROUND	ROUND	ROUND
size	3.1 mm	3.1 mm	3.1 mm	3.1 mm	3.1 mm	3.1 mm
surface mount	NO	NO	NO	NO	NO	NO
T code	T-1	T-1	T-1	T-1	T-1	T-1
Terminal pitch	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm
perspective	17 deg	23 deg	19 deg	19 deg	23 deg	18 deg
color@wavelength	Green	-	Yellow	Yellow	Yellow	-
Maximum forward voltage	2.8 V	-	2.8 V	2.8 V	2.8 V	-
Maximum reverse voltage	4 V	-	4 V	4 V	4 V	-
