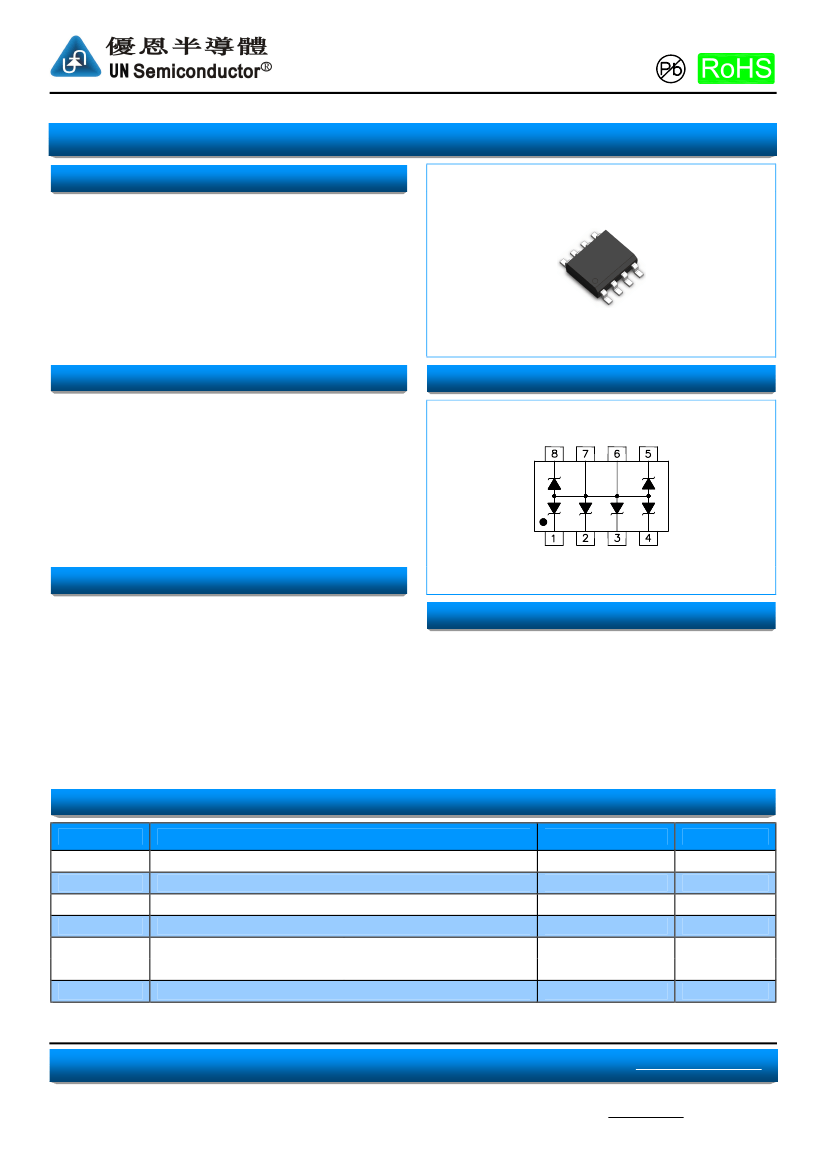

Transient Voltage Suppressors Array for ESD Protection
ESDXXV08S-6L Series
Description
The ESDXXV08S-6L is in an SO-08 package and may be used
to protect two high-speed line pairs. The
“flow-thru”
design
minimizes trace inductance and reduces voltage overshoot
associated with ESD events. The low clamping voltage of the
ESDXXV08S-6L minimizes the stress on the protected IC.
SO-08
Feature
u
u
u
u
u
u
u
300 Watts Peak Pulse Power per Line (tp=8/20μs)
Protects Four Six I/O Lines
Low Operating Voltage
Low Clamping Voltage
RoHS Compliant
IEC61000-4-2 (ESD)
±15kV
(air),
±8kV
(contact)
IEC61000-4-4 (EFT) 40A (5/50ηs)
Functional Diagram
Applications
u
u
u
u
u
u
u
u
Communication Lines
LAN/WAN Equipment
T3/E3 secondary IC Side Protection
HDSL, SDSL secondary IC Side Protection
Servers
Microcontroller Input Protection
Base Stations
Instrumentation
u
u
u
u
u
u
JEDEC SO-08 Package
Molding Compound Flammability Rating : UL 94V-0
Weight 70 Milligrams (Approximate)
Quantity Per Reel : 500pcs
Reel Size : 7 inch
Lead Finish : Lead Free
Mechanical Characteristics
Mechanical Characteristics
Symbol
P
PP
T
L
T
STG
T
J
Parameter
Peak Pulse Power (tp=8/20μs waveform)
Lead Soldering Temperature
Storage Temperature Range
Operating Temperature Range
IEC61000-4-2 (ESD)
Air Discharge
Contact Discharge
IEC61000-4-4 (EFT)
Value
300
260 (10sec)
-55 to +150
-55 to +150
±15
±8
40
Units
W
ºC
ºC
ºC
KV
A
UN Semiconductor Co., Ltd.
Revision January 06, 2014
www.unsemi.com.tw
1/3
@ UN Semiconductor Co., Ltd. 2014
Specifications are subject to change without notice.
Please refer to www.unsemi.com.tw for current information.
Transient Voltage Suppressors Array for ESD Protection
ESDXXV08S-6L Series
Electrical Characteristics
(@ 25℃ Unless Otherwise Specified )
Device
Marking
SMDA
05-6
SMDA
12-6
SMDA
15-6
SMDA
24-6
V
RWM
(V)
(Max.)
5
12
15
24
V
B
(V)
(Min.)
6
13.3
16.7
26.7
I
T
(mA)
1
1
1
1
V
C
@5A
(Max.)
9.8
19
24
43
V
C
(Max.)
20
30
32
48
(@A)
25
21
17
12
I
R
(μA)
(Max.)
5
1
1
1
C
(pF)
(Typ.)
350
120
75
50
Part Number
ESD05V08S-6L
ESD12V08S-6L
ESD15V08S-6L
ESD24V08S-6L

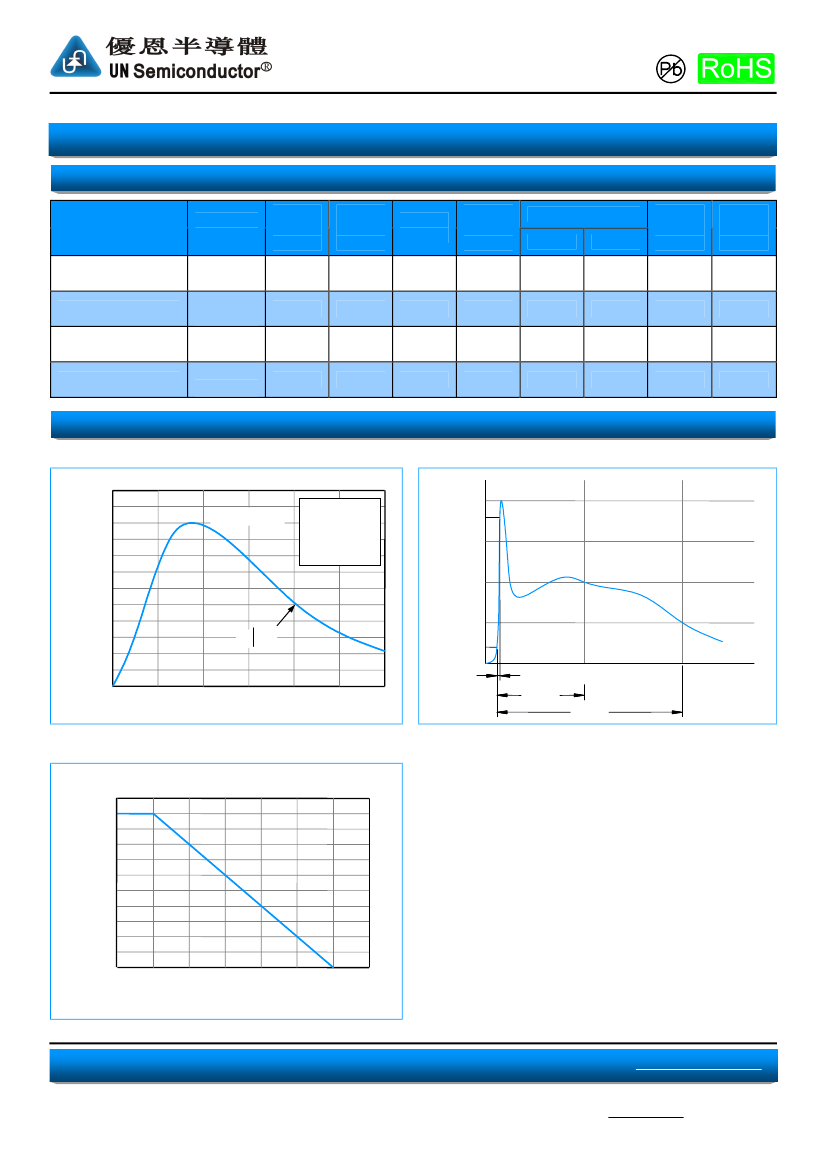

Characteristic Curves
Fig1.
8/20μs Pulse Waveform
Fig2. ESD Pulse Waveform (according to IEC 61000-4-2)
100%
Percent of Peak Pulse Current %
90%
120
I
PP
- Peak Pulse Current - % of I
PP
100
80
60
40
t
d
=t I
PP
/2
20
0
0
5
10
15
t - Time (μs)
20
25
30
t
r
Peak Value I
PP
TEST
WAVEFORM
PARAMETERS
t
r
=8μs
t
d
=20μs
10%
tr = 0.7~1ns
30ns
60ns
Time (ns)
Fig3.
Power Derating Curve
110
100
90
80
70
60
50
40
30
20
10
0
0
25
50
75
100
125
150
175
Ambient Temperature
–
T
A
(ºC)
% of Rated Power or I
PP
UN Semiconductor Co., Ltd.
Revision January 06, 2014
www.unsemi.com.tw
2/3
@ UN Semiconductor Co., Ltd. 2014
Specifications are subject to change without notice.
Please refer to www.unsemi.com.tw for current information.
Transient Voltage Suppressors Array for ESD Protection
ESDXXV08S-6L Series

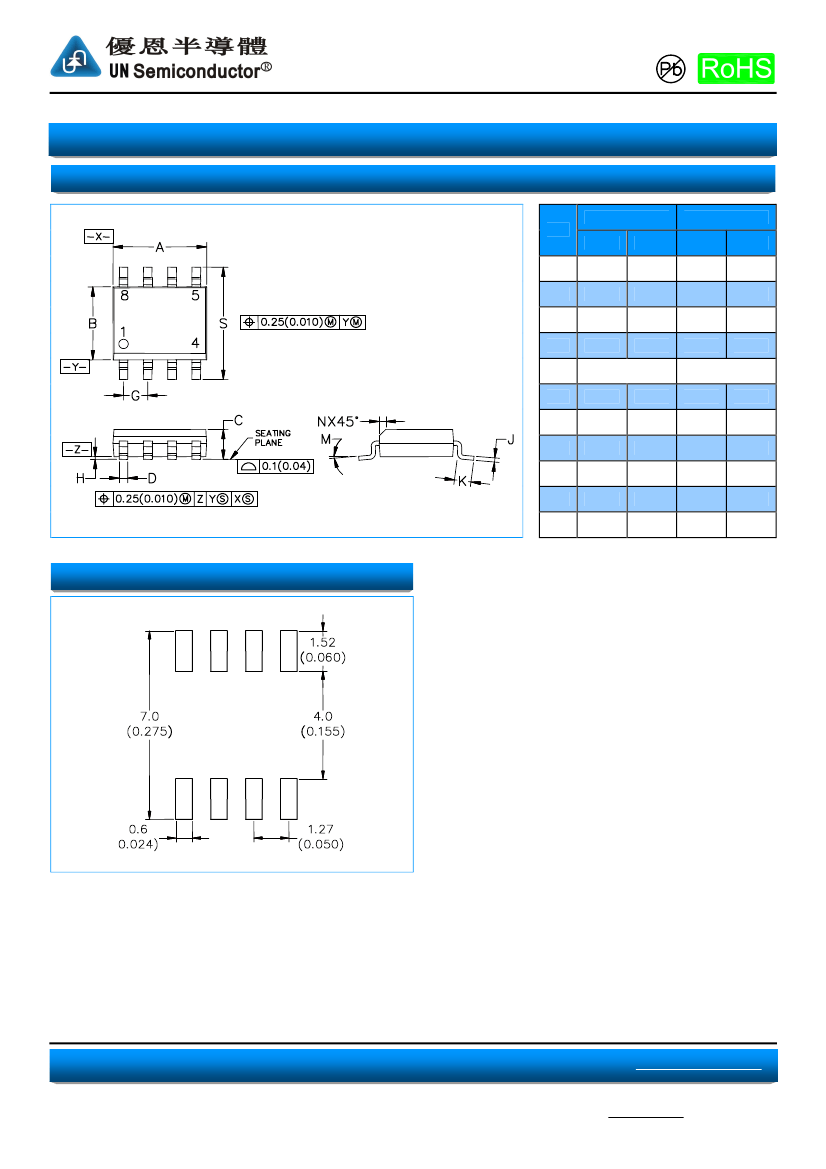

SO-08 Package Outline & Dimensions
Millimeters
DIM
Min
A
B
C
D
G
H
J
K
M
N
S
4.80
3.80
1.35
0.33
Max
5.00
4.00
1.75
0.51
Min
0.189
0.150
0.053
0.013
Max
0.197
0.157
0.069
0.020
Inches
1.27BSC
0.10
0.19
0.40
0°
0.25
5.80
0.25
0.25
1.27
8°
0.50
6.20
0.050BSC
0.004
0.007
0.016
0°
0.010
0.228
0.010
0.010
0.050
8°
0.020
0.244
Soldering Footprint
UN Semiconductor Co., Ltd.
Revision January 06, 2014
www.unsemi.com.tw
3/3
@ UN Semiconductor Co., Ltd. 2014
Specifications are subject to change without notice.
Please refer to www.unsemi.com.tw for current information.
