X25256V20I-2.5

Description
EEPROM, 32KX8, Serial, CMOS, PDSO20, PLASTIC, TSSOP-20
Categorystorage    storage
File Size485KB,17 Pages
ManufacturerIC Microsystems Sdn Bhd
Download Datasheet Parametric View All

X25256V20I-2.5 Overview

EEPROM, 32KX8, Serial, CMOS, PDSO20, PLASTIC, TSSOP-20

X25256V20I-2.5 Parametric

Parameter NameAttribute value
MakerIC Microsystems Sdn Bhd
Parts packaging codeTSSOP
package instructionTSSOP,
Contacts20
Reach Compliance Codeunknown
ECCN codeEAR99
Maximum clock frequency (fCLK)5 MHz
JESD-30 codeR-PDSO-G20
length6.5 mm
memory density262144 bit
Memory IC TypeEEPROM
memory width8
Number of functions1
Number of terminals20
word count32768 words
character code32000
Operating modeSYNCHRONOUS
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
organize32KX8
Package body materialPLASTIC/EPOXY
encapsulated codeTSSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Parallel/SerialSERIAL
Certification statusNot Qualified
Maximum seat height1.2 mm
Serial bus typeSPI
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)2.5 V
Nominal supply voltage (Vsup)3.3 V
surface mountYES
technologyCMOS
Temperature levelINDUSTRIAL
Terminal formGULL WING
Terminal pitch0.65 mm
Terminal locationDUAL
width4.4 mm
Maximum write cycle time (tWC)10 ms
This X25256 device has been acquired by
IC MICROSYSTEMS from Xicor; Inc.
Preliminary Information
256K
X25256
5MHz SPI Serial E
2
PROM with Block Lock
32K x 8 Bit
Protection
FEATURES
•5MHz Clock Rate
•Low Power CMOS
—<1µA standby current
—<5mA active current
•2.5V To 5.5V Power Supply
•SPI Modes (0,0 & 1,1)
•32K X 8 Bits
—64 byte page mode
•Block Lock
Protection
—Protect first page, first 2 pages, first 4 pages,
first 8 pages, 1/4, 1/2 or all of E
2PROM
array
•Programmable Hardware Write Protection
•Packages —8-
lead XBGA
—8-lead SOIC (JEDEC, EIAJ)
—20-lead TSSOP
DESCRIPTION
2
The X25256 is a CMOS 256K-bit serial E
PROM, inter-
nally organized as 32K x 8. The X25256 features a
Serial Peripheral Interface (SPI) and software protocol
allowing operation on a simple three-wire bus. The bus
signals are a clock input (SCK) plus separate data in
(SI) and data out (SO) lines. Access to the device is
controlled through a chip select (CS) input, allowing any
—In-circuit programmable ROM mode
•Built-In Inadvertent Write Protection
—Power-up/down protection circuitry
—Write enable latch
number of devices to share the same bus.
The X25256 also features two additional inputs that
provide the end user with added flexibility. By asserting
the HOLD input, the X25256 will ignore transitions on its
inputs, thus allowing the host to service higher priority
interrupts. The WP input can be used as a hardwire
input to the X25256 disabling all write attempts to the
status register, thus providing a mechanism for limiting
end user capability of altering first page, first 2 pages, 4
—Write protect pin
•Self-Timed Write Cycle
—5ms write cycle time (typical)
•High Reliability
—Endurance: 100,000 cycles
—Data Retention: 100 Years
—ESD protection: 2000V on all pins
pages, 8 pages, 0, 1/4, 1/2 or all of the memory.

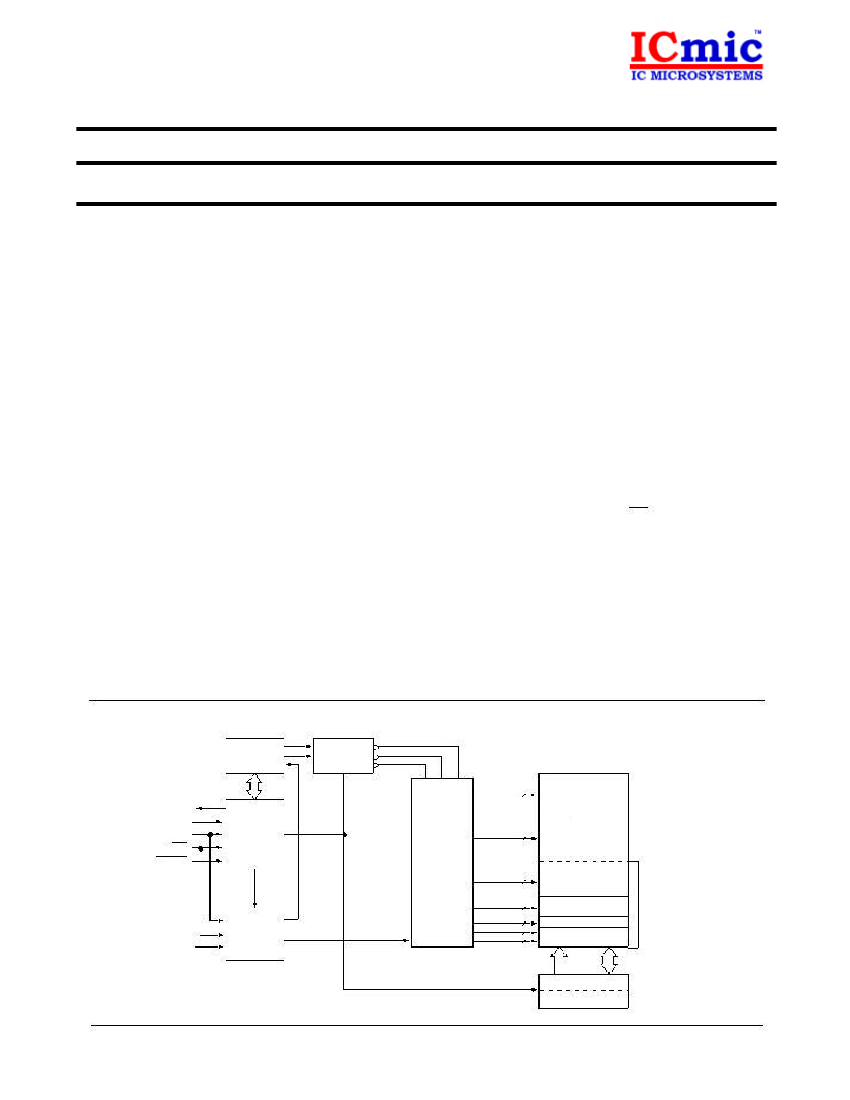

FUNCTIONAL DIAGRAM
Status
Register
Write
Protect
32K Byte
Array
Logic
128
128 X 512
SO
SI
SCK
CS
Command
Decode
HOLD
And
Control
Logic
X-Decode
Protect
128
128 X 512
Logic
248
4
248 X 512
256 X 512
4 X 512
2 X 512
1 X 512
1 X 512
WP
Write
Control
And
Timing
Logic
2
1
1
64
8
Y Decode
Data Register
and Block Lock
Protection is a trademark of Xicor, Inc.
www.icmic.com
Characteristics subject to change without notice.
1 of 17
