M74HC698RM13TR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> M74HC698RM13TR

M74HC698RM13TR: DescriptionHC/UH SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL DECADE COUNTER, PDSO20, SO-20; Categorylogic logic; File Size1MB，16 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/; Environmental Compliance

Download Datasheet Parametric View All

M74HC698RM13TR Overview

HC/UH SERIES, SYN POSITIVE EDGE TRIGGERED 4-BIT BIDIRECTIONAL DECADE COUNTER, PDSO20, SO-20

M74HC698RM13TR Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	STMicroelectronics
Parts packaging code	SOIC
package instruction	SO-20
Contacts	20
Reach Compliance Code	compliant
Other features	REGISTER/COUNTER OUTPUT SELECT; TCO OUTPUT; REGISTERED OUTPUTS
Counting direction	BIDIRECTIONAL
series	HC/UH
JESD-30 code	R-PDSO-G20
JESD-609 code	e4
length	12.8 mm
Load capacitance (CL)	50 pF
Load/preset input	YES
Logic integrated circuit type	DECADE COUNTER
Maximum Frequency@Nom-Sup	17000000 Hz
MaximumI(ol)	0.006 A
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP20,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	2/6 V
Prop。Delay @ Nom-Sup	65 ns
propagation delay (tpd)	370 ns
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	4.5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	7.5 mm
minfmax	20 MHz

M74HC698RM13TR Preview

M74HC698

U/D DECADE COUNTER/REGISTER (3-STATE)

HIGH SPEED:

MAX

= 53 MHz (TYP.) at V

= 6V

LOW POWER DISSIPATION:

= 4µA(MAX.) at T

=25°C

HIGH NOISE IMMUNITY:

NIH

= V

NIL

= 28 % V

(MIN.)

SYMMETRICAL OUTPUT IMPEDANCE:

| = I

= 6mA (MIN) for Q

to Q

OUTPUT

| = I

= 4mA (MIN) for RCO OUTPUT

BALANCED PROPAGATION DELAYS:

PLH

≅

PHL

WIDE OPERATING VOLTAGE RANGE:

(OPR) = 2V to 6V

PIN AND FUNCTION COMPATIBLE WITH

74 SERIES 698

DIP

SOP

TSSOP

ORDER CODES

PACKAGE

DIP

SOP

TSSOP

TUBE

M74HC698B1R

M74HC698M1R

T&R

M74HC698RM13TR

M74HC698TTR

DESCRIPTION

The M74HC698 is an high speed CMOS UP /

DOWN COUNTER REGISTER (3 STATE)

fabricated with silicon gate C

MOS technology.

The M74HC698 is a BCD DECADE COUNTER

with REGISTER.

The device counts on the positive edge of the

counter clock input (CCK) when selected by the

"Counter Mode". If the input U/D is held "H", the

internal counter counts up, and held "L", counts

down. The internal counter’s outputs are stored in

the output register at the positive edge of register

clock (RCK).

The counter features enable P and enable T and a

ripple-carry output for easy expansion. The

counter when low or the register when high for the

three state outputs, QA, QB, QC, and QD. Both

the counter clock CCR and register clock RCK are

positive-edge triggered. The counter clear CCLR

is active low and is synchronous.

All inputs are equipped with protection circuits

against static discharge and transient excess

voltage.

PIN CONNECTION AND IEC LOGIC SYMBOLS

July 2001

1/16

M74HC698

INPUT AND OUTPUT EQUIVALENT CIRCUIT

PIN DESCRIPTION

PIN No

3, 4, 5, 6

7, 14

15 to 18

SYMBOL

U/D

CCK

A to D

ENP/ENT

CCLR

RCK

R/C

LOAD

QA to QD

RCO

GND

NAME AND FUNCTION

Up Down Counter

Selector

Counter Clock

Data Inputs

Enable P and T

Counter Clear (Active

LOW)

Counter/Register Select

Enable Input

Load Counter (Active

LOW)

Data Outputs

Load Counter (Active

High)

Ground (0V)

Positive Supply Voltage

TRUTH TABLE

INPUTS

CCLR LOAD

ENP

ENT

CCK

U/D

RCK

R/C

a’

OUTPUTS

FUNCTION

QA QB QC QD

HIGH IMPEDANCE

CLEAR COUNTER

LOAD COUNTER

NO COUNT

COUNT UP

COUNT DOWN

NO COUNT

d’

LOAD REGISTER

NO LOAD

NO CHANGE

COUNT UP

COUNT DOWN

NO CHANGE

b’

c’

NO CHANGE

X : Don’t Care

Z : High Impedance

a-d : The level of steady state inputs at inputs A through D respectively.

a’-d’ : The level of steady state outputs at internal counter outputs QA’ through QD’ respectively

RCO = (UP · QA · QD · ENT + UP · QA · QD · ENT)

2/16

M74HC698

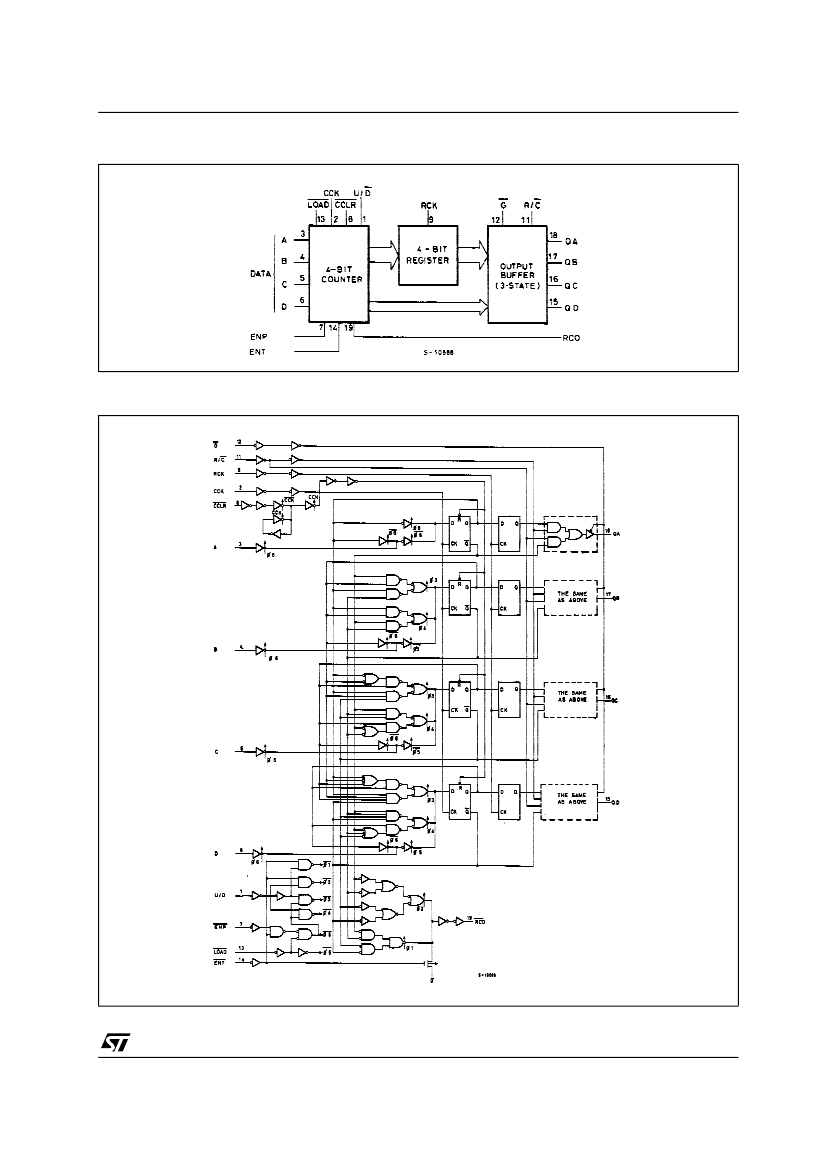

BLOCK DIAGRAM

LOGIC DIAGRAM

This logic diagram has not be used to estimate propagation delays

3/16

M74HC698

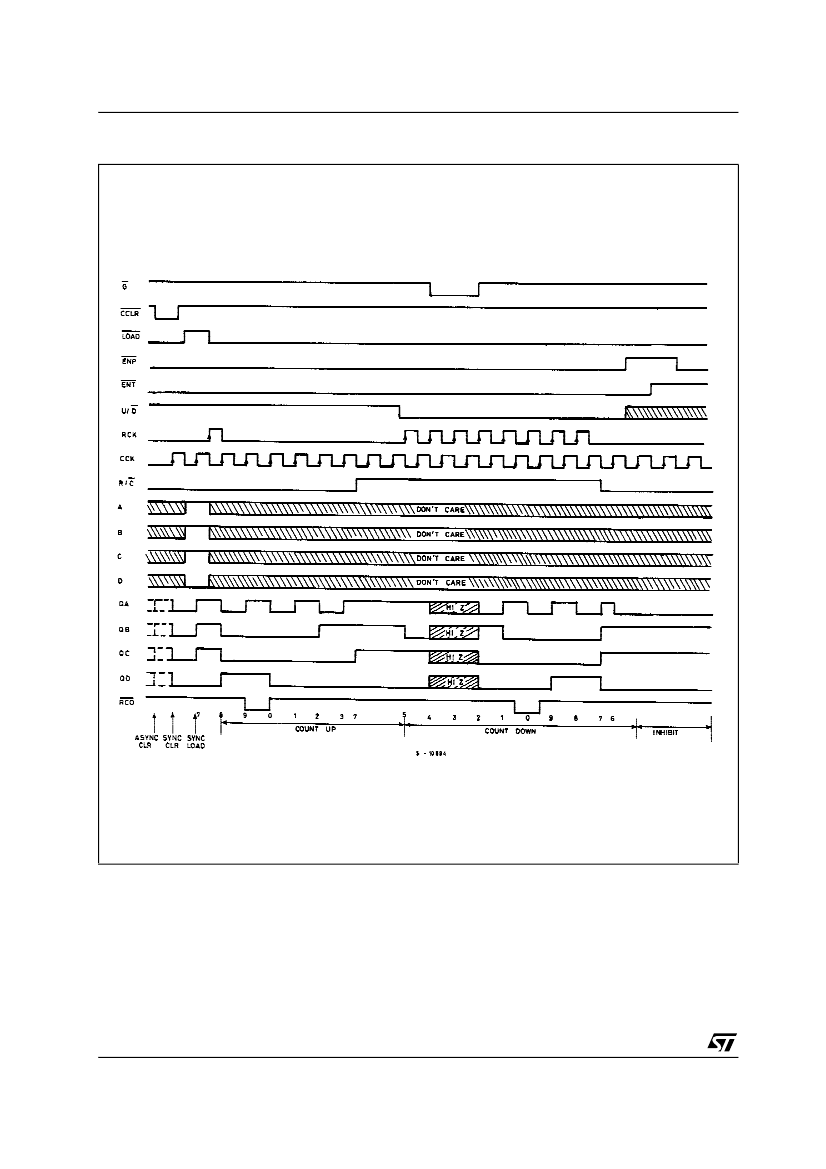

TIMING CHART

4/16

M74HC698

ABSOLUTE MAXIMUM RATINGS

Symbol

Supply Voltage

DC Input Voltage

DC Output Voltage

DC Input Diode Current

DC Output Diode Current

DC Output Source Sink Current per Output PIN (RCO)

(QA to QD)

Parameter

Value

-0.5 to +7

-0.5 to V

+ 0.5

-0.5 to V

+ 0.5

500(*)

-65 to +150

300

Unit

°C

or I

GND

DC V

or Ground Current

Power Dissipation

stg

Storage Temperature

Lead Temperature (10 sec)

Absolute Maximum Ratings are those values beyond which damage to the device may occur. Functional operation under these conditions is

not implied

(*) 500mW at 65

C; derate to 300mW by 10mW/

C from 65

C to 85

RECOMMENDED OPERATING CONDITIONS

Symbol

, t

Supply Voltage

Input Voltage

Output Voltage

Operating Temperature

Input Rise and Fall Time

= 2.0V

= 4.5V

= 6.0V

Parameter

Value

2 to 6

0 to V

-55 to 125

0 to 1000

0 to 500

0 to 400

Unit

°C

5/16
