BR9666 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> BR9666

BR9666: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size44KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

BR9666 Overview

RF AMPLIFIER MODEL

BR9666 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compliant
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL
Gain	34 dB
Maximum input power (CW)	20 dBm
Maximum operating frequency	1000 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

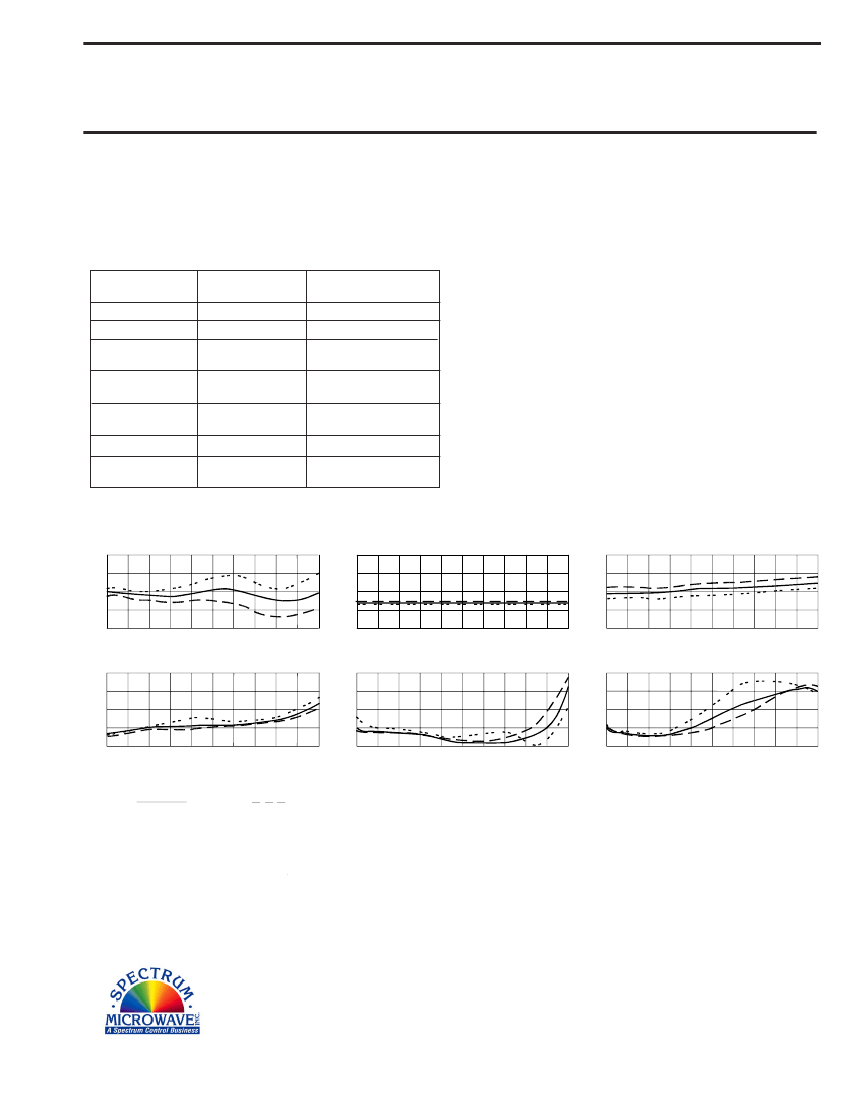

RF AMPLIFIER

MODEL

TR9666

Features

High Gain: 37 dB Typical

Low Noise Figure: <3.5 dB Typical

Available as:

TR9666, 4 Pin TO-8B (T8)

RN9666, 4 Pin Surface Mount (SM19)

BR9666, Connectorized Housing (H2)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ...... +37 dBm (Typ.)

Second Order Two Tone Intercept Point ....... +31 dBm (Typ.)

Third Order Two Tone Intercept Point ........... +25 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

Out

Noise figure (dB)

Power

Vdc

VSWR

TYPICAL

Ta= 25

ºC

10 - 1000 MHz

+15.5

-52

<1.5:1

<1.6:1

<3.5

+15

MIN/MAX

Ta = -55

ºC

to +85

ºC

10 - 1000 MHz

34.0 Min.

+14.0 Min.

-49 Max.

2.0:1 Max.

4.5 Max.

+15

87 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 20 dBm

Short Term RF Input Power ... 200 Milliwatts (1 Minute Max.)

Maximum Peak Power .................... 0.5 Watt 3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Start 10 MHz

Stop 1000 MHz

Gain (dB)

- 20

- 40

- 60

- 80

Reverse Isolation (dB)

Noise Figure (dB)

Start 10 MHz

Stop 1000 MHz

Start 10 MHz

Stop 1000 MHz

+22

+20

+18

+16

+14

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Start 10 MHz

Stop 1000 MHz

Start 10 MHz

Stop 1000 MHz

Start 10 MHz

Stop 1000 MHz

Legend

+ 25 ºC

Linear S-Parameters

+ 85 ºC - - - - - - -55 ºC

FREQ.

– – – – S11– – – –

– – – – S21– – – –

– – – – S12– – – –

– – – – S22– – –

MHz

Mag

Deg

Mag

Deg

Mag

Deg

Mag

Deg

=========================================================================================================

.12

-169

80.22

-178

.002

- 19

157

.13

.10

160

80.76

158

.002

164

.10

100

142

79.59

134

.002

- 13

162

.09

200

.09

108

76.91

.002

- 12

162

.07

400

.04

78.05

.002

- 7

150

.11

600

.02

149

83.56

- 95

.002

.21

800

.02

-146

73.82

166

.002

-134

- 30

.25

1000

.30

-165

80.90

.002

172

-121

.22

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

Rev.

2/23/07

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

BR9666 Related Products

	BR9666	RN9666	TR9666
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	API Technologies	API Technologies	API Technologies
Reach Compliance Code	compliant	compli	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM
structure	COAXIAL	COMPONENT	COMPONENT
Gain	34 dB	34 dB	34 dB
Maximum input power (CW)	20 dBm	20 dBm	20 dBm
Maximum operating frequency	1000 MHz	1000 MHz	1000 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2
