BX9408 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> BX9408

BX9408: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size73KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

BX9408 Overview

RF AMPLIFIER MODEL

BX9408 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	H1
Reach Compliance Code	compliant
structure	COAXIAL
Gain	26 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	400 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TZ9408

Features

Low Cost: 5 to 400 MHz

High Gain: 28 dB Typical

Operating Temp. -55 ºC to +85 ºC

Environmental Screening Available

Available as:

TZ9408, 4 Pin TO-8 (T4)

TN9408, 4 Pin Surface Mount (SM3)

FP9408, 4 Pin Flatpack (FP4)

BX9408, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ...... +40 dBm (Typ.)

Second Order Two Tone Intercept Point ....... +34 dBm (Typ.)

Third Order Two Tone Intercept Point .......... +22 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise figure (dB)

Power

Vdc

TYPICAL

Ta= 25 ºC

5 - 400 MHz

+10.5

-35.5

1.25:1

1.6:1

<5.0

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

5 - 400 MHz

26.0 Min.

+9.0 Min.

-34 Max.

2.0:1 Max.

6.0 Max.

+15

50 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................. 0.5 Watt ( 3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

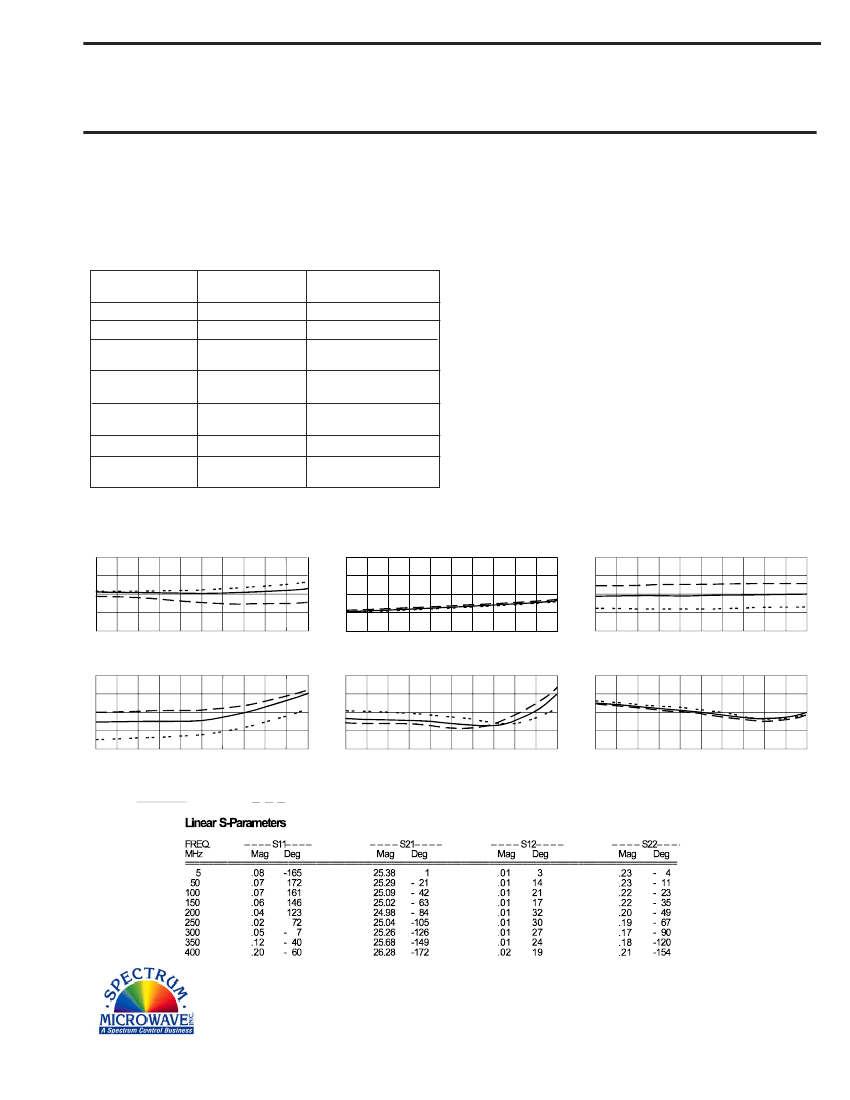

Typical Performance Data

Start 5 MHz

Stop 400 MHz

Gain (dB)

- 15

- 30

- 45

- 60

Start 5 MHz

Reverse Isolation (dB)

Noise Figure (dB)

Stop 400 MHz

Start 5 MHz

Stop 400 MHz

1 dB Comp. (dBm)

+13

+12

+11

+10

+ 9

Start 5 MHz

Stop 400 MHz

Input VSWR

2.0

1.5

1.0

Start 5 MHz

Stop 400 MHz

Output VSWR

2.0

1.5

1.0

Start 5 MHz

Stop 400 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

01/12/05

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001
