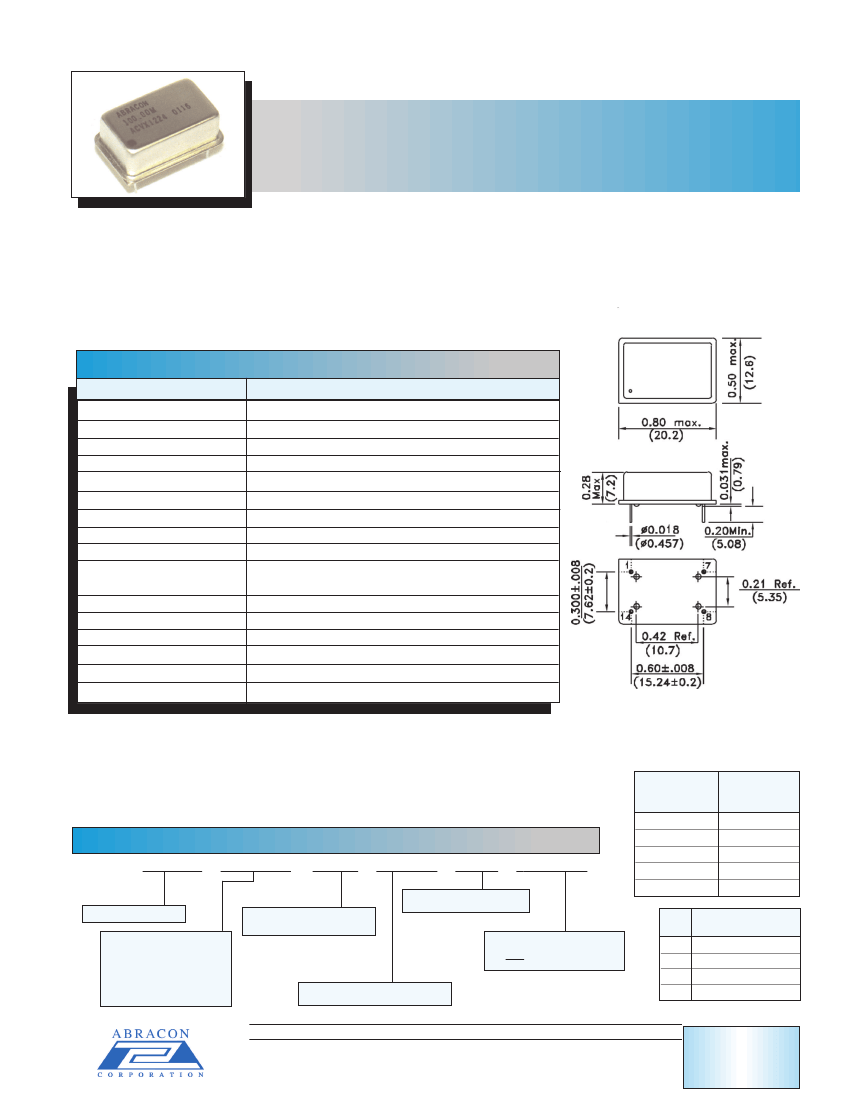

HIGH FREQUENCY , INVERTED MESA , TTL / CMOS , FULL-SIZE DIP, 5 VDC
VOLTAGE-CONTROLLED CRYSTAL OSCILLATORS
ACVX1224
FEATURES:
• 14-Pin DIP 5 Vdc.
• Tight symmetry (45/55%) available.
• High stability.
• Large frequency deviation available.
• Inverted mesa crystal.
• Low noise.
• Gigabit Ethernet, XDM.
• Synthesizers.
APPLICATIONS:
• Phase Locked Loops (PLLs).
• Reference Signal Tracking.
STANDARD SPECIFICATIONS
PARAMETERS
(F
o
)
Frequency Range
Operating Temperature (T
OPR
)
Storage Temperature (T
STO
)
Overall Frequency Stability
Supply Voltage
(V
dd
)
Input Current(I
dd
)
Duty Cycle or Symmetry
Rise and Fall Times (T
R
/
T
F
)
Output Load
Output Voltage
(V
OH
)
(V
OL
)
Transfer Function
Voltage Control
(Vc)
Center Voltage
Frequency Deviation
Linearity
Start-up Time
(T
OSC
)
SPECIFICATIONS
65 MHz - 300 MHz(*)
0°C to + 70°C
(See Options)
-40°C to +85°C
± 25 ppm max.
(See Options)
5 Vdc ± 5%
60mA max.
40 / 60% max.
@ 1
/
2
V
dd
(See
Options)
6 ns max.
TTL / CMOS (50 pF or 10 TT L gate)
0.9 * V
dd
min.
0.4 V
dc
max.
Positive
0.5 Vdc to 4.5 Vdc
2.5 Vdc ± 0.5 Vdc
± 100 ppm min.
(See Options)
± 10% max.
10 ms max.
(*) Under development 160MHz to 300MHz, please call for availability.
Please Inquire factory for higher frequencies, other pulling specs., control voltage range or linearity.
Environmental and mechanical specifications, Group 1.
TYPICAL PHASE NOISE
OFFSET
FREQUENCY
(Hz)
PHASE
NOISE
(dBc / Hz)
ORDERING OPTIONS
ACVX1224 - Frequency - Temperature - Stability
-
Duty Cycle - Pulling - Value Added
-N15 ± 150 ppm min
XX.XXXXX MHz
-D for -10°C
-E for -20°C
-F for -30°C
-N for -30°C
-L for -40°C
to + 60°C
to + 70°C
to + 70°C
to + 85°C
to + 85°C
-J for ± 20 ppm max
Gull Wing
-G
-QXX (Trimmed Leads)
-S for 45 / 55%
@
1
/
2
10
100
1 kHz
10 kHz
100 kHz
PIN
-70
-100
-125
-150
-160
FUNCTION
No.
Vdd
1 Voltage Control Vc
7
GND / Case
8
Output
14
V
dd
NOTE: Left blank if standard
•
All specifications and markings subject to change without notice
®
29 Journey • Aliso Viejo, CA 92656 • USA
(949) 448-7070 •
F
AX
: (949) 448-8484
E-
MAIL
:
abinfo
@
abracon.com •
I
NTERNET
A
DDRESS
:
www.abracon.com
