FP9211 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP9211

FP9211: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size65KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP9211 Overview

RF AMPLIFIER MODEL

FP9211 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	FP-4
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
Characteristic impedance	50 Ω
structure	COMPONENT
Gain	26 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	200 MHz
Minimum operating frequency	0.1 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

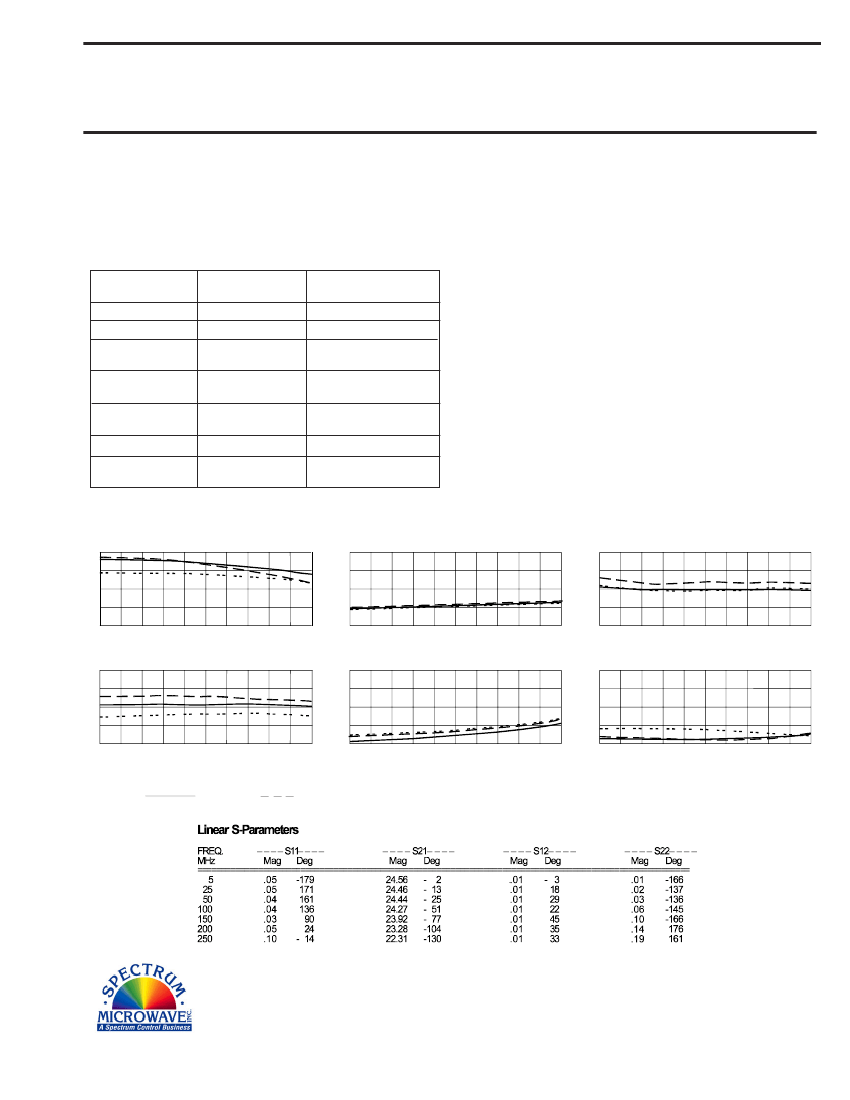

RF AMPLIFIER

MODEL

TZ9211

Features

Output Power: + 16 dBm Typical

High Gain: 27.5 dB Typical

Operating Temp. -55 ºC to +85 ºC

Environmental Screening Available

Available as:

TZ9211, 4 Pin TO-8 (T4)

TN9211, 4Pin Surface Mount (SM3)

FP9211, 4 Pin Flatpack (FP4)

BX9211, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point ..... +46 dBm (Typ.)

Second Order Two Tone Intercept Point ....... +40 dBm (Typ.)

Third Order Two Tone Intercept Point ........... +28 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

Out

Noise figure (dB)

Power

Vdc

VSWR

TYPICAL

Ta= 25 ºC

0.1 - 200 MHz

27.5

+16

-41

<1.25:1

<5.2

+15

MIN/MAX

Ta = -55 ºC to +85 ºC

0.1 - 200 MHz

26.0 Min.

+15.0 Min.

-39 Max.

2.0:1 Max.

6.0 Max.

+15

96 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................. + 13 dBm

Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................. 0.5 Watt ( 3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Gain (dB)

Start 0.1 MHz

Stop 200 MHz

- 15

- 30

- 45

- 60

Reverse Isolation (dB)

Start 0.1 MHz

Stop 200 MHz

Start 0.1 MHz

Noise Figure (dB)

Stop 200 MHz

+18

+17

+16

+15

+14

Start 0.1 MHz

1 db Comp. (dBm)

2.0

1.5

1.0

Stop 200 MHz

Start 0.1 MHz

Input VSWR

2.0

1.5

1.0

Stop 200 MHz

Start 0.1 MHz

Output VSWR

Stop 200 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

01/12/05

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP9211 Related Products

	FP9211	BX9211	TN9211	TZ9211
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	API Technologies	API Technologies	API Technologies	-
Reach Compliance Code	compli	compli	compli	-
Other features	I/P POWER-MAX (PEAK)=27DBM	SMA-F, I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	-
structure	COMPONENT	COAXIAL	COMPONENT	-
Gain	26 dB	26 dB	26 dB	-
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	-
Maximum operating frequency	200 MHz	200 MHz	200 MHz	-
Minimum operating frequency	0.1 MHz	0.1 MHz	0.1 MHz	-
Maximum operating temperature	85 °C	85 °C	85 °C	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	-
Maximum voltage standing wave ratio	2	2	2	-
