FP9405: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size96KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP9405 Overview

RF AMPLIFIER MODEL

FP9405 Parametric

Parameter Name	Attribute value
Maker	API Technologies
package instruction	FP4, FLATPACK-4
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	12 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	400 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

RF AMPLIFIER

MODEL

TZ9405

Features

!

Low Cost

!

Cascadable

!

Operating Temp. -55 ºC to +85 ºC

!

Environmental Screening Available

Available as:

TZ9405, 4 Pin TO-8 (T4)

TN9405, 4 Pin Surface Mount (SM3)

FP9405, 4 Pin Flatpack (FP4)

BX9405, Connectorized Housing (H1)

PN9405, Reduced Size Surface Mount (SM11)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ...... +49 dBm (Typ.)

Second Order Two Tone Intercept Point ....... +42 dBm (Typ.)

Third Order Two Tone Intercept Point .......... +35 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

In

Out

TYPICAL

Ta= 25 ºC

5 - 400 MHz

13.5

+20

-19.5

<1.5:1

<1.75:1

<6.5

+15

90

MIN/MAX

Ta = -55 ºC to +85 ºC

5 - 400 MHz

12.0 Min.

+18.5 Min.

-18 Max.

2.0:1 Max.

7.5 Max.

+15

100 Max.

Maximum Ratings

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +18 Volts

Continuous RF Input Power .................................. +13 dBm

Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................. 0.5 Watt ( 3

µsec

Max.)

Noise Figure (dB)

Power

Vdc

mA

Note: Care should always be taken to effectively ground the case of each unit.

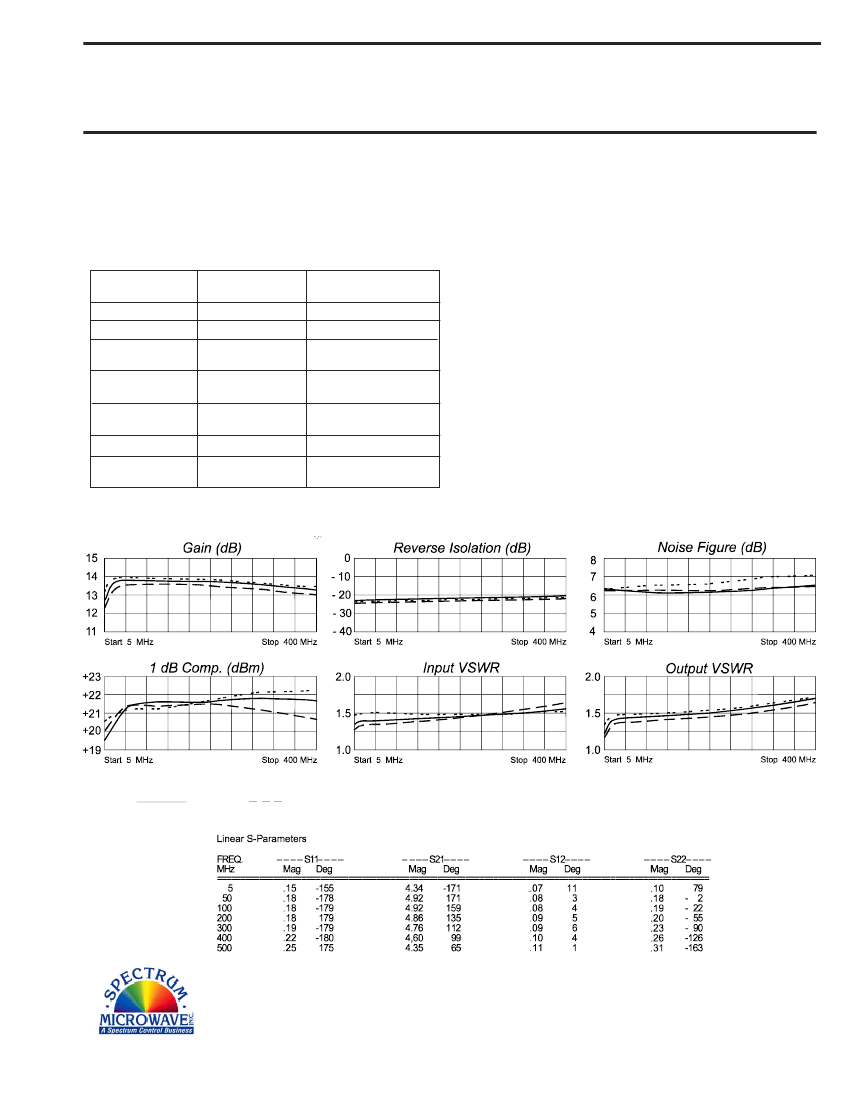

Typical Performance Data

Legend

+25 ºC

+85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

01/08/92

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP9405 Related Products

	FP9405	BX9405	PN9405	TN9405	TZ9405
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compliant	compli	compli	compli
structure	COMPONENT	COAXIAL	COMPONENT	COMPONENT	COMPONENT
Gain	12 dB	12 dB	12 dB	12 dB	12 dB
Maximum operating frequency	400 MHz	400 MHz	400 MHz	400 MHz	400 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz	5 MHz	5 MHz
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	2	2
Maker	API Technologies	API Technologies	-	API Technologies	API Technologies
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	-
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	13 dBm	-
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-
