FP9411 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> FP9411

FP9411: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size90KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FP9411 Overview

RF AMPLIFIER MODEL

FP9411 Parametric

Parameter Name	Attribute value
Reach Compliance Code	compli
Other features	I/P POWER-MAX (PEAK)=27DBM
structure	COMPONENT
Gain	14 dB
Maximum input power (CW)	13 dBm
Maximum operating frequency	400 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2
Base Number Matches	1

Preview

Download Datasheet

View All

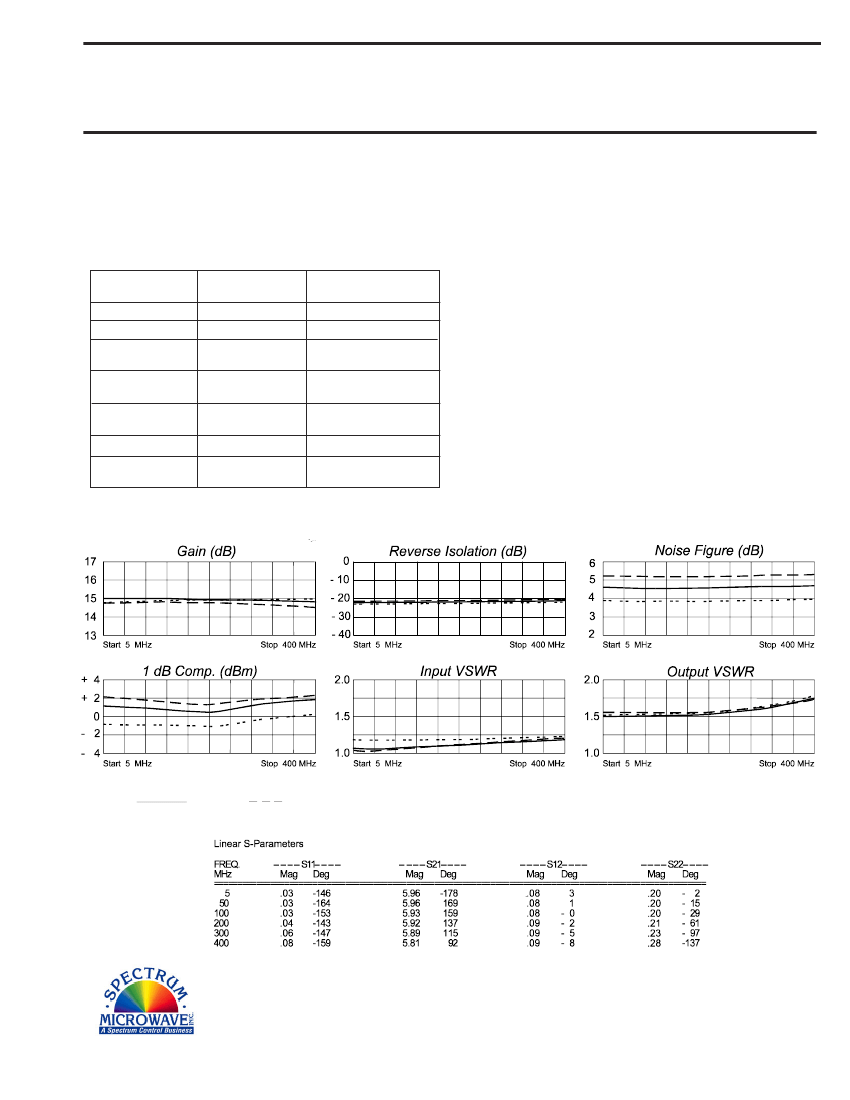

RF AMPLIFIER

MODEL

TZ9411

Features

5 to 400 MHz

12 Volt Operation

Operating Temp. -55 ºC to +85 ºC

Environmental Screening Available

Available as:

TZ9411, 4 Pin TO-8 (T4)

TN9411, 4 Pin Surface Mount (SM3)

FP9411, 4 Pin Flatpack (FP4)

BX9411, Connectorized Housing (H1)

PN9411, Reduced Size Surface Mount (SM11)

Typical Intermodulation Performance at 25 ºC

Second Order Harmonic Intercept Point ...... +20 dBm (Typ.)

Second Order Two Tone Intercept Point ....... +15 dBm (Typ.)

Third Order Two Tone Intercept Point .......... +13 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

TYPICAL

Ta= 25 ºC

5 - 400 MHz

+0.5

-20.5

<1.25:1

<1.75:1

4.5

+12

MIN/MAX

Ta = -55 ºC to +85 ºC

5 - 400 MHz

14.0 Min.

-2.0 Min.

-19 Max.

2.0:1 Max.

6.0 Max.

+12

14 Max.

Maximum Ratings

Ambient Operating Temperature ................ -55ºC to +100 ºC

Storage Temperature ................................. -62ºC to +125 ºC

Case Temperature .................................................. +125 ºC

DC Voltage .......................................................... +15 Volts

Continuous RF Input Power .................................. +13 dBm

Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................. 0.5 Watt ( 3

µsec

Max.)

Noise Figure (dB)

Power

Vdc

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Legend

+25 ºC

+85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

04/27/93

www.SpectrumMicrowave.com

Spectrum Microwave · 2707 Black Lake Place · Philadelphia, Pennsylvania 19154 · PH (215) 464-4000 · Fax (215) 464-4001

FP9411 Related Products

	FP9411	BX9411	PN9411	TN9411	TZ9411
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Reach Compliance Code	compli	compli	compli	-	compli
Other features	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	I/P POWER-MAX (PEAK)=27DBM	-	-
structure	COMPONENT	COAXIAL	COMPONENT	-	COMPONENT
Gain	14 dB	14 dB	14 dB	-	14 dB
Maximum input power (CW)	13 dBm	13 dBm	13 dBm	-	-
Maximum operating frequency	400 MHz	400 MHz	400 MHz	-	400 MHz
Minimum operating frequency	5 MHz	5 MHz	5 MHz	-	5 MHz
Maximum operating temperature	85 °C	85 °C	85 °C	-	-
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-	-
RF/Microwave Device Types	WIDE BAND LOW POWER	WIDE BAND LOW POWER	WIDE BAND LOW POWER	-	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	2	2	-	2
Maker	-	API Technologies	API Technologies	-	API Technologies
