FDS6294_NL

Description
Power Field-Effect Transistor, 13A I(D), 30V, 0.0113ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, SO-8
CategoryDiscrete semiconductor    The transistor
File Size135KB,5 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Environmental Compliance
Download Datasheet Parametric View All

FDS6294_NL Overview

Power Field-Effect Transistor, 13A I(D), 30V, 0.0113ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, SO-8

FDS6294_NL Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerFairchild
Parts packaging codeSOT
package instructionSMALL OUTLINE, R-PDSO-G8
Contacts8
Reach Compliance Codecompliant
ECCN codeEAR99
ConfigurationSINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage30 V
Maximum drain current (Abs) (ID)13 A
Maximum drain current (ID)13 A
Maximum drain-source on-resistance0.0113 Ω
FET technologyMETAL-OXIDE SEMICONDUCTOR
JESD-30 codeR-PDSO-G8
JESD-609 codee3
Humidity sensitivity level1
Number of components1
Number of terminals8
Operating modeENHANCEMENT MODE
Maximum operating temperature175 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Polarity/channel typeN-CHANNEL
Maximum power dissipation(Abs)3 W
Maximum pulsed drain current (IDM)50 A
Certification statusNot Qualified
surface mountYES
Terminal surfaceMatte Tin (Sn)
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
transistor applicationsSWITCHING
Transistor component materialsSILICON

FDS6294_NL Preview

FDS6294
November 2003
FDS6294
30V N-Channel Fast Switching PowerTrench
®
MOSFET
General Description
This N-Channel MOSFET has been designed
specifically to improve the overall efficiency of DC/DC
converters using either synchronous or conventional
switching PWM controllers. It has been optimized for
low gate charge, low R
DS(ON)
and fast switching speed.
Features
13 A, 30 V.
R
DS(ON)
= 11.3 mΩ @ V
GS
= 10 V
R
DS(ON)
= 14.4 mΩ @ V
GS
= 4.5 V
Low gate charge (10 nC typical)
High performance trench technology for extremely
low R
DS(ON)
High power and current handling capability.
Applications
DC/DC converter
Power management
Load switch
D
D
D
D
SO-8
D
D
D
D
5
6
7
4
3
2
1
Pin 1
SO-8
G
S
G
S
S
S
S
S
8
Absolute Maximum Ratings
Symbol
V
DSS
V
GSS
I
D
P
D
T
J
, T
STG
Drain-Source Voltage
Gate-Source Voltage
Drain Current
– Continuous
– Pulsed
T
A
=25 C unless otherwise noted
o
Parameter
Ratings
30
±20
(Note 1a)
Units
V
V
A
W
°C
13
50
3.0
1.2
–55 to +175
Power Dissipation for Single Operation
(Note 1a)
(Note 1b)
Operating and Storage Junction Temperature Range
Thermal Characteristics
R
θJA
R
θJA
R
θJC
Thermal Resistance, Junction-to-Ambient
Thermal Resistance, Junction-to-Ambient
Thermal Resistance, Junction-to-Case
(Note 1a)
(Note 1b)
(Note 1)
50
125
25
°C/W
Package Marking and Ordering Information
Device Marking
FDS6294
Device
FDS6294
Reel Size
13’’
Tape width
12mm
Quantity
2500 units
©2003
Fairchild Semiconductor Corporation
FDS6294 Rev D(W)
FDS6294
Electrical Characteristics
Symbol
BV
DSS
∆BV
DSS
∆T
J
I
DSS
I
GSS
T
A
= 25°C unless otherwise noted
Parameter
Drain–Source Breakdown Voltage
Breakdown Voltage Temperature
Coefficient
Zero Gate Voltage Drain Current
Gate–Body Leakage
(Note 2)
Test Conditions
V
GS
= 0 V,
I
D
= 250
µA
Min Typ
30
27
Max
Units
V
mV/°C
Off Characteristics
I
D
= 250
µA,
Referenced to 25°C
V
DS
= 24 V,
V
GS
=
±20
V,
V
GS
= 0 V
V
DS
= 0 V
1
±100
µA
nA
On Characteristics
V
GS(th)
∆V
GS(th)
∆T
J
R
DS(on)
Gate Threshold Voltage
Gate Threshold Voltage
Temperature Coefficient
Static Drain–Source
On–Resistance
On–State Drain Current
Forward Transconductance
V
DS
= V
GS
,
I
D
= 250
µA
I
D
= 250
µA,
Referenced to 25°C
V
GS
= 10 V,
I
D
= 13 A
V
GS
= 4.5 V,
I
D
= 12 A
V
GS
= 10 V, I
D
= 13 A, T
J
=125°C
V
GS
= 10 V,
V
DS
= 10 V,
V
DS
= 5 V
I
D
= 13 A
1
1.8
–5
9.4
11.5
13.5
3
V
mV/°C
11.3
14.4
16.5
mΩ
I
D(on)
g
FS
50
48
A
S
Dynamic Characteristics
C
iss
C
oss
C
rss
R
G
Input Capacitance
Output Capacitance
Reverse Transfer Capacitance
Gate Resistance
(Note 2)
V
DS
= 15 V,
f = 1.0 MHz
V
GS
= 0 V,
1205
323
102
0.9
pF
pF
pF
V
GS
= 15 mV, f = 1.0 MHz
Switching Characteristics
t
d(on)
t
r
t
d(off)
t
f
Q
g
Q
gs
Q
gd
Turn–On Delay Time
Turn–On Rise Time
Turn–Off Delay Time
Turn–Off Fall Time
Total Gate Charge
Gate–Source Charge
Gate–Drain Charge
V
DD
= 15 V,
V
GS
= 10 V,
I
D
= 1 A,
R
GEN
= 6
9
4
24
6
18
8
48
12
14
ns
ns
ns
ns
nC
nC
nC
V
DS
= 15 V,
V
GS
= 5 V
I
D
= 13 A,
10
3.5
3
Drain–Source Diode Characteristics and Maximum Ratings
I
S
V
SD
t
rr
Q
rr
Maximum Continuous Drain–Source Diode Forward Current
Drain–Source Diode Forward
V
GS
= 0 V,
I
S
= 2.1 A
(Note 2)
Voltage
Diode Reverse Recovery Time
I
F
= 13 A, d
iF
/d
t
= 100 A/µs
Diode Reverse Recovery Charge
2.1
0.74
25
14
1.2
A
V
nS
nC
Notes:
1.
R
θJA
is the sum of the junction-to-case and case-to-ambient thermal resistance where the case thermal reference is defined as the solder mounting surface of
the drain pins. R
θJC
is guaranteed by design while R
θCA
is determined by the user's board design.
a)
50°C/W when mounted
on a 1in
2
pad of 2 oz
copper
b) 125°C/W when mounted on a
minimum pad.
Scale 1 : 1 on letter size paper
2
Test: Pulse Width < 300µs, Duty Cycle < 2.0%
FDS6294 Rev D(W)
FDS6294
Typical Characteristics
60
50
I
D
, DRAIN CURRENT (A)
40
30
20
10
0
0
2.2
R
DS(ON)
, NORMALIZED
DRAIN-SOURCE ON-RESISTANCE
V
GS
= 10V
6.0V
4.0V
4.5V
3.5.V
2
V
GS
= 3.5V
1.8
1.6
1.4
1.2
1
0.8
0.5
1
1.5
2
2.5
4.0V
4.5V
5.0V
6.0V
10V
3.0V
0
10
20
30
40
50
60
V
DS
, DRAIN-SOURCE VOLTAGE (V)
I
D
, DRAIN CURRENT (A)

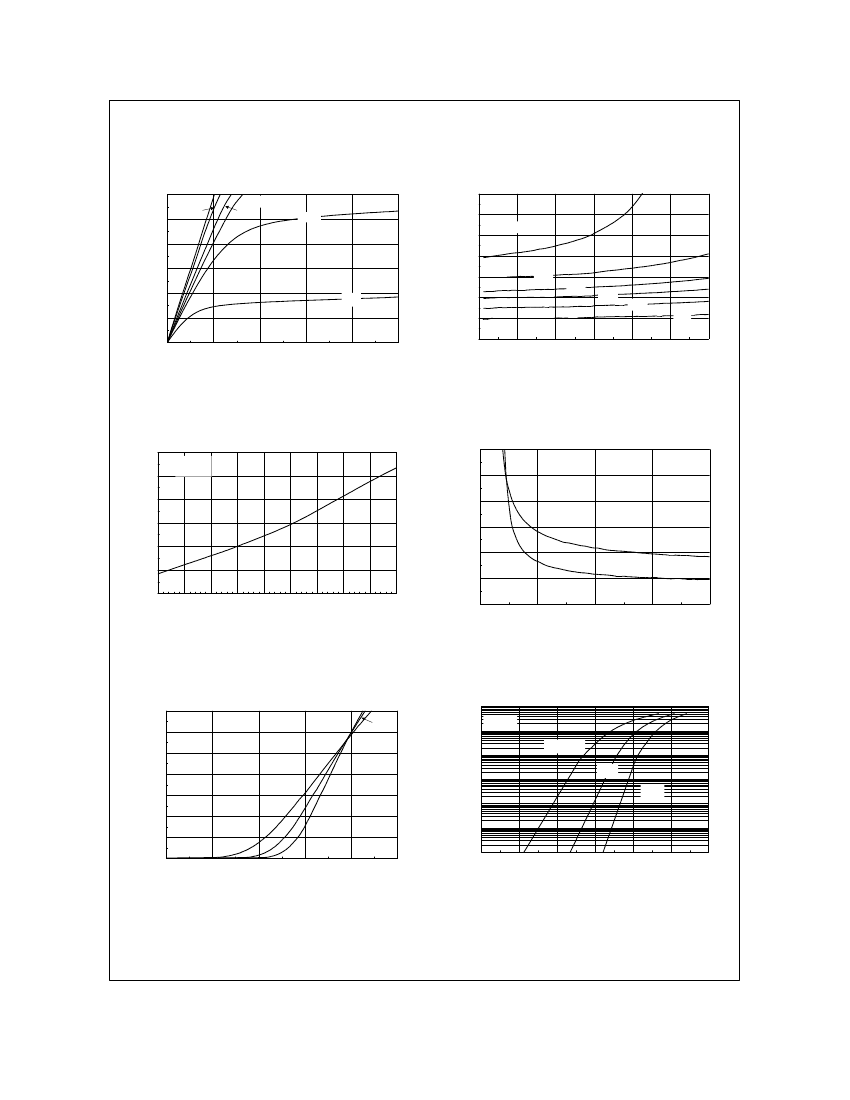

Figure 1. On-Region Characteristics.
Figure 2. On-Resistance Variation with
Drain Current and Gate Voltage.
0.028
R
DS(ON)
, ON-RESISTANCE (OHM)
1.8
R
DS(ON)
, NORMALIZED
DRAIN-SOURCE ON-RESISTANCE
1.6
1.4
1.2
1
0.8
0.6
-50
-25
0
25
50
75
100
125
150
175
I
D
= 13A
V
GS
= 10V
I
D
= 13A
0.024
0.02
0.016
T
A
= 125
o
C
0.012
0.008
T
A
= 25
o
C
0.004
2
4
6
8
10
V
GS
, GATE TO SOURCE VOLTAGE (V)
T
J
, JUNCTION TEMPERATURE (
o
C)
Figure 3. On-Resistance Variation with
Temperature.
70
Figure 4. On-Resistance Variation with
Gate-to-Source Voltage.
100
T
A
= -55 C
60
I
D
, DRAIN CURRENT (A)
50
40
30
20
10
0
1.5
2
2.5
3
3.5
25
o
C
125
o
C
I
S
, REVERSE DRAIN CURRENT (A)
V
DS
= 5V
o
V
GS
= 0V
10
T
A
= 125
o
C
1
25
o
C
0.1
-55
o
C
0.01
0.001
0.0001
4
0
0.2
0.4
0.6
0.8
1
1.2
V
GS
, GATE TO SOURCE VOLTAGE (V)
V
SD
, BODY DIODE FORWARD VOLTAGE (V)
Figure 5. Transfer Characteristics.
Figure 6. Body Diode Forward Voltage Variation
with Source Current and Temperature.
FDS6294 Rev D(W)
FDS6294
Typical Characteristics
10
V
GS
, GATE-SOURCE VOLTAGE (V)
I
D
= 13A
8
V
DS
= 10V
15V
1500
C
ISS
1200
CAPACITANCE (pF)
20V
f = 1MHz
V
GS
= 0 V
6
900
4
600
C
OSS
300
C
RSS
2
0
0
5
10
Q
g
, GATE CHARGE (nC)
15
20
0
0
5
10
15
20
25
30
V
DS
, DRAIN TO SOURCE VOLTAGE (V)
Figure 7. Gate Charge Characteristics.
100
P(pk), PEAK TRANSIENT POWER (W)
Figure 8. Capacitance Characteristics.
50
100µs
I
D
, DRAIN CURRENT (A)
R
DS(ON)
LIMIT
10
1ms
10ms
100ms
1s
10s
DC
40
SINGLE PULSE
R
θJA
= 125°C/W
T
A
= 25°C
30
1
20
0.1
V
GS
= 10V
SINGLE PULSE
R
θJA
= 125
o
C/W
T
A
= 25 C
o
10
0.01
0.01
0.1
1
10
100
0
0.001
0.01
0.1
1
10
100
V
DS
, DRAIN-SOURCE VOLTAGE (V)
t
1
, TIME (sec)

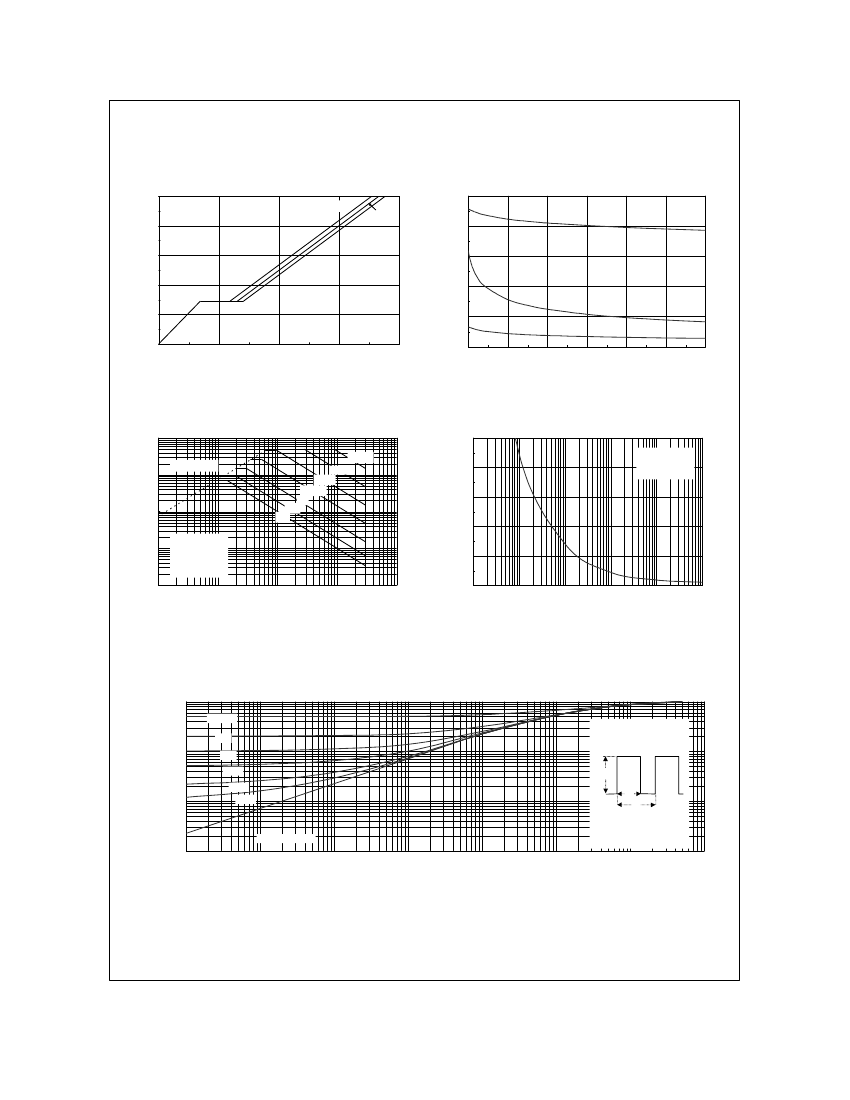

Figure 9. Maximum Safe Operating Area.
Figure 10. Single Pulse Maximum
Power Dissipation.
r(t), NORMALIZED EFFECTIVE
TRANSIENT THERMAL RESISTANCE
1
D = 0.5
0.2
R
θJA
(t) = r(t) * R
θJA
R
θJA
= 125 °C/W
0.1
0.1
0.05
0.02
P(pk)
t
1
t
2
T
J
- T
A
= P * R
θJA
(t)
Duty Cycle, D = t
1
/ t
2
0.01
0.1
t
1
, TIME (sec)
1
10
100
1000
0.01
0.01
SINGLE PULSE
0.001
0.0001
0.001
Figure 11. Transient Thermal Response Curve.
Thermal characterization performed using the conditions described in Note 1c.
Transient thermal response will change depending on the circuit board design.
FDS6294 Rev D(W)
TRADEMARKS
The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is
not intended to be an exhaustive list of all such trademarks.
ACEx™
FACT Quiet Series™
ActiveArray™
FAST
Bottomless™
FASTr™
CoolFET™
FRFET™
CROSSVOLT™
GlobalOptoisolator™
DOME™
GTO™
EcoSPARK™ HiSeC™
E
2
CMOS
TM
I
2
C™
EnSigna
TM
ImpliedDisconnect™
FACT™
ISOPLANAR™
Across the board. Around the world.™
The Power Franchise™
Programmable Active Droop™
DISCLAIMER
LittleFET™
MICROCOUPLER™
MicroFET™
MicroPak™
MICROWIRE™
MSX™
MSXPro™
OCX™
OCXPro™
OPTOLOGIC
OPTOPLANAR™
PACMAN™
POP™
Power247™
PowerTrench
QFET
QS™
QT Optoelectronics™
Quiet Series™
RapidConfigure™
RapidConnect™
SILENT SWITCHER
SMART START™
SPM™
Stealth™
SuperSOT™-3
SuperSOT™-6
SuperSOT™-8
SyncFET™
TinyLogic
TINYOPTO™
TruTranslation™
UHC™
UltraFET
VCX™
FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY
PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD DOES NOT ASSUME ANY LIABILITY
ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED HEREIN; NEITHER DOES IT
CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF FAIRCHILD SEMICONDUCTOR CORPORATION.
As used herein:
2. A critical component is any component of a life
1. Life support devices or systems are devices or
support device or system whose failure to perform can
systems which, (a) are intended for surgical implant into
be reasonably expected to cause the failure of the life
the body, or (b) support or sustain life, or (c) whose
support device or system, or to affect its safety or
failure to perform when properly used in accordance
with instructions for use provided in the labeling, can be
effectiveness.
reasonably expected to result in significant injury to the
user.
PRODUCT STATUS DEFINITIONS
Definition of Terms
Datasheet Identification
Advance Information
Product Status
Formative or
In Design
Definition
This datasheet contains the design specifications for
product development. Specifications may change in
any manner without notice.
This datasheet contains preliminary data, and
supplementary data will be published at a later date.
Fairchild Semiconductor reserves the right to make
changes at any time without notice in order to improve
design.
This datasheet contains final specifications. Fairchild
Semiconductor reserves the right to make changes at
any time without notice in order to improve design.
Preliminary
First Production
No Identification Needed
Full Production
Obsolete
Not In Production
This datasheet contains specifications on a product
that has been discontinued by Fairchild semiconductor.
The datasheet is printed for reference information only.
Rev. I5
Servo Motor Driver
Has anyone used the STM32 chip to make a servo motor driver? Is there any information or solution in this regard?...
xyw6813927 stm32/stm8
Which of these two robot models has better experimental performance and better scalability?
I am planning to buy a six-axis robot model to verify the automatic operation algorithm, but I don't know which one has better experimental performance and scalability from a mechanical point of view....
ceiwei DIY/Open Source Hardware
Experts talk about IPC7351
When do you usually use IPC7351 and where is it used? Do you use software or just look at the standard? What reference do you use to draw the size when drawing the package in Allegro? Finally, let me ...
shijizai PCB Design
[SensorTile Device Detailed Explanation] LSM6DSM Acceleration + Gyroscope Gyro (Part 3) Final Chapter
[i=s]This post was last edited by uniquey on 2017-1-6 15:45[/i]Note: The above register configuration is modified from LSM6DS3. My level is limited. If there are any errors, please criticize and corre...
uniquey MEMS sensors
Atmel studio 6.2 cannot automatically recognize the development board when plugged in
Why after I plug my SAMR21 into the computer and open Atmel studio 6.2 it does not recognize my board like in some tutorials, but others can recognize mine using their computers with win8.1 and others...
从ks到xz Microchip MCU
Has anyone used the ADM3485 chip for the 485 interface of STM32F103C8T6?
I need a circuit diagram. ADM3485 is half-duplex. My own circuit diagram doesn't work. Can an expert take a look? Has anyone used such a chip to make the 485 port of stm32f103c8t6?...
ezezy stm32/stm8

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

Index Files: 2543  239  1484  598  799  52  5  30  13  17
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
