Resettable Pushbutton
Circuit Protector
•

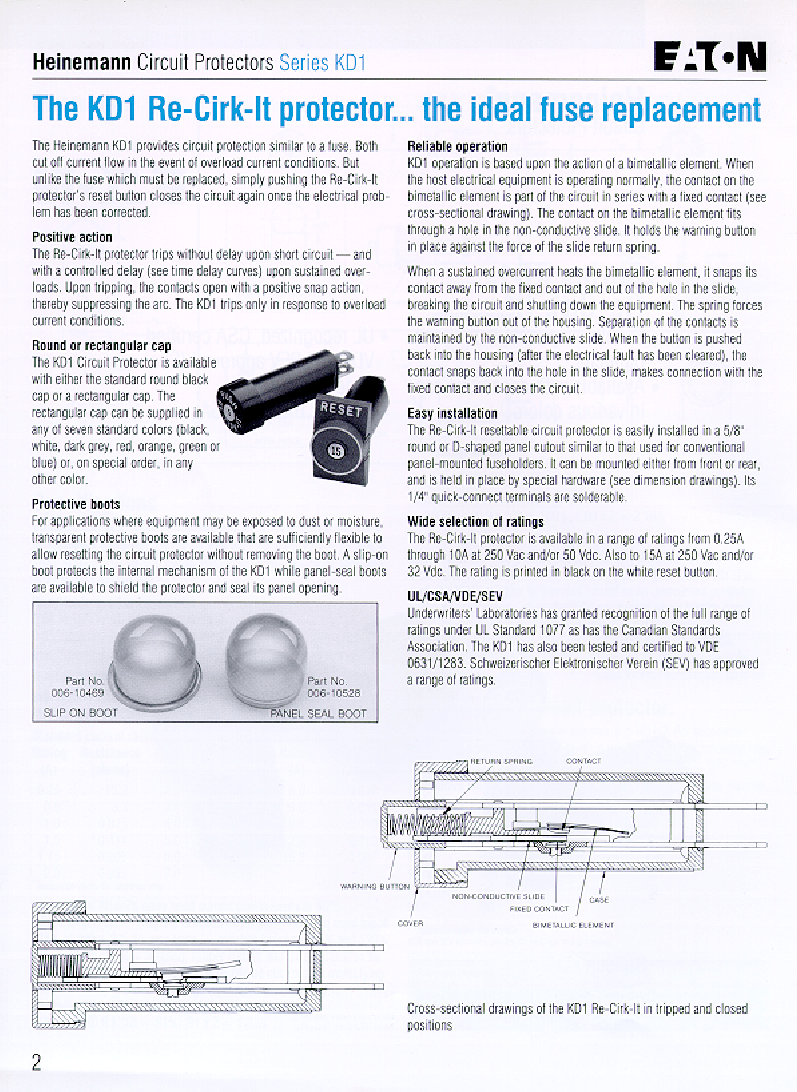

Protective Covers
For applications where equip-
ment may be exposed to dust
or moisture, protective boots
are available. Two styles are
available, one which protects
the breaker from splashing
water and another which seals
the panel opening.
To order the slip-on boot,
choose Catalog Number
006-10469 or for a panel
sealing version, purchase
Catalog Number 006-10528.
Standard Product Offering
CURRENT
CATALOG NUMBER

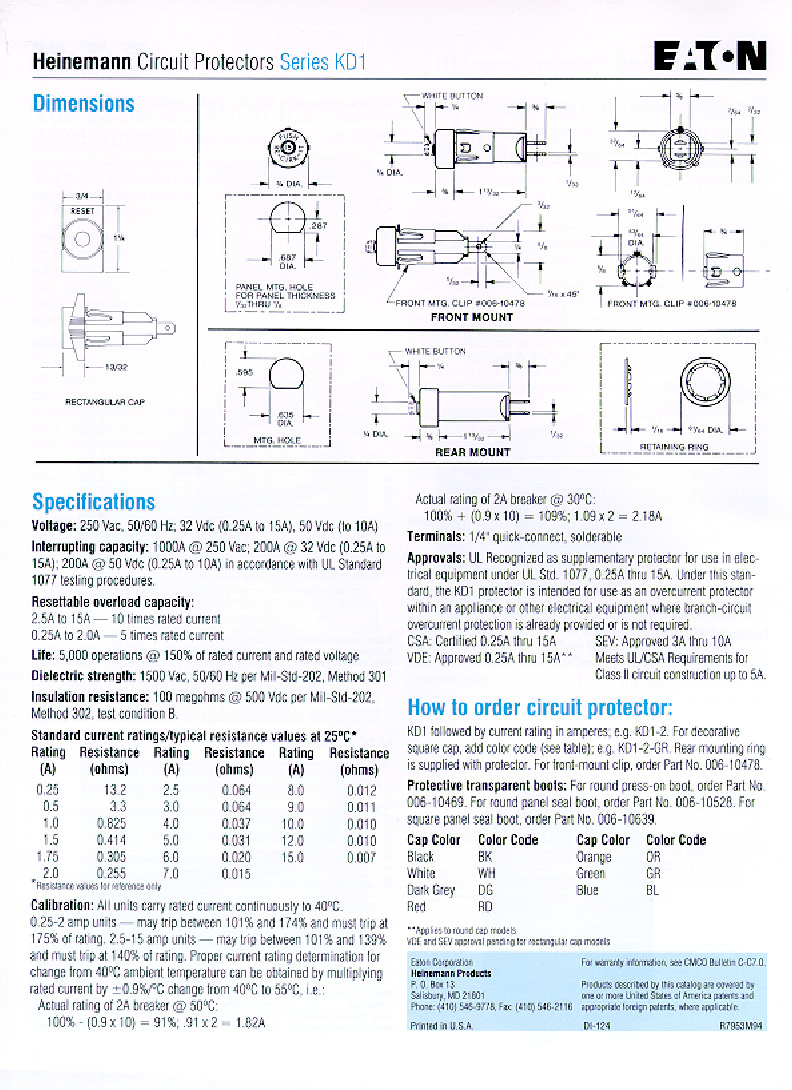

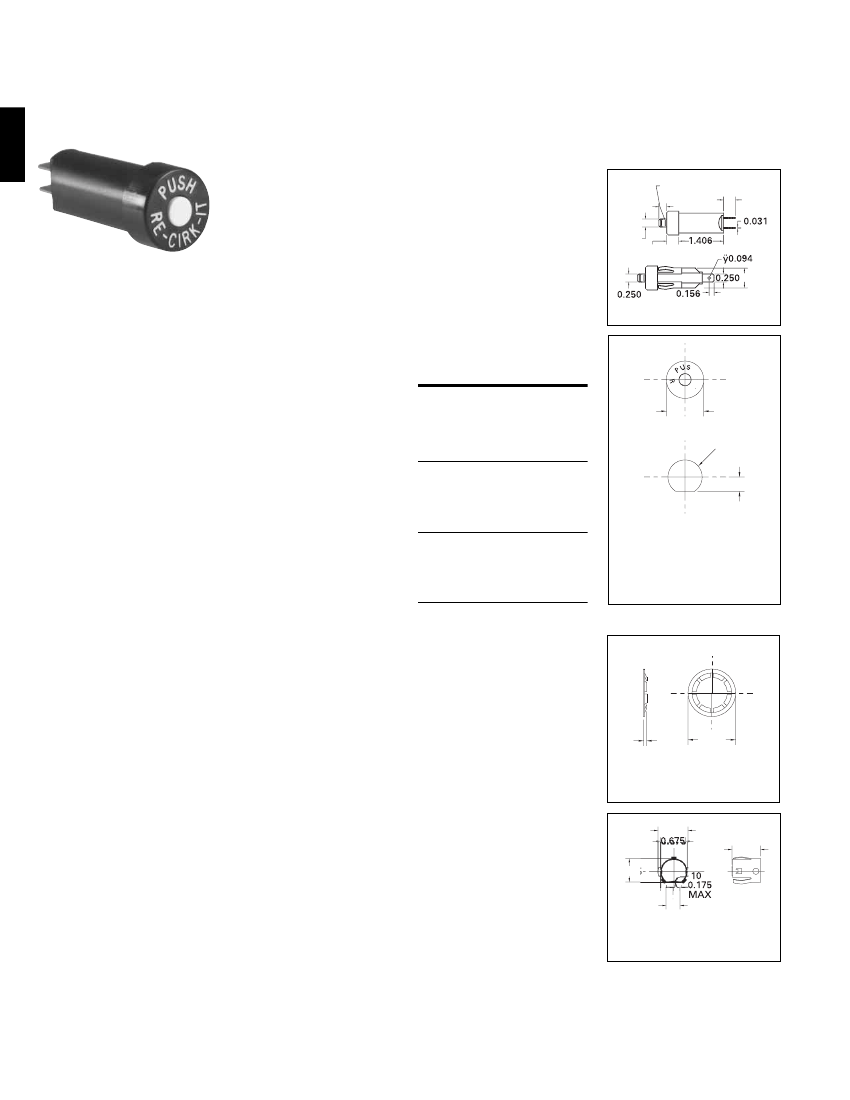

Typical Dimensions
WHITE BUTTON
0.250
0.250
DIA
0.375

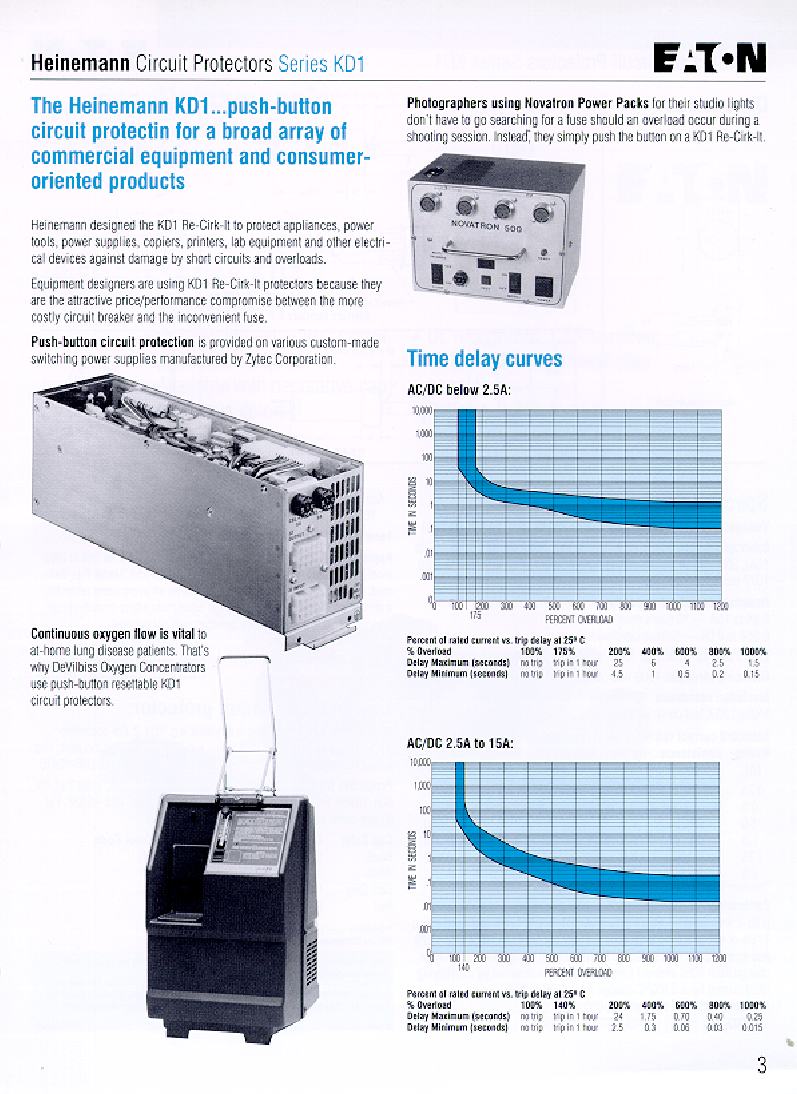

Provides basic thermal
protection.
Ratings from 0.25 – 20
amperes.
UL recognized.
•
0.375
0.625
•
The KD Pushbutton Circuit
Protector provides circuit
protection similar to a fuse
but does not require replace-
ment after a fault. This reset-
table design allows your
customer to stay online and
eliminate downtime.
Easy Installation
The KD Series is easily installed
in a 5/8” round or D-Shaped
panel cutout similar to that
used on conventional panel-
mounted fuse holders. It can
be mounted from either the
front or rear and is held in
place by special hardware. Its
1/4” quick-connect terminals
are solderable.
Industry Approvals
The KD Series has been tested
to meet the requirements of UL
1077, and is recognized as a
supplemental protector by UL.
We also carry CSA approval
for applications in Canada.
Positive Action
The KD Pushbutton Circuit
Protector trips without delay
on short circuit, and with a
controlled delay upon sustained
overloads upon tripping, the
contacts open with a positive
snap action, thereby suppress-
ing the arc.
With Front Mount Clip Installed
H
C
I
R
K
-
I
0.25 A
0.50 A
0.75 A
1.00 A
1.50 A
1.75 A
2.00 A
2.50 A
3.00 A
4.00 A
5.00 A
6.00 A
7.00 A
8.00 A
9.00 A
10.00 A
15.00 A
20.00 A
KD1-0R25
KD1-0R50
KD1-0R75
KD1-1
KD1-1R5
KD1-1R75
KD1-2
KD1-2R5
KD1-3
KD1-4
KD1-5
KD1-6
KD1-7
KD1-8
KD1-9
KD1-10
KD1-15
KD1-20
0.750
7
0.335 DIA
T
E
-
0.287
PANEL MTG. HOLE
FOR PANEL THICKNESS
1/32 THRU 1/8
Panel Mounting Hole
Accessories
0.063
0.953
DIA.
#006-10417
Retaining Ring
0.797
0.750
0.625
º
0.360
MAX
#006-10478
Front Mount Clip
14
