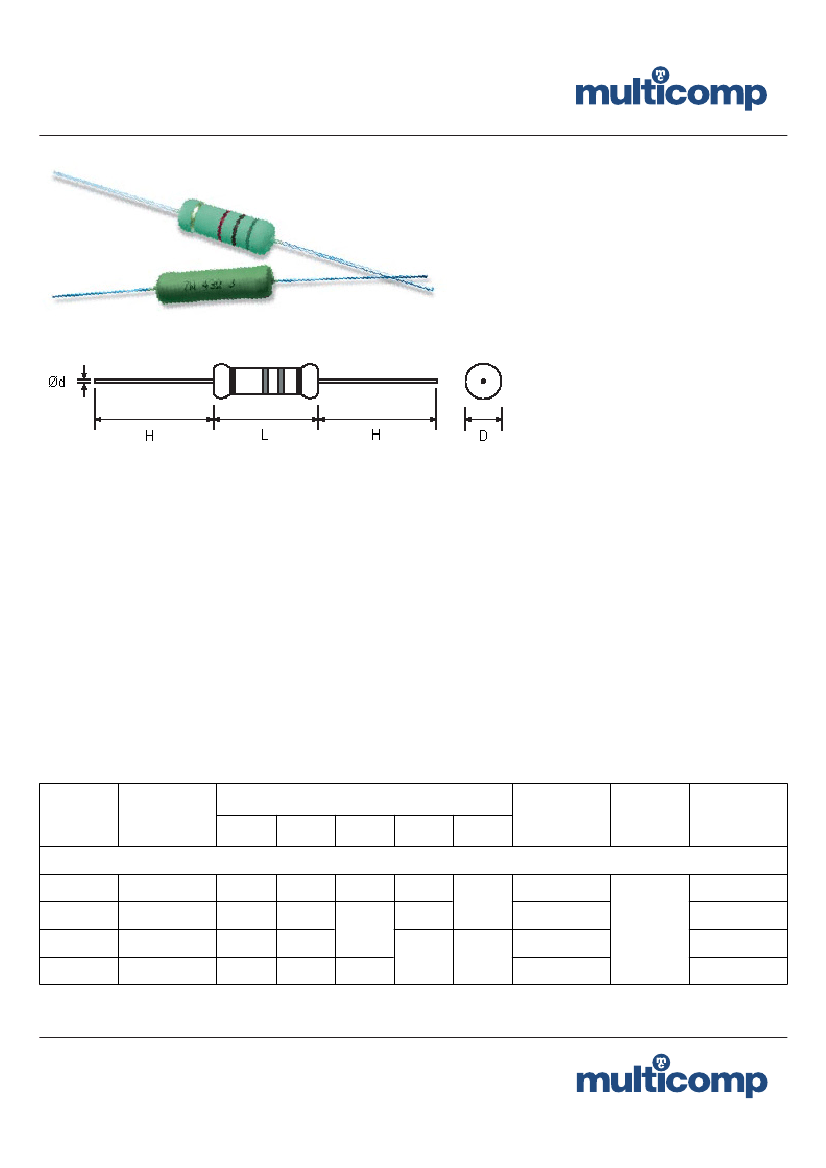

Wire Wound Fixed Resistors
Features:
•
•
•
•
•
Colour coating is “green”
Non-inductive type available
Excellent flame resistance
Too low or too high ohm value can be supplied on
a case to case basis
Special fusing wire-wound resistors can be supplied
on a case to case basis
Standard : 2%, 5% 10% - E 24 Series
1% - E 96 Series
Performance Specifications:
Temperature coefficient
Short time overload
Dielectric withstanding voltage
Pulse overload
Terminal strength
Resistance to soldering heat
Solderability
Temperature cycling
Load life in humidity
Load life
Non-flame
:
:
:
:
:
:
:
:
:
:
:
< 20
Ω:
± 400 PPM / °C;
≥
20
Ω:
± 300 PPM / °C.
± (2% + 0.05
Ω)
maximum, with no evidence of mechanical damage.
No evidence flashover, mechanical damage, arcing or insulation breakdown.
± (5% + 0.05
Ω)
maximum, with no evidence of mechanical damage.
No evidence of mechanical damage.
± (1% + 0.05
Ω)
maximum, with no evidence of mechanical damage.
Minimum 95% coverage.
± (2% + 0.05
Ω)
maximum, with no evidence of mechanical damage.
± (5% + 0.05
Ω)
maximum, with no evidence of mechanical damage.
± (5% + 0.05
Ω)
maximum, with no evidence of mechanical damage.
No evidence of flaming or arcing.
Specification Table
Style
Power Rating
at 70°C
Dimension (mm)
D ±1
L ±1
d ±0.05
H ±3
PT
Resistance
Range
Std
Packing
Qty
Part Number
Normal Size
MCKNP 50
MCKNP 100
MCKNP 200
MCKNP 300
1/2 W (0.5 W)
1W
2W
3W
3.5
5
5.5
6.5
10
12
16
17.5
0.54
0.7
0.75
28
25
28
52
0.1
Ω
to 39
Ω
0.1
Ω
to 50
Ω
0.1
Ω
to 120
Ω
0.1
Ω
to 200
Ω
1,000
MCKNP0W2
MCKNP01W
MCKNP02W
MCKNP03W
Dimensions : Millimetres
64
www.element14.com
www.farnell.com
www.newark.com
Page <1>
14/07/11 V1.1
Wire Wound Fixed Resistors
Specification Table
Style
Power
Rating
at 70°C
Dimension (mm)
D ±1
L ±1
d ±0.05
H ±3
PT
Resistance
Range
Std
Packing
Qty
Part
Number
Small Size
MCKNP 100-S
MCKNP 200-S
MCKNP 300-S
MCKNP 500-S
MCKNP 700-S
MCKNP 1000-S
Extra Small Size
MCKNP 300-SS
3W
5.5
13.5
0.7
28
64
0.1
Ω
to 50 KΩ
1,000
MCKNP03U
1W
2W
3W
5W
7W
10 W
3.5
5
5.5
6.5
8.5
10
12
16
17.5
25
53
0.75
0.54
0.7
28
25
28
52
0.1
Ω
to 39
Ω
0.1
Ω
to 50
Ω
0.1
Ω
to 120
Ω
0.1
Ω
to 200
Ω
0.5
Ω
to 470
Ω
1
Ω
to 1.5 KΩ
500
1,000
1,800
1,000
MCKNP01S
MCKNP02S
MCKNP03S
MCKNP05S
MCKNP07S
MCKNP0AS
64
38
B/B
Dimensions : Millimetres

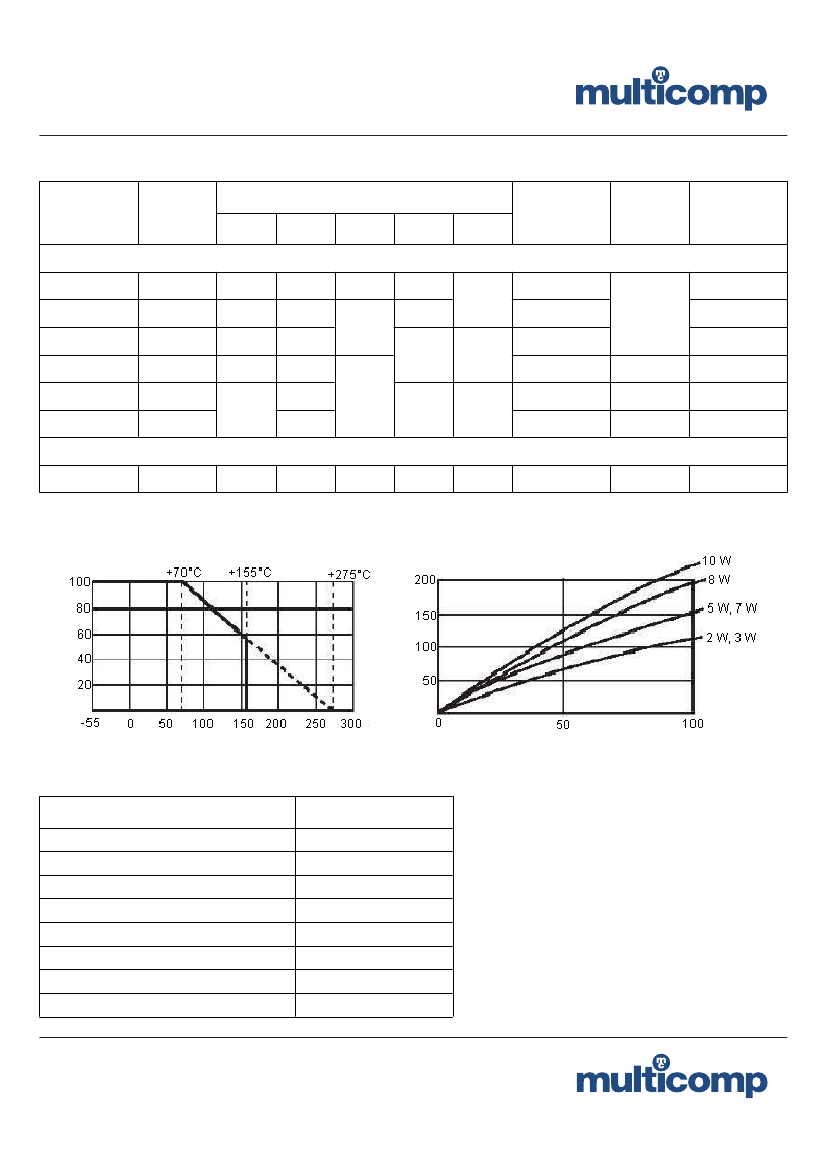

Derating Curve
Percent Rated Load (%)
Heat Rise Chart
Heat Rise (°C)
Ambient Temperature (°C)
Rated Load (%)
Part Number Table
Description
Resistor, Wire Wound, 0R25, 5%, 0.5W
Resistor, Wire Wound, 10R, 5%, 0.5W
Resistor, Wire Wound, 25R, 5%, 0.5W
Resistor, Wire Wound, 47R, 5%, 0.5W
Resistor, Wire Wound, 130R, 5%, 0.5W
Resistor, Wire Wound, 470R, 5%, 0.5W
Resistor, Wire Wound, 0R22, 5%, 1W
Resistor, Wire Wound, 0R33, 5%, 1W
Part Number
MCKNP0W2J025KA10
MCKNP0W2J0100A10
MCKNP0W2J0250A10
MCKNP0W2J0470A10
MCKNP0W2J0131A10
MCKNP0W2J0471A10
MCKNP01WJ022KA10
MCKNP01WJ033KA10
www.element14.com
www.farnell.com
www.newark.com
Page <2>
14/07/11 V1.1
Wire Wound Fixed Resistors
Part Number Table
Description
Resistor, Wire Wound, 0R5, 5%, 1W
Resistor, Wire Wound, 0R62, 5%, 1W
Resistor, Wire Wound, 1R, 5%, 1W
Resistor, Wire Wound, 2R2, 5%, 1W
Resistor, Wire Wound, 5R6, 5%, 1W
Resistor, Wire Wound, 6R8, 5%, 1W
Resistor, Wire Wound, 10R, 5%, 1W
Resistor, Wire Wound, 33R, 5%, 1W
Resistor, Wire Wound, 39R, 5%, 1W
Resistor, Wire Wound, 47R, 5%, 1W
Resistor, Wire Wound, 50R, 5%, 1W
Resistor, Wire Wound, 100R, 5%, 1W
Resistor, Wire Wound, 240R, 5%, 1W
Resistor, Wire Wound, 250R, 5%, 1W
Resistor, Wire Wound, 470R, 5%, 1W
Resistor, Wire Wound, 500R, 5%, 1W
Resistor, Wire Wound, 0R1, 5%, 1WS
Resistor, Wire Wound, 0R15, 5%, 1WS
Resistor, Wire Wound, 0R33, 5%, 1WS
Resistor, Wire Wound, 0R4, 5%, 1WS
Resistor, Wire Wound, 0R5, 5%, 1WS
Resistor, Wire Wound, 0R55, 5%, 1WS
Resistor, Wire Wound, 1R, 5%, 1WS
Resistor, Wire Wound, 1R5, 5%, 1WS
Resistor, Wire Wound, 1R8, 5%, 1WS
Resistor, Wire Wound, 2R2, 5%, 1WS
Resistor, Wire Wound, 3R3, 5%, 1WS
Resistor, Wire Wound, 4R7, 5%, 1WS
Resistor, Wire Wound, 5R1R, 5%, 1WS
Resistor, Wire Wound, 5R6, 5%, 1WS
Resistor, Wire Wound, 6R8, 5%, 1WS
Resistor, Wire Wound, 10R, 5%, 1WS
Resistor, Wire Wound, 12R, 5%, 1WS
Resistor, Wire Wound, 15R, 5%, 1WS
Part Number
MCKNP01WJ050KA10
MCKNP01WJ062KA10
MCKNP01WJ010JA10
MCKNP01WJ022JA10
MCKNP01WJ056JA10
MCKNP01WJ068JA10
MCKNP01WJ0100A10
MCKNP01WJ0330A10
MCKNP01WJ0390A10
MCKNP01WJ0470A10
MCKNP01WJ0500A10
MCKNP01WJ0101A10
MCKNP01WJ0241A10
MCKNP01WJ0251A10
MCKNP01WJ0471A10
MCKNP01WJ0501A10
MCKNP01SJ010KA10
MCKNP01SJ015KA10
MCKNP01SJ033KA10
MCKNP01SJ040KA10
MCKNP01SJ050KA10
MCKNP01SJ055KA10
MCKNP01SJ010JA10
MCKNP01SJ015JA10
MCKNP01SJ018JA10
MCKNP01SJ022JA10
MCKNP01SJ033JA10
MCKNP01SJ047JA10
MCKNP01SJ051JA10
MCKNP01SJ056JA10
MCKNP01SJ068JA10
MCKNP01SJ0100A10
MCKNP01SJ0120A10
MCKNP01SJ0150A10
www.element14.com
www.farnell.com
www.newark.com
Page <3>
14/07/11 V1.1
Wire Wound Fixed Resistors
Part Number Table
Description
Resistor, Wire Wound, 18R, 5%, 1WS
Resistor, Wire Wound, 20R, 5%, 1WS
Resistor, Wire Wound, 22R, 5%, 1WS
Resistor, Wire Wound, 24R, 5%, 1WS
Resistor, Wire Wound, 27R, 5%, 1WS
Resistor, Wire Wound, 33R, 5%, 1WS
Resistor, Wire Wound, 39R, 5%, 1WS
Resistor, Wire Wound, 47R, 5%, 1WS
Resistor, Wire Wound, 56R, 5%, 1WS
Resistor, Wire Wound, 68R, 5%, 1WS
Resistor, Wire Wound, 100R, 5%, 1WS
Resistor, Wire Wound, 150R, 5%, 1WS
Resistor, Wire Wound, 220R, 5%, 1WS
Resistor, Wire Wound, 470R, 5%, 1WS
Resistor, Wire Wound, 0R1, 5%, 2W
Resistor, Wire Wound, 0R33, 5%, 2W
Resistor, Wire Wound, 0R47, 5%, 2W
Resistor, Wire Wound, 1R, 5%, 2W
Resistor, Wire Wound, 4R7, 5%, 2W
Resistor, Wire Wound, 5R6, 5%, 2W
Resistor, Wire Wound, 6R8, 5%, 2W
Resistor, Wire Wound, 10R, 5%, 2W
Resistor, Wire Wound, 15R, 5%, 2W
Resistor, Wire Wound, 22R, 5%, 2W
Resistor, Wire Wound, 33R, 5%, 2W
Resistor, Wire Wound, 68R, 5%, 2W
Resistor, Wire Wound, 100R, 5%, 2W
Resistor, Wire Wound, 120R, 5%, 2W
Resistor, Wire Wound, 130R, 5%, 2W
Resistor, Wire Wound, 200R, 5%, 2W
Resistor, Wire Wound, 270R, 5%, 2W
Resistor, Wire Wound, 1K, 5%, 2W
Resistor, Wire Wound, 0R1, 5%, 2WS
Resistor, Wire Wound, 0R18, 5%, 2WS
Resistor, Wire Wound, 0R22, 5%, 2WS
Part Number
MCKNP01SJ0180A10
MCKNP01SJ0200A10
MCKNP01SJ0220A10
MCKNP01SJ0240A10
MCKNP01SJ0270A10
MCKNP01SJ0330A10
MCKNP01SJ0390A10
MCKNP01SJ0470A10
MCKNP01SJ0560A10
MCKNP01SJ0680A10
MCKNP01SJ0101A10
MCKNP01SJ0151A10
MCKNP01SJ0221A10
MCKNP01SJ0471A10
MCKNP02WJ010KA19
MCKNP02WJ033KA19
MCKNP02WJ047KA19
MCKNP02WJ010JA19
MCKNP02WJ047JA19
MCKNP02WJ056JA19
MCKNP02WJ068JA19
MCKNP02WJ0100A19
MCKNP02WJ0150A19
MCKNP02WJ0220A19
MCKNP02WJ0330A19
MCKNP02WJ0680A19
MCKNP02WJ0101A19
MCKNP02WJ0121A19
MCKNP02WJ0131A19
MCKNP02WJ0201A19
MCKNP02WJ0271A19
MCKNP02WJ0102A19
MCKNP02SJ010KA10
MCKNP02SJ018KA10
MCKNP02SJ022KA10
www.element14.com
www.farnell.com
www.newark.com
Page <4>
14/07/11 V1.1
Wire Wound Fixed Resistors
Part Number Table
Description
Resistor, Wire Wound, 0R27, 5%, 2WS
Resistor, Wire Wound, 0R33, 5%, 2WS
Resistor, Wire Wound, 0R47, 5%, 2WS
Resistor, Wire Wound, 0R56, 5%, 2WS
Resistor, Wire Wound, 0R82, 5%, 2WS
Resistor, Wire Wound, 1R, 5%, 2WS
Resistor, Wire Wound, 1R2, 5%, 2WS
Resistor, Wire Wound, 1R5, 5%, 2WS
Resistor, Wire Wound, 2R2, 5%, 2WS
Resistor, Wire Wound, 3R3, 5%, 2WS
Resistor, Wire Wound, 3R9, 5%, 2WS
Resistor, Wire Wound, 4R7, 5%, 2WS
Resistor, Wire Wound, 5R1, 5%, 2WS
Resistor, Wire Wound, 6R8, 5%, 2WS
Resistor, Wire Wound, 8R2, 5%, 2WS
Resistor, Wire Wound, 10R, 5%, 2WS
Resistor, Wire Wound, 12R, 5%, 2WS
Resistor, Wire Wound, 20R, 5%, 2WS
Resistor, Wire Wound, 22R, 5%, 2WS
Resistor, Wire Wound, 24R, 5%, 2WS
Resistor, Wire Wound, 30R, 5%, 2WS
Resistor, Wire Wound, 33R, 5%, 2WS
Resistor, Wire Wound, 39R, 5%, 2WS
Resistor, Wire Wound, 47R, 5%, 2WS
Resistor, Wire Wound, 51R, 5%, 2WS
Resistor, Wire Wound, 56R, 5%, 2WS
Resistor, Wire Wound, 68R, 5%, 2WS
Resistor, Wire Wound, 75R, 5%, 2WS
Resistor, Wire Wound, 82R, 5%, 2WS
Resistor, Wire Wound, 100R, 5%, 2WS
Resistor, Wire Wound, 120R, 5%, 2WS
Resistor, Wire Wound, 150R, 5%, 2WS
Resistor, Wire Wound, 180R, 5%, 2WS
Resistor, Wire Wound, 200R, 5%, 2WS
Part Number
MCKNP02SJ027KA10
MCKNP02SJ033KA10
MCKNP02SJ047KA10
MCKNP02SJ056KA10
MCKNP02SJ082KA10
MCKNP02SJ010JA10
MCKNP02SJ012JA10
MCKNP02SJ015JA10
MCKNP02SJ022JA10
MCKNP02SJ033JA10
MCKNP02SJ039JA10
MCKNP02SJ047JA10
MCKNP02SJ051JA10
MCKNP02SJ068JA10
MCKNP02SJ082JA10
MCKNP02SJ0100A10
MCKNP02SJ0120A10
MCKNP02SJ0200A10
MCKNP02SJ0220A10
MCKNP02SJ0240A10
MCKNP02SJ0300A10
MCKNP02SJ0330A10
MCKNP02SJ0390A10
MCKNP02SJ0470A10
MCKNP02SJ0510A10
MCKNP02SJ0560A10
MCKNP02SJ0680A10
MCKNP02SJ0750A10
MCKNP02SJ0820A10
MCKNP02SJ0101A10
MCKNP02SJ0121A10
MCKNP02SJ0151A10
MCKNP02SJ0181A10
MCKNP02SJ0201A10
www.element14.com
www.farnell.com
www.newark.com
Page <5>
14/07/11 V1.1
