UBA20270
600 V Driver IC for dimmable compact fluorescent lamps
Rev. 2 — 8 September 2011
Product data sheet
1. General description
The UBA20270 is a high-voltage power IC intended to control higher powered self
ballasted Compact Fluorescent Lamp (CFL) lighting applications. The UBA20270 is a
controller circuit with advanced features for dimming and has a lamp current controlled
boost feature for boosting cold (amalgam) CFLs.
The controller contains a half-bridge drive function for CFL, a high-voltage level-shift
circuit with integrated bootstrap diode. In addition, the controller contains an oscillator
function, a current control function both for preheat and burn, a timer function and
protection circuits. The UBA20270 is supplied via a dV/dt current charge supply circuit
from the half-bridge circuit.
Remark:
Mains voltages noted are AC.
2. Features and benefits
2.1 Half-bridge features
Integrated high-voltage level-shift function with integrated bootstrap diode
2.2 Preheat and ignition features
Coil saturation protection during ignition
Adjustable preheat time
Adjustable preheat current
Ignition lamp current detection
2.3 Lamp boost features
Adjustable boost timing
Fixed boost current ratio of 1.5
Gradually boost to burn transition timing
2.4 Dim features
Continuously variable dimming function for standard phase cut dimmers
Natural dimming curve by logarithmic correction
Adjustable Minimum Dimming Level (MDL)
Controlled lamp ON/OFF
NXP Semiconductors
UBA20270
600 V Driver IC for dimmable compact fluorescent lamps
2.5 Protection
OverCurrent Protection (OCP) in boost and burn state
Capacitive Mode Protection (CMP)
OverPower Protection (OPP)
Power-down function
OverTemperature Protection (OTP)
2.6 Other features
Current controlled operating in boost and burn state
External power-down function
Lamp flicker suppression
3. Applications
Dimmable compact fluorescent lamps for power levels above 20 W and for universal
mains voltages.
4. Ordering information
Table 1.
Ordering information
Package
Name
UBA20270T/N1
SO16
Description
Plastic small outline package; 16 leads; body width 3.9 mm
Version
SOT109-1
Type number
UBA20270
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2011. All rights reserved.
Product data sheet
Rev. 2 — 8 September 2011
2 of 32
xxxx xxxxxxxxxxxxxxxxxxxxxxxxxxxxxx x xxxxxxxxxxxxxx xxxxxxxxxx xxx xxxxxx xxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxxxx
xxxxx xxxxxx xx xxxxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxx xxxxxxx xxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxx xxxxxxxxxxxxxx xxxxxx xx xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxxxxxxxxxxxxx xxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxx xxxxx x x
Product data sheet
Rev. 2 — 8 September 2011
3 of 32
UBA20270
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2011. All rights reserved.

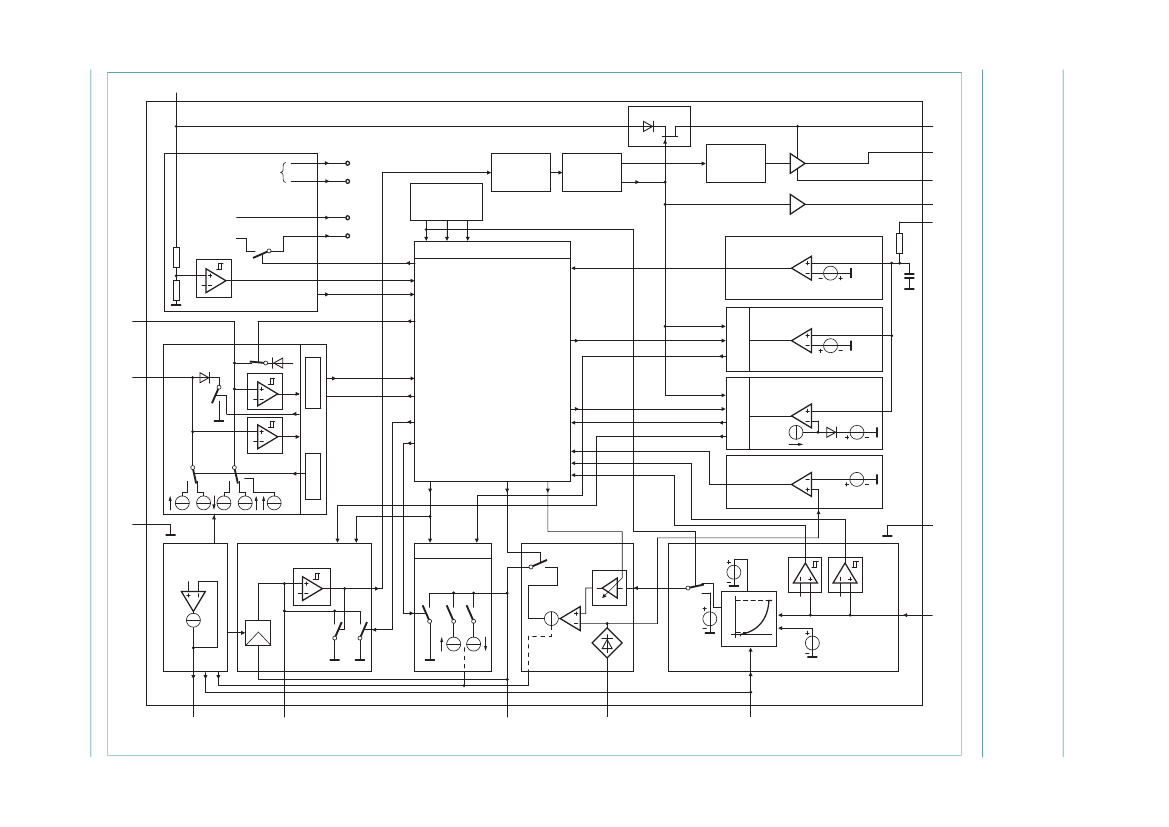

5. Block diagram
NXP Semiconductors
V
DD
4
BOOTSTRAP
14 FS
HS
driver
16 GHS
15 HBO
SUPPLY
REFERENCE
VOLTAGES
TEMPERATURE
SENSOR
160° 120° 80°
DIVIDE BY 2
LOGIC
DRIVER
LOGIC
LEVEL
SHIFTER
LS
driver
2 GLS
1 SLS
5 V DIGITAL
5 V ANALOG
STATE LOGIC
VS LOW
RESET
CP 11
RESET STATE
START-UP STATE
PREHEAT STATE
IGNITION STATE
HOLD STATE
BOOST STATE
BURN STATE
POWER-DOWN STATE
CAPACITIVE MODE DETECTOR
Vth(capm)SLS
PREHEAT CURRENT SENSOR
LOGIC
CB 12
COUNTER
PREHEAT/
BOOST TIMER
5V
Vph(SLS)
LOGIC
INDUCTOR SATURATION/
OVERCURRENT DETECTOR
Vth(ocp)SLS
25 μA
600 V Driver IC for dimmable compact fluorescent lamps
1 μA
6 μA
60 μA
LOGIC
IGNITION CURRENT DETECTOR
Vth(det)ign(CSI)
SGND 13
3 PGND
REFERENCE
CURRENT
1.27 V
VOLTAGE
CONTROLLED OSCILLATOR
LOGIC
FREQUENCY
CONTROL
BOOST
AMPLIFIER
VLD
BOOST ENABLE
Vclamp
(CSI)
Vth(bst)
(DCI)
START ENABLE
OTA
I
V
VCO
Vth(start)
(DCI)
VT(hec1)
DCI
10 DCI
UBA20270
LAMP
CURRENT
SENSOR
Votp(CSI)
DCI
25 μA
DSR
LEVEL SHIFT
DIMMER
CONTROL
5
RREF
6
CF
8
CI
9
CSI
7
MDL
001aam663
Fig 1.
Block diagram
NXP Semiconductors
UBA20270
600 V Driver IC for dimmable compact fluorescent lamps
6. Pinning information
6.1 Pinning
SLS
GLS
PGND
V
DD
RREF
CF
MDL
CI
1
2
3
4
16 GHS
15 HBO
14 FS
13 SGND
UBA20270
5
6
7
8
001aam664
12 CB
11 CP
10 DCI
9
CSI
Fig 2.
Pin configuration (SO16)
6.2 Pin description
Table 2.
Symbol
SLS
GLS
PGND
V
DD
RREF
CF
MDL
CI
CSI
DCI
CP
CB
SGND
FS
HBO
GHS
Pin description
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Description
source low-side switch input
low-side gate driver output
power ground
low voltage supply
internal reference current input
voltage controlled oscillator capacitor
minimum dimming level input
voltage controlled oscillator input integrating capacitor
current feedback sense input
dimming level input
preheat timing capacitor
boost timing capacitor
signal ground
floating supply voltage
half-bridge output
high-side gate driver output
UBA20270
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2011. All rights reserved.
Product data sheet
Rev. 2 — 8 September 2011
4 of 32
NXP Semiconductors
UBA20270
600 V Driver IC for dimmable compact fluorescent lamps
7. Functional description
The UBA20270 is an IC for driving external half-bridge MOSFETs in self ballasted
high-power CFL and their derivatives. The UBA20270 is equipped with a dimming control
input that has a logarithmic corrected natural dimming function. This function enables a
less sensitive brightness control of the lamp at low dim levels.
The UBA20270 is rated up to a maximum continuous rectified mains voltage of 500 V
(peak 600 V). The UBA20270 includes all the necessary functions for preheat, ignition,
boost, and on-state operation of the lamp. In addition, the UBA20270 includes several
protection measures that safeguard the functioning of the CFL and controller. The
controller states are shown in
Figure 3.
V
DD
= 0
RESET STATE
HOLD = 0
V
DD
> V
DD(rst)
V
DD
< V
DD(rst)
V
DD
< V
DD(rst)
START-UP STATE
V
CP
< V
th(rel)CP
POWER-DOWN STATE
(1)
PREHEAT STATE
(2)
HOLD STATE
(3)
HOLD = 1
preheat time
completed
IGNITION STATE
(4)
Ignition_Detected
(6)
BOOST AND BURN
STATES
(5)
001aam665
(1) V
DD
> V
DD(start)
AND V
i(DCI)
> V
th(start)DCI
AND (HOLD = 0 OR V
CP
< V
th(rel)CP
)
(2) V
DD
< V
DD(stop)
OR V
i(DCI)
< V
th(start)DCI
V
th(hys)DCI
(3) (End of ignition time AND HOLD = 0) OR V
DD
< V
DD(stop)
OR V
i(DCI)
< V
th(start)DCI
V
th(hys)DCI
(4) End of ignition time AND HOLD = 1
(5) V
CP
< V
th(pd)CP
OR overcurrent fault time >
1
10
t
ph
OR f
bridge(max)
detected in capacitive mode
(6) V
DD
< V
DD(stop)
OR V
i(DCI)
< V
th(start)DCI
V
th(hys)DCI
Fig 3.
State diagram
UBA20270
All information provided in this document is subject to legal disclaimers.
© NXP B.V. 2011. All rights reserved.
Product data sheet
Rev. 2 — 8 September 2011
5 of 32
