BUS-65522II datasheet, PDF - EEWORLD Datasheet

BUS-65522II: DescriptionMil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS; CategoryThe embedded processor and controller Microcontrollers and processors; File Size73KB，2 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric Compare View All

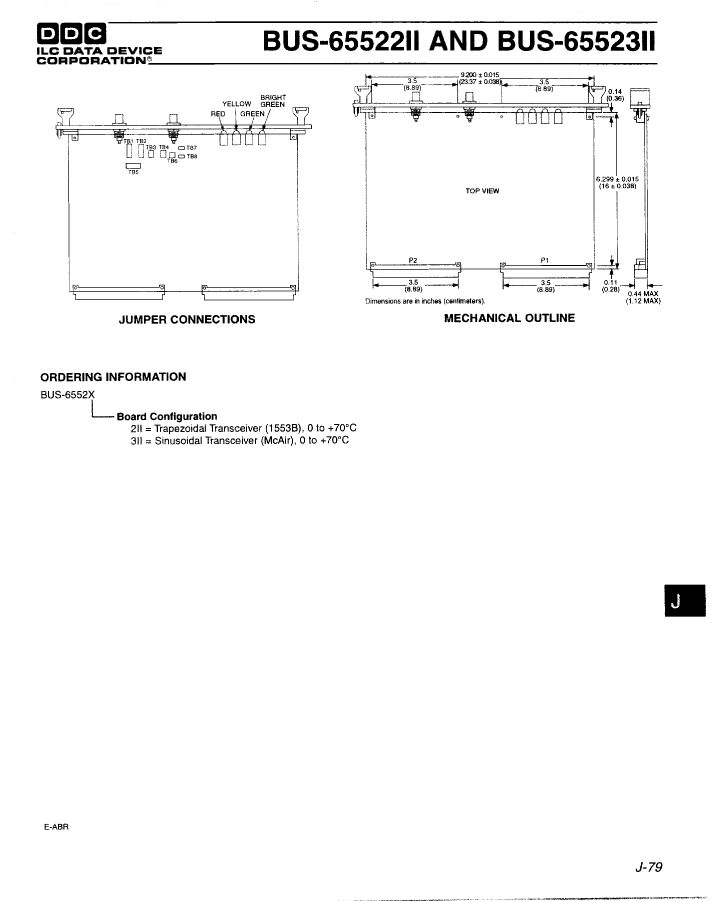

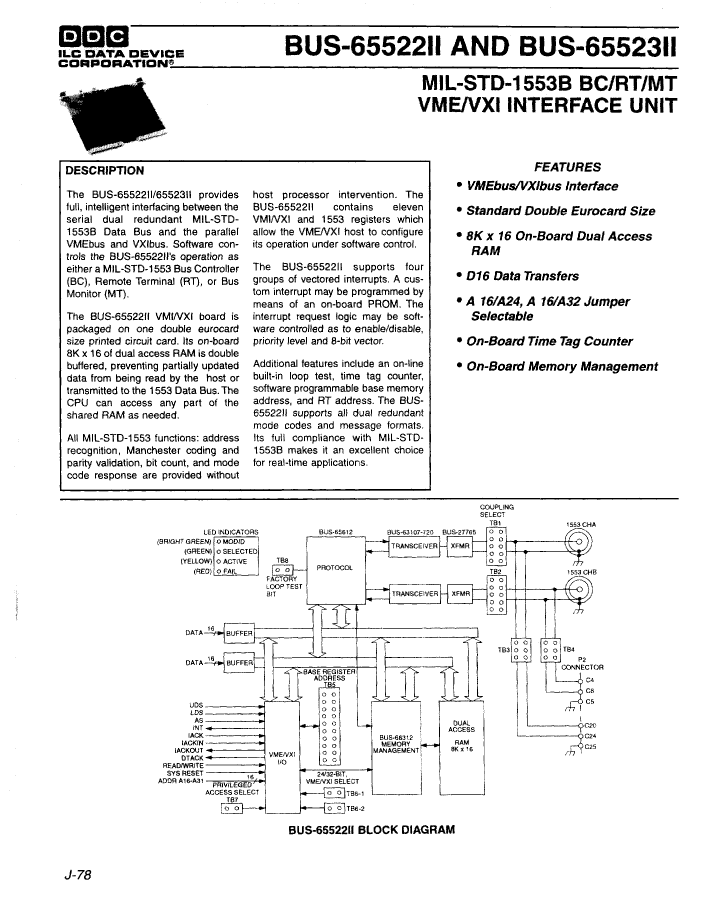

BUS-65522II Overview

Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS

Parameter Name	Attribute value
Maker	Data Device Corporation
Reach Compliance Code	unknown
Other features	ADDITIONAL POWER SUPPLY -12V+/-5%
Address bus width	32
boundary scan	NO
letter of agreement	MIL-STD-1553B
Data encoding/decoding methods	BIPH-LEVEL(MANCHESTER)
Maximum data transfer rate	0.125 MBps
External data bus width	16
JESD-30 code	X-XXMA-X192
low power mode	YES
Number of DMA channels
Number of I/O lines
Number of serial I/Os	2
Number of terminals	192
On-chip data RAM width	16
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	UNSPECIFIED
Package shape	UNSPECIFIED
Package form	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified
RAM (number of words)	4096
Maximum slew rate	2200 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553

	BUS-65522II	BUS-65523II
Description	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS	Mil-Std-1553 Controller, 2 Channel(s), 0.125MBps, CMOS
Reach Compliance Code	unknown	unknown
Other features	ADDITIONAL POWER SUPPLY -12V+/-5%	ADDITIONAL POWER SUPPLY 12V+/-5%
Address bus width	32	32
boundary scan	NO	NO
letter of agreement	MIL-STD-1553B	MIL-STD-1553B
Data encoding/decoding methods	BIPH-LEVEL(MANCHESTER)	BIPH-LEVEL(MANCHESTER)
Maximum data transfer rate	0.125 MBps	0.125 MBps
External data bus width	16	16
JESD-30 code	X-XXMA-X192	X-XXMA-X192
low power mode	YES	YES
Number of serial I/Os	2	2
Number of terminals	192	192
On-chip data RAM width	16	16
Maximum operating temperature	70 °C	70 °C
Package body material	UNSPECIFIED	UNSPECIFIED
Package shape	UNSPECIFIED	UNSPECIFIED
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Certification status	Not Qualified	Not Qualified
RAM (number of words)	4096	8000
Maximum slew rate	2200 mA	2200 mA
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	UNSPECIFIED	UNSPECIFIED
Terminal location	UNSPECIFIED	UNSPECIFIED
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553	SERIAL IO/COMMUNICATION CONTROLLER, MIL-STD-1553
