CDRH127ENP-271MB datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CDRH127ENP-271MB

CDRH127ENP-271MB: DescriptionGeneral Purpose Inductor, 270uH, 20%, 1 Element, Ferrite-Core, SMD, 4747, ROHS COMPLIANT; CategoryPassive components inductor; File Size162KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric View All

CDRH127ENP-271MB Overview

General Purpose Inductor, 270uH, 20%, 1 Element, Ferrite-Core, SMD, 4747, ROHS COMPLIANT

CDRH127ENP-271MB Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
package instruction	4747
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	4747
structure	Magnetically Shielded
core material	Ferrite
DC Resistance	0.56 Ω
Nominal inductance(L)	270 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDRH
Number of functions	1
Number of terminals	4
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Package height	8 mm
Package length	12 mm
Package form	SMT
Package width	12 mm
method of packing	Box
Maximum rated current	1.06 A
series	CDRH127/E
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL IN-LINE
Terminal shape	WRAPAROUND
Test frequency	0.001 MHz
Tolerance	20%

Preview

Download Datasheet

View All

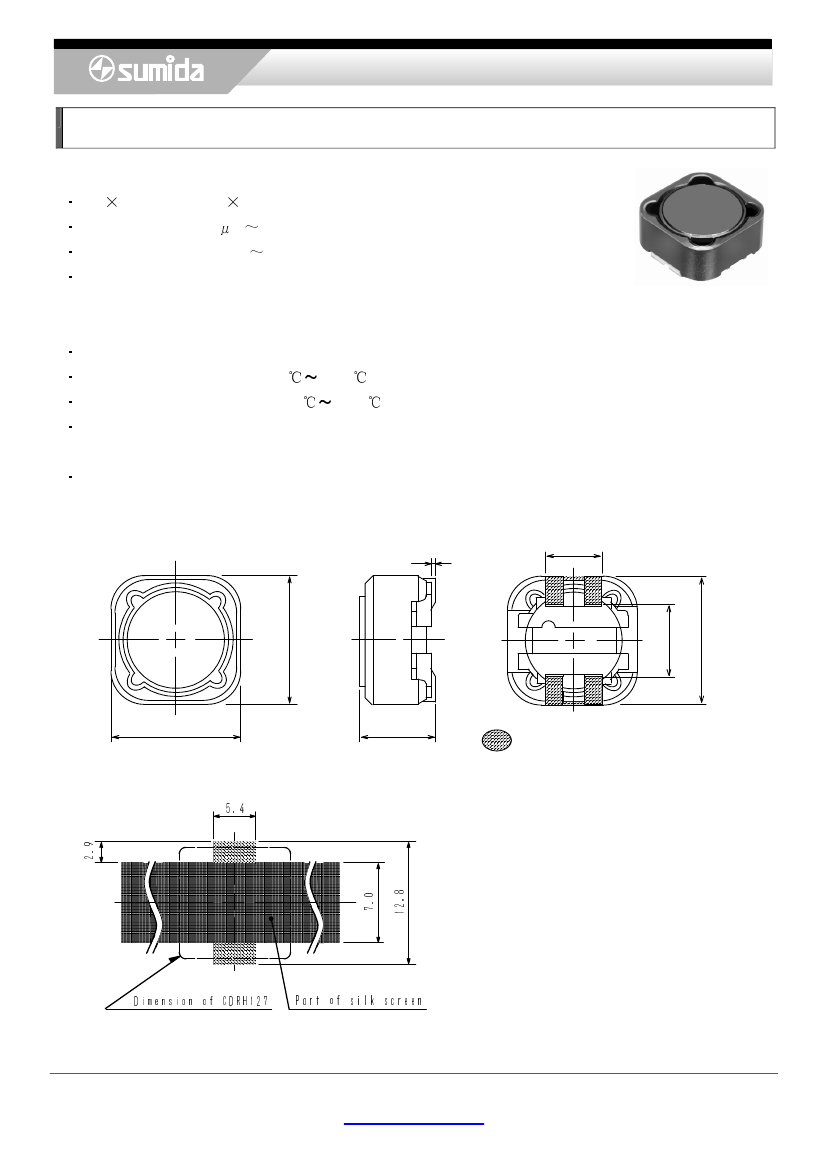

Power Inductors <SMD Type: CDRH Series>

Type: CDRH127 /E

◆

Product Description

12.3 12.3mm Max.(L W ), 8.0mm Max. Height.

Inductance range:1.2 H 1.0mH.

Rated current range: 0.55 9.8.

Custom design is available.

◆

Feature

Magnetically shielded construction.

Operating temperature range: -40

inductors.

Ideally used in Notebook PC, LCD TV,DVD, Game machine, STB ,Projector etc as DC-DC converter

RoHS compliance.

◆

Dimensions (mm)

12.0±0.3

◆

Land Pattern (mm)

4.5

Max.8.0

Electrode terminal

Please refer to the sales offices on our website for a representative near you

www.sumida.com

12.0±0.2

7.6

neercs klis fo traP

℃ ½℃

Storage temperature range: -40

721HRDC fo noisnemiD

½μ

・

+100 .

+100

(Including coil’s self temperature rise).

0.2

5.0 ± 0.2

1/2
