AISC-1008-R75J-Z-T

Description
General Purpose Inductor, 0.75uH, 5%, 1 Element, Ferrite-Core, SMD, 1111, CHIP, 1111, ROHS COMPLIANT
CategoryPassive components    inductor
File Size4MB，3 Pages
ManufacturerAbracon
Websitehttp://www.abracon.com/index.htm
Environmental Compliance
Download Datasheet Parametric View All

AISC-1008-R75J-Z-T Overview

General Purpose Inductor, 0.75uH, 5%, 1 Element, Ferrite-Core, SMD, 1111, CHIP, 1111, ROHS COMPLIANT

AISC-1008-R75J-Z-T Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerAbracon
package instruction1111
Reach Compliance Codecompliant
ECCN codeEAR99
uppercase and lowercase codes1111
structureChip
core materialFERRITE
DC Resistance1.54 Ω
Nominal inductance(L)0.75 µH
Inductor ApplicationsRF INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
JESD-609 codee4
Manufacturer's serial numberAISC-1008
Number of functions1
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-40 °C
Package height2.29 mm
Package length2.92 mm
Package formSMT
Package width2.79 mm
method of packingTR
Minimum quality factor (at nominal inductance)45
Maximum rated current0.36 A
self resonant frequency360 MHz
seriesAISC-1008(F)
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldNO
surface mountYES
Terminal surfaceGold (Au) - with Nickel (Ni) barrier
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency100 MHz
Tolerance5%

Preview

Download Datasheet
WIRE WOUND INDUCTOR - CERAMIC or FERRITE
AISC-1008(F)
FEATURES:
• Ceramic or Ferrite Construction assures the utmost in the thermal
stablity and high SRF
• Exceptionally high Q compared to non-wirewound inductor,
especially at high frequencies
• Inductance values available from 4.7 nH
to 10,000nH
Pb
RoHS
Compliant

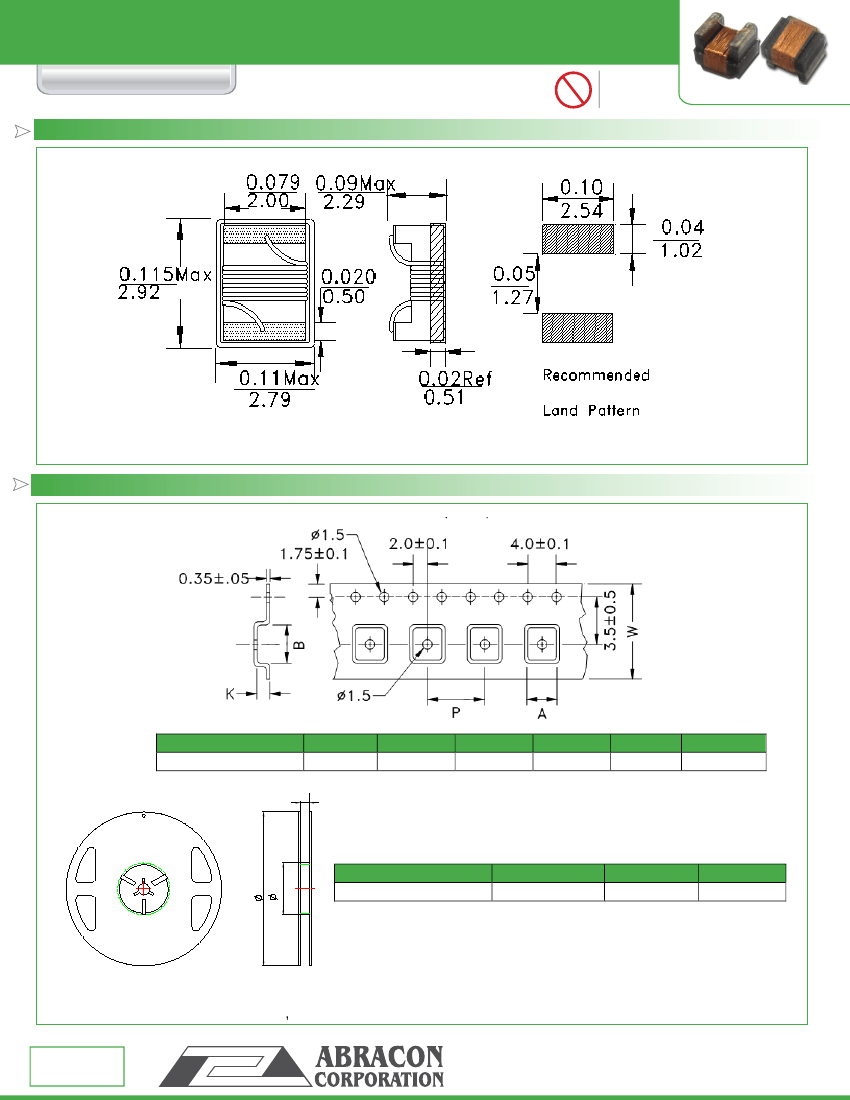

2.92 x 2.79 x 2.29m m
| | | | | | | | | | | | | |
|
APPLICATIONS:
• Widely applied in the VCO, SAW circuit for GSM, CDMA
communications
• Used in hard disk, notebook computer and other
electronic equipment
STANDARD SPECIFICATIONS:
Abracon Part Number
AISC-1008-R0047
AISC-1008-R010
AISC-1008-R012
AISC-1008-R015
AISC-1008-R018
AISC-1008-R022
AISC-1008-R027
AISC-1008-R033
AISC-1008-R039
AISC-1008-R047
AISC-1008-R056
AISC-1008-R068
AISC-1008-R082
AISC-1008-R10
AISC-1008-R12
AISC-1008-R15
AISC-1008-R18
AISC-1008-R22
AISC-1008-R27
AISC-1008-R33
AISC-1008-R39
AISC-1008-R47
AISC-1008-R56
AISC-1008-R62
AISC-1008-R68
AISC-1008-R75
AISC-1008-R82
AISC-1008-R91
AISC-1008-1R0
AISC-1008-1R2
AISC-1008-1R5
AISC-1008-1R8
AISC-1008-2R2
AISC-1008-2R7
AISC-1008-3R3
AISC-1008-3R9
AISC-1008-4R7
AISC-1008-5R6
AISC-1008-6R8
AISC-1008-8R2
AISC-1008F-1R2
AISC-1008F-1R5
AISC-1008F-1R8
AISC-1008F-2R2
AISC-1008F-2R7
AISC-1008F-3R3
AISC-1008F-3R9
AISC-1008F-4R7
AISC-1008F-5R6
AISC-1008F-6R8
AISC-1008F-8R2
AISC-1008F-100
ABRACON IS
ISO 9001 / QS 9000
ISO 9001 :2008
CE RTIFIED
L (nH)
4.7
10
12
15
18
22
27
33
39
47
56
68
82
10 0
12 0
15 0
18 0
22 0
27 0
33 0
39 0
47 0
56 0
62 0
68 0
75 0
82 0
91 0
1,00 0
1,20 0
1,50 0
1,80 0
2,20 0
2,70 0
3,30 0
3,90 0
4,70 0
5,60 0
6,80 0
8,20 0
1,20 0
1,50 0
1,80 0
2,20 0
2,70 0
3,30 0
3,90 0
4,70 0
5,60 0
6,80 0
8,20 0
10,00 0
L. Test
Freq
(MHz)
50
50
50
50
50
50
50
50
50
50
50
50
50
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
25
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
7.9
To leranc e
(±%)
10,2 0
5,10,2 0
5,10,2 0
5,10,2 0
5,10,2 0
2,5,10,2 0
2,5,10,2 0
2,5,10,2 0
2,5,10,2 0
2,5,10,2 0
2,5,10,2 0
2,5,10,2 0
2,5,10,2 0
2,5,10,2 0
2,5,10,2 0
2,5,10,2 0
2,5,10,2 0
2,5,10,2 0
2,5,10,2 0
2,5,10,2 0
2,5,10,2 0
2,5,10,2 0
2,5,10,2 0
2,5,10,2 0
2,5,10,2 0
2,5,10,2 0
2,5,10,2 0
2,5,10,2 0
2,5,10,2 0
2,5,10,2 0
2,5,10,2 0
2,5,10,2 0
2,5,10,2 0
2,5,10,2 0
2,5,10,2 0
2,5,10,2 0
2,5,10,2 0
5,10,2 0
5,10,2 0
5,10,2 0
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
5,10,20
Q
Min
60
50
50
50
50
55
55
60
60
70
70
65
65
60
60
45
45
45
45
45
45
45
45
45
45
45
45
40
35
35
28
28
28
22
22
20
20
20
20
20
48
41
39
34
34
32
32
31
23
31
23
31
Q Te s t
Freq
(MHz)
150 0
50 0
50 0
50 0
35 0
35 0
35 0
35 0
35 0
35 0
35 0
35 0
35 0
35 0
35 0
10 0
10 0
10 0
10 0
10 0
10 0
10 0
10 0
10 0
10 0
10 0
10 0
50
50
50
50
50
50
25
25
25
25
25
25
25
50
50
50
50
50
50
7.9
7.9
7.9
7.9
7.9
7.9
S RF
Min
(MHz)
>600 0
410 0
340 0
260 0
260 0
240 0
170 0
170 0
160 0
160 0
140 0
120 0
100 0
100 0
100 0
85 0
80 0
70 0
70 0
60 0
50 0
50 0
45 0
41 5
37 5
36 0
35 0
32 0
29 0
25 0
20 0
16 0
12 0
10 0
80
60
60
60
60
50
Revised: 12.28.11
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
21 0
19 0
17 0
15 0
10 0
10 0
70
60
50
40
40
40
0.7 0
0.7 5
0.8 4
1.1 5
1.2 8
1.4 6
1.5 6
1.6 8
1.8 2
2.0 0
2.6 5
2.9 5
R
DC
Max
( )
0.1 1
0.0 8
0.0 9
0.1 3
0.1 1
0.1 2
0.1 3
0.1 4
0.1 5
0.1 6
0.1 8
0.2 1
0.2 2
0.5 6
0.6 3
0.6 2
0.7 0
0.8 0
0.9 1
1.0 5
1.1 2
1.1 9
1.3 3
1.4 0
1.4 7
1.5 4
1.6 1
1.6 8
1.7 5
2.0 0
2.3 0
2.6 0
2.8 0
3.2 0
3.4 0
3.6 0
4.0 0
5.7 0
7.7 0
10. 7
I
DC
Max
(mA)
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
1000
650
650
580
620
500
500
450
470
470
400
300
400
360
400
380
370
310
330
300
280
290
260
260
250
220
180
150

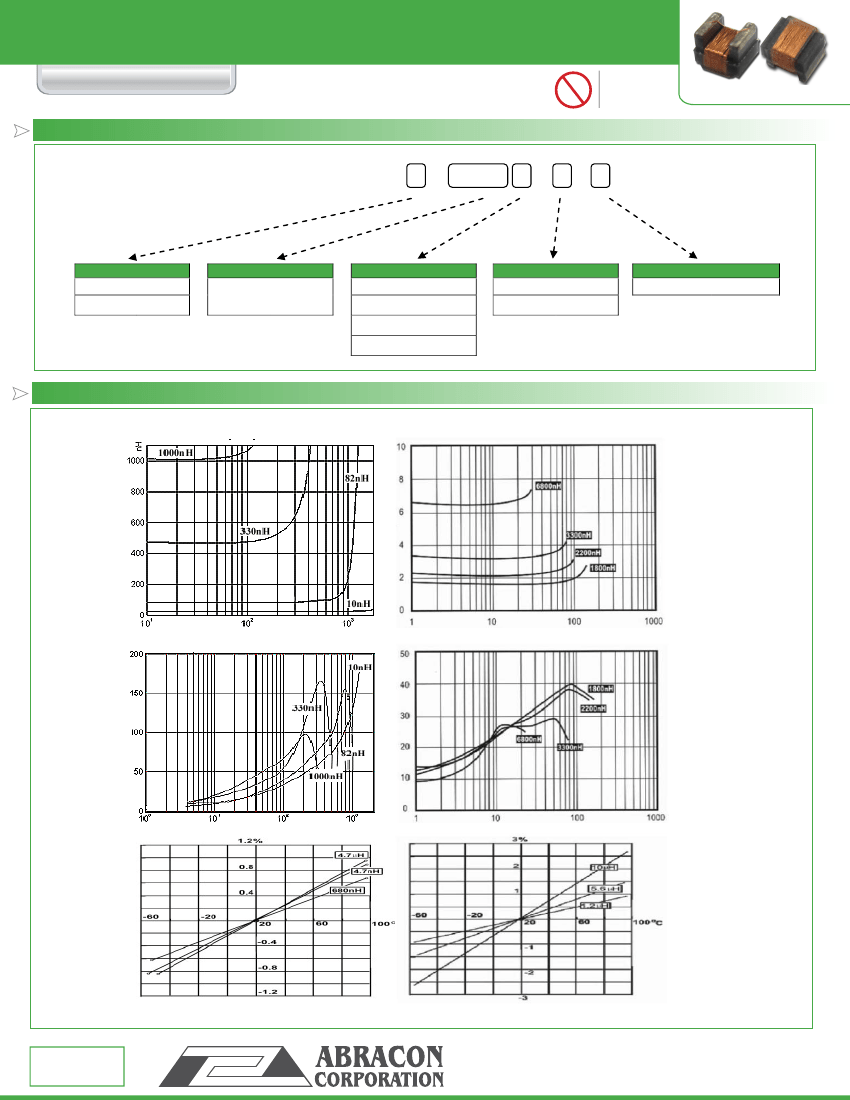

PARAMETERS
ABRACON P/N:
AISC-1008(F)-xxx
Operating temperature:
-40°C to + 125°C
Storage temperature:
-10°C to + 40°C, 70% RH max.
Test Equipment:
1. Inductance and Q-factor
measured using HP4287A
and 16197 Testing Fixture.
2. Rdc measured using a
Agilent 4287A with 16197
test fixutre
3. SRF measured using
Agilent E5071B network
Analyzer
650
630
600
520
490
450
420
400
380
360
330
300
