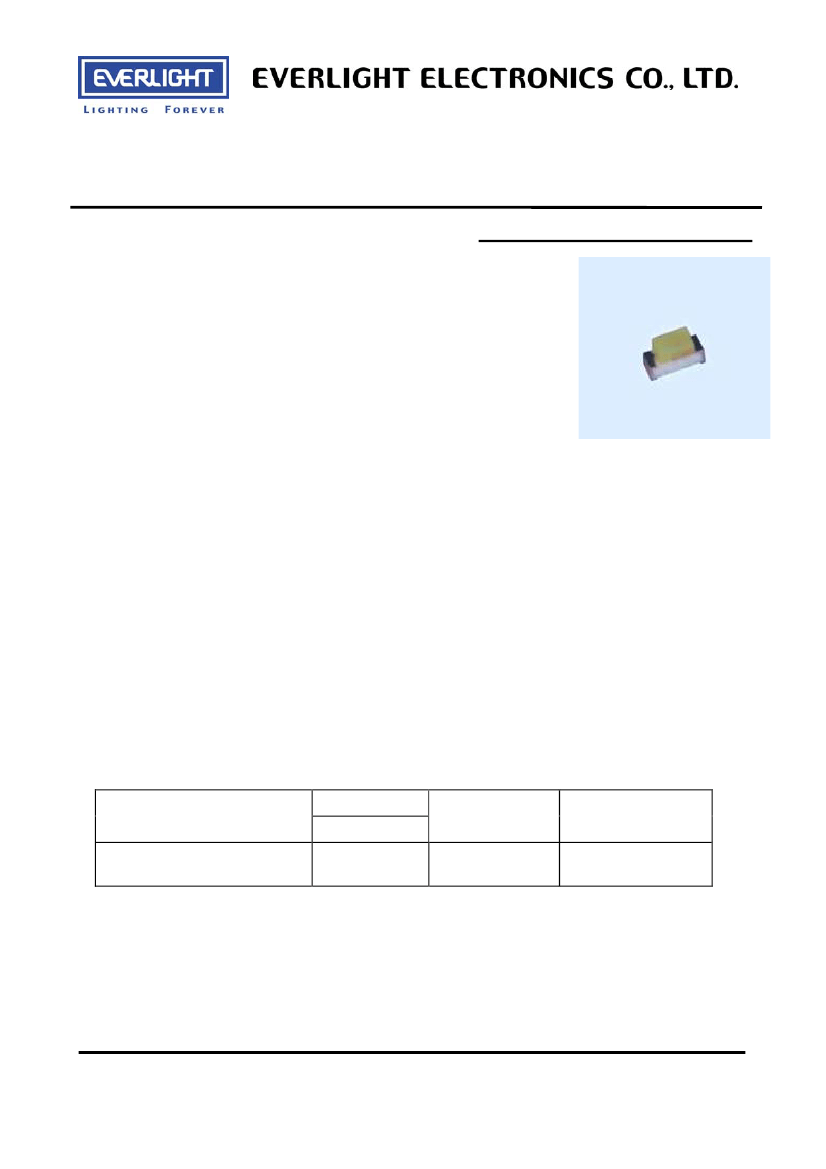

Technical Data Sheet
Chip LED with Right Angle Resin
27-21/T3D-AP2Q2HY/3C
Features
․Package
in 8mm tape on 7〞diameter reel.
․Compatible
with automatic placement equipment.
․Compatible
with infrared and vapor phase reflow
solder process.
․Mono-color
type.
․Pb-free.
․The
product itself will remain within RoHS compliant version.
Descriptions
․The
27-21 SMD LED is much smaller than lead
frame type components, thus enable smaller
board size, higher packing density, reduced
storage space and finally smaller equipment to be
obtained.
․Besides,
lightweight makes them ideal for
miniature applications. etc.
Applications
․Backlighting
in dashboard and switch.
․Telecommunication:
indicator and backlighting in
telephone and fax.
․Flat
backlight for LCD, switch and symbol.
․General
use.
Device Selection Guide
Part No.
27-21/T3D-AP2Q2HY/3C
Chip
Material
InGaN
Emitted Color
Pure White
Resin Color
Yellow Diffused
Everlight Electronics Co., Ltd.
Device No. : DSE-0002165
http://www.everlight.com
Prepared date:27th-Aug.-2009
Rev. 2
Page: 1 of 12
Prepared by: Zhang Jiang
27-21/T3D-AP2Q2HY/3C

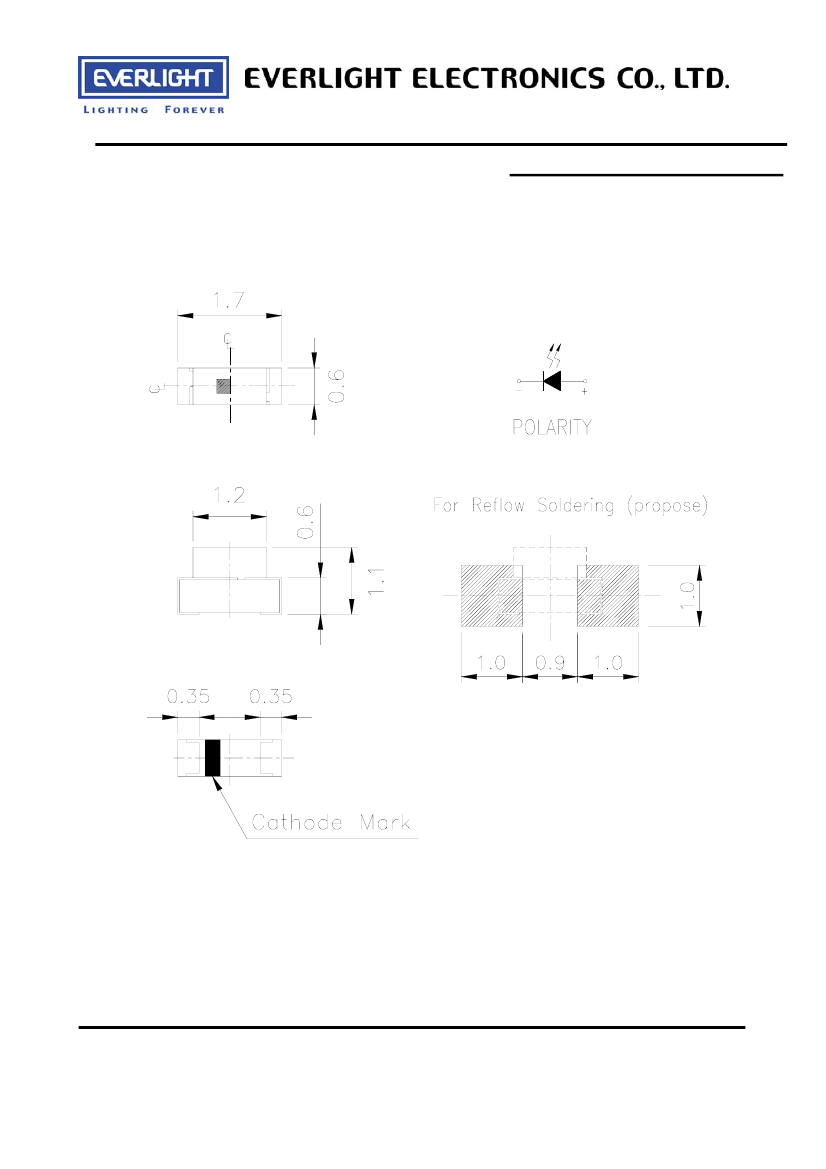

Package Outline Dimensions
Note:
The tolerances unless mentioned is
±0.1mm,Unit
= mm.
Everlight Electronics Co., Ltd.
Device No. : DSE-0002165
http://www.everlight.com
Prepared date:27th-Aug.-2009
Rev. 2
Page: 2 of 12
Prepared by: Zhang Jiang
27-21/T3D-AP2Q2HY/3C
Absolute Maximum Ratings (Ta=25℃)
Parameter
Reverse Voltage
Forward Current
Peak Forward Current
(Duty 1/10 @1KHz)
Power Dissipation
Electrostatic Discharge(HBM)
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
V
R
I
F
I
FP
Pd
ESD
Topr
Tstg
Tsol
Rating
5
25
100
110
150
-40 ~ +85
-40 ~ +90
Unit
V
mA
mA
mW
V
℃
℃
Reflow Soldering : 260℃ for 10sec.
Hand Soldering : 350℃ for 3 sec.
Electro-Optical Characteristics (Ta=25℃)
Parameter
Luminous Intensity
Viewing Angle
Forward Voltage
Reverse Current
Symbol
I
v
2θ1/2
V
F
I
R
Min.
57.0
-----
2.70
-----
Typ.
-----
140
-----
-----
Max.
112
-----
3.15
50
Unit
mcd
deg
V
μA
V
R
=5V
I
F
=5mA
Condition
Notes:
1.Tolerance of Luminous Intensity
±11%
2.Tolerance of Forward Voltage
±0.1V
Everlight Electronics Co., Ltd.
Device No. : DSE-0002165
http://www.everlight.com
Prepared date:27th-Aug.-2009
Rev. 2
Page: 3 of 12
Prepared by: Zhang Jiang
27-21/T3D-AP2Q2HY/3C
Bin Range Of Luminous Intensity
Bin
P2
Q1
Q2
Min.
57.0
72.0
90.0
Max.
72.0
90.0
112
mcd
I
F
=5mA
Unit
Condition
Bin Range Of Luminous Voltage
Group
H
Bin
15
16
17
Min
2.70
2.85
3.00
Max
2.85
3.00
3.15
V
I
F
=5mA
Unit
Condition
Notes:
1.Tolerance of Luminous Intensity
±11%
2.Tolerance of Forward Voltage
±0.1V
Everlight Electronics Co., Ltd.
Device No. : DSE-0002165
http://www.everlight.com
Prepared date:27th-Aug.-2009
Rev. 2
Page: 4 of 12
Prepared by: Zhang Jiang
27-21/T3D-AP2Q2HY/3C
Chromaticity Coordinates Specifications for Bin Grading
I
F
= 5mA
Groups
Bin Code
CIE_x
0.274
0.274
0.294
0.294
0.274
0.274
0.294
0.294
0.294
0.294
0.314
0.314
0.294
0.294
0.314
0.314
0.314
0.314
0.334
0.334
0.314
0.314
0.334
0.334
CIE_y
0.226
0.258
0.286
0.254
0.258
0.291
0.319
0.286
0.254
0.286
0.315
0.282
0.286
0.319
0.347
0.315
0.282
0.315
0.343
0.311
0.315
0.347
0.376
0.343
1
2
3
A
4
5
6
Notes:
1.The C.I.E. 1931 chromaticity diagram ( Tolerance
±0.01).
2.The products are sensitive to static electricity and care must be fully taken when
handling products.
Everlight Electronics Co., Ltd.
Device No. : DSE-0002165
http://www.everlight.com
Prepared date:27th-Aug.-2009
Rev. 2
Page: 5 of 12
Prepared by: Zhang Jiang
