ASE3-0.625MHZ-L-B-T datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ASE3-0.625MHZ-L-B-T

ASE3-0.625MHZ-L-B-T: DescriptionCMOS Output Clock Oscillator, 0.625MHz Min, 133MHz Max, 0.625MHz Nom, ROHS COMPLIANT, SMD, 4 PIN; CategoryPassive components oscillator; File Size2MB，3 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASE3-0.625MHZ-L-B-T Overview

CMOS Output Clock Oscillator, 0.625MHz Min, 133MHz Max, 0.625MHz Nom, ROHS COMPLIANT, SMD, 4 PIN

ASE3-0.625MHZ-L-B-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	ROHS COMPLIANT, SMD, 4 PIN
Reach Compliance Code	compliant
Other features	TRI-STATE; TAPE AND REEL
maximum descent time	10 ns
Frequency Adjustment - Mechanical	NO
frequency stability	40%
Manufacturer's serial number	ASE3
Installation features	SURFACE MOUNT
Number of terminals	4
Maximum operating frequency	133 MHz
Minimum operating frequency	0.625 MHz
Nominal operating frequency	0.625 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	15 pF
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	DILCC4,.1,86
physical size	3.2mm x 2.5mm x 1.25mm
power supply	1.8 V
Certification status	Not Qualified
longest rise time	10 ns
Maximum slew rate	4 mA
Maximum supply voltage	1.89 V
Minimum supply voltage	1.71 V
Nominal supply voltage	1.8 V
surface mount	YES
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

1.8V CMOS COMPATIBLE SMD

CRYSTAL CLOCK OSCILLATOR

ASE3 SERIES

Moisture Sensitivity Level (MSL) –1

FEATURES:

• Compact and low in height

• Tri state

• Low supply voltage

• Suita

ble for

high density SMT

• IR reflow capable

• Tight stability option available

• Seam sealed package

APPLICATIONS:

• CCD clock

for

VTR camera

• Equipment connected to

PC or PC cards

• Laptop

RoHS

Compliant

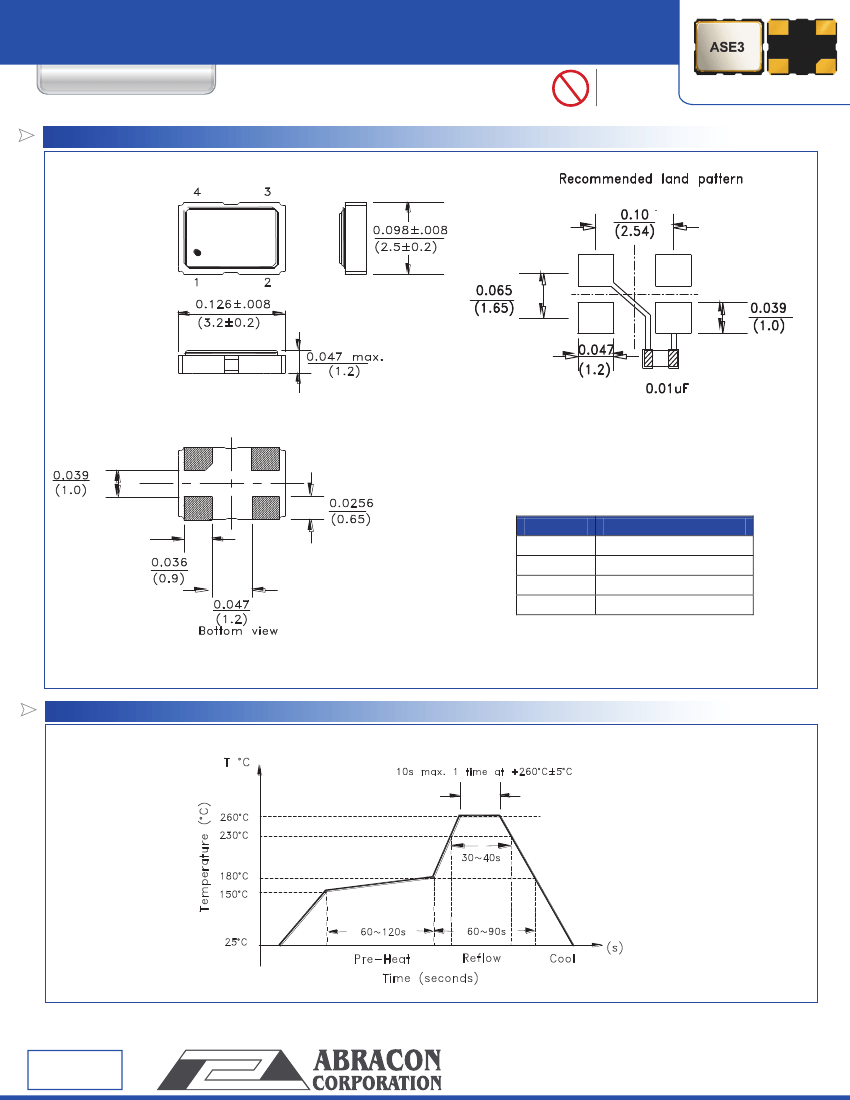

3.2 x 2.5 x 1.25m m

| | | | | | | | | | | | | |

• Mobile communication

• Bluetooth

• Wireless LAN

• Flat TV

STANDARD SPECIFICATIONS:

Parameters

Frequency

Range

Operating Temperature:

Storage Temperature:

Overall Frequency

Stability:

Supply Voltage

(Vdd):

Minimum

Typical

Maximum

0.625

-----

133

-10

-----

+70

-55

-----

+125

-100

-----

+100

+1.71

+1.80

+1.89

-----

"1" (VIH

≥ 0.7*Vdd) or open: Oscillation

"0" (VIL

< 0.3*Vdd) : Hi

-----

0.9 * Vdd

-----

0.1 * Vdd

-----

-3

-----

Units

MHz

°C

ppm

Notes

See options

0.625~9.999MHz

10.000~29.999MHz

30.000~59.999MHz

60.000~74.999MHz

75.000~99.999MHz

100.000~125.000MHz

0.625~9.999MHz

10.000~29.999MHz

30.000~59.999MHz

60.000~74.999MHz

75.000~99.999MHz

100.000~125.000MHz

0.625~9.999MHz

10.000~29.999MHz

30.000~59.999MHz

60.000~74.999MHz

75.000~99.999MHz

100.000~125.000MHz

0.625 ~ 89.999 MHz

90 ~ 125.0 MHz

Supply Current

(Idd):

Start-up time:

Tr/Tf:

Symmetry

1/2Vdd:

Tristate

function:

Output Load:

Output Level

Stand-by Current:

Period

Jitter (RMS):

Aging (first

year):

Ω

Vp-p

ppm

@+25°C

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

ASE3

Operating Temp.

0°C ~

+50°C

D: -10°C ~

+60°C

-20°C ~

+70°C

F: -30°C ~

+70°C

N: -30°C ~

+85°C

L: -40°C ~

+85°C

Contact

ABRACON for wider

temperature range.

MHz -

Freq. Stability

J*: ±

20 ppm

R: ±

25 ppm

K: ± 30

ppm

± 35

ppm

B: ±

40 ppm

50 ppm

Packaging

Blank:

Bulk

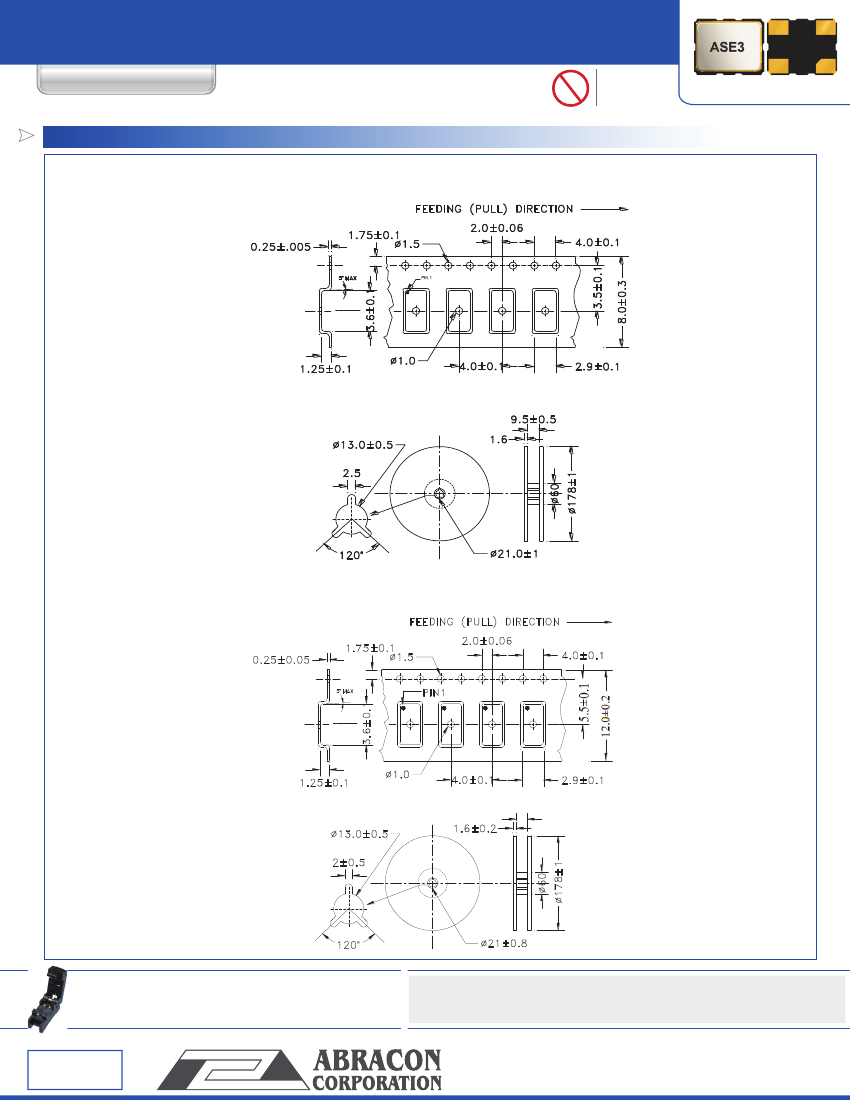

T: Tape &

Reel (1kpcs)

T2: Tape &

Reel (250pcs)

Frequency in MHz

e.g. 0.625MHz

24.576MHz

14.31818MHz

26.000MHz

200.000MHz

*: Temp options

and -

10° C to

70° C only

ABRACON IS

ISO 9001 / QS 9000

ISO 9001:2008

RTIFIED

Revised: 07.17.12

30332

Esperanza, Rancho Santa

Margarita, California 92688

tel 949-546-800

fax

949-546-8001

| www.abracon.com

Visit www.abracon.com for Terms & Conditions of Sale
