SF0640BA03206S
SAW Filter
640 MHz SAW Filter, 100 kHz Bandwidth
• 5 x 5 mm Ceramic LCC, 8 Pads
• RoHS Compliant
These filters are manufactured on quartz, which provides optimal temperature performance and are available from 80
-1600 MHz. This TCRF is designed for narrowband IF filtering such as in satellite transponders, directional finders and
anti-jam modems. Other packaging styles are available for more rugged environments and applications. Standard part
numbers as well as custom solutions are available. Please contact sales for more information.

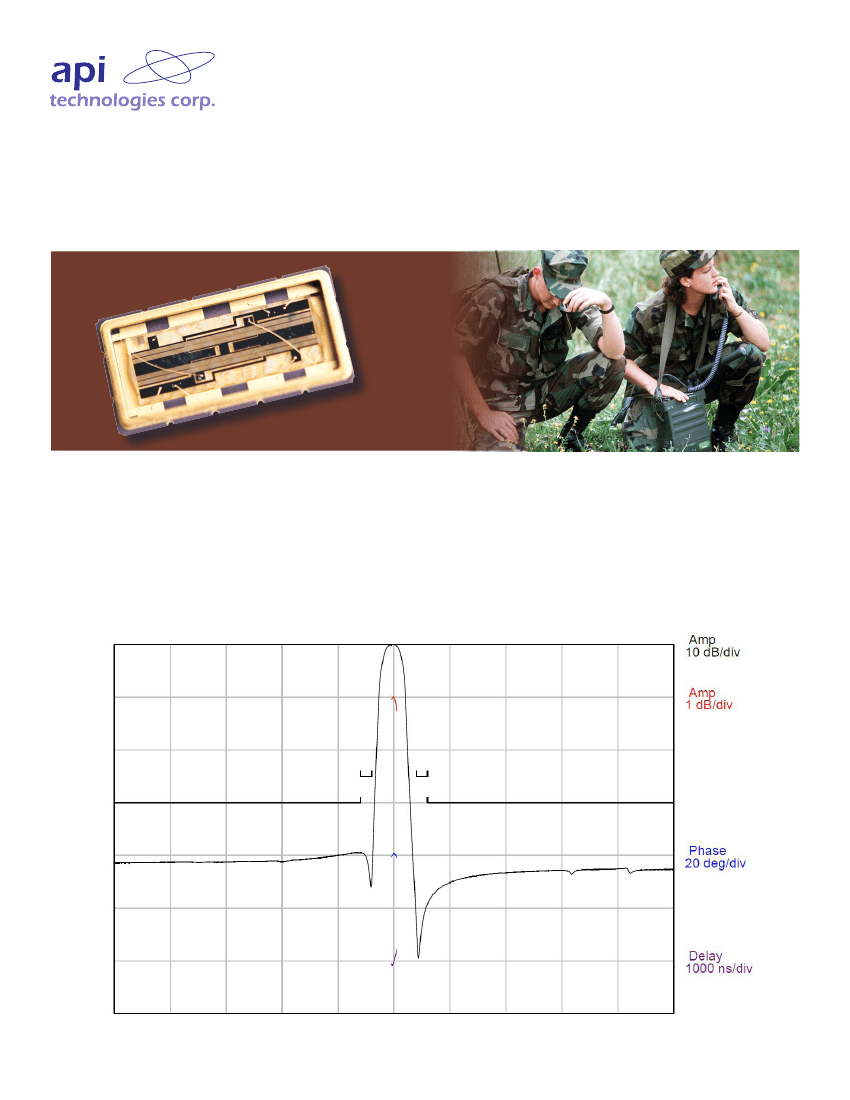

TYPICAL PERFORMANCE
Center = 640 MHz, 1 MHz/div (12.5 kHz incr)
8/2012
SPECIFICATION
Parameter
Center Frequency, (Fc, 20 dB)
Insertion Loss
Device Delay
2 dB Bandwidth
2
Lower 2 dB Frequency
2
Upper 2 dB Frequency
2
Amplitude Ripple (639.95-640.05 MHz)
Group Delay Deviation (639.95-640.05 MHz)
Relative Attenuation (10-615 MHz)
Relative Attenuation (615-639.4 MHz)
Relative Attenuation (639.4-639.6 MHz)
Relative Attenuation (640.4-640.6 MHz)
Relative Attenuation (640.6-665 MHz)
Relative Attenuation (665-1280 MHz)
Source and Load Impedance
Ambient Temperature
1
Min
-
-
-
0.10
-
640.05
-
-
40
30
25
25
30
40
Typ
640.00
6.8
3.5
0.30
639.82
640.12
0.3
300
45
39
39
45
42
45
50
25
Max
-
7.5
-
-
639.95
-
2
800
-
-
-
-
-
-
Units
MHz
dB
us
MHz
MHz
MHz
dB p-p
ns p-p
dB
dB
dB
dB
dB
dB
ohms
°C
Notes:
1. Reference frequency at 25 °C. Computed as mean of the 20 dB frequencies.
2. All dB values are referenced to the insertion loss value.
MAXIMUM RATINGS
Parameter
Storage Temperature Range
Operating Temperature Range (T)
Input Power Level
Min
-40
-40
-
Max
85
85
+20
Units
°C
°C
dBm

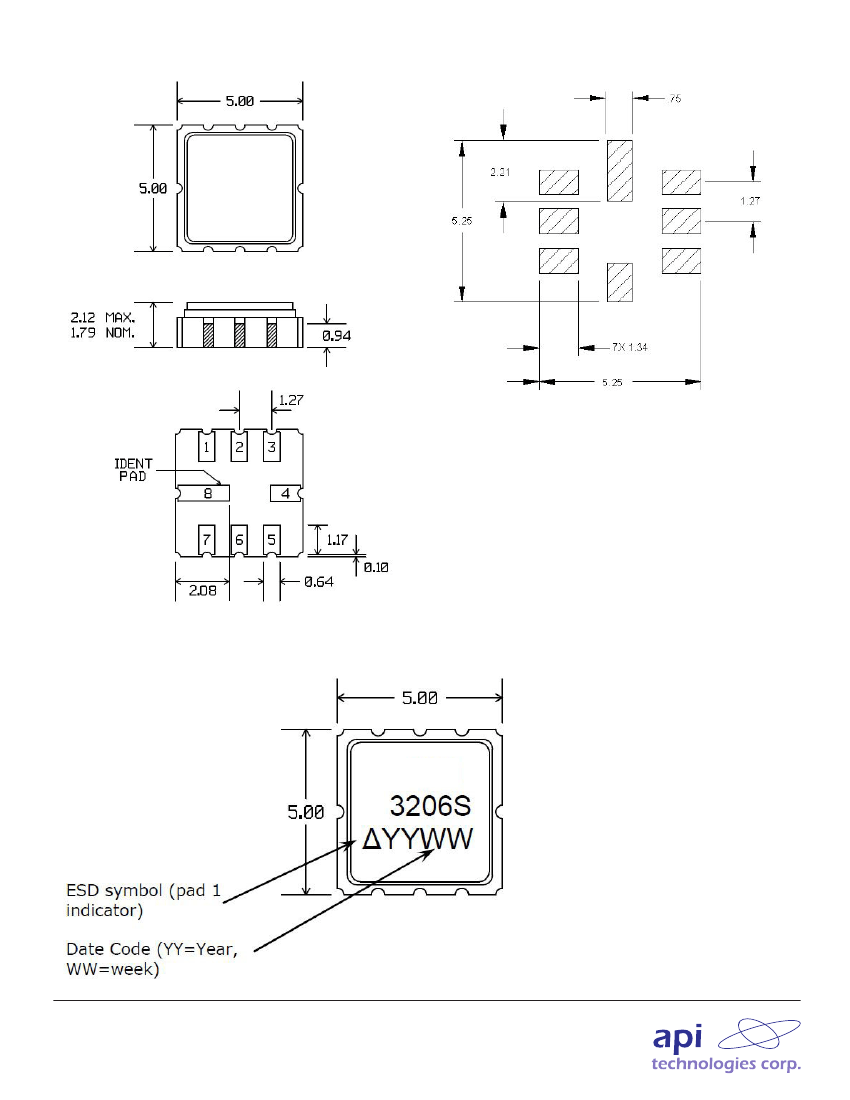

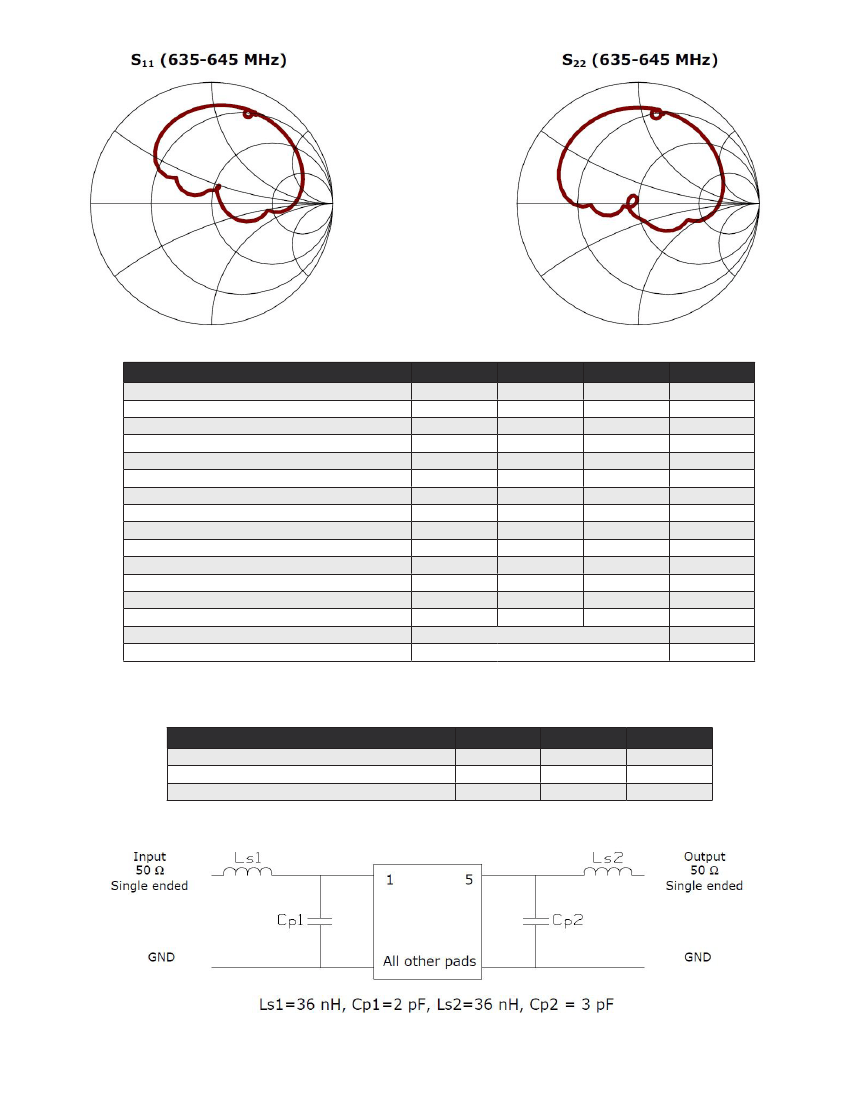

MATCHING CIRCUIT
Notes:
•
Internally tuned; external matching components are not required.
•
Filter shall operate in a 50 ohm single-ended system.
