TN9201 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> TN9201

TN9201: DescriptionRF AMPLIFIER MODEL; CategoryWireless rf/communication Radio frequency and microwave; File Size59KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

TN9201 Overview

RF AMPLIFIER MODEL

TN9201 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
structure	COMPONENT
Gain	27 dB
Maximum input power (CW)	6 dBm
Maximum operating frequency	200 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2

Preview

Download Datasheet

View All

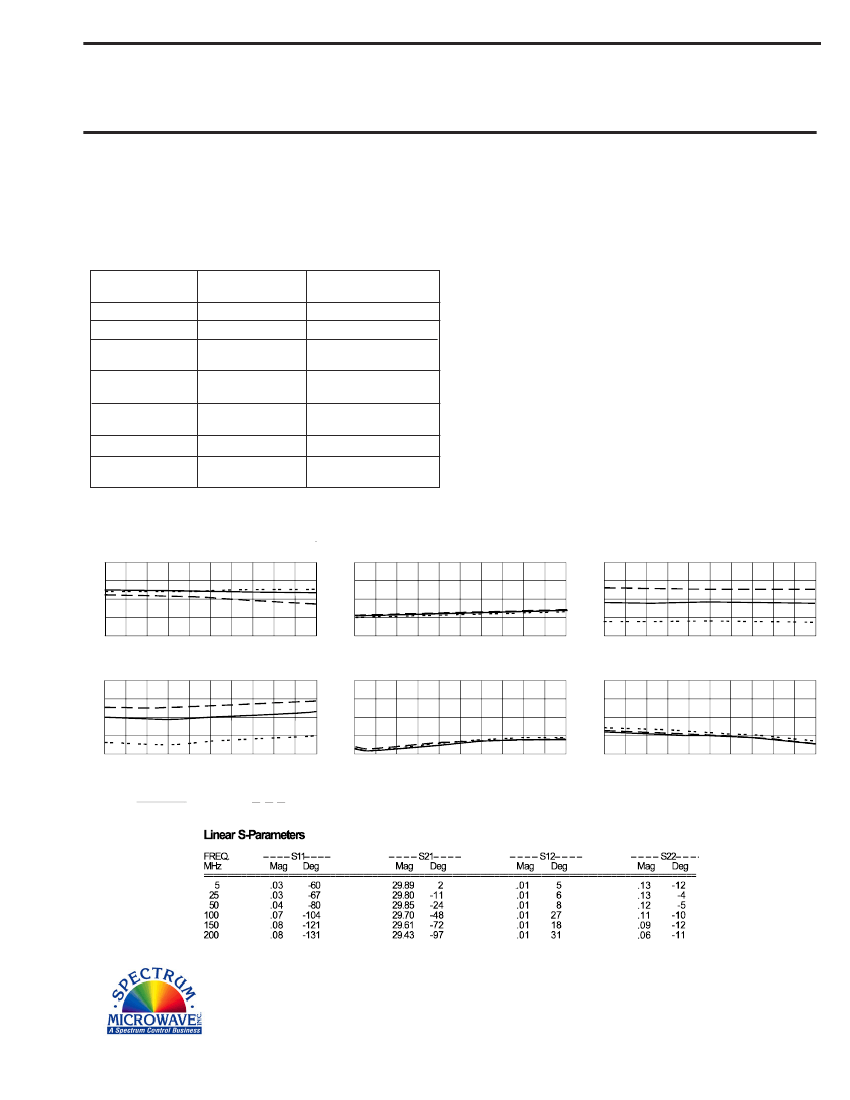

RF AMPLIFIER

MODEL

TZ9201

Features

Low Cost; High Gain: 29.5 dB Typical

Medium Output Power: +8 dBm Typical

Operating Temp. -55 ºC to +85 ºC

Environmental Screening Available

Available as:

TZ9201, 4 Pin TO-8 (T4)

TN9201, 4 Pin Surface Mount (SM3)

FP9201, 4 Pin Flatpack (FP4)

BX9201, Connectorized Housing (H1)

Typical Intermodulation Performance at 25 º C

Second Order Harmonic Intercept Point....... +40 dBm (Typ.)

Second Order Two Tone Intercept Point ....... +34 dBm (Typ.)

Third Order Two Tone Intercept Point ........... +19 dBm (Typ.)

Specifications

CHARACTERISTIC

Frequency

Gain (dB)

Power @ 1 dB

Comp. (dBm)

Reverse

Isolation (dB)

VSWR

Out

Noise Figure (dB)

Power

Vdc

TYPICAL

Ta= 25

ºC

5 - 200 MHz

29.5

-40

<1.25:1

<1.5:1

<5.0

+15

MIN/MAX

Ta = -55

ºC

to +85

ºC

5 - 200 MHz

27.0 Min.

+6.0 Min.

-38 Max.

2.0:1 Max.

6.0 Max.

+15

40 Max.

Maximum Ratings

Ambient Operating Temperature .............. -55ºC to + 100 ºC

Storage Temperature ............................... -62ºC to + 125 ºC

Case Temperature ................................................. + 125 ºC

DC Voltage ......................................................... + 18 Volts

Continuous RF Input Power ................................... + 6 dBm

Short Term RF Input Power...... 50 Milliwatts (1 Minute Max.)

Maximum Peak Power .................. 0.5 Watt ( 3

µsec

Max.)

Note: Care should always be taken to effectively ground the case of each unit.

Typical Performance Data

Start 5 MHz

Stop 200 MHz

Gain (dB)

- 15

- 30

- 45

- 60

Reverse Isolation (dB)

Start 5 MHz

Stop 200 MHz

Start 5 MHz

Noise Figure (dB)

Stop 200 MHz

+10

+ 9

+ 8

+ 7

+ 6

Start 5 MHz

1 dB Comp. (dBm)

2.0

1.5

1.0

Input VSWR

2.0

1.5

1.0

Output VSWR

Stop 200 MHz

Start 5 MHz

Stop 200 MHz

Start 5 MHz

Stop 200 MHz

Legend

+ 25 ºC

+ 85 ºC - - - - - - -55 ºC

Spectrum Microwave · 2144 Franklin Drive N.E. · Palm Bay, Florida 32905 · PH (888) 553-7531 · Fax (888) 553-7532

2/23/07

www.spectrummicrowave.com

Spectrum Microwave (Europe) · 2707 Black Lake Place · Philadelphia, Pa. 19154 · PH (215) 464-4000 · Fax (215) 464-4001

Rev.

TN9201 Related Products

	TN9201	BX9201	FP9201	TZ9201
Description	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL	RF AMPLIFIER MODEL
Maker	API Technologies	-	API Technologies	API Technologies
Reach Compliance Code	compli	-	compli	compli
structure	COMPONENT	-	COMPONENT	COMPONENT
Gain	27 dB	-	27 dB	27 dB
Maximum operating frequency	200 MHz	-	200 MHz	200 MHz
Minimum operating frequency	5 MHz	-	5 MHz	5 MHz
RF/Microwave Device Types	WIDE BAND LOW POWER	-	WIDE BAND LOW POWER	WIDE BAND LOW POWER
Maximum voltage standing wave ratio	2	-	2	2
