TC74HC4352AF(TP1) datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> TC74HC4352AF(TP1)

TC74HC4352AF(TP1): DescriptionIC 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, PDSO20, 0.300 INCH, PLASTIC, SOP-20, Multiplexer or Switch; CategoryAnalog mixed-signal IC The signal circuit; File Size238KB，8 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TC74HC4352AF(TP1) Overview

IC 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, PDSO20, 0.300 INCH, PLASTIC, SOP-20, Multiplexer or Switch

TC74HC4352AF(TP1) Parametric

Parameter Name	Attribute value
Maker	Toshiba Semiconductor
Parts packaging code	SOIC
package instruction	SOP,
Contacts	20
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER
JESD-30 code	R-PDSO-G20
length	12.8 mm
Nominal Negative Supply Voltage (Vsup)	-5 V
Number of channels	4
Number of functions	1
Number of terminals	20
Nominal off-state isolation	50 dB
On-state resistance matching specifications	10 Ω
Maximum on-state resistance (Ron)	180 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
Maximum seat height	1.8 mm
Maximum supply current (Isup)	0.08 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	5.3 mm

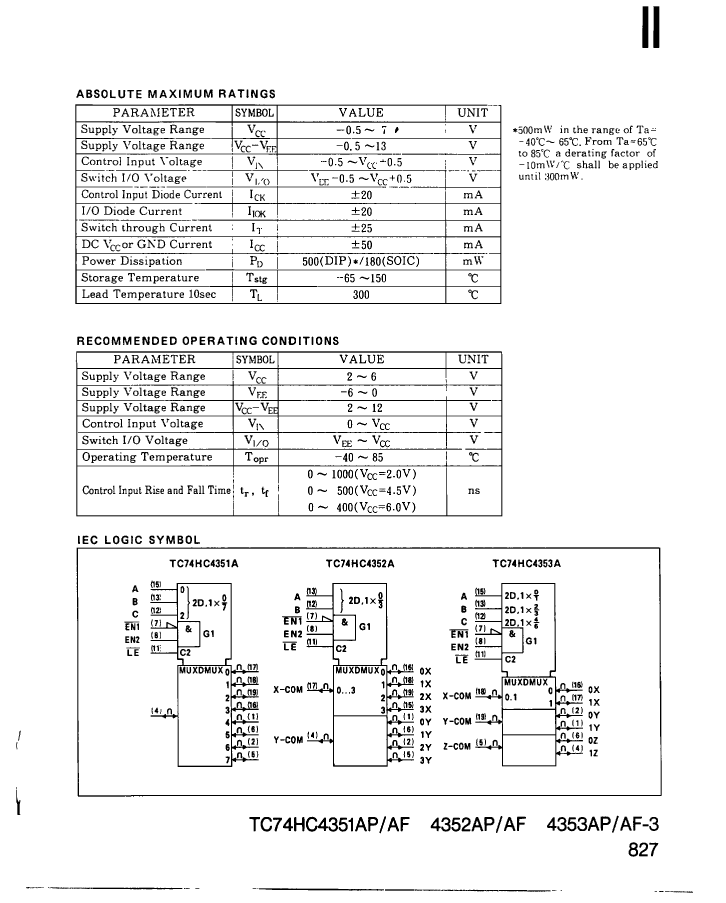

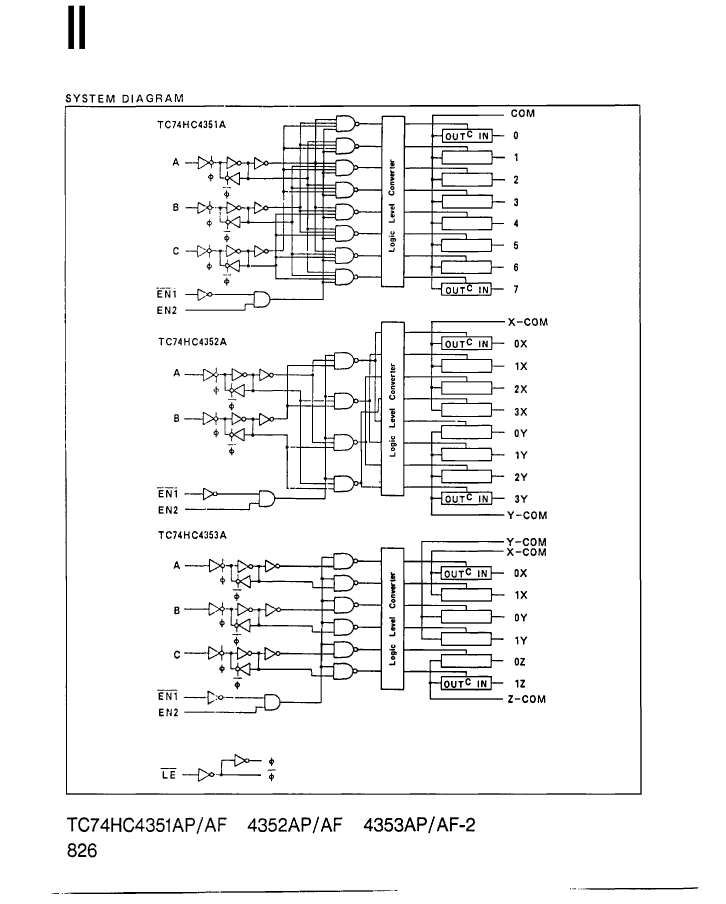

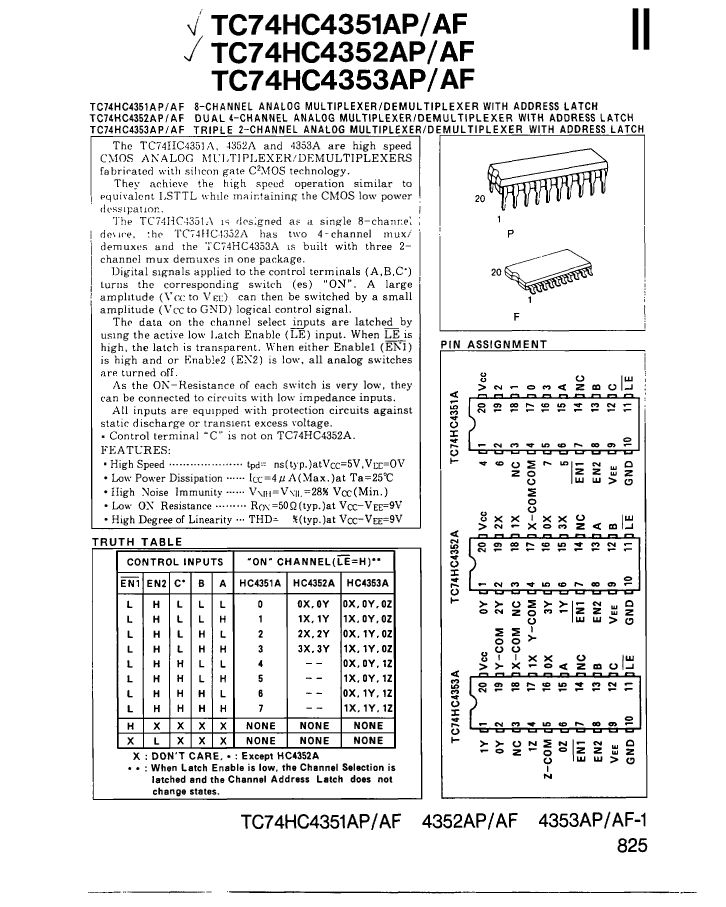

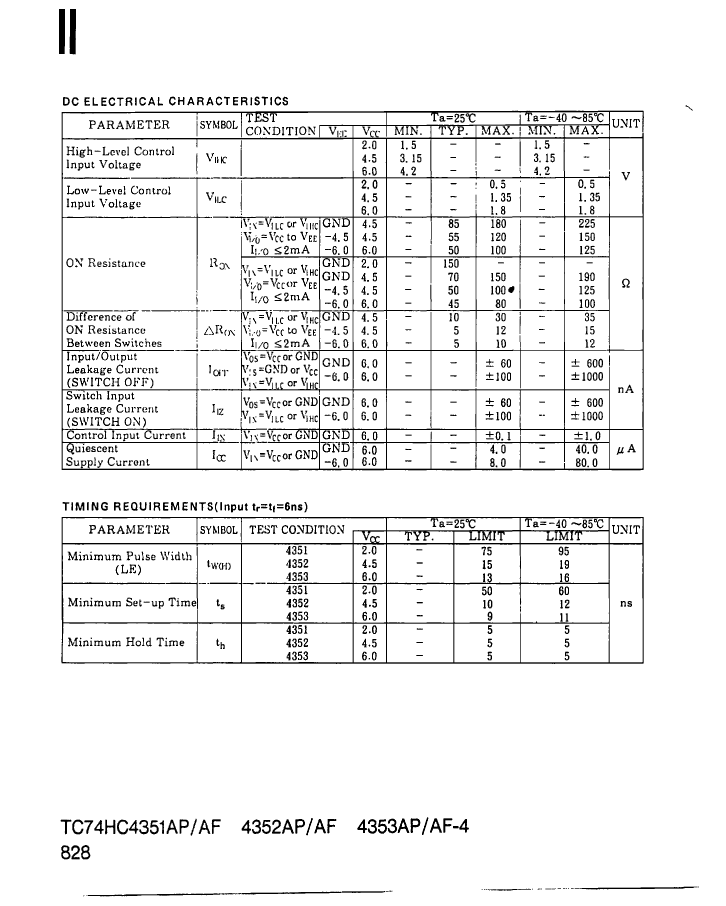

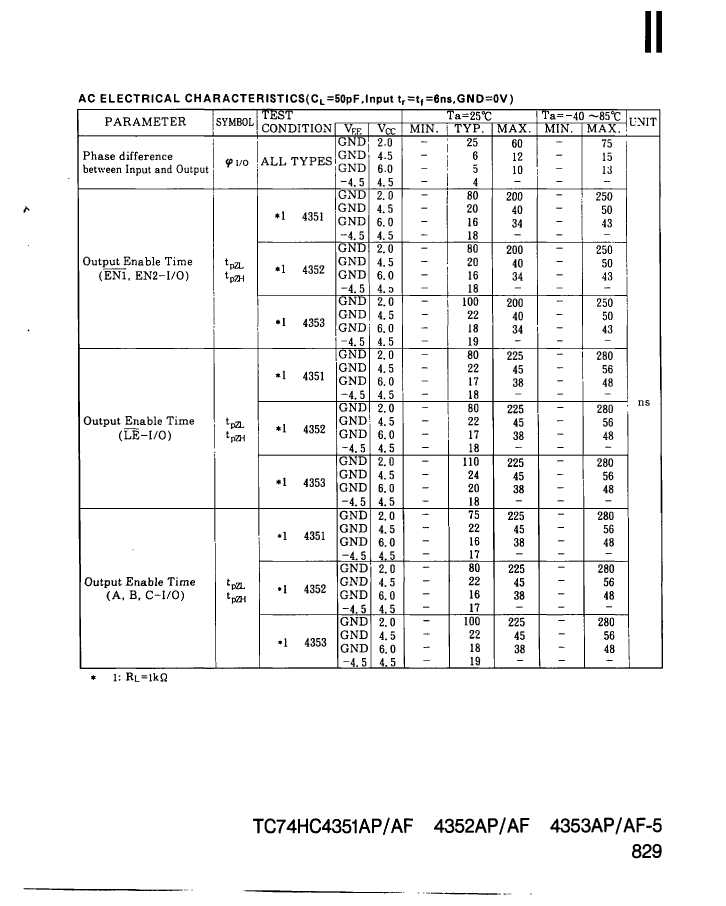

Preview

Download Datasheet

View All

TC74HC4352AF(TP1) Related Products

	TC74HC4352AF(TP1)	TC74HC4352AF(EL)	TC74HC4353AF(TP1)	TC74HC4351AF(EL)	TC74HC4351AF(TP1)	TC74HC4351AF(TP2)	TC74HC4352AF(TP2)	TC74HC4353AF(EL)	TC74HC4353AF(TP2)
Description	IC 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, PDSO20, 0.300 INCH, PLASTIC, SOP-20, Multiplexer or Switch	IC 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, PDSO20, 0.300 INCH, PLASTIC, SOP-20, Multiplexer or Switch	IC TRIPLE 1-CHANNEL, SGL POLE DOUBLE THROW SWITCH, PDSO20, 0.300 INCH, PLASTIC, SOP-20, Multiplexer or Switch	IC 8-CHANNEL, SGL ENDED MULTIPLEXER, PDSO20, 0.300 INCH, PLASTIC, SOP-20, Multiplexer or Switch	IC 8-CHANNEL, SGL ENDED MULTIPLEXER, PDSO20, 0.300 INCH, PLASTIC, SOP-20, Multiplexer or Switch	IC 8-CHANNEL, SGL ENDED MULTIPLEXER, PDSO20, 0.300 INCH, PLASTIC, SOP-20, Multiplexer or Switch	IC 4-CHANNEL, DIFFERENTIAL MULTIPLEXER, PDSO20, 0.300 INCH, PLASTIC, SOP-20, Multiplexer or Switch	IC TRIPLE 1-CHANNEL, SGL POLE DOUBLE THROW SWITCH, PDSO20, 0.300 INCH, PLASTIC, SOP-20, Multiplexer or Switch	IC TRIPLE 1-CHANNEL, SGL POLE DOUBLE THROW SWITCH, PDSO20, 0.300 INCH, PLASTIC, SOP-20, Multiplexer or Switch
Parts packaging code	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC
package instruction	SOP,	SOP,	SOP,	0.300 INCH, PLASTIC, SOP-20	0.300 INCH, PLASTIC, SOP-20	0.300 INCH, PLASTIC, SOP-20	SOP,	SOP,	SOP,
Contacts	20	20	20	20	20	20	20	20	20
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	SPDT	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	SINGLE-ENDED MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	SPDT	SPDT
JESD-30 code	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20
length	12.8 mm	12.8 mm	12.8 mm	12.8 mm	12.8 mm	12.8 mm	12.8 mm	12.8 mm	12.8 mm
Nominal Negative Supply Voltage (Vsup)	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V	-5 V
Number of channels	4	4	1	8	8	8	4	1	1
Number of functions	1	1	3	1	1	1	1	3	3
Number of terminals	20	20	20	20	20	20	20	20	20
Nominal off-state isolation	50 dB	50 dB	50 dB	50 dB	50 dB	50 dB	50 dB	50 dB	50 dB
On-state resistance matching specifications	10 Ω	10 Ω	10 Ω	10 Ω	10 Ω	10 Ω	10 Ω	10 Ω	10 Ω
Maximum on-state resistance (Ron)	180 Ω	180 Ω	180 Ω	180 Ω	180 Ω	180 Ω	180 Ω	180 Ω	180 Ω
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	SOP	SOP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.8 mm	1.8 mm	1.8 mm	1.8 mm	1.8 mm	1.8 mm	1.8 mm	1.8 mm	1.8 mm
Maximum supply current (Isup)	0.08 mA	0.08 mA	0.08 mA	0.08 mA	0.08 mA	0.08 mA	0.08 mA	0.08 mA	0.08 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	5.3 mm	5.3 mm	5.3 mm	5.3 mm	5.3 mm	5.3 mm	5.3 mm	5.3 mm	5.3 mm
Maker	Toshiba Semiconductor	-	-	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor
