CD61__16C, CS61__16C
CC61__16C, CN61__16C
POW-R-BLOK
Single & Dual Diode Isolated Module
160 Amperes / 2000 to 2500 Volts
Description:
Powerex Single and Dual Diode
Modules are designed for use in
applications requiring rectification and
isolated packaging. The modules are
isolated for easy mounting with other
components on a common heatsink.
TM
Features:
Electrically Isolated Heatsinking
Compression bonded construction
Low Thermal Impedance
for Improved Current Capability
RoHS Compliant
UL Recognized (E78240)
Benefits:
No Additional Insulation
Components Required
Easy Installation
No Clamping Components
Required
Reduce Engineering Time
Applications:
Power Supplies
Bridge Circuits
AC & DC Motor Drives
Battery Supplies
Large IGBT Circuit Front Ends
Welders

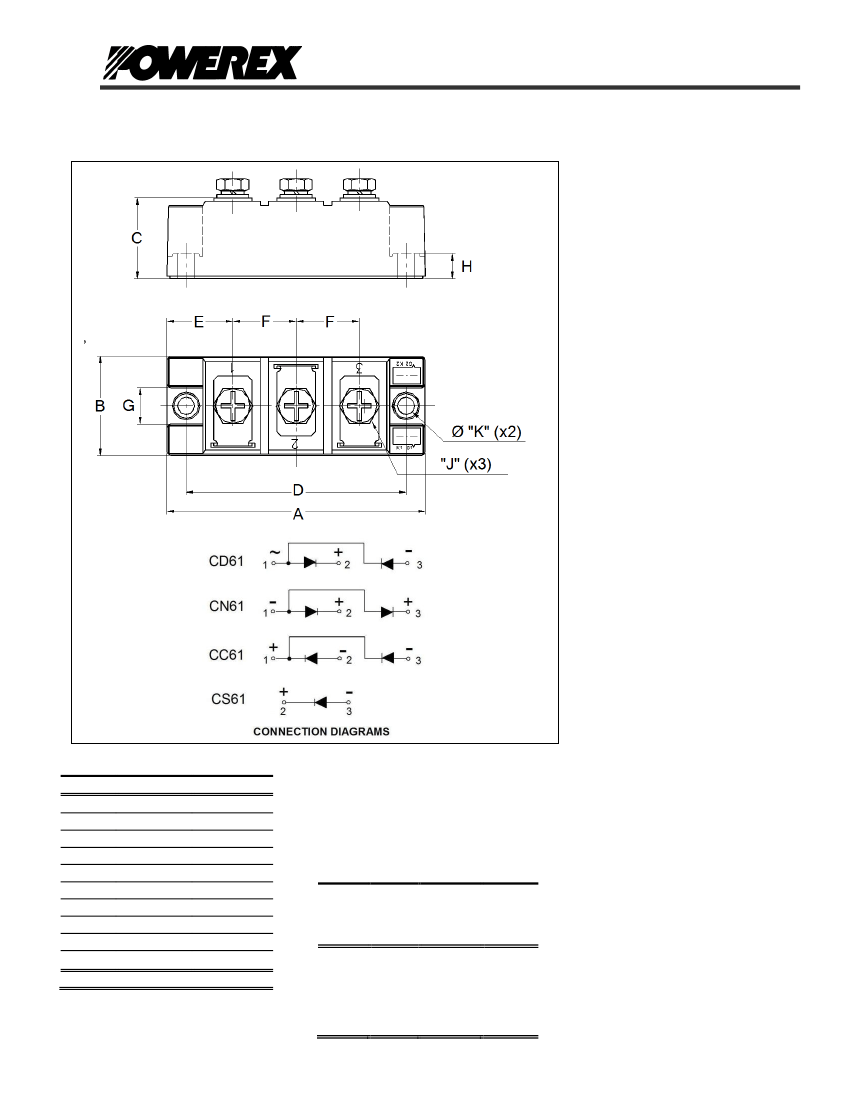

Outline Dimensions
Dimension
A
B
C
D
E
F
G
H
J
K
Inches
3.70
1.34
1.15
3.15
0.94
0.91
0.51
0.35
M6
0.24
Millimeters
94
34
29.2
80
24
23
13
9
M6
6.2
Ordering Information:
Select the complete nine digit module
part number from the table below.
Example: CD612216C is a 2200Volt,
160 Ampere Dual Diode Isolated
TM
POW-R-BLOK
Module
Type
Voltage Current
Volts Amperes
(x100)
20
22
24
25
16
(160 A)
Version
C
Note: Dimensions are for reference only.
CD61
CN61
CC61
CS61
Revision Date: 05/20/2013
®
Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272
http://www.pwrx.com
CD61__16C, CS61__16C
CC61__16C, CN61__16C
POW-R-BLOK
Single & Dual Diode Isolated Module
160 Amperes / 2000 to 2500 Volts
TM
Absolute Maximum Ratings
Characteristics
Repetitive Peak Reverse Blocking Voltage
Non-Repetitive Peak Reverse Blocking Voltage
(t < 5 msec)
RMS Forward Current
Average Forward Current
Peak One Cycle Surge Current, Non-Repetitive
I
2
t for Fusing for One Cycle, 10 milliseconds
Operating Temperature
Storage Temperature
Max. Mounting Torque, M6 Mounting Screw on
Terminals
Max. Mounting Torque, Module to Heatsink
Module Weight, Typical
V Isolation @ 25C
50 – 60 Hz, 1 minute
50 – 60 Hz, 1 second
V
rms
180° Conduction, T
C
=95°C
180° Conduction, T
C
=95°C
50 Hz, 60% V
RRM
reapplied, T
j
=150°C
50 Hz, 60% V
RRM
reapplied, T
j
=150°C
Conditions
Symbol
V
RRM
V
RSM
I
F(RMS)
I
F(AV)
I
FSM
I
2
t
T
J
T
stg
2000 to 2500
V
RRM
+100
250
160
6,000
Units
V
V
A
A
A
184,000
-40 to +150
-40 to +125
53
6
53
6
320
0.71
2500
3000
A
2
sec
°C
°C
in.-Lb.
Nm
in.-Lb.
Nm
g
lb
V
V
Information presented is based upon manufacturers testing and projected capabilities.
This information is subject to change without notice.
The manufacturer makes no claim as to the suitability of use, reliability, capability,
or future availability of this product.
Revision Date: 05/20/2013
®
Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272
http://www.pwrx.com
CD61__16C, CS61__16C
CC61__16C, CN61__16C
POW-R-BLOK
Single & Dual Diode Isolated Module
160 Amperes / 2000 to 2500 Volts
TM
Electrical Characteristics, T
J
=25°C unless otherwise specified
Characteristics
Repetitive Peak Reverse Leakage Current
Peak On-State Voltage
Threshold Voltage, Low-level
Slope Resistance, Low-level
Symbol
I
RRM
V
FM
V
(TO)1
r
T1
Test Conditions
Up to V
RRM
, T
J
=150°C
I
FM
=480A
T
J
= 150°C, I = 16.7% x
I
T(AV)
to
I
T(AV)
Min.
Max.
14
1.66
0.85
1.45
Units
mA
V
V
mΩ
Thermal Characteristics
Characteristics
Thermal Resistance, Junction to Case
DC Operation
Thermal Resistance, Case to Sink Lubricated
Symbol
R
ΘJ-C
R
ΘC-S
Per Junction, both conducting
Per Module
Max.
0.23
0.08
Units
°C/W
°C/W
Revision Date: 05/20/2013
®
Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272
http://www.pwrx.com
CD61__16C, CS61__16C
CC61__16C, CN61__16C
POW-R-BLOK
Single & Dual Diode Isolated Module
160 Amperes / 2000 to 2500 Volts
TM

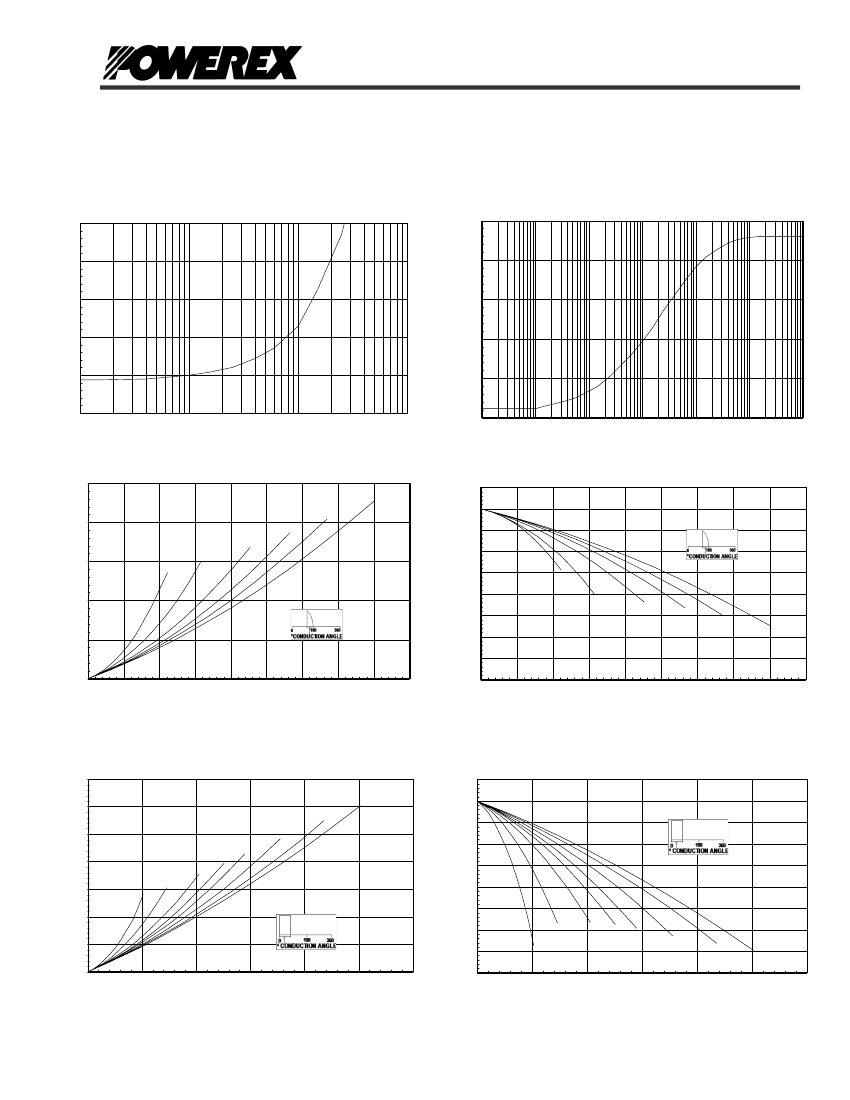

Maximum On-State Forward Voltage Drop
( Tj = 150 C )
Maximum Transient Thermal Impedance
(Junction to Case)
0.25
5
On-State Voltage - Vfm - Volts
Thermal Impedance - Rjc - °C/W
10
100
1000
10000
4
0.2
3
0.15
2
0.1
1
0.05
0
Instantaneous On-State Current - Ifm - Amperes
0
0.0001
0.001
0.01
0.1
1
10
100
Time - t - Seconds
Maximum On-State Power Dissipation
(Sinusoidal Waveform)
250
160
180°
120°
200
60°
30°
150
15°
90°
150
Maximum Allowable Case Temperature
(Sinusoidal Waveform)
Maximum Power Dissipation Per Diode - Watts
Max. Case Temperature - Tcase - °C
140
130
120
110
30°
100
90
80
60°
90°
120°
180°
15°
100
50
0
0
20
40
60
80
100
120
140
160
180
70
0
20
40
60
80
100
120
140
160
180
Average On-State Current - If(av) - Amperes
Average On-State Current - If(av) - Amperes
Maximum On-State Power Dissipation
(Rectangular Waveform)
350
160
360°
Maximum Allowable Case Temperature
(Rectangular Waveform)
Maximum Power Dissipation Per Diode - Watts
270°
180°
Max. Case Temperature - Tcase - °C
300
150
140
130
120
110
100
90
80
70
0
50
100
150
200
250
300
0
50
100
150
200
250
300
250
120°
200
15°
90°
60°
30°
150
100
30°
15°
60°
90° 120°
180°
270°
360°(DC)
50
0
Average On-State Current - If(av) - Amperes
Average On-State Current - If(av) - Amperes
Revision Date: 05/20/2013
®
Powerex, Inc., 173 Pavilion Lane, Youngwood, Pennsylvania 15697 (724) 925-7272
http://www.pwrx.com
CD61__16C, CS61__16C
CC61__16C, CN61__16C
POW-R-BLOK
Single & Dual Diode Isolated Module
160 Amperes / 2000 to 2500 Volts
TM

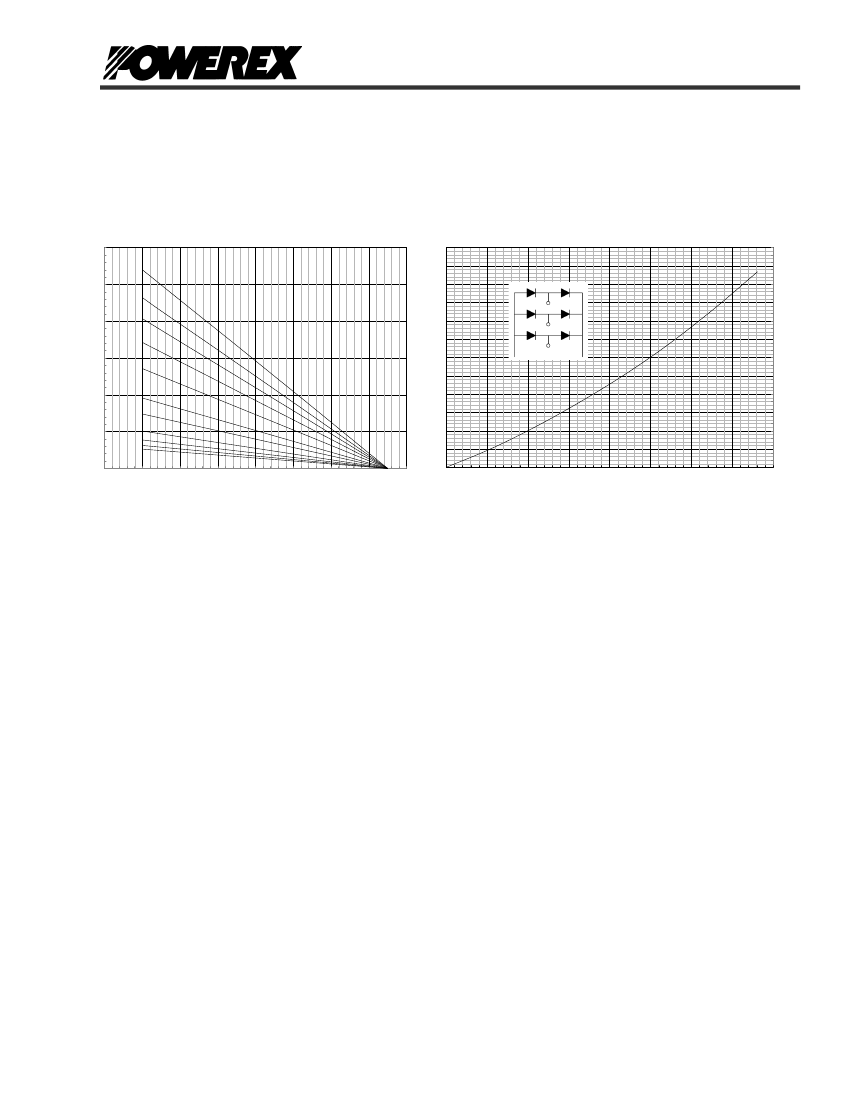

6-Pulse Bridge Circuit Total Power Dissipation vs Maximum Rated Output Current
1200
1200
R
θ S-A
( C/W)
0.08
1000
1000
800
0.12
0.15
800
600
0.20
600
400
0.30
0.40
400
200
0.60
0.80
1
2
200
0
0
20
40
60
80
100
Ambient Temperature ( C)
120
140
160
0
50
100
150
200
250
Bridge Output Current (A)
300
350
400
0
Six-Pulse Bridge Circuit Total Power Dissipation and Maximum Rated Output Current With
Sink to Ambient Resistance of Heatsink as a Parameter.
Revision Date: 05/20/2013
Total Power Dissipation (W)
Total Power Dissipation (W)
0.10
