IDT74FCT163952BE datasheet, PDF

Datasheet> All Categories > logic> logic> IDT74FCT163952BE

IDT74FCT163952BE: DescriptionRegistered Bus Transceiver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP56, 0.025 INCH PITCH, CERPACK-56; Categorylogic logic; File Size210KB，8 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT74FCT163952BE Overview

Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP56, 0.025 INCH PITCH, CERPACK-56

IDT74FCT163952BE Parametric

Parameter Name	Attribute value
Maker	IDT (Integrated Device Technology)
Parts packaging code	DFP
package instruction	DFP,
Contacts	56
Reach Compliance Code	unknown
Other features	WITH CLOCK ENABLE
series	FCT
JESD-30 code	R-GDFP-F56
JESD-609 code	e0
length	18.415 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
Number of digits	8
Number of functions	2
Number of ports	2
Number of terminals	56
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
propagation delay (tpd)	7.5 ns
Certification status	Not Qualified
Maximum seat height	2.413 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	FLAT
Terminal pitch	0.635 mm
Terminal location	DUAL
width	9.652 mm

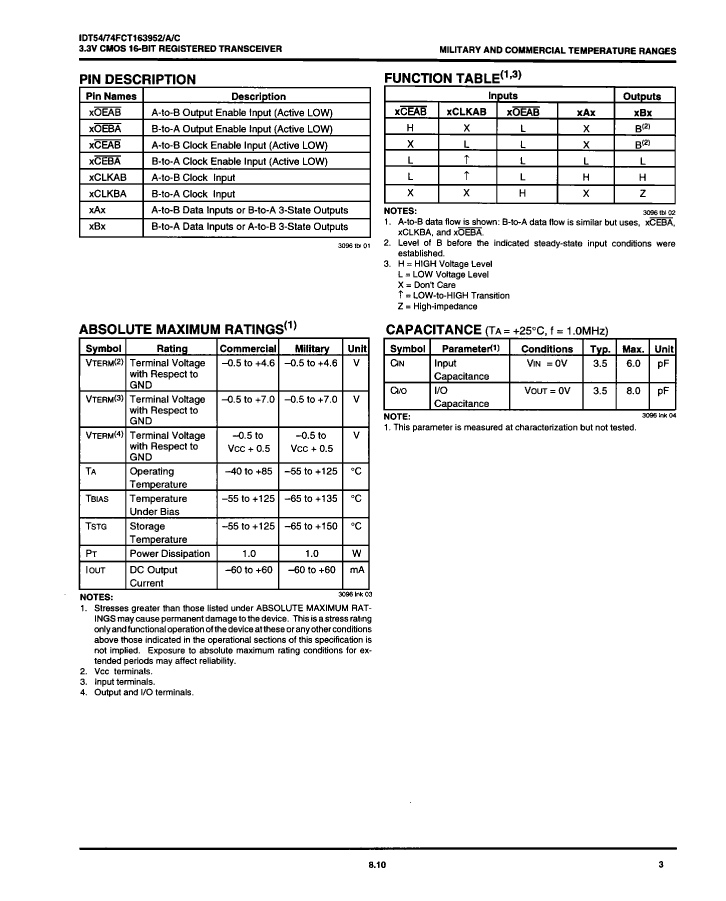

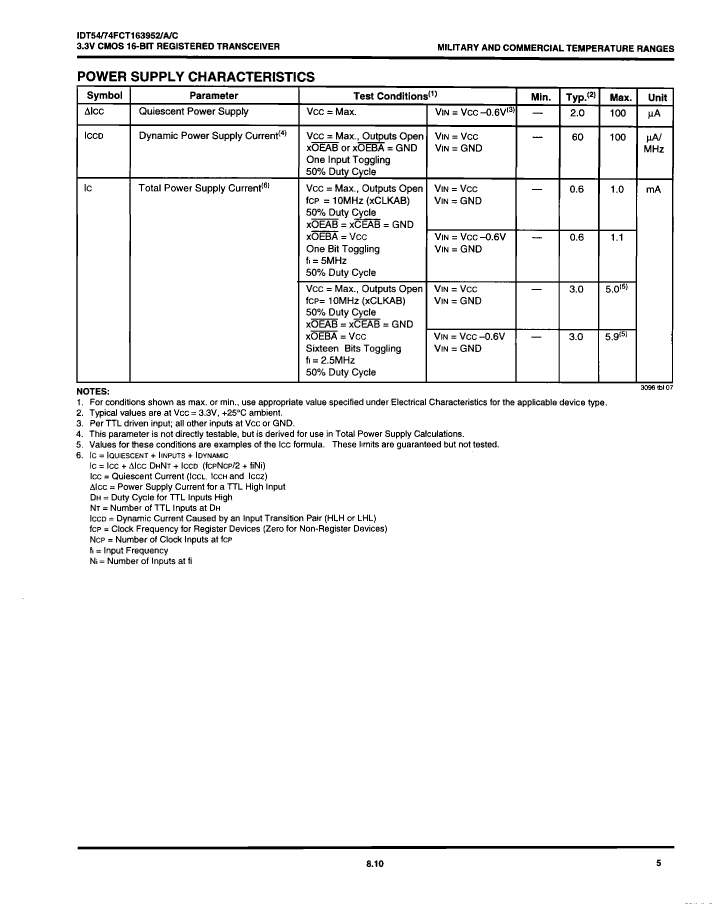

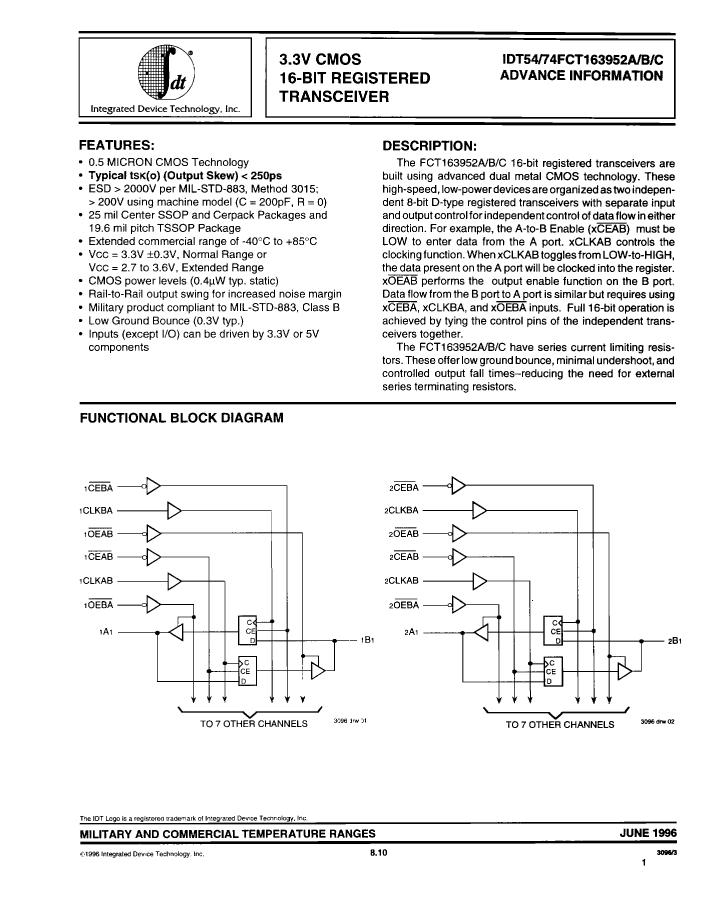

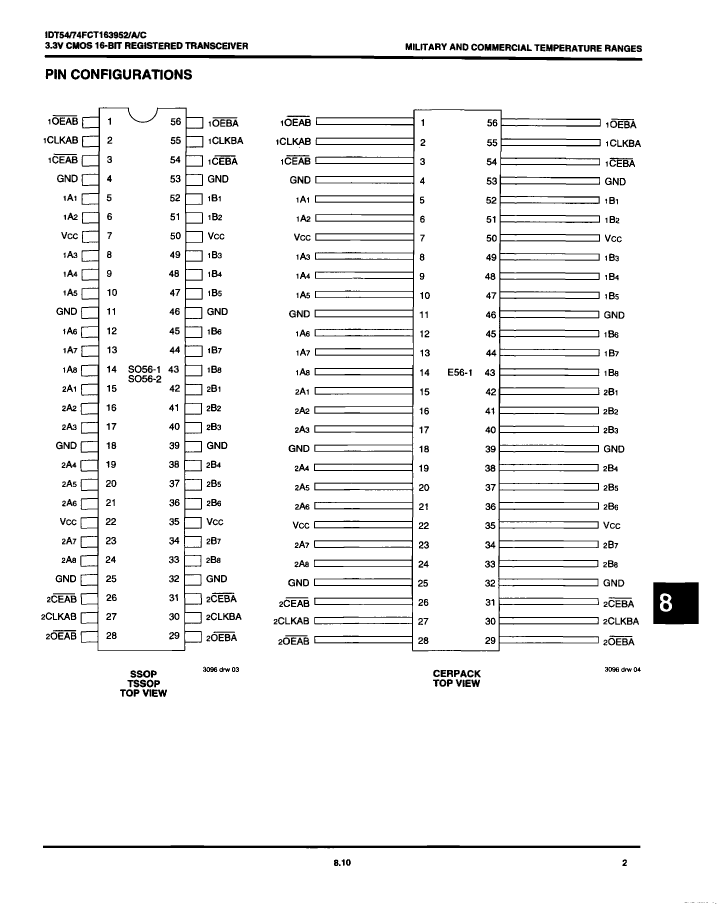

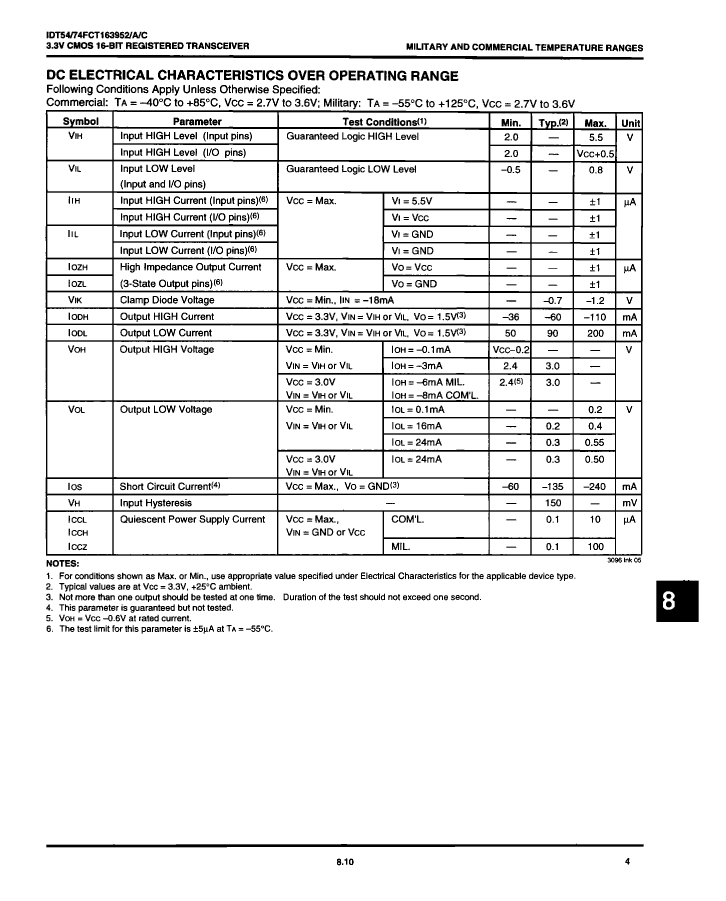

Preview

Download Datasheet

View All

IDT74FCT163952BE Related Products

	IDT74FCT163952BE	IDT74FCT163952BPAT/R	IDT74FCT163952BPVT/R	IDT54FCT163952AEB	IDT54FCT163952BEB	IDT54FCT163952CEB	IDT74FCT163952CE	IDT74FCT163952AE
Description	Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP56, 0.025 INCH PITCH, CERPACK-56	Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO56, 6.10 MM, 0.50 MM PITCH, TSSOP-56	Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, PDSO56, 0.025 INCH PITCH, SSOP-56	Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP56, 0.025 INCH PITCH, CERPACK-56	Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP56, 0.025 INCH PITCH, CERPACK-56	Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP56, 0.025 INCH PITCH, CERPACK-56	Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP56, 0.025 INCH PITCH, CERPACK-56	Registered Bus Transceiver, FCT Series, 2-Func, 8-Bit, True Output, CMOS, CDFP56, 0.025 INCH PITCH, CERPACK-56
Parts packaging code	DFP	TSSOP	SSOP	DFP	DFP	DFP	DFP	DFP
package instruction	DFP,	TSSOP,	SSOP,	0.025 INCH PITCH, CERPACK-56	0.025 INCH PITCH, CERPACK-56	0.025 INCH PITCH, CERPACK-56	DFP,	DFP,
Contacts	56	56	56	56	56	56	56	56
Reach Compliance Code	unknown	unknown	unknown	not_compliant	not_compliant	not_compliant	unknown	unknown
Other features	WITH CLOCK ENABLE	WITH CLOCK ENABLE	WITH CLOCK ENABLE	WITH CLOCK ENABLE	WITH CLOCK ENABLE	WITH CLOCK ENABLE	WITH CLOCK ENABLE	WITH CLOCK ENABLE
series	FCT	FCT	FCT	FCT	FCT	FCT	FCT	FCT
JESD-30 code	R-GDFP-F56	R-PDSO-G56	R-PDSO-G56	R-GDFP-F56	R-GDFP-F56	R-GDFP-F56	R-GDFP-F56	R-GDFP-F56
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	18.415 mm	14 mm	18.415 mm	18.415 mm	18.415 mm	18.415 mm	18.415 mm	18.415 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER	REGISTERED BUS TRANSCEIVER
Number of digits	8	8	8	8	8	8	8	8
Number of functions	2	2	2	2	2	2	2	2
Number of ports	2	2	2	2	2	2	2	2
Number of terminals	56	56	56	56	56	56	56	56
Maximum operating temperature	85 °C	85 °C	85 °C	125 °C	125 °C	125 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-55 °C	-55 °C	-55 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	DFP	TSSOP	SSOP	DFP	DFP	DFP	DFP	DFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	FLATPACK	FLATPACK	FLATPACK	FLATPACK	FLATPACK
propagation delay (tpd)	7.5 ns	7.5 ns	7.5 ns	11 ns	8 ns	7.3 ns	6.3 ns	10 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.413 mm	1.1 mm	2.794 mm	2.413 mm	2.413 mm	2.413 mm	2.413 mm	2.413 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	MILITARY	MILITARY	MILITARY	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	TIN LEAD	TIN LEAD
Terminal form	FLAT	GULL WING	GULL WING	FLAT	FLAT	FLAT	FLAT	FLAT
Terminal pitch	0.635 mm	0.5 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.635 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	9.652 mm	6.1 mm	7.5 mm	9.652 mm	9.652 mm	9.652 mm	9.652 mm	9.652 mm
Base Number Matches	-	1	1	1	1	1	-	-
