RDC-634ST-H-3-R datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> converter> RDC-634ST-H-3-R

RDC-634ST-H-3-R: DescriptionSYNCHRO OR RESOLVER TO DIGITAL CONVERTER, DIP27, 3.125 X 2.625 INCH, 0.430 INCH HEIGHT, MODULE-28/27; CategoryAnalog mixed-signal IC converter; File Size147KB，4 Pages; ManufacturerData Device Corporation

Download Datasheet Parametric Compare View All

RDC-634ST-H-3-R Overview

SYNCHRO OR RESOLVER TO DIGITAL CONVERTER, DIP27, 3.125 X 2.625 INCH, 0.430 INCH HEIGHT, MODULE-28/27

RDC-634ST-H-3-R Parametric

Parameter Name	Attribute value
Maker	Data Device Corporation
Parts packaging code	DIP
package instruction	DIP,
Contacts	27
Reach Compliance Code	unknown
Other features	SOLID STATE TRANSFORMER
Maximum analog input voltage	90 V
Maximum angular accuracy	5.3 arc min
Converter type	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER
JESD-30 code	R-XDIP-P27
length	79.375 mm
Maximum negative supply voltage	-16.5 V
Minimum negative supply voltage	-11 V
Nominal negative supply voltage	-15 V
Number of digits	14
Number of functions	1
Number of terminals	27
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	10.92 mm
Maximum stabilization time	140 µs
Signal/output frequency	1000 Hz
Maximum slew rate	25 mA
Maximum supply voltage	16.5 V
Minimum supply voltage	11 V
Nominal supply voltage	15 V
surface mount	NO
technology	HYBRID
Temperature level	COMMERCIAL
Terminal form	PIN/PEG
Terminal pitch	5.08 mm
Terminal location	DUAL
Maximum tracking rate	10 rps
width	55.88 mm

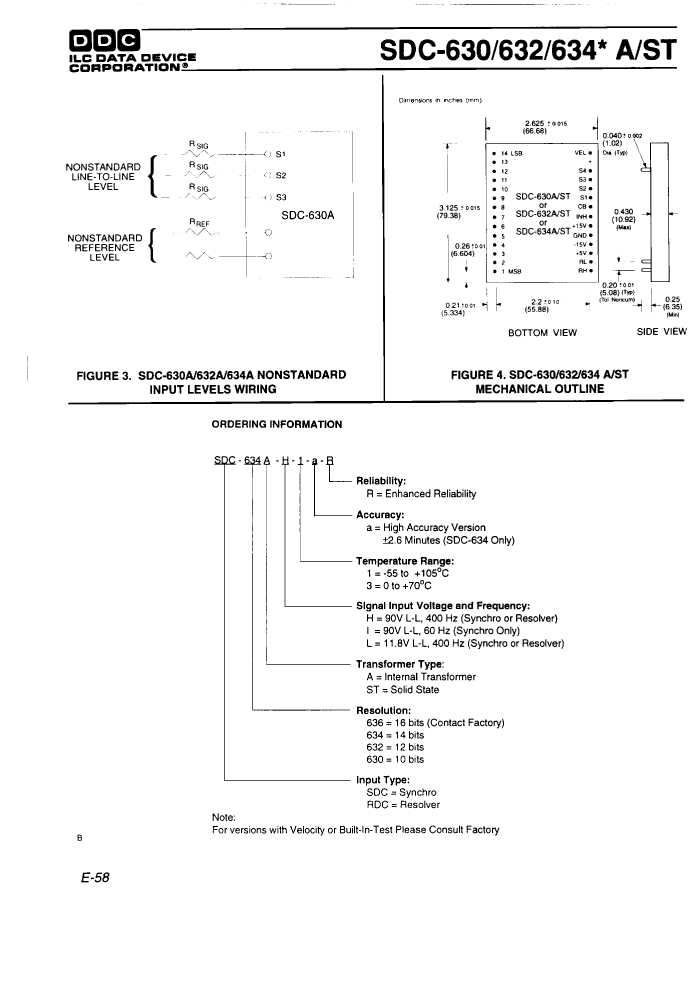

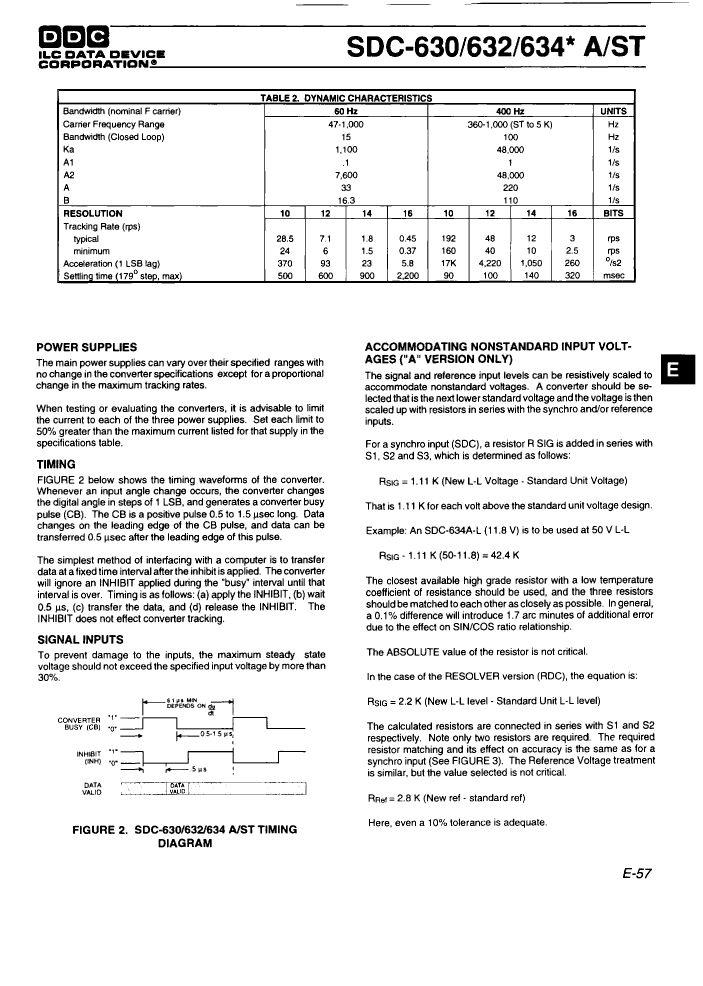

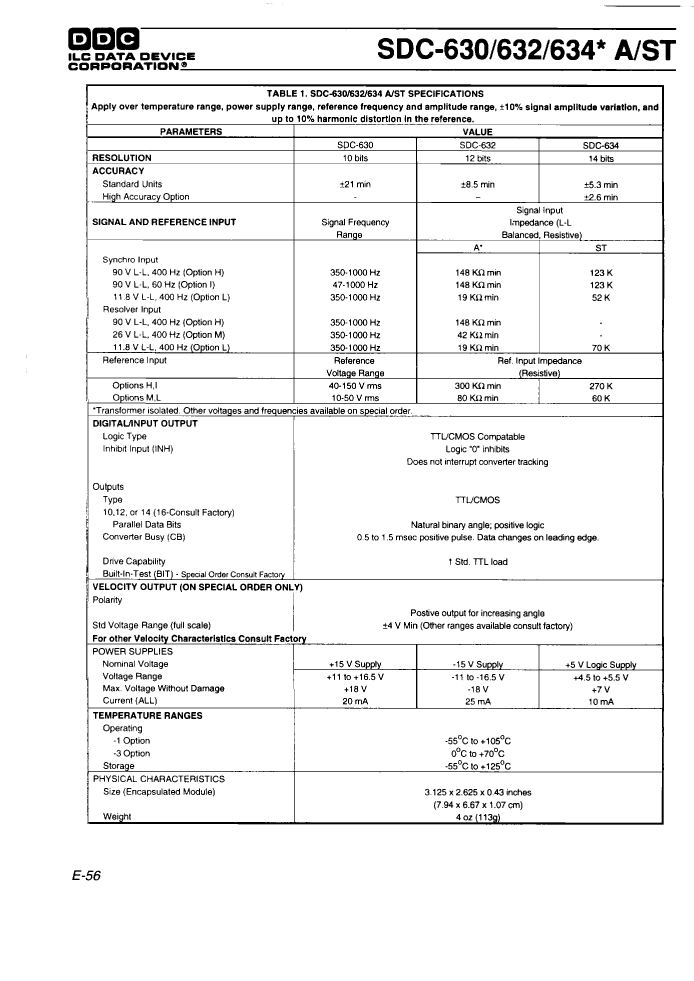

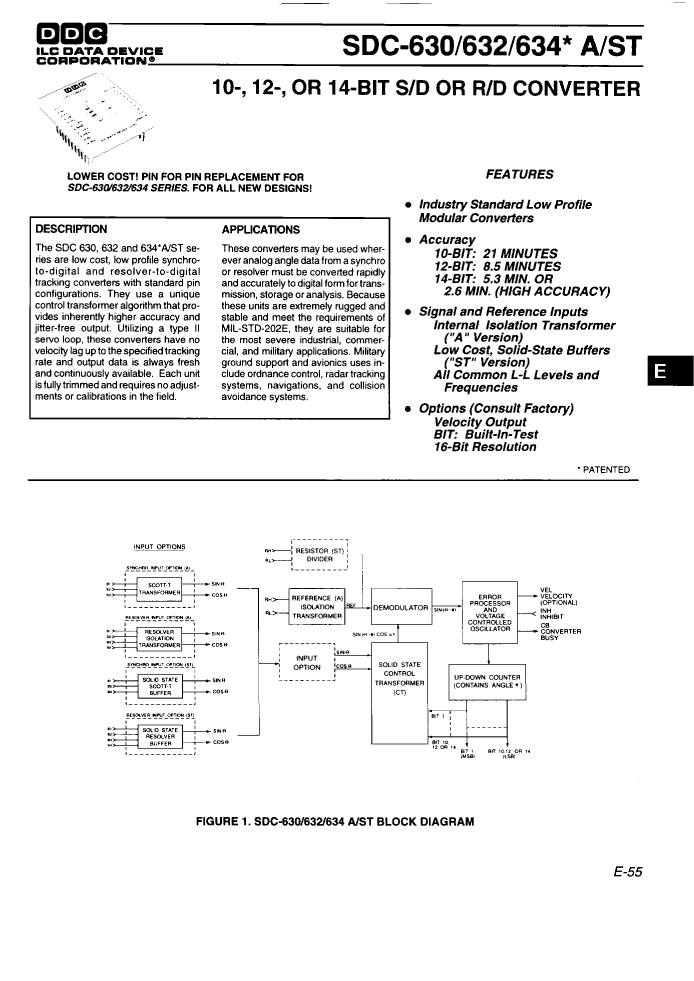

Preview

Download Datasheet

View All

RDC-634ST-H-3-R Related Products

	RDC-634ST-H-3-R	RDC-634A-L-3-R	SDC-634A-I-3-R	SDC-634A-H-3-R	RDC-634A-H-3-R	RDC-634ST-L-3-R	SDC-634A-L-3-R	SDC-634A-H-1-R	SDC-634A-I-1-R	SDC-634A-L-1-R
Description	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER, DIP27, 3.125 X 2.625 INCH, 0.430 INCH HEIGHT, MODULE-28/27	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER, DIP27, 3.125 X 2.625 INCH, 0.430 INCH HEIGHT, MODULE-28/27	Synchro or Resolver to Digital Converter, Hybrid, 3.125 X 2.625 INCH, 0.430 INCH HEIGHT, MODULE-28/27	Synchro or Resolver to Digital Converter, Hybrid, 3.125 X 2.625 INCH, 0.430 INCH HEIGHT, MODULE-28/27	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER, DIP27, 3.125 X 2.625 INCH, 0.430 INCH HEIGHT, MODULE-28/27	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER, DIP27, 3.125 X 2.625 INCH, 0.430 INCH HEIGHT, MODULE-28/27	Synchro or Resolver to Digital Converter, Hybrid, 3.125 X 2.625 INCH, 0.430 INCH HEIGHT, MODULE-28/27	Synchro or Resolver to Digital Converter, Hybrid, 3.125 X 2.625 INCH, 0.430 INCH HEIGHT, MODULE-28/27	Synchro or Resolver to Digital Converter, Hybrid, 3.125 X 2.625 INCH, 0.430 INCH HEIGHT, MODULE-28/27	Synchro or Resolver to Digital Converter, Hybrid, 3.125 X 2.625 INCH, 0.430 INCH HEIGHT, MODULE-28/27
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	DIP,	3.125 X 2.625 INCH, 0.430 INCH HEIGHT, MODULE-28/27	DIP, DIP28,2.2,200	DIP, DIP28,2.2,200	DIP,	DIP,	3.125 X 2.625 INCH, 0.430 INCH HEIGHT, MODULE-28/27	3.125 X 2.625 INCH, 0.430 INCH HEIGHT, MODULE-28/27	3.125 X 2.625 INCH, 0.430 INCH HEIGHT, MODULE-28/27	3.125 X 2.625 INCH, 0.430 INCH HEIGHT, MODULE-28/27
Contacts	27	27	27	27	27	27	27	27	27	27
Reach Compliance Code	unknown	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Maximum analog input voltage	90 V	11.8 V	90 V	90 V	90 V	11.8 V	11.8 V	90 V	90 V	11.8 V
Maximum angular accuracy	5.3 arc min	5.3 arc min	5.3 arc min	5.3 arc min	5.3 arc min	5.3 arc min	5.3 arc min	5.3 arc min	5.3 arc min	5.3 arc min
Converter type	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER	SYNCHRO OR RESOLVER TO DIGITAL CONVERTER
JESD-30 code	R-XDIP-P27	R-XDIP-P27	R-XDIP-P27	R-XDIP-P27	R-XDIP-P27	R-XDIP-P27	R-XDIP-P27	R-XDIP-P27	R-XDIP-P27	R-XDIP-P27
length	79.375 mm	79.375 mm	79.375 mm	79.375 mm	79.375 mm	79.375 mm	79.375 mm	79.375 mm	79.375 mm	79.375 mm
Maximum negative supply voltage	-16.5 V	-16.5 V	-16.5 V	-16.5 V	-16.5 V	-16.5 V	-16.5 V	-16.5 V	-16.5 V	-16.5 V
Minimum negative supply voltage	-11 V	-11 V	-11 V	-11 V	-11 V	-11 V	-11 V	-11 V	-11 V	-11 V
Nominal negative supply voltage	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of digits	14	14	14	14	14	14	14	14	14	14
Number of functions	1	1	1	1	1	1	1	1	1	1
Number of terminals	27	27	27	27	27	27	27	27	27	27
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	105 °C	105 °C	105 °C
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	10.92 mm	10.92 mm	10.92 mm	10.92 mm	10.92 mm	10.92 mm	10.92 mm	10.92 mm	10.92 mm	10.92 mm
Maximum stabilization time	140 µs	140 µs	900 µs	140 µs	140 µs	140 µs	140 µs	140 µs	900 µs	140 µs
Signal/output frequency	1000 Hz	1000 Hz	1000 Hz	1000 Hz	1000 Hz	1000 Hz	1000 Hz	1000 Hz	1000 Hz	1000 Hz
Maximum slew rate	25 mA	25 mA	25 mA	25 mA	25 mA	25 mA	25 mA	25 mA	25 mA	25 mA
Maximum supply voltage	16.5 V	16.5 V	16.5 V	16.5 V	16.5 V	16.5 V	16.5 V	16.5 V	16.5 V	16.5 V
Minimum supply voltage	11 V	11 V	11 V	11 V	11 V	11 V	11 V	11 V	11 V	11 V
Nominal supply voltage	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	OTHER	OTHER	OTHER
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal pitch	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum tracking rate	10 rps	10 rps	1.5 rps	10 rps	10 rps	10 rps	10 rps	10 rps	1.5 rps	10 rps
width	55.88 mm	55.88 mm	55.88 mm	55.88 mm	55.88 mm	55.88 mm	55.88 mm	55.88 mm	55.88 mm	55.88 mm
Maker	Data Device Corporation	-	-	-	Data Device Corporation	Data Device Corporation	Data Device Corporation	Data Device Corporation	Data Device Corporation	Data Device Corporation
Is it Rohs certified?	-	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
JESD-609 code	-	e0	e0	e0	e0	e0	e0	e0	e0	e0
Peak Reflow Temperature (Celsius)	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Terminal surface	-	TIN LEAD	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	TIN LEAD	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD	TIN LEAD	TIN LEAD
Maximum time at peak reflow temperature	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
ECCN code	-	-	EAR99	EAR99	-	-	EAR99	EAR99	EAR99	EAR99
Encapsulate equivalent code	-	-	DIP28,2.2,200	DIP28,2.2,200	-	-	DIP28,2.2,200	DIP28,2.2,200	DIP28,2.2,200	DIP28,2.2,200
power supply	-	-	5,+-15 V	5,+-15 V	-	-	5,+-15 V	5,+-15 V	5,+-15 V	5,+-15 V
