IDT74FCT163244E datasheet, PDF

Datasheet> All Categories > logic> logic> IDT74FCT163244E

IDT74FCT163244E: DescriptionBus Driver, FCT Series, 4-Func, 4-Bit, True Output, CMOS, CDFP48, 0.025 INCH PITCH, CERPACK-48; Categorylogic logic; File Size187KB，7 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT74FCT163244E Overview

Bus Driver, FCT Series, 4-Func, 4-Bit, True Output, CMOS, CDFP48, 0.025 INCH PITCH, CERPACK-48

IDT74FCT163244E Parametric

Parameter Name	Attribute value
Maker	IDT (Integrated Device Technology)
Parts packaging code	DFP
package instruction	DFP,
Contacts	48
Reach Compliance Code	unknown
series	FCT
JESD-30 code	R-GDFP-F48
JESD-609 code	e0
length	15.875 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	4
Number of functions	4
Number of ports	2
Number of terminals	48
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
propagation delay (tpd)	6.5 ns
Certification status	Not Qualified
Maximum seat height	2.413 mm
Maximum supply voltage (Vsup)	3.6 V
Minimum supply voltage (Vsup)	2.7 V
Nominal supply voltage (Vsup)	3.3 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	FLAT
Terminal pitch	0.635 mm
Terminal location	DUAL
width	9.652 mm

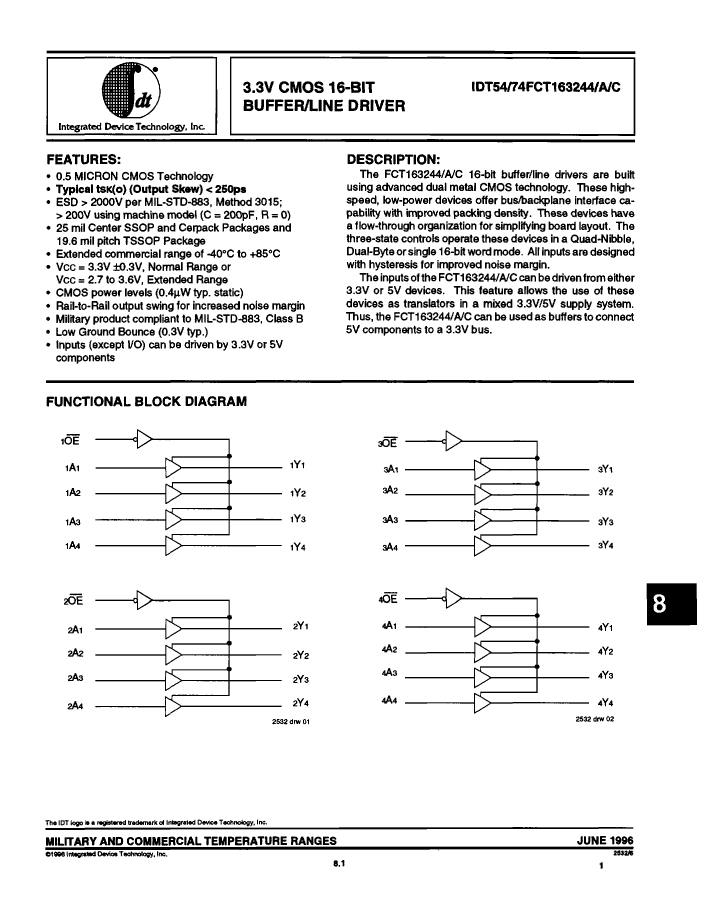

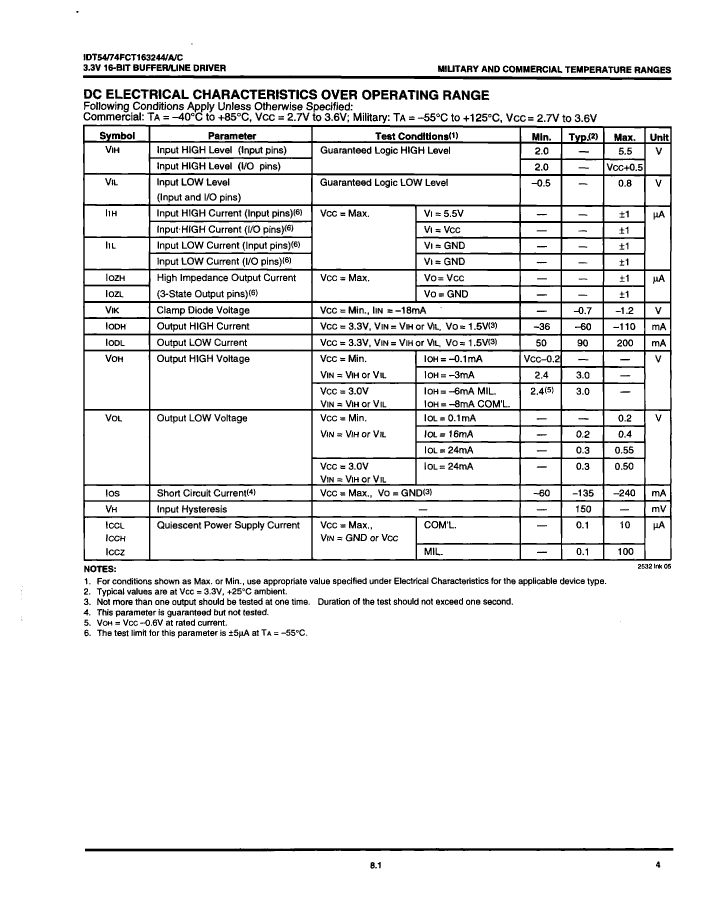

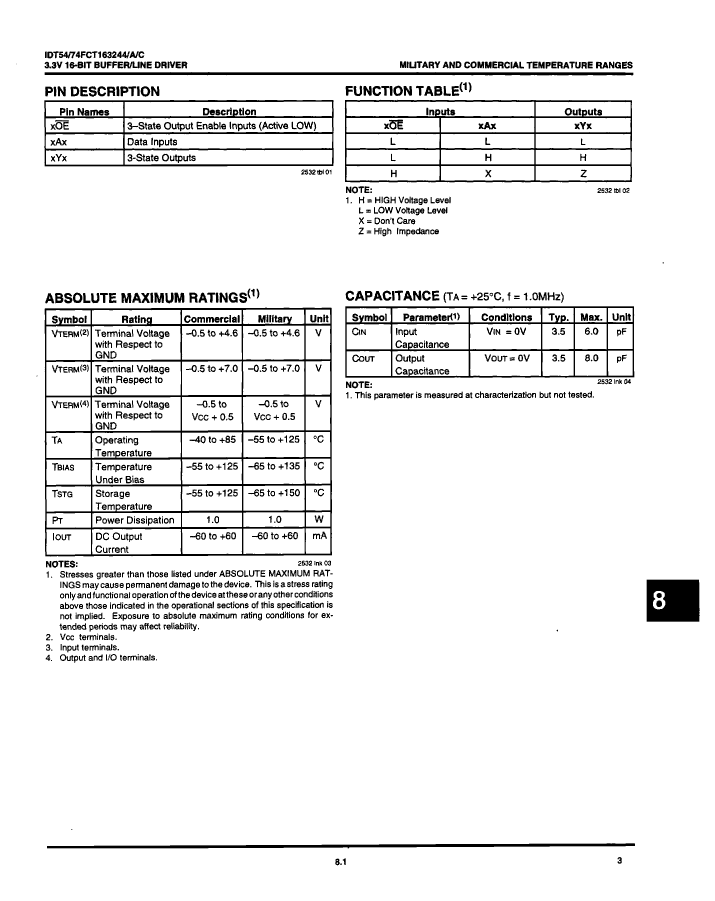

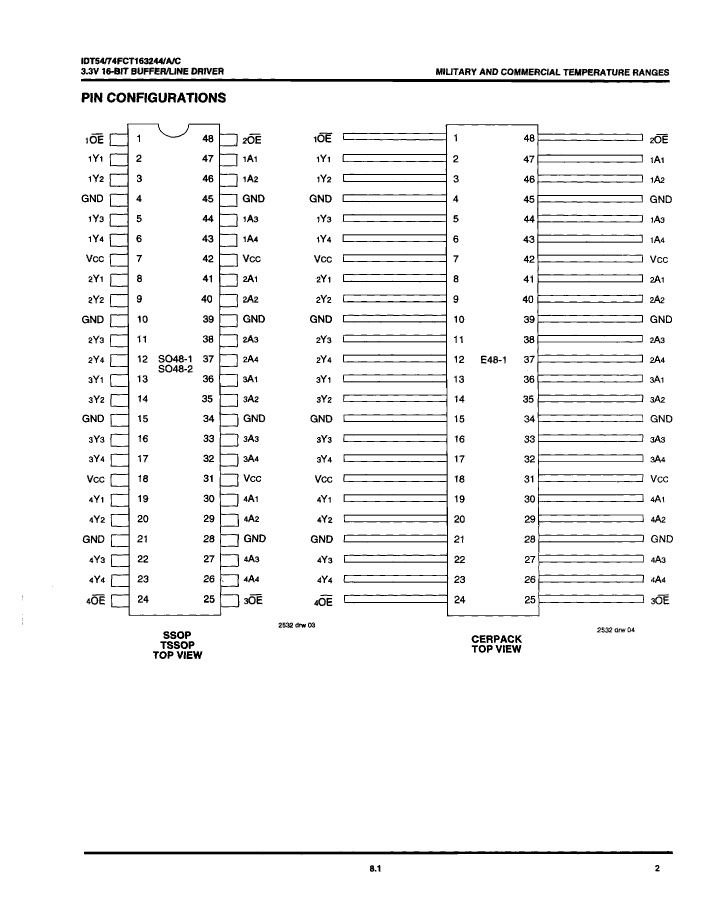

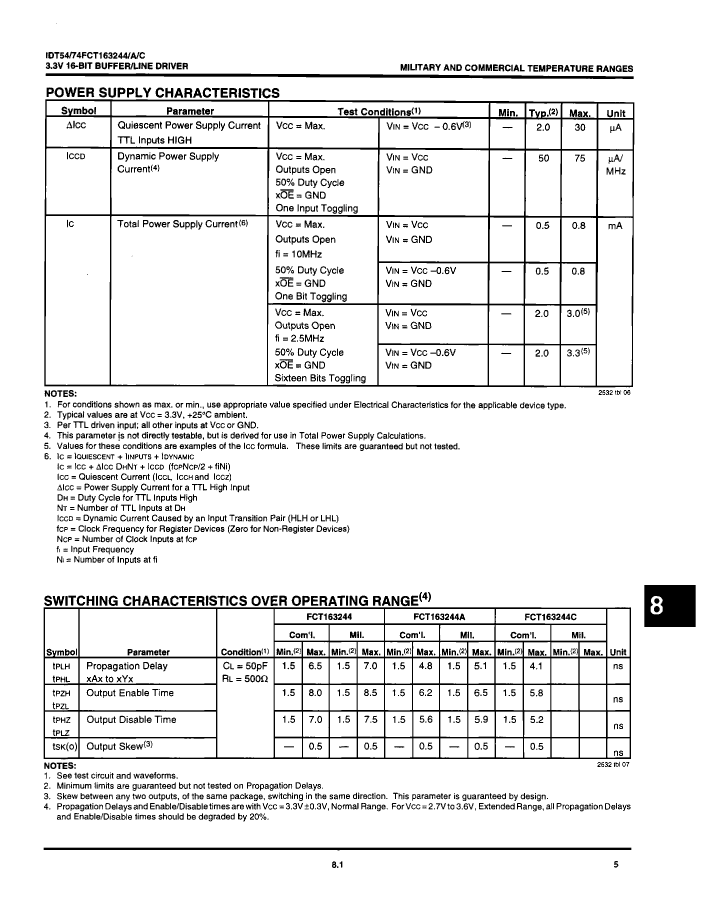

Preview

Download Datasheet

View All

IDT74FCT163244E Related Products

	IDT74FCT163244E	IDT54FCT163244AEB	IDT74FCT163244AE	IDT54FCT163244EB	IDT74FCT163244PAT/R	IDT74FCT163244PVT/R	IDT74FCT163244CE
Description	Bus Driver, FCT Series, 4-Func, 4-Bit, True Output, CMOS, CDFP48, 0.025 INCH PITCH, CERPACK-48	Bus Driver, FCT Series, 4-Func, 4-Bit, True Output, CMOS, CDFP48, 0.025 INCH PITCH, CERPACK-48	Bus Driver, FCT Series, 4-Func, 4-Bit, True Output, CMOS, CDFP48, 0.025 INCH PITCH, CERPACK-48	Bus Driver, FCT Series, 4-Func, 4-Bit, True Output, CMOS, CDFP48, 0.025 INCH PITCH, CERPACK-48	Bus Driver, FCT Series, 4-Func, 4-Bit, True Output, CMOS, PDSO48, 6.10 MM, 0.50 MM PITCH, TSSOP-48	Bus Driver, FCT Series, 4-Func, 4-Bit, True Output, CMOS, PDSO48, 0.300 INCH, 0.025 INCH PITCH, SSOP-48	Bus Driver, FCT Series, 4-Func, 4-Bit, True Output, CMOS, CDFP48, 0.025 INCH PITCH, CERPACK-48
Parts packaging code	DFP	DFP	DFP	DFP	TSSOP	SSOP	DFP
package instruction	DFP,	DFP, FL48,.4,25	DFP,	DFP, FL48,.4,25	TSSOP,	SSOP,	DFP,
Contacts	48	48	48	48	48	48	48
Reach Compliance Code	unknown	not_compliant	unknown	not_compliant	unknown	unknown	unknown
series	FCT	FCT	FCT	FCT	FCT	FCT	FCT
JESD-30 code	R-GDFP-F48	R-GDFP-F48	R-GDFP-F48	R-GDFP-F48	R-PDSO-G48	R-PDSO-G48	R-GDFP-F48
JESD-609 code	e0	e0	e0	e0	e0	e0	e0
length	15.875 mm	15.875 mm	15.875 mm	15.875 mm	12.5 mm	15.875 mm	15.875 mm
Load capacitance (CL)	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	4	4	4	4	4	4	4
Number of functions	4	4	4	4	4	4	4
Number of ports	2	2	2	2	2	2	2
Number of terminals	48	48	48	48	48	48	48
Maximum operating temperature	85 °C	125 °C	85 °C	125 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-55 °C	-40 °C	-55 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
encapsulated code	DFP	DFP	DFP	DFP	TSSOP	SSOP	DFP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	FLATPACK	FLATPACK	FLATPACK	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, SHRINK PITCH	FLATPACK
propagation delay (tpd)	6.5 ns	5.1 ns	4.8 ns	7 ns	6.5 ns	6.5 ns	4.1 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.413 mm	2.413 mm	2.413 mm	2.413 mm	1.1 mm	2.794 mm	2.413 mm
Maximum supply voltage (Vsup)	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V	3.6 V
Minimum supply voltage (Vsup)	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V	2.7 V
Nominal supply voltage (Vsup)	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	MILITARY	INDUSTRIAL	MILITARY	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	FLAT	FLAT	FLAT	FLAT	GULL WING	GULL WING	FLAT
Terminal pitch	0.635 mm	0.635 mm	0.635 mm	0.635 mm	0.5 mm	0.635 mm	0.635 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	9.652 mm	9.652 mm	9.652 mm	9.652 mm	6.1 mm	7.5 mm	9.652 mm
Maker	IDT (Integrated Device Technology)	-	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
