FC6370-1: DescriptionDIRECTIONAL COUPLER DUAL BAND, 6 to 30 dB; CategoryWireless rf/communication Radio frequency and microwave; File Size168KB，1 Pages; ManufacturerAPI Technologies; Websitehttp://www.apitech.com/about-api

Download Datasheet Parametric Compare View All

FC6370-1 Overview

DIRECTIONAL COUPLER DUAL BAND, 6 to 30 dB

FC6370-1 Parametric

Parameter Name	Attribute value
Maker	API Technologies
Reach Compliance Code	compli
Other features	N-F
structure	COAXIAL
Maximum input power (CW)	53.01 dBm
Maximum insertion loss	0.2 dB
Maximum operating frequency	2500 MHz
Minimum operating frequency	800 MHz
RF/Microwave Device Types	DIRECTIONAL COUPLER

Preview

Download Datasheet

View All

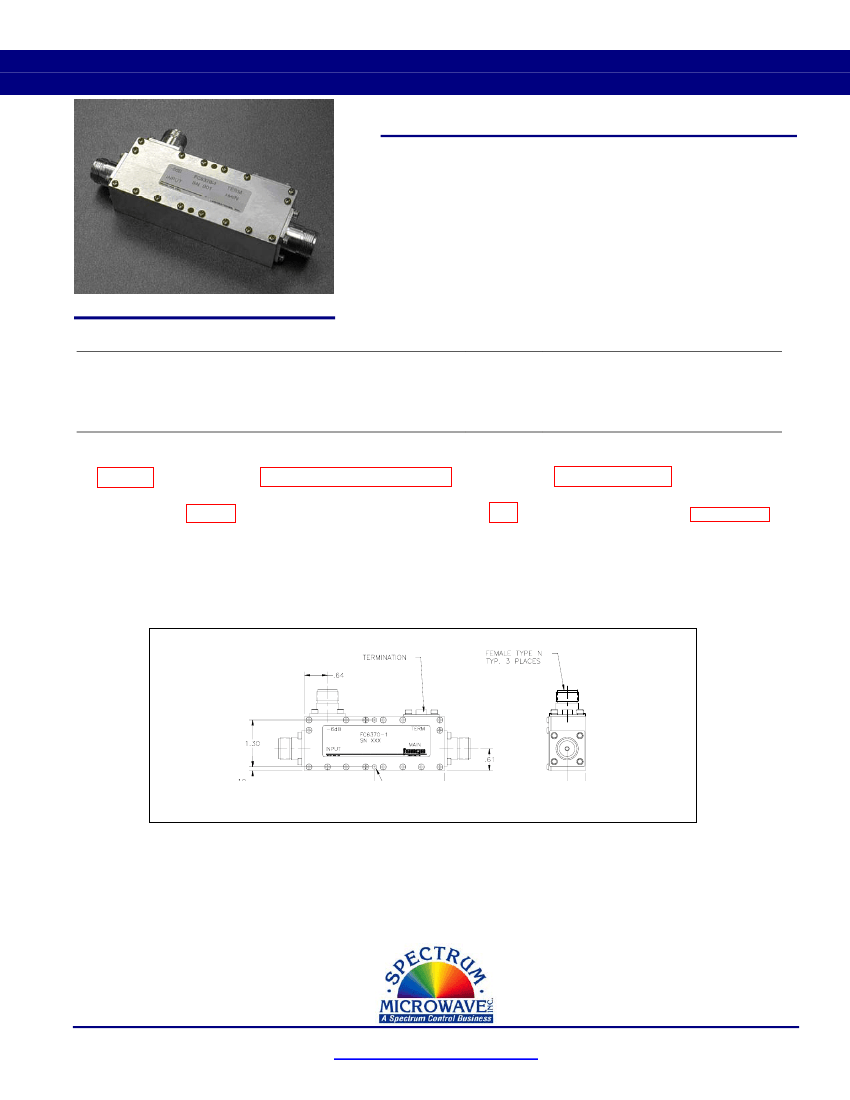

PRODUCT

SPECIFICATION

FEATURES

•

DIRECTIONAL COUPLER

DUAL BAND, 6 to 30 dB

6, 10, 16 20 & 30 dB Standard Coupling Values

Cover, Cellular, PCS & 3G Standard Communications Bands

Type “N” Connectors Standard

Robust Low Cost Package Design

Low Passive Intermodulation Product (PIMP) Design

FC6370 SERIES

SPECIFICATIONS

Frequency

(GHz)

Coupling

(dB)

Flatness

(dB)

1

Return

Loss max

(dB)

Loss

2

max

(dB)

Directivity

min

(dB)

Power

Handling

max

CW

(Watts)

PIMP

Min

(dBm)

Model

Number

0.8-2.5

6±1

10 ± 1

16 ± 1

20 ± 1

30 ± 1

± .4

21

.2

20

22

200

>100

FC6370-1

FC6370-2

FC6370-3

FC6370-4

FC6370-5

NOTES:

1. Flatness specifies the maximum coupling variation within the coupling range.

2. Loss is the actual dissipated and reflected loss. It does NOT include coupling loss.

OUTLINE DRAWING

MISCELLANEOUS:

1.

2.

3.

4.

Spectrum Microwave “Standard Warranty and Order Terms and Conditions” apply to all orders.

All specifications subject to change without notice.

Check “Ordering and Availability Listing” for delivery and ordering information.

Contact our local Manufacturers Representative for pricing.

Specification Revision - 071910

Spectrum Microwave

8 Executive Drive Hudson, NH 03051 Phone: 603-459-1600

www.SpectrumMicrowave.com

Fax: 603.459.1605
