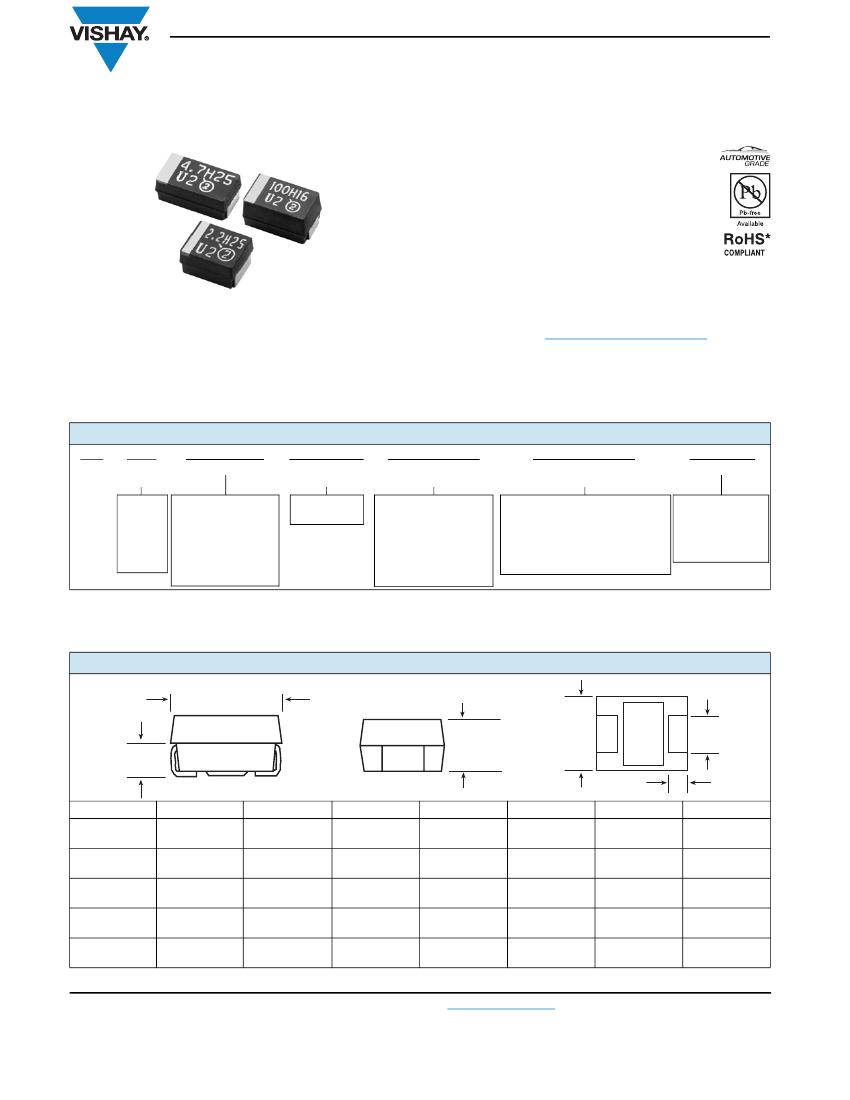

TH3
Vishay Sprague
Solid Tantalum Surface Mount Capacitors
Tantamount
®
Molded Case, High Temperature
FEATURES
•
Operating temperature up to 150 °C with
50 % voltage derating
•
High reliability
•
RoHS compliant terminations available:
Matte tin or gold
•
Standard EIA 535BAAC case sizes
(A through E)
•
100 % surge current tested (B, C, D, E case sizes)
•
AEC-Q200 qualified
•
Find out more about Vishay’s Automotive Grade Product
requirements at:
www.vishay.com/applications
PERFORMANCE/ELECTRICAL CHARACTERISTICS
Operating Temperature:
- 55 °C to + 150 °C
Note:
Refer to doc. 40088
Capacitance Tolerance:
± 10 %, ± 20 %
Voltage Rating:
6.3 VDC to 50 VDC
Capacitance Range:
0.33 µF to 220 µF
ORDERING INFORMATION
TH3
TYPE
D
CASE
CODE
See
Ratings
and
Case
Codes
table
106
CAPACITANCE
This is expressed in
picofarads. The first
two digits are the
significant figures.
The third is the
number of zeros to
follow
K
CAPACITANCE
TOLERANCE
K = ± 10 %
M = ± 20 %
035
DC VOLTAGE
RATING AT + 85 °C
This is expressed in V.
To complete the three-
digit block, zeros
precede the voltage
rating. A decimal point
is indicated by an “R”
(6R3 = 6.3 V)
C
TERMINATION AND
PACKAGING
A: Gold/7" (178 mm) reels
(1)
B: Gold/13" (330 mm) reels
(1)
C: Matte tin/7" (178 mm) reels
D: Matte tin/13" (330 mm) reels
E: Tin/lead/7" (178 mm) reels
F: Tin/lead/13" (330 mm) reels
0700
ESR
Maximum
100 kHz ESR
0500 = 500 mΩ
5000 = 5.0
Ω
10R0 = 10.0
Ω
Notes
(1)
Contact factory for availability
• We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size. Voltage substitutions
will be marked with the higher voltage rating.
DIMENSIONS
in inches [millimeters]
L
T
W
H
T
H
MIN.
W
P
CASE CODE
A
B
C
D
E
EIA SIZE
3216-18
3528-21
6032-28
7343-31
7343-43
L
0.126 ± 0.008
[3.2 ± 0.20]
0.138 ± 0.008
[3.5 ± 0.20]
0.236 ± 0.012
[6.0 ± 0.30]
0.287 ± 0.012
[7.3 ± 0.30]
0.287 ± 0.012
[7.3 ± 0.30]
W
0.063 ± 0.008
[1.6 ± 0.20]
0.110 ± 0.008
[2.8 ± 0.20]
0.126 ± 0.012
[3.2 ± 0.30]
0.170 ± 0.012
[4.3 ± 0.30]
0.170 ± 0.012
[4.3 ± 0.30
H
0.063 ± 0.008
[1.6 ± 0.20]
0.075 ± 0.008
[1.9 ± 0.20]
0.098 ± 0.012
[2.5 ± 0.30]
0.110 ± 0.012
[2.8 ± 0.30]
0.158 ± 0.012
[4.0 ± 0.30]
P
0.031 ± 0.012
[0.80 ± 0.30]
0.031 ± 0.012
[0.80 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
0.051 ± 0.012
[1.3 ± 0.30]
T
W
0.047 ± 0.004
[1.2 ± 0.10]
0.087 ± 0.004
[2.2 ± 0.10]
0.087 ± 0.004
[2.2 ± 0.10]
0.095 ± 0.004
[2.4 ± 0.10]
0.095 ± 0.004
[2.4 ± 0.10]
T
H
MIN.
0.028
[0.70]
0.028
[0.70]
0.039
[1.0]
0.039
[1.0]
0.039
[1.0]
* Pb containing terminations are not RoHS compliant, exemptions may apply
Document Number: 40084
Revision: 17-Nov-09
For technical questions, contact:
tantalum@vishay.com
www.vishay.com
63
TH3
Vishay Sprague
Solid Tantalum Surface Mount Capacitors
Tantamount
®
Molded Case, High Temperature
RATINGS AND CASE CODES
µF
0.33
0.47
1
1.5
2.2
3.3
4.7
A (2.9)
B (2.7)
A (4.6)
A (4.3)
A (3.4)
B (3.0)
A (2.9)
B (2.1)
A (2.6, 2.0)
B (1.8)
C (1.7)
A (2.7)
A (3.4)
B (1.8)
C (1.7,1.8)
B (1.5,1.8)
C (1.4, 1.8)
B (1.5)
C (1.1)
D (0.8)
B (1.8)
C (0.8, 0.5)
D (0.6)
C (0.8, 1.0)
D (1.0, 0.6, 0.4)
D (0.6)
D (0.6)
E (0.5)
B (2.0)
C (1.4)
B (2.0)
C (1.0)
B (1.9)
C (1.0)
D (0.8)
C (0.9)
D (0.6)
C (0.8)
D (0.6)
D (0.6)
D (0.6)
E (0.6, 0.15)
A (5.9)
B (3.5)
B (2.7)
C (2.7)
A (5.0)
B (2.9, 1.9)
C (1.7)
B (2.4)
C (1.4)
C (1.1)
B (2.0)
C (1.0)
D (0.9)
C (1.0)
D (0.7)
D (0.6)
D (0.7)
E (0.6)
E (0.6)
A (5.2)
B (3.0)
B (3.0)
C (2.0)
A (5.0)
B (2.8)
C (1.6)
C (1.8)
D (0.9)
C (1.1)
D (0.9)
B (2.0, 1.4)
C (1.2)
D (0.7)
D (0.6)
D (0.5)
E (0.6)
A (6.5)
A (5.9)
6.3 V
10 V
16 V
20 V
25 V
A (8.5)
A (5.2, 3.0)
B (5.0)
35 V
A (11.0)
A (6.6)
B (4.4)
B (4.2)
C (3.3)
B (2.5)
C (2.2)
B (3.5, 2.5)
C (1.7)
B (3.1)
C (1.3)
D (1.0)
D (0.9)
C (1.6)
D (0.3, 0.7)
D (0.7)
D (0.6, 0.3)
E (0.5)
D (0.8)
E (0.5)
D (1.7)
C (1.5)
D (0.9)
C (3.3)
50 V
6.8
10
15
B (1.8)
22
33
47
68
100
150
220
B (1.5)
B (1.7)
B (1.8)
C (0.8)
B (1.8)
Note
• ESR limits in
Ω
are shown in parenthesis
MARKING
“A” CASE VOLTAGE CODE
Capacitance
Code, pF
Indicates
High Temperature
Indicates High Temperature
Capacitance µF
Polarity
Band (+)
Voltage
VOLTS
4.0
6.3
10
16
20
CODE
G
J
A
C
D
E
V
T
V 104H
22
XX
H10
2
Polarity Band (+)
A Case
Voltage
Code
25
35
50
Date Code
B, C, D, E Case
Vishay
Sprague
Logo
Marking
Capacitor marking includes an anode (+) polarity band, capacitance in microfarads and the voltage rating. “A” case capacitors use a letter
code for the voltage and EIA capacitance code.
The Vishay Sprague
®
trademark is included if space permits. Capacitors rated at 6.3 V are marked 6 V.
A manufacturing date code is marked on all capacitors.
Call the factory for further explanation.
www.vishay.com
64
For technical questions, contact:
tantalum@vishay.com
Document Number: 40084
Revision: 17-Nov-09
TH3
Solid Tantalum Surface Mount Capacitors
Tantamount
®
Molded Case, High Temperature
RATINGS AND PART NUMBER REFERENCE
CAPACITANCE
(µF)
CASE CODE
MAX. DC
MAX. DF
LEAKAGE
AT + 25 °C
PART NUMBER
AT + 25 °C
(%)
(µA)
6.3 VDC AT + 85 °C, 4 VDC AT + 125 °C, 3.15 VDC AT + 150 °C
TH3A106(1)6R3(2)2700
0.6
6
TH3B156(1)6R3(2)1800
0.9
6
TH3B226(1)6R3(2)1500
1.3
6
TH3B336(1)6R3(2)1700
2.0
6
TH3B476(1)6R3(2)1800
2.8
8
TH3C476(1)6R3(2)0800
2.8
6
TH3B686(1)6R3(2)1800
4.1
6
10 VDC AT + 85 °C, 7 VDC AT + 125 °C, 5 VDC AT + 150 °C
TH3A225(1)010(2)4600
0.5
6
TH3A475(1)010(2)2900
0.5
6
TH3B475(1)010(2)2700
0.5
6
TH3A106(1)010(2)3400
1.0
6
TH3B106(1)010(2)1800
1.0
6
TH3C106(1)010(2)1800
1.0
6
TH3C106(1)010(2)1700
1.0
6
TH3B156(1)010(2)1800
1.0
6
TH3B156(1)010(2)1500
1.0
6
TH3C156(1)010(2)1800
1.0
6
TH3C156(1)010(2)1400
1.0
6
TH3B226(1)010(2)1500
2.2
6
TH3C226(1)010(2)1100
2.2
6
TH3D336(1)010(2)0800
3.3
6
TH3B476(1)010(2)1800
4.7
6
TH3C476(1)010(2)0800
4.7
6
TH3C476(1)010(2)0500
4.7
6
TH3D476(1)010(2)0600
4.7
6
TH3C686(1)010(2)1000
6.8
8
TH3C686(1)010(2)0800
6.8
8
TH3D686(1)010(2)1000
6.8
6
TH3D686(1)010(2)0600
6.8
6
TH3D686(1)010(2)0400
6.8
6
TH3D107(1)010(2)0600
10.0
8
TH3D157(1)010(2)0600
15.0
8
TH3E227(1)010(2)0500
22.0
8
16 VDC AT + 85 °C, 10 VDC AT + 125 °C, 8 VDC AT + 150 °C
TH3A105(1)016(2)6500
0.5
4
TH3A225(1)016(2)4300
0.5
6
TH3A335(1)016(2)3400
0.5
6
TH3B335(1)016(2)3000
0.5
6
TH3A475(1)016(2)2900
0.8
6
TH3B475(1)016(2)2100
0.8
6
TH3A685(1)016(2)2600
1.1
6
TH3A685(1)016(2)2000
1.1
6
TH3B685(1)016(2)1800
1.1
6
TH3C685(1)016(2)1700
1.1
6
TH3B106(1)016(2)2000
1.6
6
TH3C106(1)016(2)1400
1.6
6
MAX. ESR
AT + 25 °C
100 kHz
(Ω)
2.700
1.800
1.500
1.700
1.800
0.800
1.800
4.600
2.900
2.700
3.400
1.800
1.800
1.700
1.800
1.500
1.800
1.400
1.500
1.100
0.800
1.800
0.800
0.500
0.600
1.000
0.800
1.000
0.600
0.400
0.600
0.600
0.500
6.500
4.300
3.400
3.000
2.900
2.100
2.600
2.000
1.800
1.700
2.000
1.400
MAX. RIPPLE
100 kHz
I
rms
(A)
0.17
0.22
0.24
0.22
0.22
0.37
0.22
0.13
0.16
0.18
0.15
0.22
0.25
0.25
0.22
0.24
0.25
0.28
0.24
0.32
0.43
0.22
0.37
0.47
0.50
0.33
0.37
0.39
0.50
0.61
0.50
0.50
0.61
0.11
0.13
0.15
0.17
0.16
0.20
0.17
0.19
0.22
0.25
0.21
0.28
Vishay Sprague
10
15
22
33
47
47
68
2.2
4.7
4.7
10
10
10
10
15
15
15
15
22
22
33
47
47
47
47
68
68
68
68
68
100
150
220
1
2.2
3.3
3.3
4.7
4.7
6.8
6.8
6.8
6.8
10
10
A
B
B
B
B
C
B
A
A
B
A
B
C
C
B
B
C
C
B
C
D
B
C
C
D
C
C
D
D
D
D
D
E
A
A
A
B
A
B
A
A
B
C
B
C
Notes
• (1) Capacitance Tolerance: K, M
• (2) Termination and Packaging: A, B, C, D, E, F
Document Number: 40084
Revision: 17-Nov-09
For technical questions, contact:
tantalum@vishay.com
www.vishay.com
65
TH3
Vishay Sprague
Solid Tantalum Surface Mount Capacitors
Tantamount
®
Molded Case, High Temperature
RATINGS AND PART NUMBER REFERENCE
CAPACITANCE
(µF)
CASE CODE
MAX. DC
MAX. DF
LEAKAGE
AT + 25 °C
PART NUMBER
AT + 25 °C
(%)
(µA)
16 VDC AT + 85 °C, 10 VDC AT + 125 °C, 8 VDC AT + 150 °C
TH3B156(1)016(2)2000
2.4
6
TH3B226(1)016(2)1900
TH3C226(1)016(2)1000
TH3D226(1)016(2)0800
TH3C336(1)016(2)0900
TH3D336(1)016(2)0600
TH3C476(1)016(2)0800
TH3D476(1)016(2)0600
TH3D686(1)016(2)0600
TH3D107(1)016(2)0600
TH3E107(1)016(2)0600
TH3E107(1)016(2)0150
TH3A105(1)020(2)5900
TH3A225(1)020(2)5900
TH3B225(1)020(2)3500
TH3B335(1)020(2)2700
TH3C335(1)020(2)2700
TH3A475(1)020(2)5000
TH3B475(1)020(2)2900
TH3B475(1)020(2)1900
TH3C475(1)020(2)1700
3.5
3.5
3.5
5.3
5.3
7.5
7.5
10.9
16.0
16.0
16.0
0.5
0.5
0.5
0.7
0.7
0.9
0.9
0.9
0.9
6
6
6
6
6
6
6
6
8
8
8
4
6
6
6
6
6
6
6
6
MAX. ESR
AT + 25 °C
100 kHz
(Ω)
2.000
1.900
1.000
0.800
0.900
0.600
0.800
0.600
0.600
0.600
0.600
0.150
5.900
5.900
3.500
2.700
2.700
5.000
2.900
1.900
1.700
1.100
1.000
2.000
1.000
0.900
1.000
0.700
0.600
0.700
0.600
0.600
8.500
5.200
3.000
5.000
5.200
3.000
3.000
2.000
5.000
2.800
1.600
2.400
MAX. RIPPLE
100 kHz
I
rms
(A)
0.21
0.21
0.33
0.43
0.35
0.50
0.37
0.50
0.50
0.50
0.56
1.11
0.11
0.11
0.16
0.18
0.20
0.12
0.17
0.21
0.25
0.32
0.33
0.21
0.33
0.41
0.33
0.46
0.50
0.46
0.56
0.56
0.09
0.12
0.16
0.13
0.12
0.17
0.17
0.23
0.12
0.17
0.26
0.19
15
22
22
22
33
33
47
47
68
100
100
100
1
2.2
2.2
3.3
3.3
4.7
4.7
4.7
4.7
10
15
15
15
15
22
22
33
47
47
68
0.47
1
1
1
2.2
2.2
3.3
3.3
4.7
4.7
4.7
6.8
B
B
C
D
C
D
C
D
D
D
E
E
A
A
B
B
C
A
B
B
C
C
C
B
C
D
C
D
D
D
E
E
A
A
A
B
A
B
B
C
A
B
C
B
20 VDC AT + 85 °C, 13 VDC AT + 125 °C, 10 VDC AT + 150 °C
TH3C106(1)020(2)1100
2.0
6
TH3C156(1)016(2)1000
2.4
6
TH3B156(1)020(2)2000
3.0
6
TH3C156(1)020(2)1000
3.0
6
TH3D156(1)020(2)0900
3.0
6
TH3C226(1)020(2)1000
4.4
6
TH3D226(1)020(2)0700
4.4
6
TH3D336(1)020(2)0600
6.6
6
TH3D476(1)020(2)0700
9.4
6
TH3E476(1)020(2)0600
9.4
6
TH3E686(1)020(2)0600
13.6
6
25 VDC AT + 85 °C, 17 VDC AT + 125 °C, 12.5 VDC AT + 150 °C
TH3A474(1)025(2)8500
0.5
4
TH3A105(1)025(2)5200
0.5
4
TH3A105(1)025(2)3000
0.5
4
TH3B105(1)025(2)5000
0.5
4
TH3A225(1)025(2)5200
0.6
6
TH3B225(1)025(2)3000
0.6
6
TH3B335(1)025(2)3000
0.8
6
TH3C335(1)025(2)2000
0.8
6
TH3A475(1)025(2)5000
1.2
6
TH3B475(1)025(2)2800
1.2
6
TH3C475(1)025(2)1600
1.2
6
TH3B685(1)025(2)2400
1.7
6
Notes
• (1) Capacitance Tolerance: K, M
• (2) Termination and Packaging: A, B, C, D, E, F
www.vishay.com
66
For technical questions, contact:
tantalum@vishay.com
Document Number: 40084
Revision: 17-Nov-09
TH3
Solid Tantalum Surface Mount Capacitors
Tantamount
®
Molded Case, High Temperature
RATINGS AND PART NUMBER REFERENCE
CAPACITANCE
(µF)
CASE CODE
MAX. DC
MAX. DF
LEAKAGE
AT + 25 °C
PART NUMBER
AT + 25 °C
(%)
(µA)
25 VDC AT + 85 °C, 17 VDC AT + 125 °C, 12.5 VDC AT + 150 °C
TH3C685(1)025(2)1400
1.7
6
TH3C106(1)025(2)1100
2.5
6
TH3D106(1)025(2)0900
2.5
6
TH3B156(1)025(2)2000
3.8
6
TH3B156(1)025(2)1400
3.8
6
TH3C156(1)025(2)1200
3.8
6
TH3D156(1)025(2)0700
3.8
6
TH3D226(1)025(2)0600
5.5
6
TH3D336(1)025(2)0500
8.3
6
TH3E476(1)025(2)0600
11.8
6
35 VDC AT + 85 °C, 23 VDC AT + 125 °C, 17.5 VDC AT + 150 °C
TH3A334(1)035(2)11R0
0.5
4
TH3A105(1)035(2)6600
0.5
4
TH3B105(1)035(2)4400
0.5
4
TH3B155(1)035(2)4200
0.5
6
TH3C155(1)035(2)3300
0.5
6
TH3B225(1)035(2)2500
0.8
6
TH3C225(1)035(2)2200
0.8
6
TH3B335(1)035(2)3500
1.2
6
TH3B335(1)035(2)2500
1.2
6
TH3C335(1)035(2)1700
1.2
6
TH3B475(1)035(2)3100
1.7
6
TH3C475(1)035(2)1300
1.6
6
TH3D475(1)035(2)1000
1.6
6
TH3C685(1)035(2)1800
2.4
6
TH3D685(1)035(2)0900
2.4
6
TH3C106(1)035(2)1600
3.5
6
TH3D106(1)035(2)0700
3.5
6
TH3D106(1)035(2)0300
3.5
6
TH3D156(1)035(2)0700
5.3
6
TH3D226(1)035(2)0600
7.7
6
TH3D226(1)035(2)0300
7.7
6
TH3E226(1)035(2)0500
7.7
6
50 VDC AT + 85 °C, 33 VDC AT + 125 °C, 25 VDC AT + 150 °C
TH3C105(1)050(2)3300
0.5
4
TH3D335(1)050(2)1700
1.7
6
TH3C475(1)050(2)1500
2.4
6
TH3D475(1)050(2)0900
2.4
6
TH3D685(1)050(2)0900
3.4
6
TH3D106(1)050(2)0800
5.0
6
TH3E106(1)050(2)0500
5.0
6
MAX. ESR
AT + 25 °C
100 kHz
(Ω)
1.400
1.100
0.900
2.000
1.400
1.200
0.700
0.600
0.500
0.600
11.000
6.600
4.400
4.200
3.300
2.500
2.200
3.500
2.500
1.700
3.100
1.300
1.000
1.800
0.900
1.600
0.700
0.300
0.700
0.600
0.300
0.500
3.300
1.700
1.500
0.900
0.900
0.800
0.500
MAX. RIPPLE
100 kHz
I
rms
(A)
0.28
0.32
0.41
0.21
0.25
0.30
0.46
0.50
0.55
0.56
0.08
0.11
0.14
0.14
0.18
0.18
0.22
0.16
0.18
0.25
0.17
0.29
0.39
0.25
0.41
0.26
0.46
0.71
0.46
0.50
0.71
0.61
0.18
0.30
0.27
0.41
0.41
0.43
0.61
Vishay Sprague
6.8
10
10
15
15
15
15
22
33
47
0.33
1
1
1.5
1.5
2.2
2.2
3.3
3.3
3.3
4.7
4.7
4.7
6.8
6.8
10
10
10
15
22
22
22
1
3.3
4.7
4.7
6.8
10
10
C
C
D
B
B
C
D
D
D
E
A
A
B
B
C
B
C
B
B
C
B
C
D
C
D
C
D
D
D
D
D
E
C
D
C
D
D
D
E
Notes
• (1) Capacitance Tolerance: K, M
• (2) Termination and Packaging: A, B, C, D, E, F
Document Number: 40084
Revision: 17-Nov-09
For technical questions, contact:
tantalum@vishay.com
www.vishay.com
67
京公网安备 11010802033920号
EEWORLD
