IDT71024S17L8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > storage> storage> IDT71024S17L8

IDT71024S17L8: DescriptionStandard SRAM, 128KX8, 17ns, CMOS, CDSO32, 0.400 X 0.820 INCH, LCC-32; Categorystorage storage; File Size191KB，8 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric Compare View All

IDT71024S17L8 Overview

Standard SRAM, 128KX8, 17ns, CMOS, CDSO32, 0.400 X 0.820 INCH, LCC-32

IDT71024S17L8 Parametric

Parameter Name	Attribute value
Maker	IDT (Integrated Device Technology)
Parts packaging code	DLCC
package instruction	SON,
Contacts	32
Reach Compliance Code	unknown
ECCN code	3A991.B.2.B
Maximum access time	17 ns
JESD-30 code	R-CDSO-N32
JESD-609 code	e0
length	20.828 mm
memory density	1048576 bit
Memory IC Type	STANDARD SRAM
memory width	8
Number of functions	1
Number of ports	1
Number of terminals	32
word count	131072 words
character code	128000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX8
Exportable	YES
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	SON
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Parallel/Serial	PARALLEL
Certification status	Not Qualified
Maximum seat height	2.54 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	DUAL
width	10.16 mm

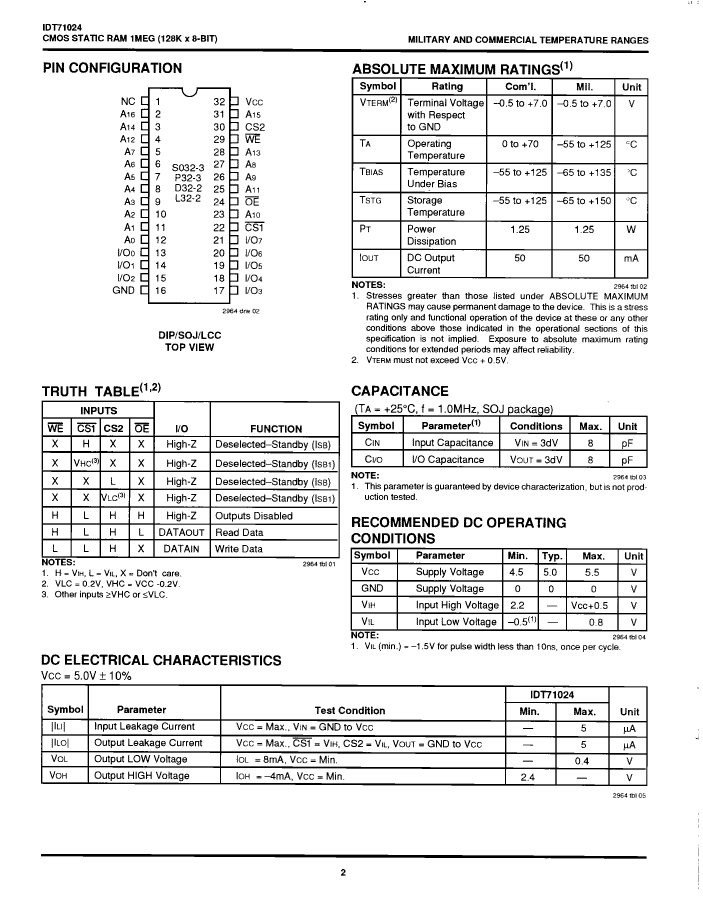

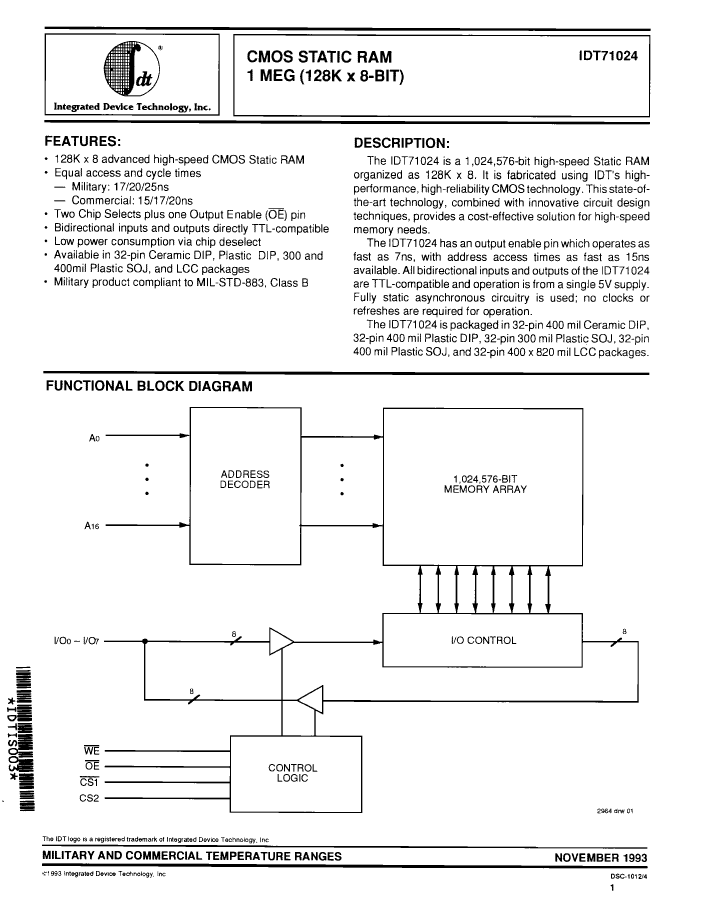

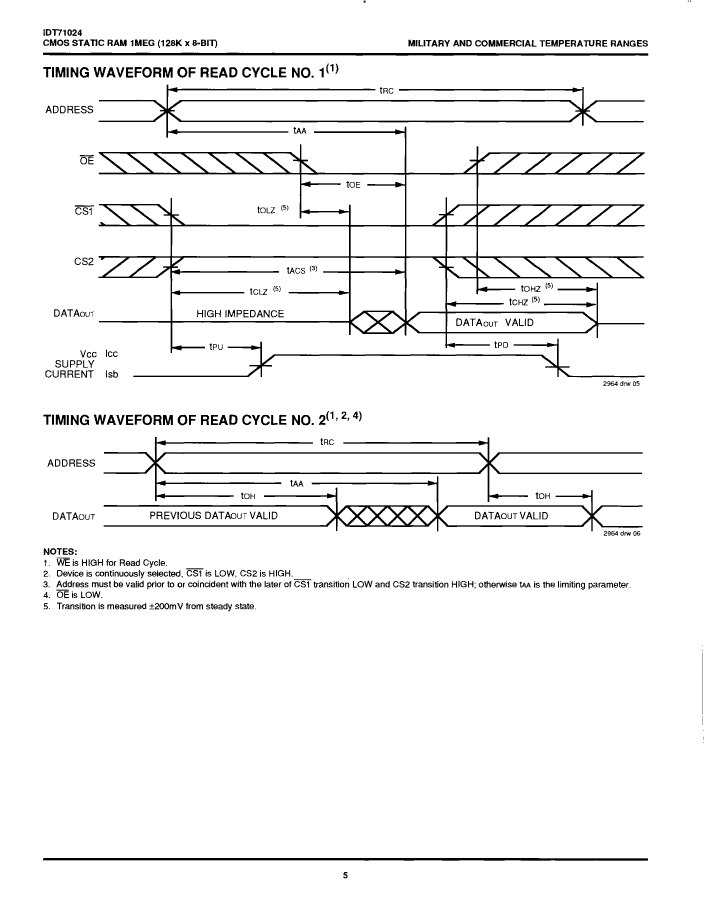

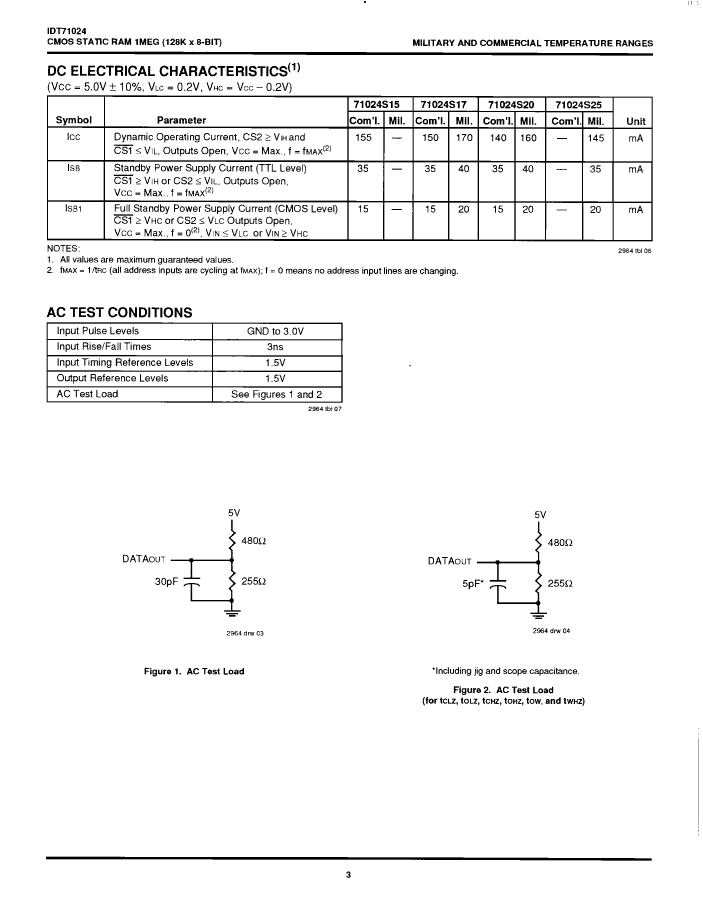

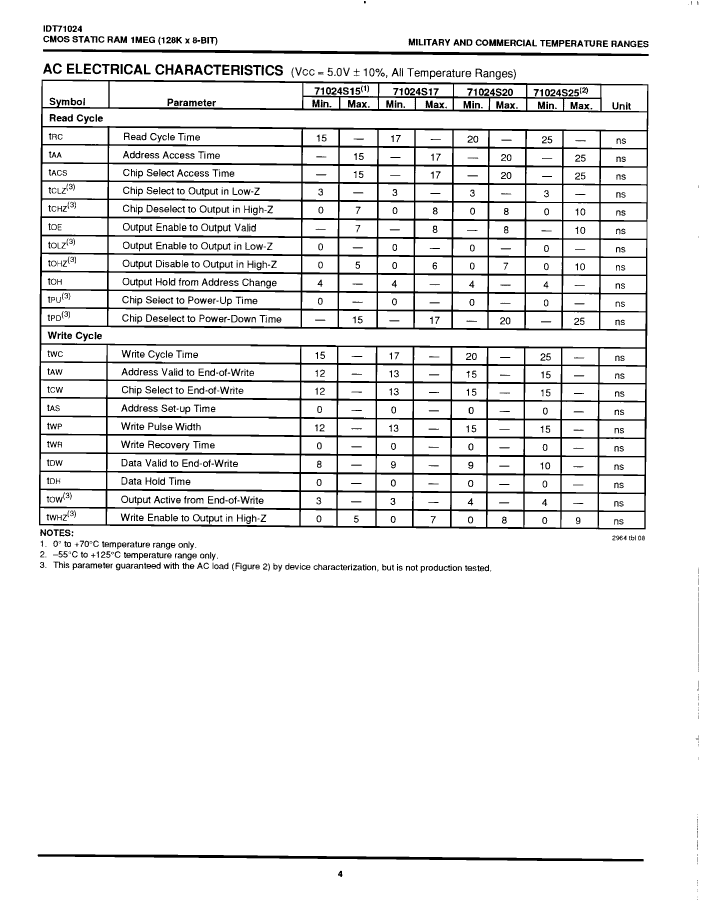

Preview

Download Datasheet

View All

IDT71024S17L8 Related Products

	IDT71024S17L8	IDT71024S15D	IDT71024S15L8	IDT71024S17D	IDT71024S20D
Description	Standard SRAM, 128KX8, 17ns, CMOS, CDSO32, 0.400 X 0.820 INCH, LCC-32	Standard SRAM, 128KX8, 15ns, CMOS, CDIP32, 0.400 INCH, CERAMIC, DIP-32	Standard SRAM, 128KX8, 15ns, CMOS, CDSO32, 0.400 X 0.820 INCH, LCC-32	Standard SRAM, 128KX8, 17ns, CMOS, CDIP32, 0.400 INCH, CERAMIC, DIP-32	Standard SRAM, 128KX8, 20ns, CMOS, CDIP32, 0.400 INCH, CERAMIC, DIP-32
Parts packaging code	DLCC	DIP	DLCC	DIP	DIP
package instruction	SON,	DIP,	SON,	DIP,	DIP,
Contacts	32	32	32	32	32
Reach Compliance Code	unknown	compliant	unknown	compliant	compli
ECCN code	3A991.B.2.B	3A991.B.2.B	3A991.B.2.B	3A991.B.2.B	3A991.B.2.B
Maximum access time	17 ns	15 ns	15 ns	17 ns	20 ns
JESD-30 code	R-CDSO-N32	R-CDIP-T32	R-CDSO-N32	R-CDIP-T32	R-GDIP-T32
JESD-609 code	e0	e0	e0	e0	e0
memory density	1048576 bit	1048576 bit	1048576 bit	1048576 bit	1048576 bi
Memory IC Type	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM	STANDARD SRAM
memory width	8	8	8	8	8
Number of functions	1	1	1	1	1
Number of ports	1	1	1	1	1
Number of terminals	32	32	32	32	32
word count	131072 words	131072 words	131072 words	131072 words	131072 words
character code	128000	128000	128000	128000	128000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
organize	128KX8	128KX8	128KX8	128KX8	128KX8
Exportable	YES	YES	YES	YES	YES
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, GLASS-SEALED
encapsulated code	SON	DIP	SON	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE
Parallel/Serial	PARALLEL	PARALLEL	PARALLEL	PARALLEL	PARALLEL
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	YES	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD	Tin/Lead (Sn/Pb)	TIN LEAD
Terminal form	NO LEAD	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	IDT (Integrated Device Technology)	-	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)	IDT (Integrated Device Technology)
length	20.828 mm	-	20.828 mm	-	41.91 mm
Maximum seat height	2.54 mm	-	2.54 mm	-	5.334 mm
Terminal pitch	1.27 mm	-	1.27 mm	-	2.54 mm
width	10.16 mm	-	10.16 mm	-	10.16 mm
Is it lead-free?	-	Contains lead	-	Contains lead	Contains lead
Is it Rohs certified?	-	incompatible	-	incompatible	incompatible
Peak Reflow Temperature (Celsius)	-	225	-	225	225
Maximum time at peak reflow temperature	-	20	-	20	20
