1-1103640-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1-1103640-2

1-1103640-2: DescriptionHEADER CONNECTOR,HYBRID,RECEPT,PIN,SCREW TERMINAL,LOCKING; CategoryThe connector The connector; File Size182KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

1-1103640-2 Overview

HEADER CONNECTOR,HYBRID,RECEPT,PIN,SCREW TERMINAL,LOCKING

1-1103640-2 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	304024104
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ELV AND ROHS COMPLIANT
body width	1.299 inch
subject depth	1.339 inch
body length	4.331 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AG
Contact point gender	MALE
Contact style	HYBRID
Insulation resistance	10000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	HE.24
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	CABLE
Number of connectors	ONE
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Rated current (signal)	16 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	SCREW

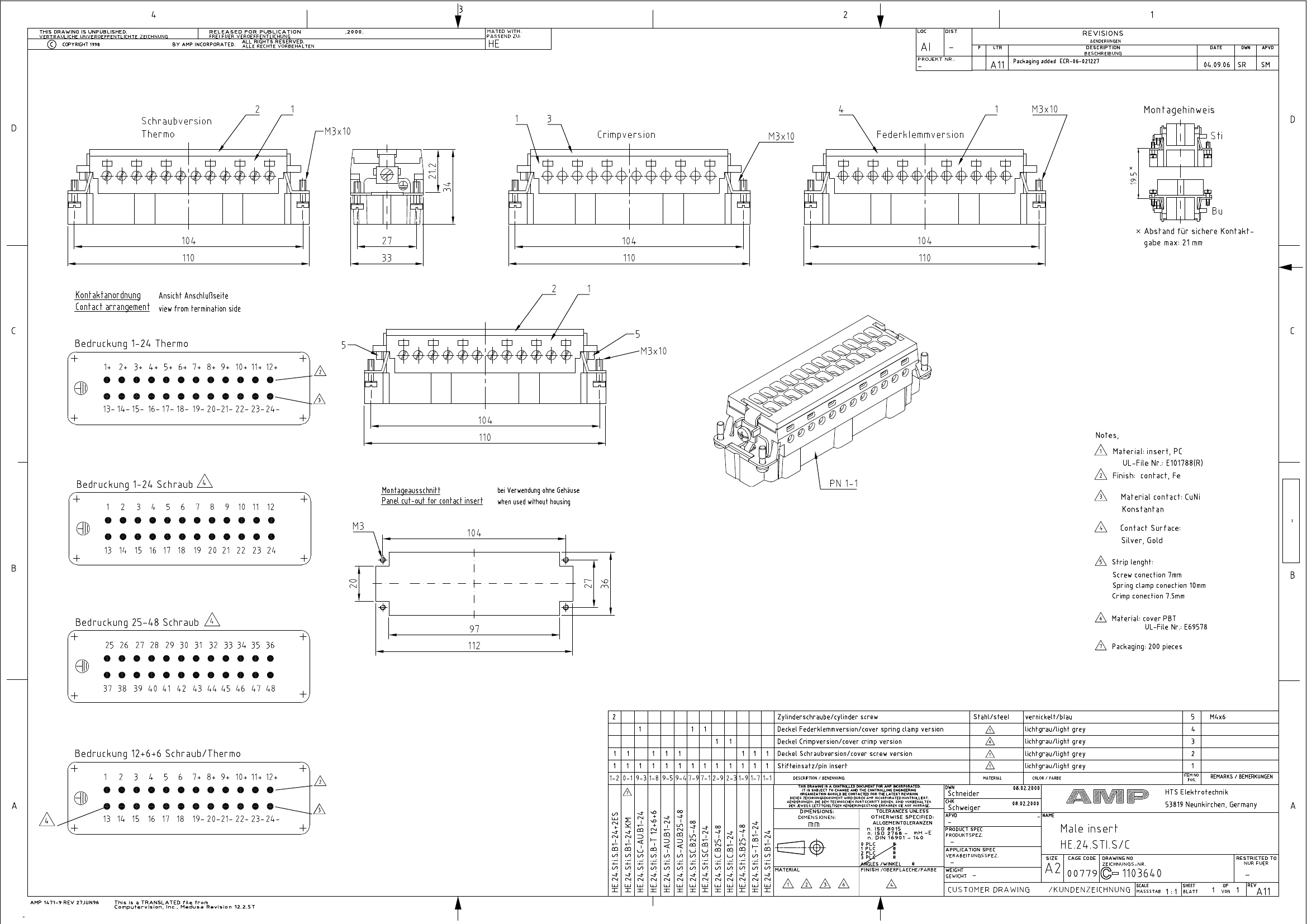

Preview

Download Datasheet

View All

1-1103640-2 Related Products

	1-1103640-2	9-1103640-7	9-1103640-6	9-1103640-8	9-1103640-9
Description	HEADER CONNECTOR,HYBRID,RECEPT,PIN,SCREW TERMINAL,LOCKING	HEADER CONNECTOR,HYBRID,RECEPT,PIN,SCREW TERMINAL,LOCKING	HEADER CONNECTOR,HYBRID,RECEPT,PIN,SCREW TERMINAL,LOCKING	HEADER CONNECTOR,HYBRID,RECEPT,PIN,SCREW TERMINAL,LOCKING	HEADER CONNECTOR,HYBRID,RECEPT,PIN,SCREW TERMINAL,LOCKING
Objectid	304024104	304024115	304024114	304024116	304024117
Reach Compliance Code	compliant	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	ELV AND ROHS COMPLIANT	ELV AND ROHS COMPLIANT	ELV AND ROHS COMPLIANT	ELV AND ROHS COMPLIANT	ELV AND ROHS COMPLIANT
body width	1.299 inch	1.299 inch	1.299 inch	1.299 inch	1.299 inch
subject depth	1.339 inch	1.339 inch	1.339 inch	1.339 inch	1.339 inch
body length	4.331 inch	4.331 inch	4.331 inch	4.331 inch	4.331 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AG	AG	AG	AG	AG
Contact point gender	MALE	MALE	MALE	MALE	MALE
Contact style	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	HE.24	HE.24	HE.24	HE.24	HE.24
Mixed contacts	YES	YES	YES	YES	YES
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE
Number of connectors	ONE	ONE	ONE	ONE	ONE
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Rated current (signal)	16 A	16 A	16 A	16 A	16 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Termination type	SCREW	SCREW	SCREW	SCREW	SCREW
