MCRR Series
Multilayer Ceramic Capacitors
General Information
Features:
•
•
•
•
•
Cost effective dipped radial multilayer ceramic capacitors
High reliability and performance
Applications for C0G dielectric tuned circuits and filters where low loss
and stability are required
X7R dielectric offers high capacitance values in compact sizes with
good stability
Z5U dielectric can be used in coupling and decoupling applications
where change of capacitance with temperature is not important

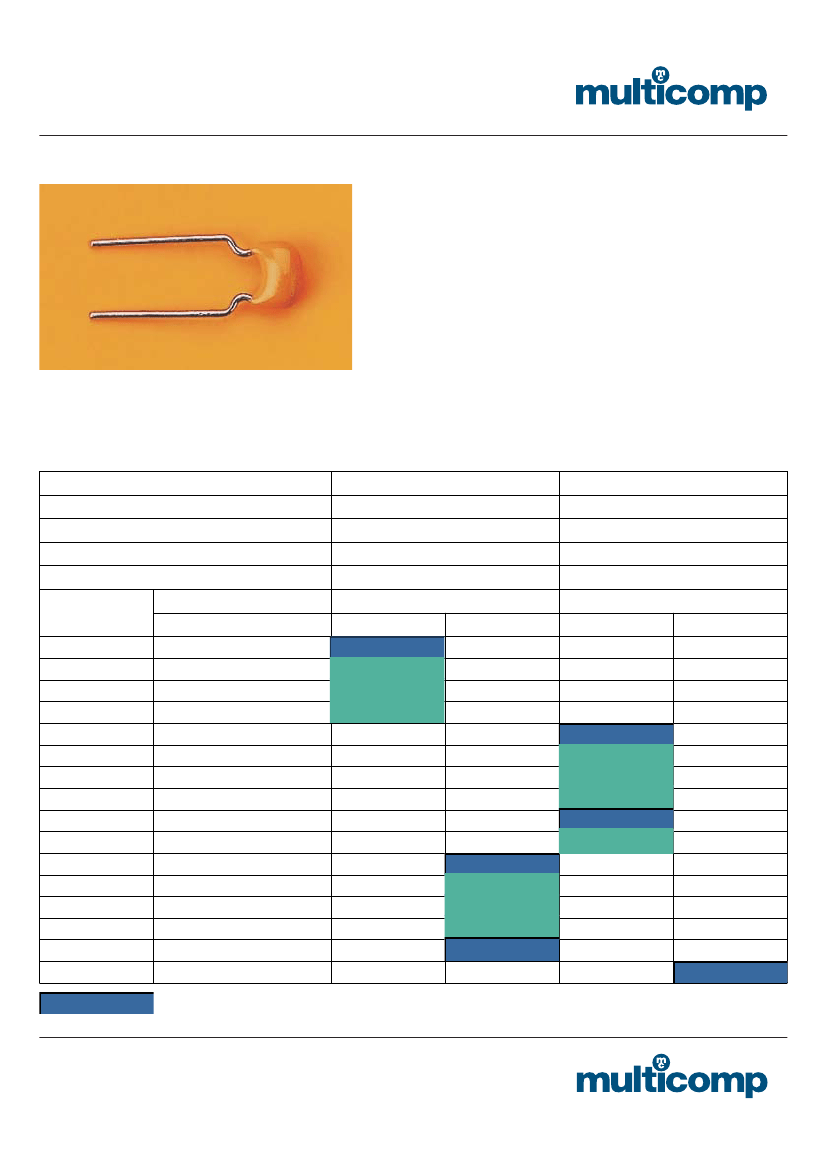

Conformally Coated Radial Leaded MLC
Lead length = 25.4 minimum, Lead Diameter = 0.508
Temperature Coefficients : C0G (NP0), X7R, Z5U
200, 100, 63 / 50 Volts
Case Material : Epoxy
Lead Material : Solderable
C0G (NP0) Dielectric
Size and Capacitance Specifications
EIA Characteristic
Height (H)
Width (W)
Depth (D)
Lead Spacing (L.S.)
Lead Diameter (L.D.)
Voltage WVDC
Capacitance in pF
Part Number
10
22
33
47
10
22
33
47
100
220
100
220
330
470
1,000
1,000
MCRR25100C0GJ0200
MCRR25220C0GJ0200
MCRR25330C0GJ0200
MCRR25470C0GJ0200
MCRR50100C0GJ0200
MCRR50220C0GJ0200
MCRR50330C0GJ0200
MCRR50470C0GJ0200
MCRR50101C0GJ0200
MCRR50221C0GJ0200
MCRR25101C0GJ0100
MCRR25221C0GJ0100
MCRR25331C0GJ0100
MCRR25471C0GJ0100
MCRR25102C0GJ0100
MCRR50102C0GJ0100
= Industry preferred values
3.81
3.81
2.54
2.54
0.508
Voltage, DC
200
100
200
7.62
5.08
3.18
5.08
0.508
Voltage, DC
100
Dimensions : Millimetres
www.element14.com
www.farnell.com
www.newark.com
Page <1>
05/04/12 V1.1
MCRR Series
Multilayer Ceramic Capacitors
X7R Dielectric
Size and Capacitance Specifications
EIA Characteristic
Height (H)
Width (W)
Depth (D)
Lead Spacing (L.S.)
Lead Diameter (L.D.)
Voltage WVDC
Capacitance in pF
Part Number
1,000
3,300
10,000
22,000
1,000
2,200
3,300
10,000
22,000
100,000
10,000
33,000
47,000
100,000
47,000
100,000
220,000
470,000
1,000,000
MCRR25102X7RK0100
MCRR25332X7RK0100
MCRR25103X7RK0100
MCRR25223X7RK0100
MCRR50102X7RK0100
MCRR50222X7RK0100
MCRR50332X7RK0100
MCRR50103X7RK0100
MCRR50223X7RK0100
MCRR50104X7RK0100
MCRR25103X7RK0050
MCRR25333X7RK0050
MCRR25473X7RK0050
MCRR25104X7RK0050
MCRR50473X7RK0050
MCRR50104X7RK0050
MCRR50224X7RK0050
MCRR50474X7RK0050
MCRR50105X7RK0050
Dimensions : Millimetres
3.81
3.81
2.54
2.54
0.508
WVDC
100
63 / 50
7.62
5.08
3.18
5.08
0.508
WVDC
100
5.08
5.08
3.18
2.54
0.508
WVDC
63 / 50
7.62
5.08
3.18
5.08
0.508
WVDC
63 / 50
7.62
7.62
3.81
5.08
0.508
WVDC
63 / 50
= Industry preferred values
www.element14.com
www.farnell.com
www.newark.com
Page <2>
05/04/12 V1.1
MCRR Series
Multilayer Ceramic Capacitors
Z5U Dielectric
Size and Capacitance Specifications
EIA Characteristic
Height (H)
Width (W)
Depth (D)
Lead Spacing (L.S.)
Lead Diameter (L.D.)
Voltage WVDC
Capacitance in pF
Part Number
100,000
100,000
470,000
1,000,000
MCRR25104Z5UM0050
MCRR50104Z5UM0050
MCRR50474Z5UM0050
MCRR50105Z5UM0050
Dimensions : Millimetres
5.08
5.08
3.18
2.54
0.508
WVDC
63 / 50
7.62
5.08
3.18
5.08
0.508
WVDC
63 / 50
7.62
7.62
3.81
5.08
0.508
WVDC
63 / 50
= Industry preferred values
Part Number Explanation:
MCRR
25
100
X7R
J
0200
Lead Pitch
Significant figure
for Capacitance
and Multiplier
Temperature
Coefficient
Tolerance
Voltage
Lead Pitch
Significant Figures of
Capacitance and Multiplier
Temperature Coefficient
Capacitance Tolerances
Voltages
:
25 = 2.54, 50 = 5.08
:
First two digits are the significant figures of capacitance. Third digit
indicates the additional number of zeros. For example, order 100,000 pF as 104
:
C0G (NP0), X7R, Z5U
:
C0G (NP0) : J = ±5%, X7R : K = ±10%, Z5U : M = ±20%
:
50 = 63 / 50, 100 = 100, 200 = 200 V dc
Important Notice :
This data sheet and its contents (the "Information") belong to the members of the Premier Farnell group of companies (the "Group") or are licensed to it. No licence is granted for the use of
it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces
all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use
made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted.
Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising)
is excluded. This will not operate to limit or restrict the Group's liability for death or personal injury resulting from its negligence. Multicomp is the registered trademark of the Group. © Premier Farnell plc 2012.
www.element14.com
www.farnell.com
www.newark.com
Page <3>
05/04/12 V1.1
