General Purpose, High Stability and AC Line EMI Suppression
LDB Series Unencapsulated Winding,
Size 1206 – 1812, 16 & 50 VDC
Overview

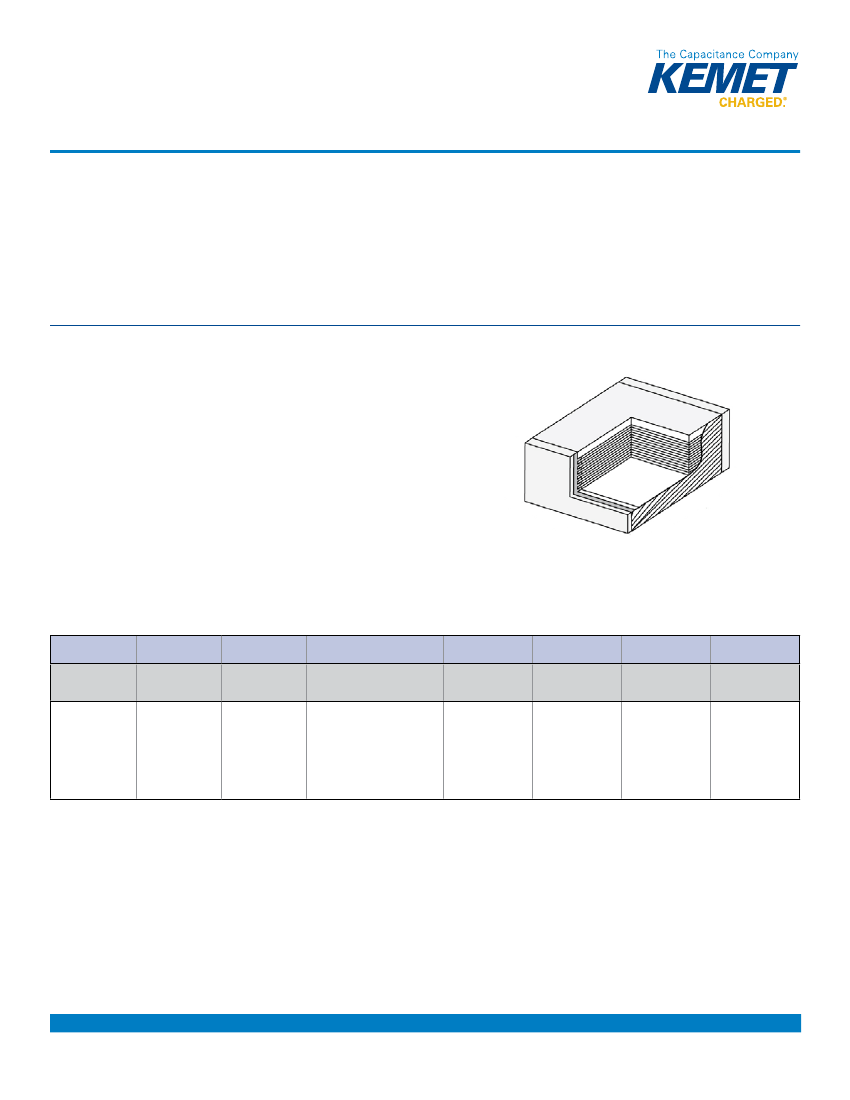

Polyphenylene sulphide (PPS) film capacitor for surface
mounting.
Applications
Typical applications include timing, filtering and use as a memory
capacitor. The LDB Series is designed for high stability, accuracy
and temperature.
Benefits
•
•
•
•
•
•
•
Rated voltage: 16 & 50 VDC
Capacitance range: 0.0033 – 0.1 µF
EIA size: 1206 – 1812
Capacitance tolerance: ±2%, ±5%
Climatic category: 55/125/56
RoHS Complaint and lead-free terminations
Operating temperature range of -55˚C to +125˚C
Part Number System
LDB
Series
Metallized PPS
A
Rated Voltage
(VDC)
A = 16
C = 50
A
Size Code
See Dimension
Table
2120
Capacitance Code (pF)
Digits 2 – 4 indicate the
first three digits of the
capacitance value.
First digit indicates the
number of zeros to be
added.
G
Capacitance
Tolerance
G = ±2%
J = ±5%
C5
Version
C5 = Standard
N
Packaging Code
See Ordering
Options Table
0
Internal Use
0 (Standard)
One world. One KEMET
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3082_LDB • 4/4/2013
1
Film Surface Mount Capacitors
General Purpose, High Stability and AC Line EMI Suppression – LDB Series Unencapsulated Winding, Size 1206 – 1812, 16 & 50 VDC
Ordering Options Table
Packaging Type
Standard Packaging Options
Tape & Reel (Standard Reel)
N
Packaging
Code
Dimensions – Millimeters
F
H
B
L
F
Size Code
A
B
C
Chip Size
(EIA)
1206
1210
1812
B
Nominal
1.7
2.5
3.3
Tolerance
+/-0.2
+/-0.3
+/-0.3
H
Nominal
See Part Number Table
3.3
3.3
4.7
L
Tolerance
+0.3/-0.1
+0.3/-0.1
+0.3/-0.2
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3082_LDB • 4/4/2013
2
Film Surface Mount Capacitors
General Purpose, High Stability and AC Line EMI Suppression – LDB Series Unencapsulated Winding, Size 1206 – 1812, 16 & 50 VDC
Performance Characteristics
Rated Voltage (VDC)
Capacitance Range (μF)
Chip Size (EIA)
Capacitance Values
Capacitance Tolerance
Category Temperature Range
Rated Temperature
Voltage Derating
Climatic Category
16
0.012 – 0.1
1206 – 1812
E12 series
±2%, ±5%
-55°C to +125°C
+105°C
The rated voltage is decreased with
1.25%/°C from +105°C to +125°C
55/125/56
Measured at +25°C ±5°C
Insulation Resistance
Minimum Value Between Terminals
3,000 MΩ
Dissipation Factor
Surge Voltage Test
Maximum Values at 25°C ±5°C
1 kHz
0.6%
50
0.0033 – 0.1
1.75 x V
R
(5 seconds; T = 25 ± 5°C)
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3082_LDB • 4/4/2013
3
Film Surface Mount Capacitors
General Purpose, High Stability and AC Line EMI Suppression – LDB Series Unencapsulated Winding, Size 1206 – 1812, 16 & 50 VDC
Environmental Test Data
Damp Heat, Steady State
Test Conditions
Temperature
Relative Humidity (RH)
Test Duration
+40°C ±2°C
93% ±2%
56 days
Performance
Capacitance Change ∆ C/C
DF Change (∆tgδ)
Insulation Resistance
≤ 5%
≤ 30 x 10
-4
at 1 kHz
≥ 50% of limit value
Endurance
Test Conditions
Temperature
Test Duration
Voltage Applied
125°C ±2°C
2,000 hours
1.25 x V
C
≤ 3%
≤ 30 x 10
-4
at 1 kHz
≥ 50% of limit value
Performance
Capacitance Change ∆ C/C
DF Change (∆tgδ)
Insulation Resistance
Rapid Change of Temperature
Test Conditions
Temperature
Number of Cycles
1 hour at -55°C, 1 hour at +125°C
1,000
Performance
Capacitance Change ∆ C/C
DF Change (∆tgδ)
Insulation Resistance
≤ 5%
≤ 50 x 10
-4
at 1 kHz
≥ limit value
No Mechanical Damage
Environmental Compliance
All KEMET surface mount capacitors are RoHS Compliant.
© KEMET Electronics Corporation • P.O. Box 5928 • Greenville, SC 29606 (864) 963-6300 • www.kemet.com
F3082_LDB • 4/4/2013
4
Film Surface Mount Capacitors
General Purpose, High Stability and AC Line EMI Suppression – LDB Series Unencapsulated Winding, Size 1206 – 1812, 16 & 50 VDC
Table 1 – Ratings & Part Number Reference
VDC
16
16
16
16
16
16
16
16
16
16
16
16
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
50
Capacitance
Value (µF)
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.10
0.0033
0.0039
0.0047
0.0056
0.0068
0.0082
0.010
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.068
0.082
0.10
Size Code
A
A
A
A
A
A
A
A
B
B
B
B
A
A
A
A
A
A
A
A
B
B
B
B
B
B
B
C
C
C
C
Dimensions in mm
B
1.7
1.7
1.7
1.7
1.7
1.7
1.7
1.7
2.5
2.5
2.5
2.5
1.7
1.7
1.7
1.7
1.7
1.7
1.7
1.7
2.5
2.5
2.5
2.5
2.5
2.5
2.5
3.3
3.3
3.3
3.3
H
1.1
1.1
1.1
1.1
1.1
1.1
1.2
1.3
1.7
1.7
1.7
2.0
1.1
1.1
1.1
1.1
1.1
1.1
1.1
1.1
1.4
1.5
1.5
1.5
1.7
1.9
2.3
1.7
1.7
1.7
2.0
L
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
3.3
4.7
4.7
4.7
4.7
Chip Size
1206
1206
1206
1206
1206
1206
1206
1206
1210
1210
1210
1210
1206
1206
1206
1206
1206
1206
1206
1206
1210
1210
1210
1210
1210
1210
1210
1812
1812
1812
1812
New
KEMET
Part Number
DBAA2120(1)C5N0
DBAA2150(1)C5N0
DBAA2180(1)C5N0
DBAA2220(1)C5N0
DBAA2270(1)C5N0
DBAA2330(1)C5N0
DBAA2390(1)C5N0
DBAA2470(1)C5N0
DBAB2560(1)C5N0
DBAB2680(1)C5N0
DBAB2824(1)C5N0
DBAB3100(1)C5N0
DBCA1330(1)C5N0
DBCA1390(1)C5N0
DBCA1470(1)C5N0
DBCA1560(1)C5N0
DBCA1680(1)C5N0
DBCA1820(1)C5N0
DBCA2100(1)C5N0
DBCA2120(1)C5N0
DBCB2150(1)C5N0
DBCB2180(1)C5N0
DBCB2220(1)C5N0
DBCB2270(1)C5N0
DBCB2330(1)C5N0
DBCB2390(1)C5N0
DBCB2470(1)C5N0
DBCC2560(1)C5N0
DBCC2680(1)C5N0
DBCC2824(1)C5N0
DBCC3100(1)C5N0
Legacy Part
Number
LDBAA2120(1)C5N0
LDBAA2150(1)C5N0
LDBAA2180(1)C5N0
LDBAA2220(1)C5N0
LDBAA2270(1)C5N0
LDBAA2330(1)C5N0
LDBAA2390(1)C5N0
LDBAA2470(1)C5N0
LDBAB2560(1)C5N0
LDBAB2680(1)C5N0
LDBAB2824(1)C5N0
LDBAB3100(1)C5N0
LDBCA1330(1)C5N0
LDBCA1390(1)C5N0
LDBCA1470(1)C5N0
LDBCA1560(1)C5N0
LDBCA1680(1)C5N0
LDBCA1820(1)C5N0
LDBCA2100(1)C5N0
LDBCA2120(1)C5N0
LDBCB2150(1)C5N0
LDBCB2180(1)C5N0
LDBCB2220(1)C5N0
LDBCB2270(1)C5N0
LDBCB2330(1)C5N0
LDBCB2390(1)C5N0
LDBCB2470(1)C5N0
LDBCC2560(1)C5N0
LDBCC2680(1)C5N0
LDBCC2824(1)C5N0
LDBCC3100(1)C5N0
VDC
Capacitance
Value (µF)
Size Code
B (mm)
H (mm)
L (mm)
Chip Size
New KEMET
Part Number
Legacy Part Number
(1) G = ±2%, J = ±5%.
