FI-S25P-HFE: DescriptionBoard Connector, 25 Contact(s), 1 Row(s), Right Angle, Surface Mount Terminal, LEAD FREE; CategoryThe connector The connector; File Size96KB，1 Pages; ManufacturerJapan Aviation Electronics Industry Limited; Environmental Compliance

Download Datasheet Parametric Compare View All

FI-S25P-HFE Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FI-S25P-HFE	-	-	View	Buy Now

FI-S25P-HFE Overview

Board Connector, 25 Contact(s), 1 Row(s), Right Angle, Surface Mount Terminal, LEAD FREE

FI-S25P-HFE Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Japan Aviation Electronics Industry Limited
package instruction	LEAD FREE
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	TIN
Contact material	COPPER ALLOY
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	FI
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1.25 mm
Termination type	SURFACE MOUNT
Total number of contacts	25
UL Flammability Code	94V-0

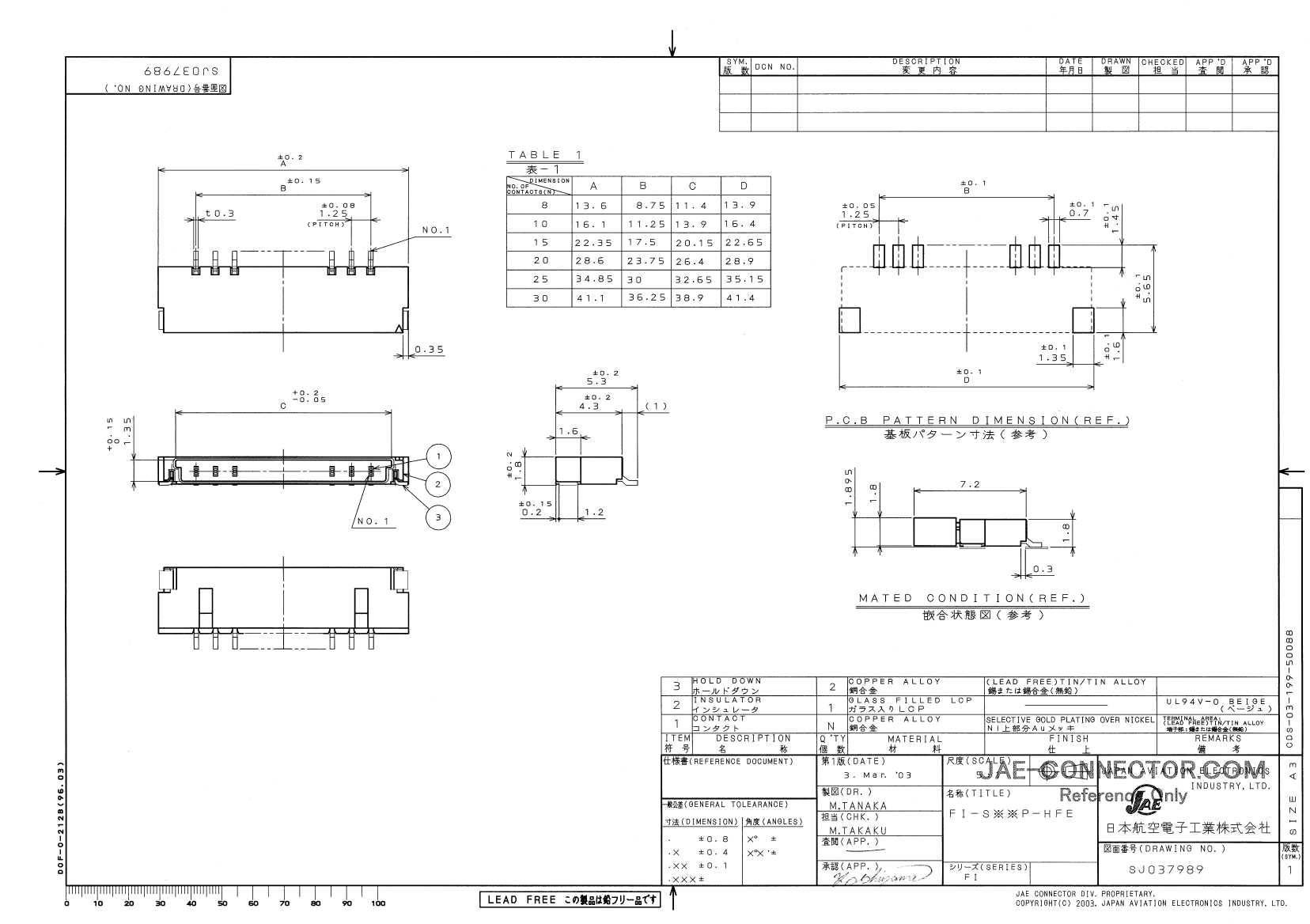

Preview

Download Datasheet

View All

FI-S25P-HFE Related Products

	FI-S25P-HFE	FI-S20P-HFE-E1500	FI-S8P-HFE	FI-S25P-HFE-E1500	FI-S3P-HFE-E1500	FI-S20P-HFE	FI-S10P-HFE	FI-S15P-HFE
Description	Board Connector, 25 Contact(s), 1 Row(s), Right Angle, Surface Mount Terminal, LEAD FREE	Board Connector, 20 Contact(s), 1 Row(s), Male, Right Angle, 0.049 inch Pitch, Surface Mount Terminal, Locking, Beige Insulator, Receptacle, LEAD FREE	Board Connector, 8 Contact(s), 1 Row(s), Male, Right Angle, 0.049 inch Pitch, Surface Mount Terminal, Locking, Receptacle	Board Connector, 25 Contact(s), Surface Mount Terminal, LEAD FREE	Board Connector, 3 Contact(s), Surface Mount Terminal, LEAD FREE	Board Connector, 20 Contact(s), 1 Row(s), Right Angle, Surface Mount Terminal, LEAD FREE	Board Connector, 10 Contact(s), 1 Row(s), Right Angle, Surface Mount Terminal, LEAD FREE	Board Connector, 15 Contact(s), 1 Row(s), Right Angle, Surface Mount Terminal, LEAD FREE
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited	Japan Aviation Electronics Industry Limited
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknow	unknow	unknow
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	NOT SPECIFIED	AU ON NI	NOT SPECIFIED	NOT SPECIFIED	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	25	20	8	25	3	20	10	15
package instruction	LEAD FREE	LEAD FREE	-	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE	LEAD FREE
Contact material	COPPER ALLOY	NOT SPECIFIED	COPPER ALLOY	NOT SPECIFIED	NOT SPECIFIED	-	COPPER ALLOY	COPPER ALLOY
DIN compliance	NO	NO	-	NO	NO	NO	NO	NO
Filter function	NO	NO	-	NO	NO	NO	NO	NO
IEC compliance	NO	NO	-	NO	NO	NO	NO	NO
MIL compliance	NO	NO	-	NO	NO	NO	NO	NO
Manufacturer's serial number	FI	FI	FI	-	FI	-	FI	FI
Mixed contacts	NO	NO	-	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-	-	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Number of rows loaded	1	1	1	-	-	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	1.25 mm	1.2446 mm	1.2446 mm	-	-	1.25 mm	1.25 mm	1.25 mm
